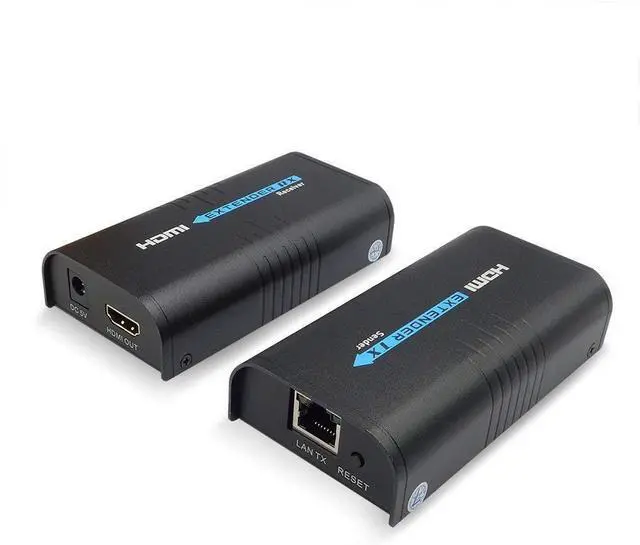

LKV373A 1080P HDMI Extender 365ft/120M Over Single Cat5 /Cat6 /Cat7 Ethernet Network and LAN Router/Switcher for HD STB,DVD,PS3, etc Supports TCP/IP by Ethernet
- LKV373A Version 4.0 Extender-- This upgraded extender transfers HDMI over a single Cat5 / Cat5e / Cat6 / Cat7 ethernet cable; It can transmit HDMI signal source from HD STB, DVD, PS3, HDMI display card to HD projector, DLP, LCD, LED and other audio-visual equipment. Extends by Router connection or LAN connection
- 1080P Video Transmission-- This HDMI extender can transfer videos up to 1080p (1920x1080) resolutionit extends the HDMI signal up to 390ft/120m with Cat5 or higher quality of cable following the standard of IEEE-568B
- Supported HDMI Format--480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
- Switch & Router Compatible--The extender is "one to many" design, which means that you can use it as a splitter by connecting multiple receivers to one transmitter in the local network via switcher or router. If you need more receivers, please search B01H03VE40
- High Tech Support-- The image is compressed with applying M-JPE
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Note: This extender is version 4.0, not compatible for version 2.0. Please confirm before purchase, thanks!
Description
The LKV373A HDMI extender is designed to convert HDMI signal to standard TCP/IP and transmit by CAT5e/6 Cable or LAN. With the advantage of TCP/IP standard, it can transmit HDMI signal source from HD STb, DVD, PS3, HDMI display card etc to HD projector, DLP, LCD, LED and other audio visual equipments.

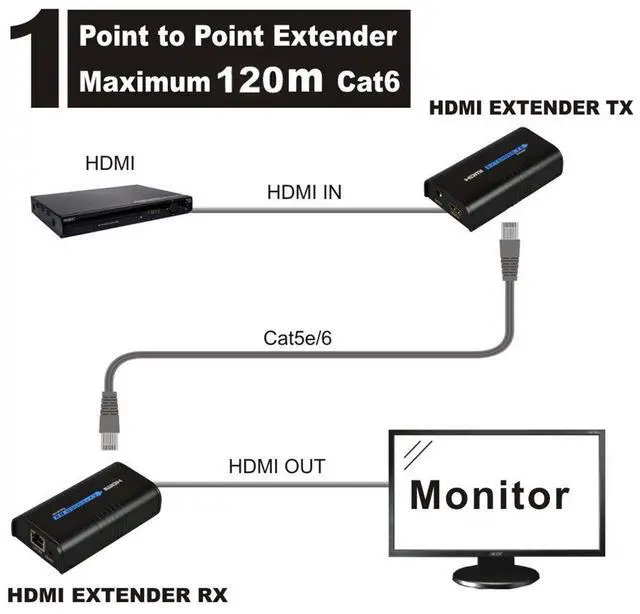

Extends by Router connection or LAN connection, Cable length requirements are as follows:
CAT5 Maximum 80 meters between two Devices
CAT5e Maximum 100 meters between two Devices
CAT6 Maximum 120 meters between two Devices
Specification
Supports resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Working Temperature: -10 ~60
Link Connector(Sender/Receiver): UTP/STP CAT5e/6
Power Consumption: 3W (max) each
Relative Humidity: 20%~90%
Power Supply: DC 5V/1A
Dimensions: 110 x 58 x 26 mm
Weight: 239 g
Cat5e/6/7 cable: standard IEEE-568b
Package Included
1 * LKV373A HDMI Extender Sender
1 * LKV373A HDMI Extender Receiver
2 * power supplier
1 * User manual
Description
The LKV373A HDMI extender is designed to convert HDMI signal to standard TCP/IP and transmit by CAT5e/6 Cable or LAN. With the advantage of TCP/IP standard, it can transmit HDMI signal source from HD STb, DVD, PS3, HDMI display card etc to HD projector, DLP, LCD, LED and other audio visual equipments.
Extends by Router connection or LAN connection, Cable length requirements are as follows:
CAT5 Maximum 80 meters between two Devices
CAT5e Maximum 100 meters between two Devices
CAT6 Maximum 120 meters between two Devices
Specification
Supports resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Working Temperature: -10 ~60
Link Connector(Sender/Receiver): UTP/STP CAT5e/6
Power Consumption: 3W (max) each
Relative Humidity: 20%~90%
Power Supply: DC 5V/1A
Dimensions: 110 x 58 x 26 mm
Weight: 239 g
Cat5e/6/7 cable: standard IEEE-568b
Package Included
1 * LKV373A HDMI Extender Sender
1 * LKV373A HDMI Extender Receiver
2 * power supplier
1 * User manual
