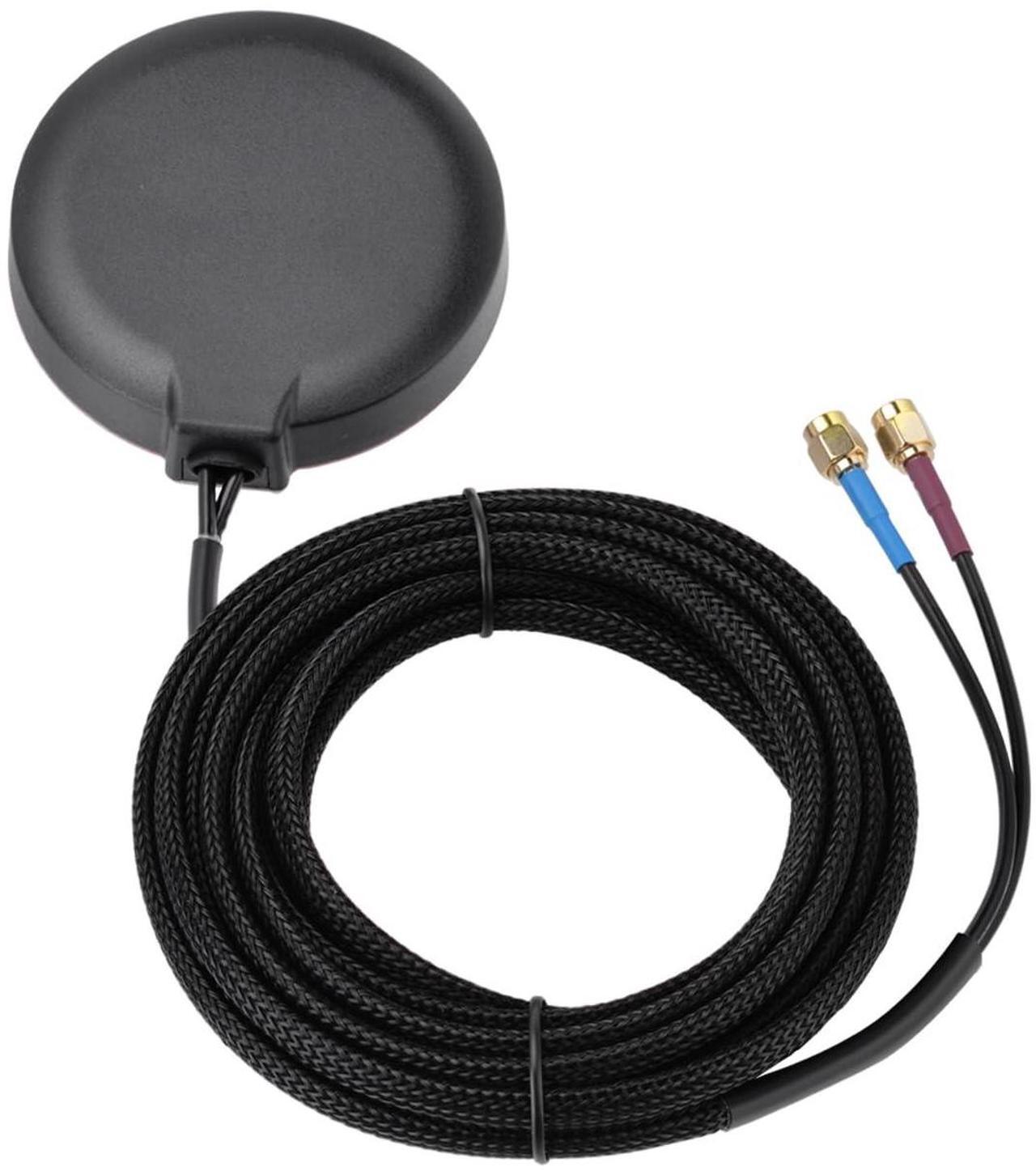

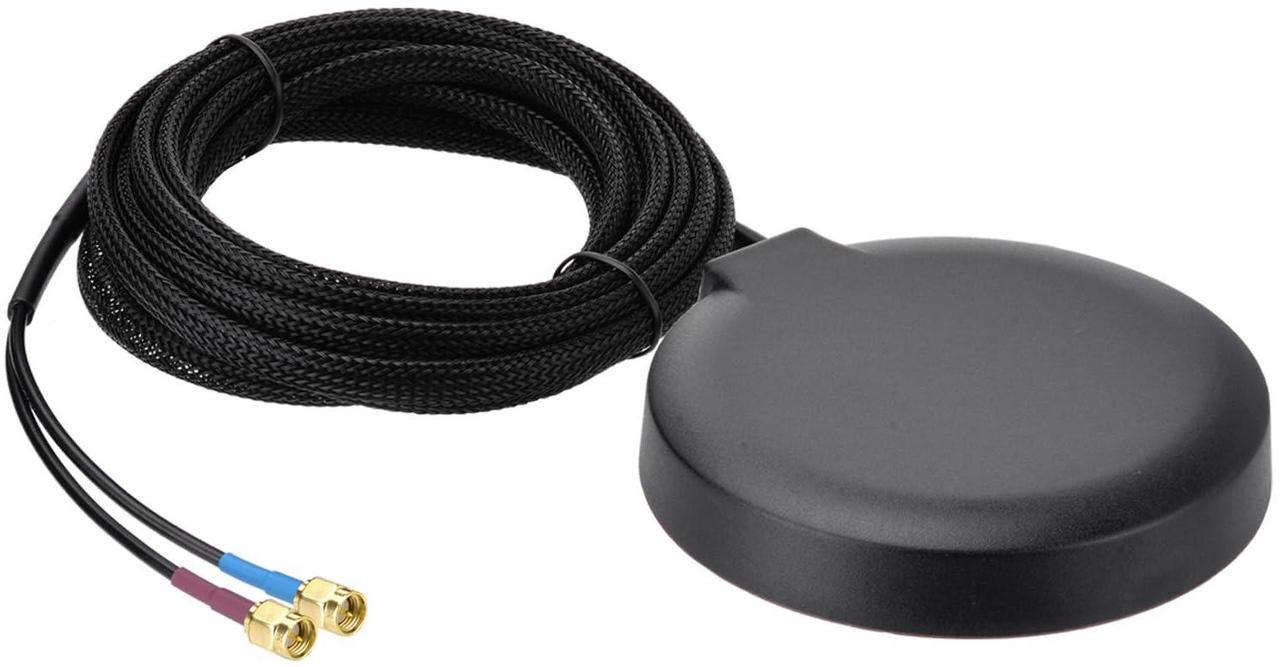

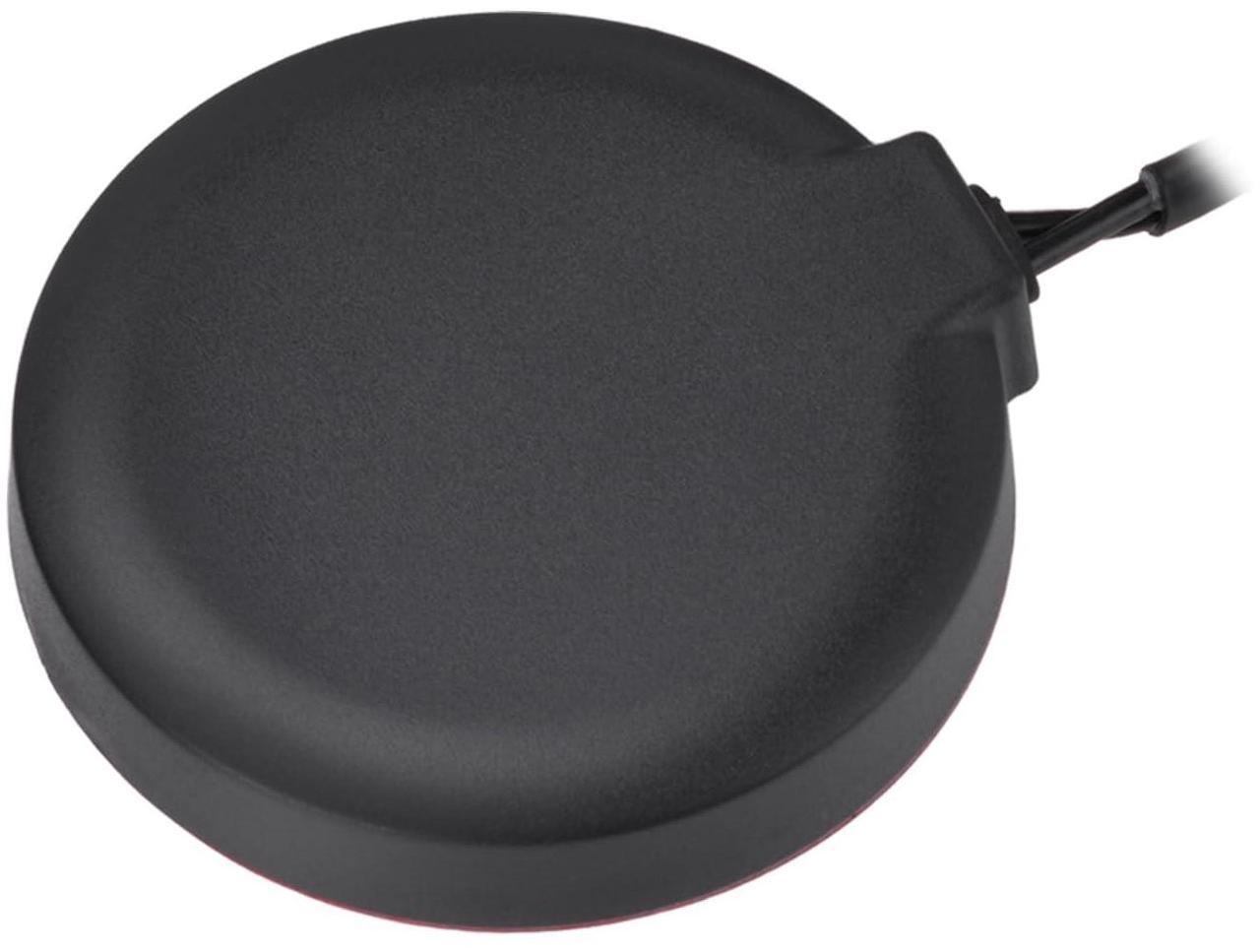

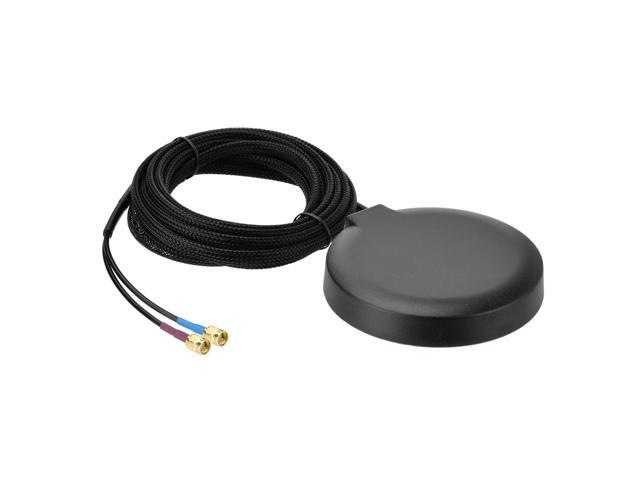

SUPERBAT 4G LTE Cellular GPS Adhesive Magnetic Mount Combination Antenna with SMA Male Connector for 4G LTE Industrial Gateway Mobile Router Trail Camera Gateway Modem Vehicle Car Truck Bus Van
- 2 in 1 Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna for GPS Navigation Head Unit Car Telematics 4G LTE Mobile moden System

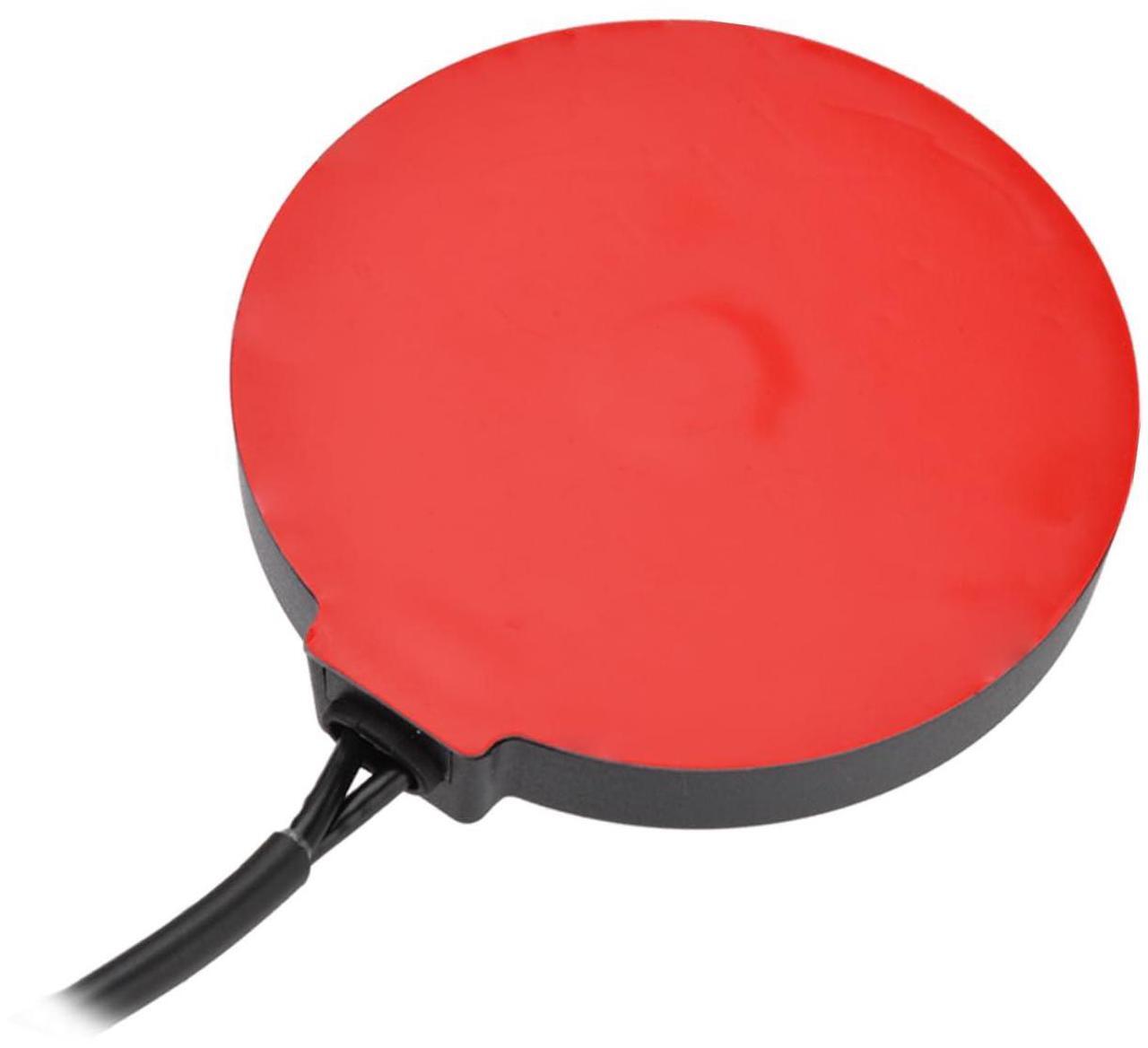

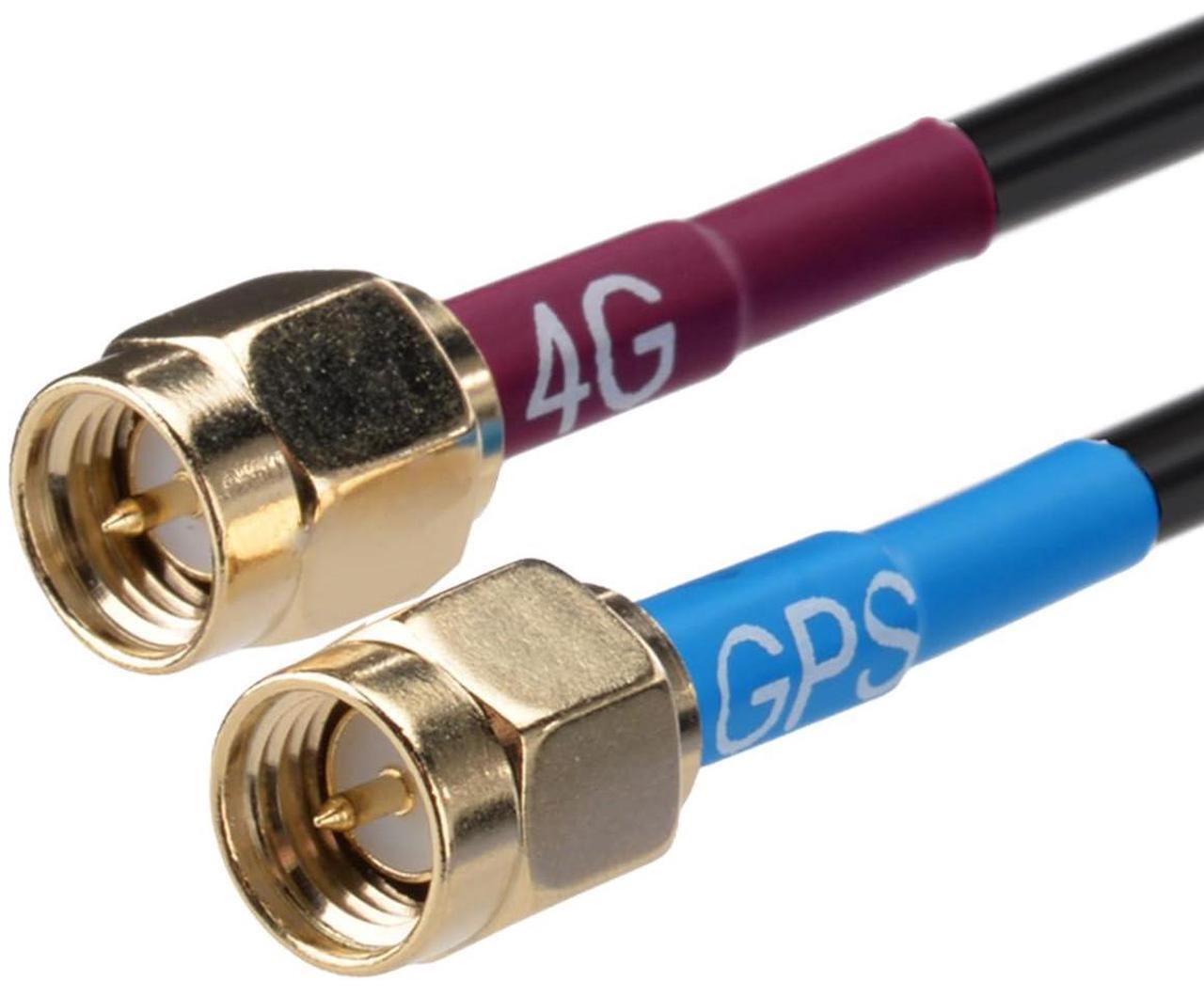

- Feature: Adhesive and magnetic mounting methods for easy and convenient installation; Connector: GPS/4G Double SMA Male Connector; Cable: Dual 3 Meters/10ft Cable;
- Compatible with: Internet Of Things IOT; Machine-to-Machine M2M; Industrial Vending Machine DTU Gateway Modem Terminal Server; Trail Camera
- Compatible with: Vehicle Car 4G LTE TCU Telematics; 4G LTE GPS Tracker Locator; Vehicle RV Bus Truck Boat Mobile DVR Camera Security Real Time Video Recorder; Bus Truck RV Van Security Alarm System, 4G LTE Industrial Gateway Mobile Router
- Woven Mesh Sheath:The outer layer of the cable is added with high temperature resistant, high quality braided mesh, which is not easy to break during use and protects the coaxial cable from mechanical abrasion, prolonging its service life
+
+
Overview
Specs
Reviews
Specification:
GPS Antenna
Frequency Range: 1575.42 +-3MHz
Polarization: RHCP
Gain: 2dBic (Zenith)
V. S. W.
R: <1.5
Impedance: 50O
Cable: 3 Meters/10ft RG174
Connector: SMA Male
Radome Material: ABS
Mounting Method: Magnet/Adhesive
LTE Antenna
Frequency Range: 698~960MHz/1710~2690MHz
V. S. W.
R: <3.0
Polarization: Linear
Gain: 2dBi
Impedance: 50O
Cable: 3 Meters/10ft RG174
Connector: SMA Male
Radome Material: ABS
Mounting Method: Magnet/Adhesive
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
Package Content: 1 x 4G GPS Combined Antenna
GPS Antenna
Frequency Range: 1575.42 +-3MHz
Polarization: RHCP
Gain: 2dBic (Zenith)
V. S. W.
R: <1.5
Impedance: 50O
Cable: 3 Meters/10ft RG174
Connector: SMA Male
Radome Material: ABS
Mounting Method: Magnet/Adhesive
LTE Antenna
Frequency Range: 698~960MHz/1710~2690MHz
V. S. W.
R: <3.0
Polarization: Linear
Gain: 2dBi
Impedance: 50O
Cable: 3 Meters/10ft RG174
Connector: SMA Male
Radome Material: ABS
Mounting Method: Magnet/Adhesive
Operating Temperature: -40~+85
Relative Humidity: Up to 95%
Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5 mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
Package Content: 1 x 4G GPS Combined Antenna
