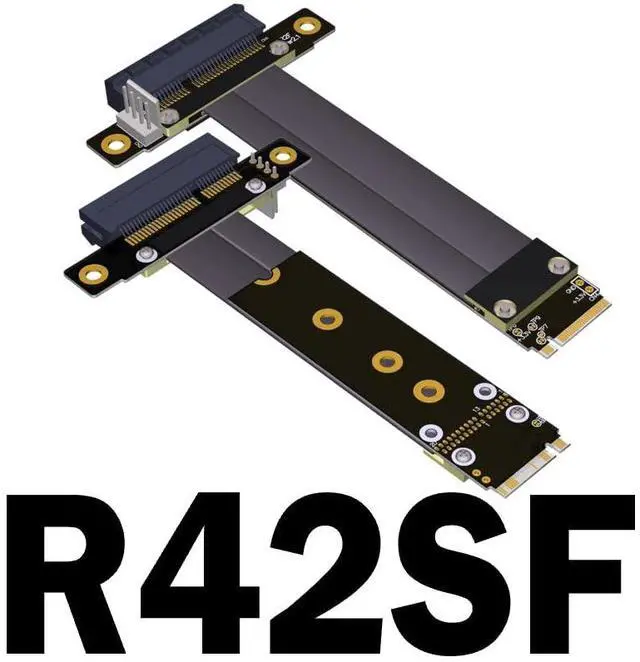

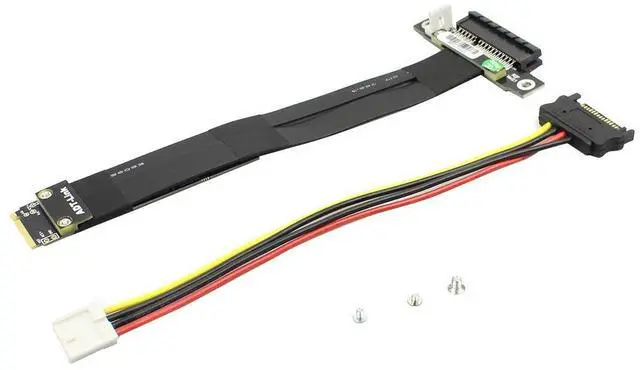

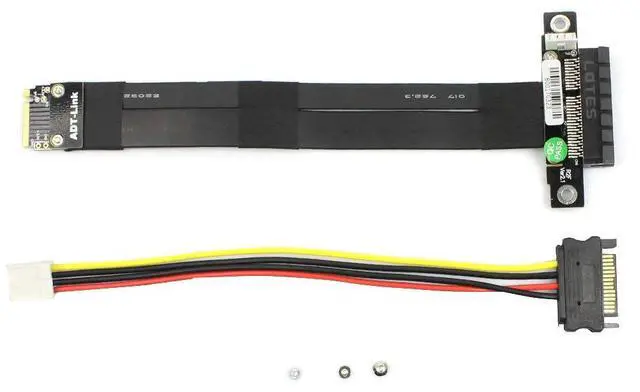

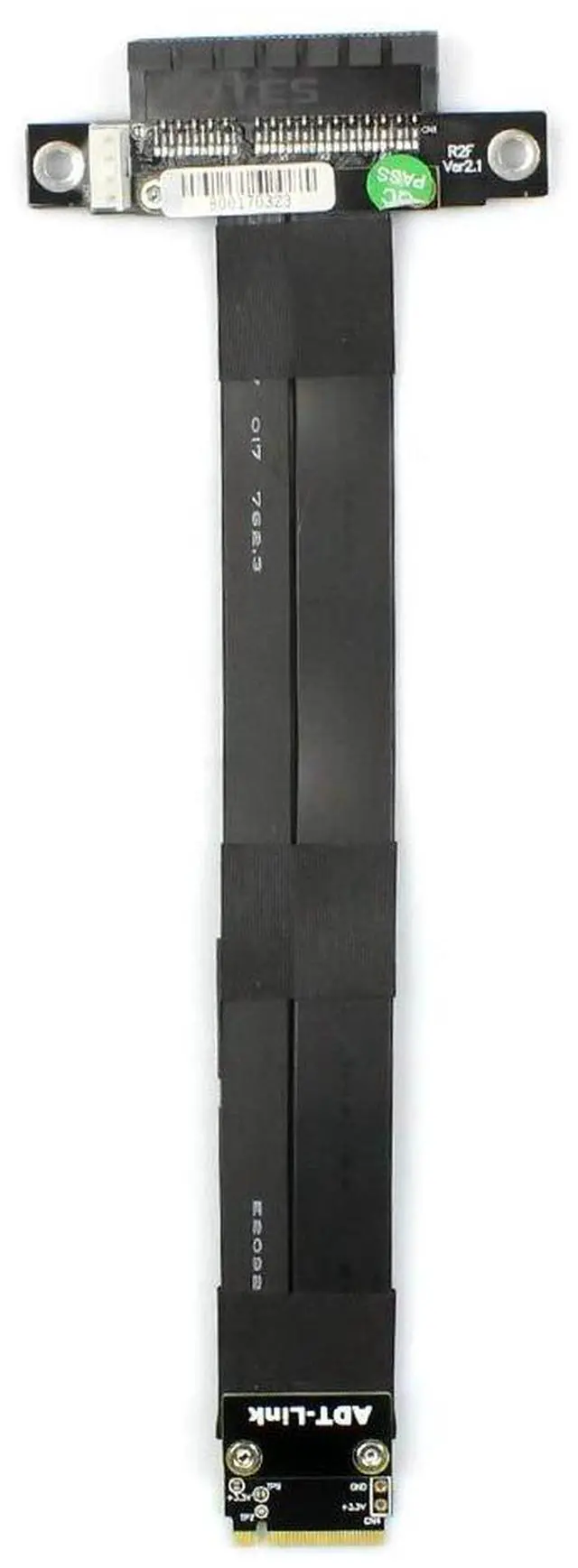

JMT ADT-R42 Series PCI-E 4X to M.2 NGFF NVMe M Key 2280 Riser Card 32G/BPS PCIe 3.0 x4 High Speed M2 Key-M PCI-Express Extension Cable (R42SF 15CM)

JMT PCI-E 4X to M. 2 NGFF NVMe M Key 2280 Riser Card 32G/bps PCIe 3.0 x4 High Speed M2 Key-M PCI-Express Extension Cable ADT-R42 Series

Descriptions:
Product model: ADT R42 series of goods
Product Name: PCI-E Adapter Board Extension Cable
Wire length: 10~80cm, support batch order customization
Bandwidth speed: PCIe 3.0 x4 gen3; 32G/bps
Applicable card: high-speed network card, capture card, NVMe SSD hard disk card, USB adapter card, support PCI-E x4 interface.
Note: This product does not support notebook external.

Wire length description:
The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector.

Product advantage:

1.
Wire advantages: using the German patent imported wire, using the Lotes connectors which imported from Taiwan, high frequency support PCIe 3.0 x4 32G/bps stable transfer.
2. Differential signal without hole design, there is no problem of signal attenuation interference in a parasitic capacitance and parasitic inductance, there will be no more CAF micro short circuit, cable is durability.
3. PCB use high frequency low resistance of materials with high quality, PCB using high TG board, copper thickness thicken to 1oz, gold finger plating enough gold, Good conductive performance, can reduce oxidize higher impedance caused by the crash blue screen.
