xicoolee IMX219 8MP USB Camera Module for Jetson Nano 30fps Mini Camera Board Fixed-focus 130 Degree FOV 8 Megapixels 3296x2512 Resolution 15P-1.0 MIPI Interface
- On-board HD CMOS image sensor IMX219 with 8 Megapixel fixed focus 130 degrees wide angle supports ISP (image signal processing), high-speed video shooting, lens shading compensation function; This IMX219-130 mini camera supports for Jetson Nano operating system. Maximum Resolution is 3296x2512 for sharp image and accurate color reproduction; Lens Specifications: CMOS Size: 1/4"; F/No: 2.4; EFL: 1.85mm; FOV: 130 degrees; TV Distortion: <7.6%; Maximum Resolution: 3296x2512; Supply Voltage: 3.3V(pin15); The IMX219 8MP camera module adopts 15P-1.0 MIPI interface, weights only 10g, lightweight to use; This camera meets the basic functional requirements of high sensitivity, high frame rate shooting for high-performance photography applications, suitable for AI projects such as: face recognition, road mark detection and License plate recognition etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

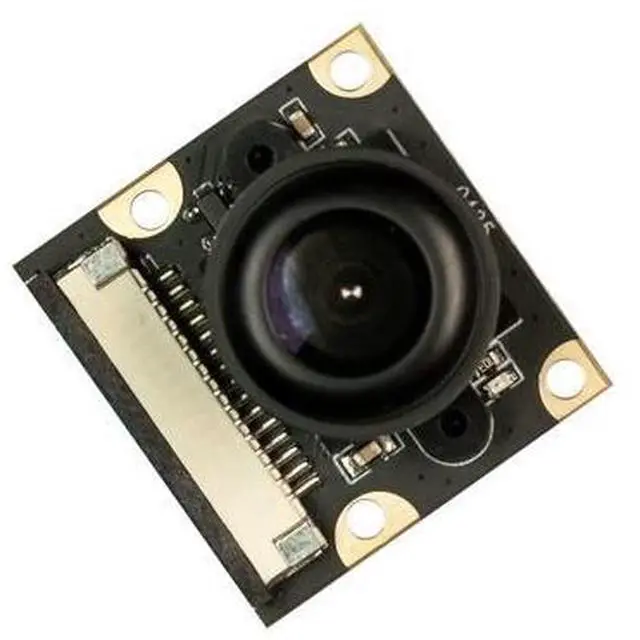

Overview: This camera module adopts IMX219 CMOS image sensor. The HD camera has 8 Megapixel, excellent anti blurring characteristics, adopts 15P- 1.0 MIPI interface, weights only 10g, adopts fixed focus mode, and supports Jetson Nano operating system.
Size: 25mm (Length) *24mm (Width) *14mm (High) +- 0.5 mm
Temperature (Operation): -20~70
Temperature (Stable Image): 0~50
Assembly Technique: SMT (ROSH)
Focus: Fixed
Object Distance: 30CM-Infinity
Resolution: 800LW/PH (Center)
Interface: 15P- 1.0 MIPI
Supply Voltage: 3.3V (pin15)
Operating System: Jetson
Nano Sensor: IMX219 (1/4")
Sensor Package: PLCC, Bare Die
Maximum Resolution: 3296*2512
Sensitivity: 600mv/(lux-sec)
Pixel Size: 1.12 um x 1.12 um Maximum
Image Transfer Rate: 30 fps for
QSXGA S/N Ratio: 39db
Dynamic Range: 69db
Output Formats: 8/10bit RGB
RAM Output Lens Construction: 4E+IR
F/No: 2.4
EFL: 1.85 mm
BFL (Optical): 1.95 mm
FOV: 130deg
TV Distortion: < 7.6 % Relative
Illumination (Sensor): 70%
IR Filter: 650+-10nm
Package: Anti-electrostatic tray
Package Contents: 1. IMX219-C8M-130 x1 2. 15P- 1.0 MIPI connecting cable x1

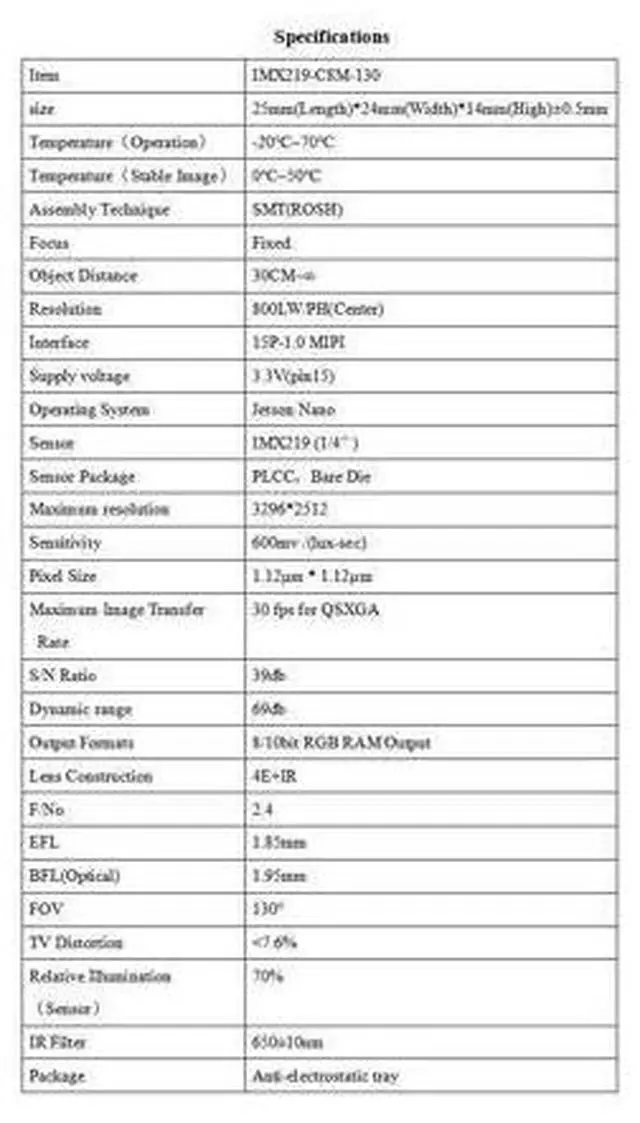

Specifications
:Size: 25mm (Length) *24mm (Width) *14mm (High) +- 0.5 mm
Temperature (Operation): -20~70
Temperature (Stable Image): 0~50
Assembly Technique: SMT (ROSH)
Focus: Fixed
Object Distance: 30CM-Infinity
Resolution: 800LW/PH (Center)
Interface: 15P- 1.0 MIPI
Supply Voltage: 3.3V (pin15)
Operating System: Jetson
Nano Sensor: IMX219 (1/4")
Sensor Package: PLCC, Bare Die
Maximum Resolution: 3296*2512
Sensitivity: 600mv/(lux-sec)
Pixel Size: 1.12 um x 1.12 um Maximum
Image Transfer Rate: 30 fps for
QSXGA S/N Ratio: 39db
Dynamic Range: 69db
Output Formats: 8/10bit RGB
RAM Output Lens Construction: 4E+IR
F/No: 2.4
EFL: 1.85 mm
BFL (Optical): 1.95 mm
FOV: 130deg
TV Distortion: < 7.6 % Relative
Illumination (Sensor): 70%
IR Filter: 650+-10nm
Package: Anti-electrostatic tray
Package Contents: 1. IMX219-C8M-130 x1 2. 15P- 1.0 MIPI connecting cable x1
