5pcs RCWL-0516 4-28V 3mA Microwave Radar Sensor Human Body Induction Switch Module Prober

Features:

Size: approx. 1.7 x 3.5cm / 0.67 x 1.38"

Operating voltage: 4 - 28V

Operating current: 2.8mA (typical), 3mA (max)

Probe distance: 5-9m

Transmitting power: 20mW (typical), 30mW (max)

Output voltage: 3.2 - 3.4V

Output voltage driving capacity: 100mA

Output control low level: 0V

Output control high level: 3.3V

Operating temperature: -20 - 80

Storage temperature: -40 - 100

Trigger way: repeat trigger

Adjustable distance, high sensitivity, the module has a far sensing distance, reliable, large induction angle and has a wide supply voltage range

Widely used in a variety of human induction lighting and burglar alarm and so on.

More document click to download:0516

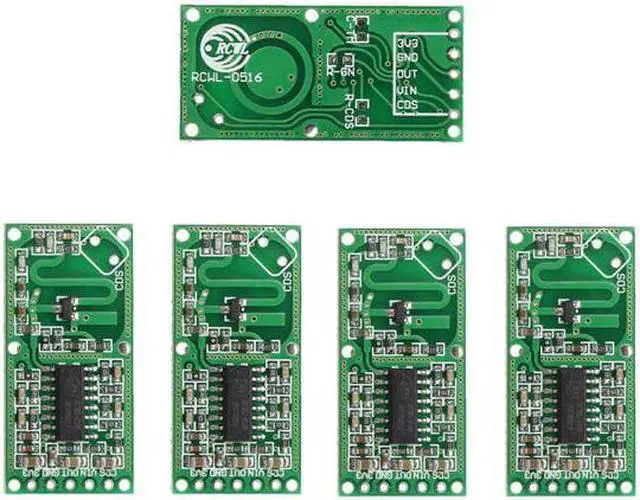

Adjustment part introduction:

C-TM:

Adjust repeat trigger time, default trigger time is 2s; increasing capacitor's capacity will make repeat trigger time longer; and actual counting trigger time can operate as below: Stick capacitor on C-TM, test 9196 3-pin frequency F, repeat trigger time T=(1/f)*32768.

R-GN:

Probe distance adjustment;connect with resistor and

probe

distance will become shorter; if not connect,

probe

distance is 7m; if connect with 1M ohm resistor,

probe

distance is 5m.

R-CDS:

Internal VCC parallel connect with internal 1M ohm resistor to CDS pin (that is 196 9-pin) by R-CDS, CDS connects with photoresistor, you can close

probe

function at night.

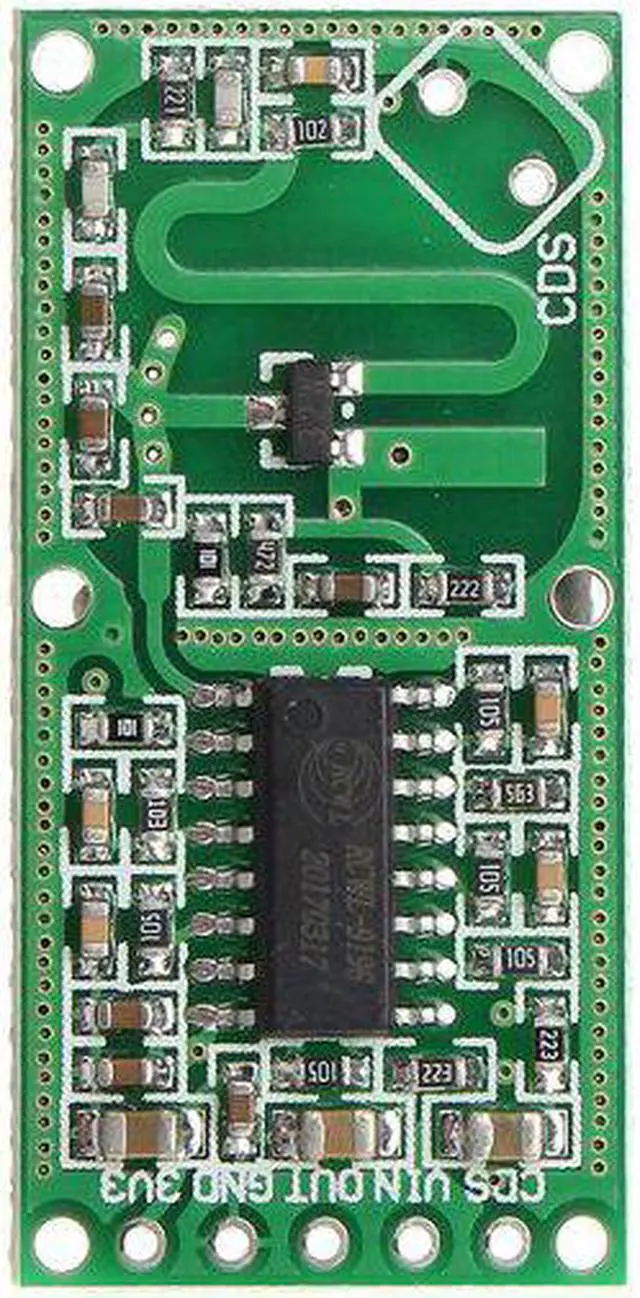

Pin definition:

3V3: 3V3 power output

GND: ground

OUT: control output; when

probe

moving objects, it will output high level

VIN: input voltage, 4-28V

CDS: enable control chip, lower than 0.7V, OUT will output low level all the time

Package included:

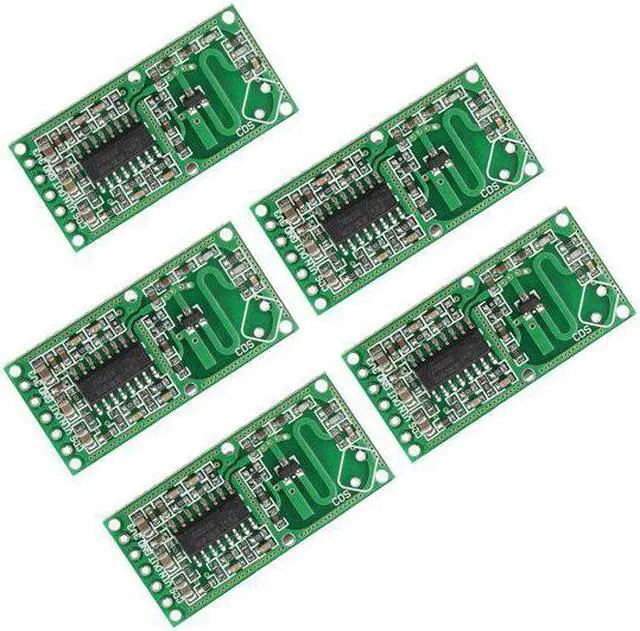

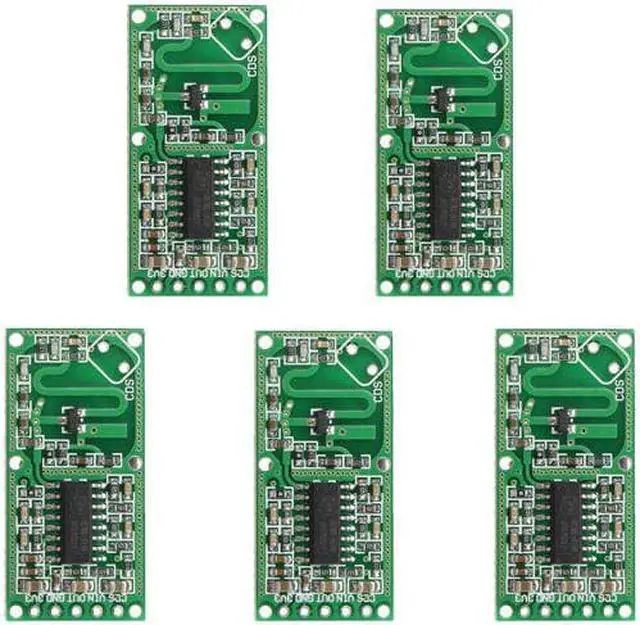

5 x RCWL-0516 sensor module

,,
