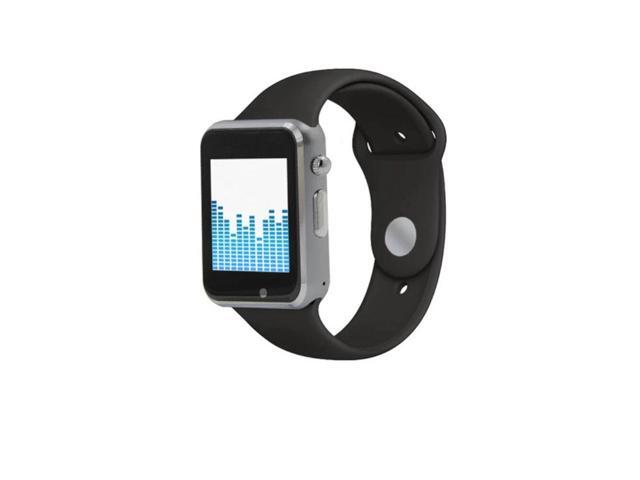

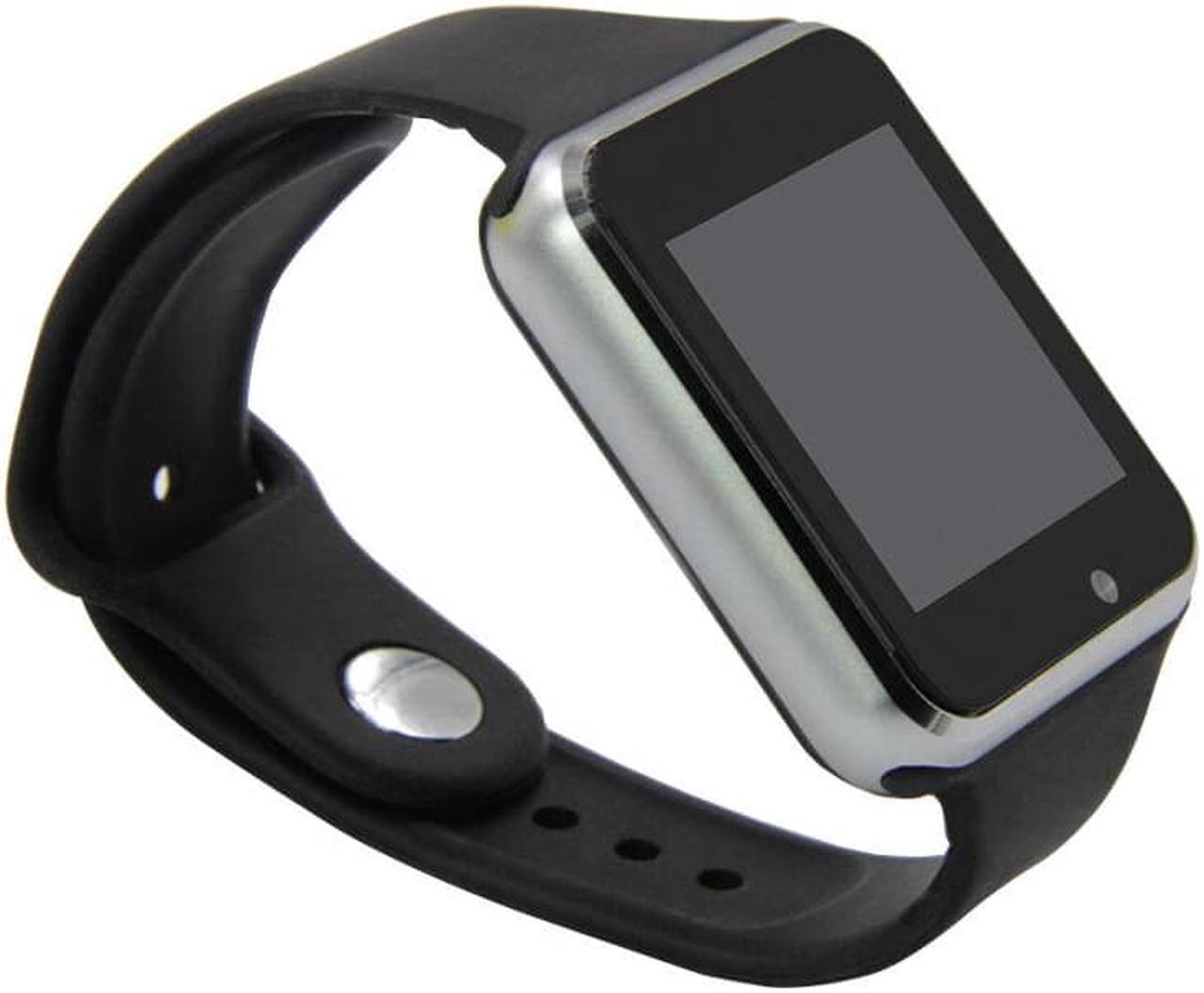

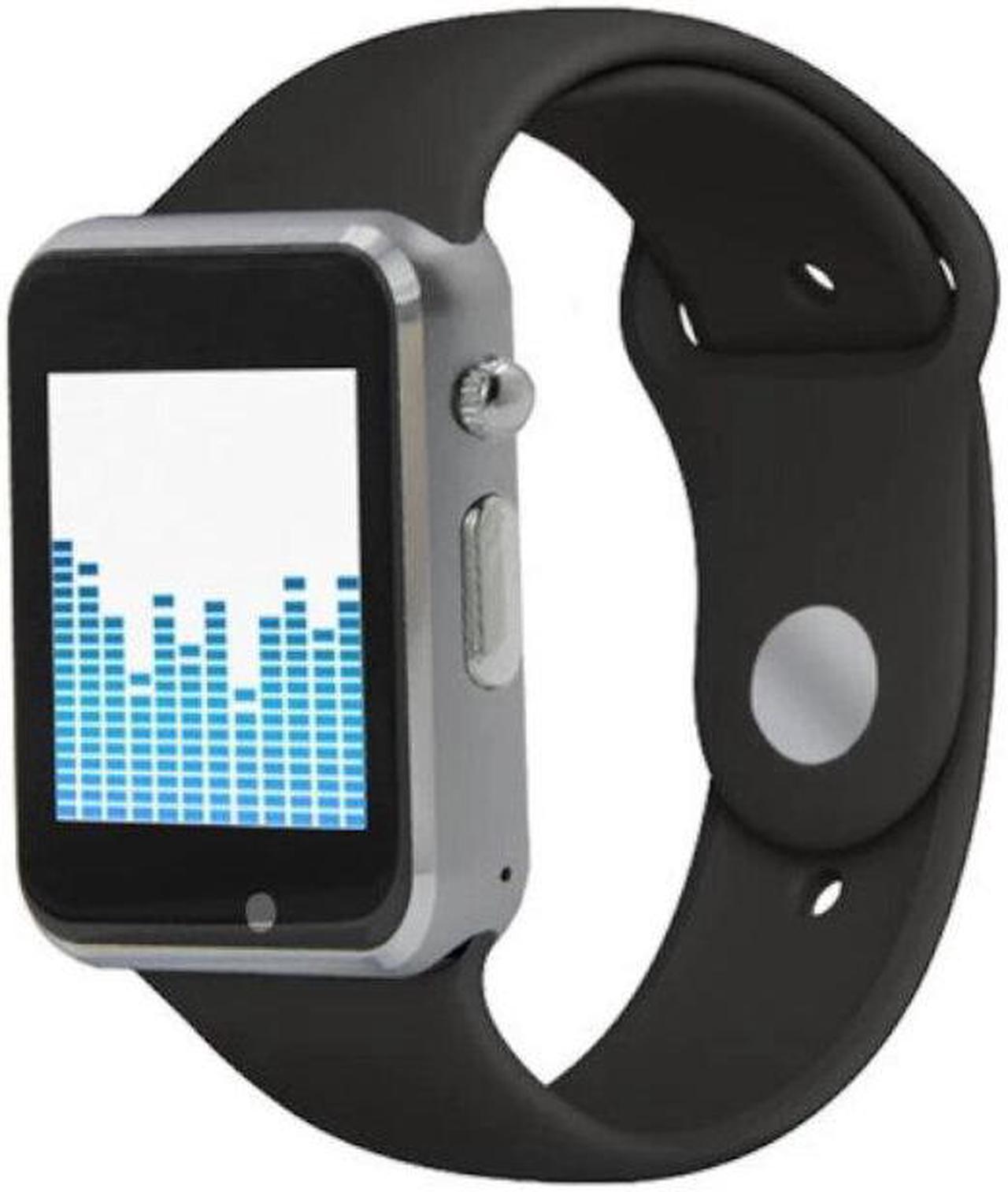

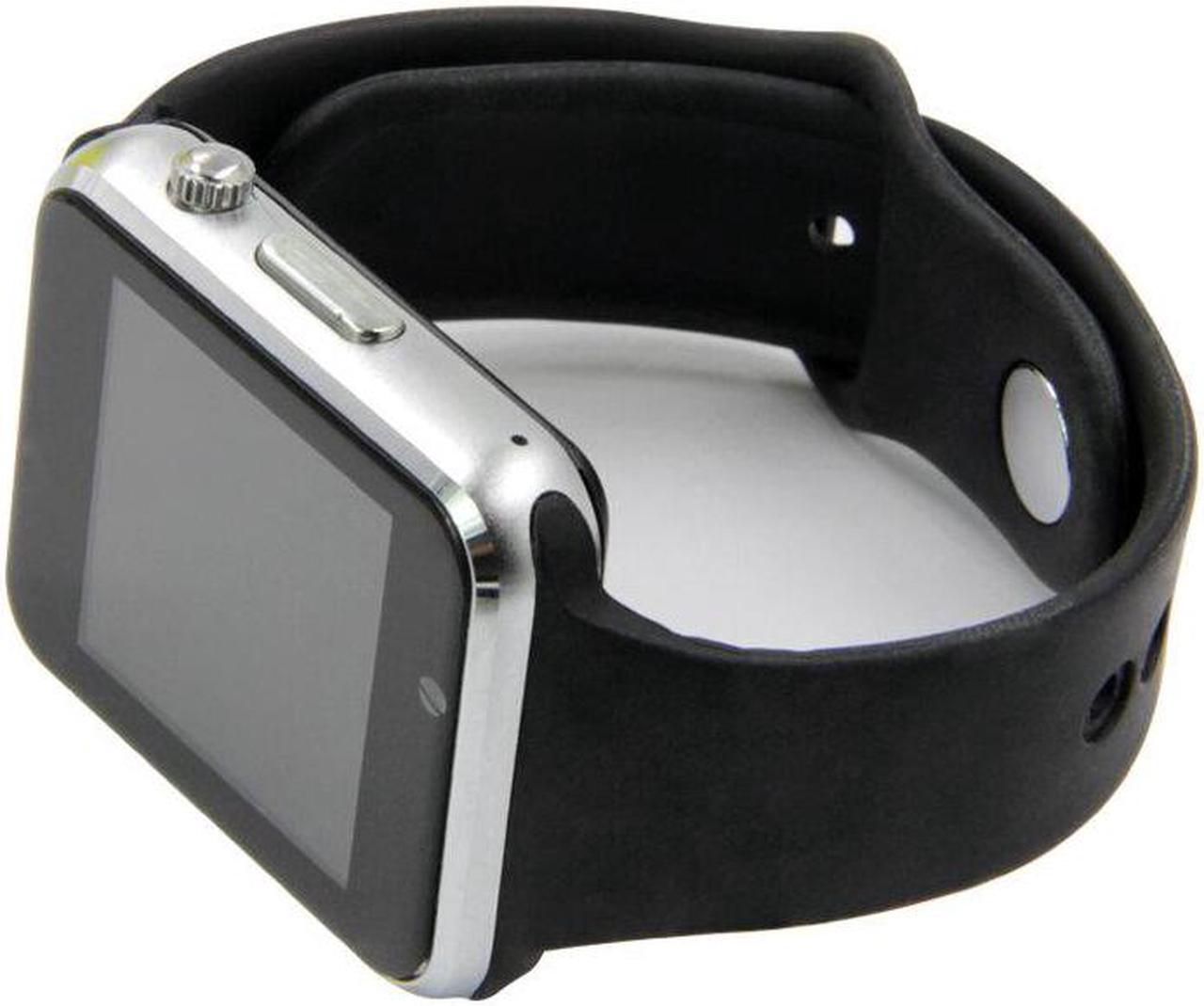

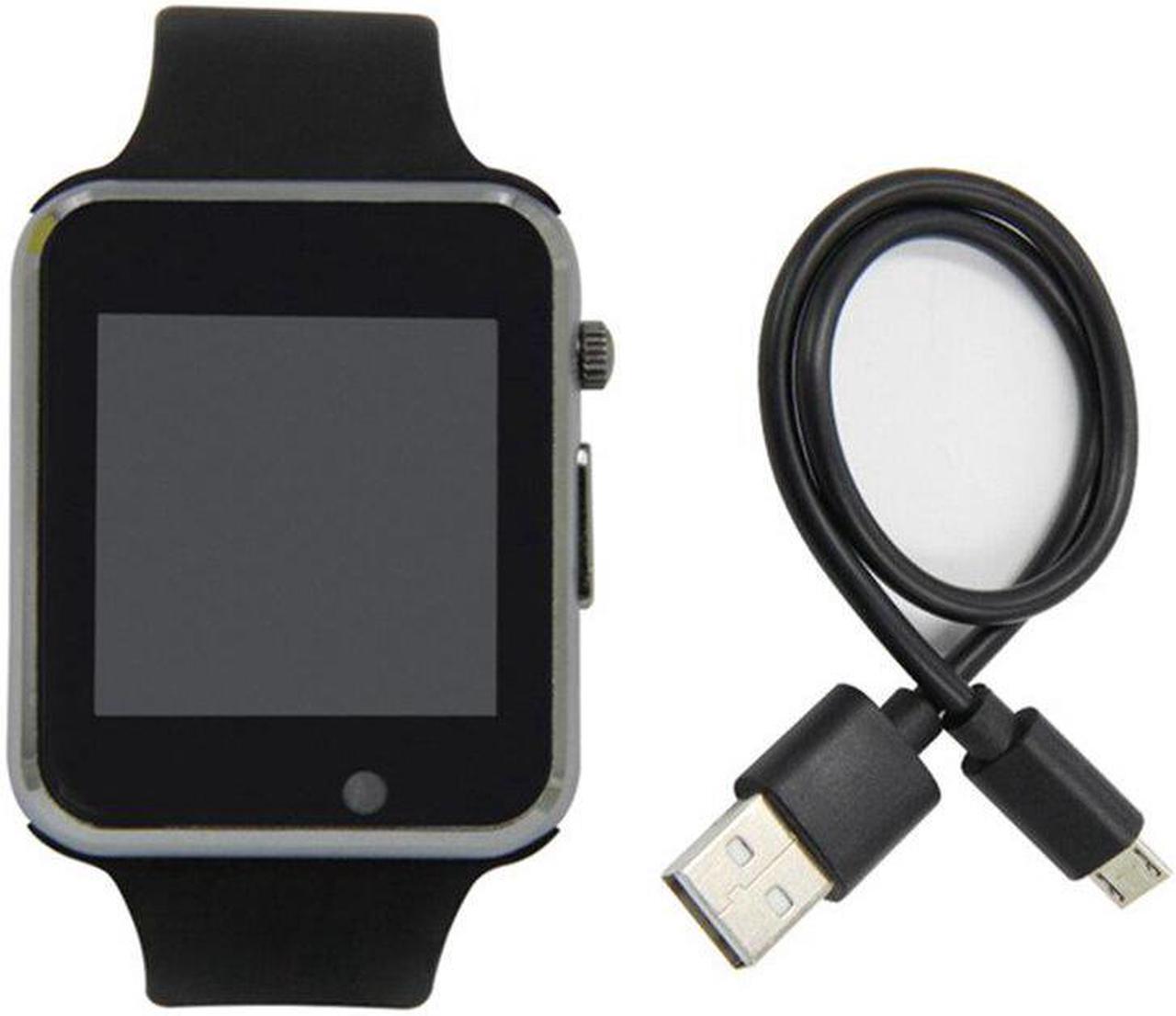

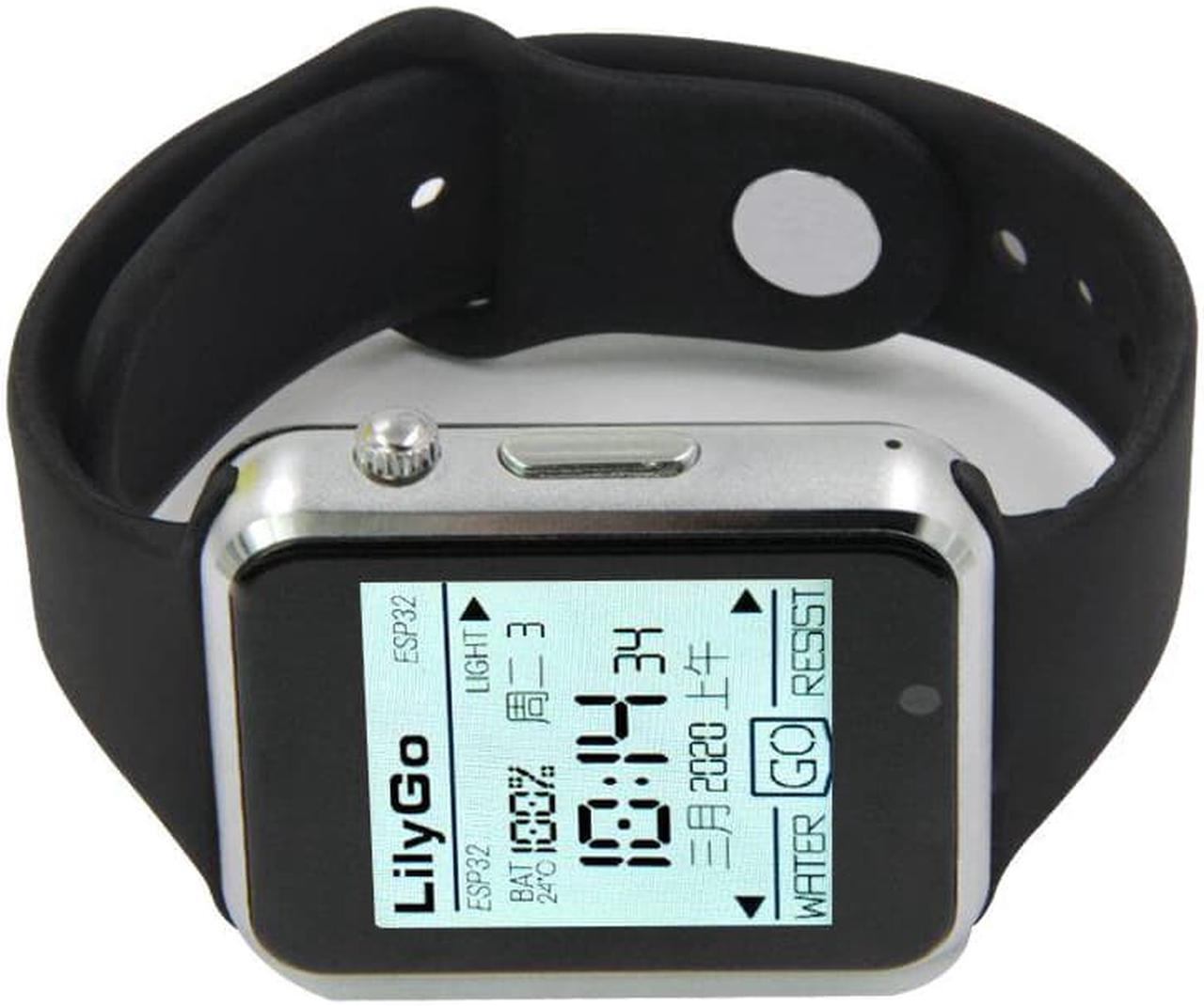

T-WATCH-2020 V3 Microphone IPS Touchable ESP32 WIFI Bluetooth Vibration Motor Speaker Three-axis Accelerometer Pedometer Programmable Watch Device

Introduction:

T-WATCH-2020 V3 is based on the hardware function of T-WATCH-2020 and adds the PDM microphone function, which makes the product functions richer and more interesting. With the MAX98357 I2S speaker, it is connected to the cloud and can be used to make intelligent voice control.

About T-WATCH-2020:

T-WATCH-2020 has three versions now, T-WATCH-2020 v1 version (Product ID: 1671427)

,

T-WATCH-2020 V2 version (Product ID: 1823064)

,

and T-WATCH-2020 V3 version (this item)

, where V3 is T-WATCH-2020 V1 based on the addition of PDM Microphone, T-WATCH-2020 V2 version replaces the function of MAX98357 of V1 version with GPS function and expands to TF card holder.

T-WATCH-2020 is based on a design concept that can be programmed, can be worn, can be networked, and can be interactive. Integrated ESP32 with WIFI/Bluetooth, easy to program and develop, and more convenient to connect to the Internet. 2D IPS 1.54 inch watch capacitive touch screen using OCA process, zinc alloy metal process frame, making the device structure more robust and beautiful. Suitable for wearable use, The sensitive capacitive touch screen makes human-computer interaction smoother.

Host parameters:

-Esp32 V3 chip WiFi / Bluetooth

-FLASH 16MB

-SRAM 520 kB SRAM / PSRAM 8MB

-Custom function power button (6S / off) (/ 2S / on)

-USB to TTL CP2104

-OCA process of 1.54 inch IPS 2D arc capacitive touch screen

-Step algorithm function of bma423 three axis accelerometer

-AXP202 PMU

-Pcf853 RTC chip

-Max98357 I2S amplifier chip

-8O @ 1W speaker

-Vibrating motor

-Infrared signal transmitter

-PDM microphone added to t-watch-2020 V3

Application scenarios:

- IOT terminal controller
