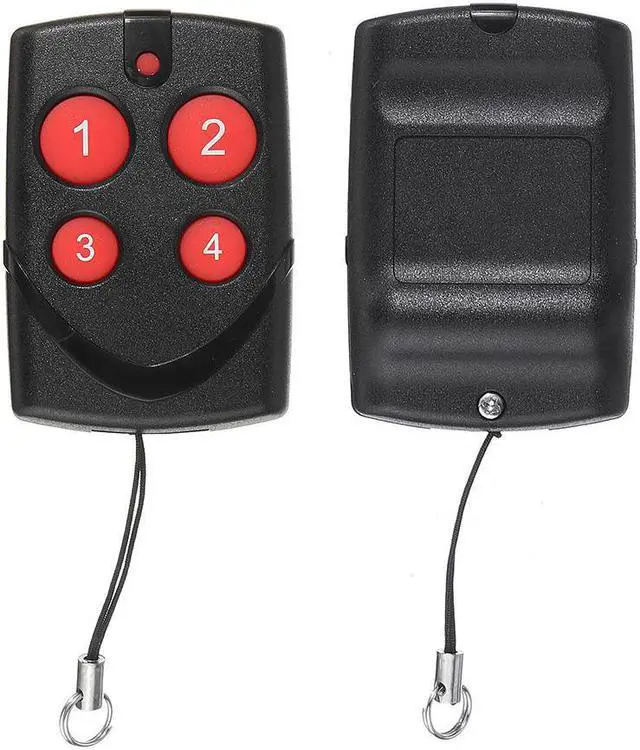

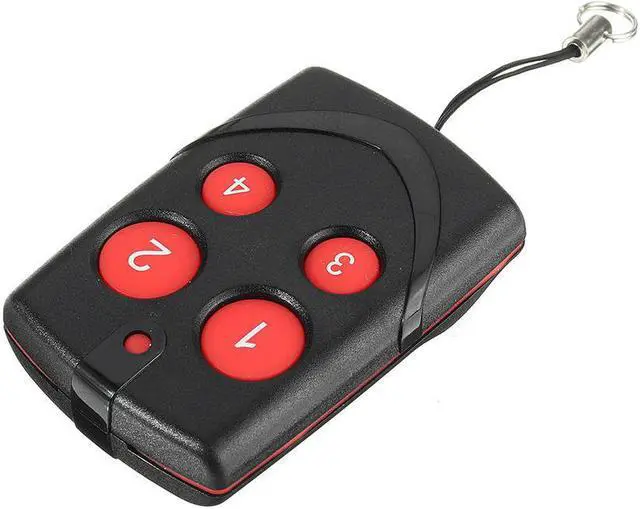

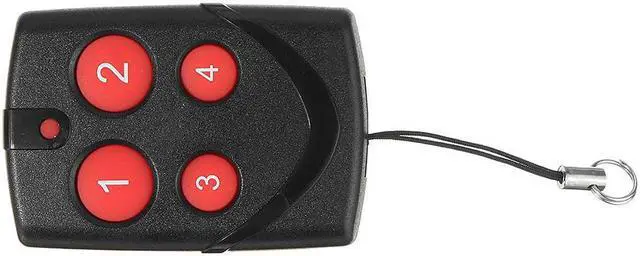

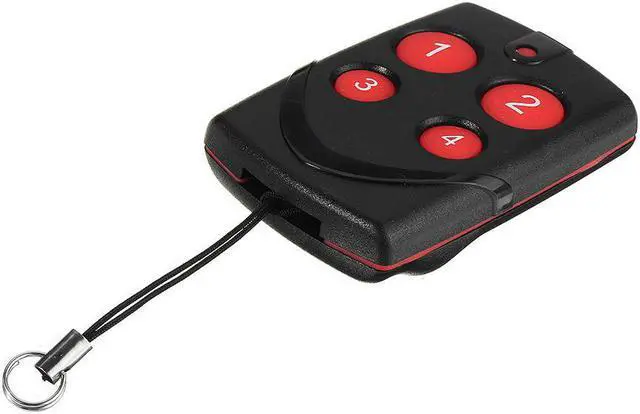

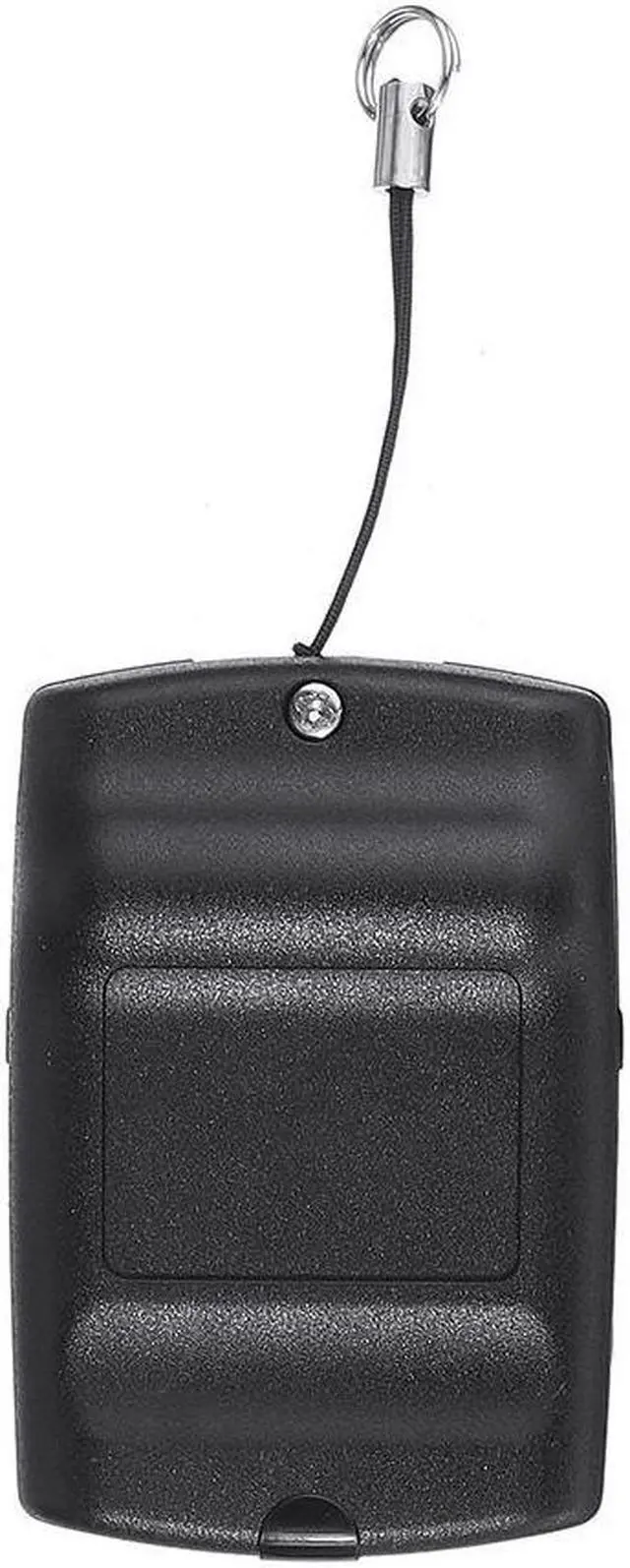

12V Universal 4CH Channel Copy Wireless Remote Control Multi-frequency Learning Code Transmitter

Feature:

Product Name: Multi-frequency copy wireless remote control DP1099A

Product specifications: 55 x 37 x 15mm

Working frequency: adjustable frequency range 300 ~ 868.35MHZ

Working voltage: 12V

Working current: 12mA

Wide copy oscillation resistance range from 1.2M to 6.2M

Remote control distance: 10-30m (under open environment, the sensitivity of the receiving device is -100dbm)

Modulation: ASK-AM

Matching method: Copy

Application area

Suitable for electric door remote control, telescopic door remote control, garage door remote control, motor control remote control, curtain control remote control,

LED light remote control, car and motorcycle remote control, industrial equipment remote control, etc.

Tips:

The frequency range applicable to this remote control is from 280-868MHZ (the most commonly used frequency in the market). It can perform automatic frequency scanning. What frequency is copied and what frequency is transmitted. When copying, the coding and frequency can be done at one time without frequency modulation and matching. .

Before purchasing, please make sure that the frequency of your remote control is within this range to ensure that the configured remote control can be used normally.

Please note before buying:

Need to know the frequency and chip model on the remote control's crystal.

1. You must have a good remote control.

2. You need to know the crystal frequency and chip model (As follows) of your remote control.

Can copy common chips: PT2264, PT2262, PT2260, PT2240, SC2262, SC2260, EV1527, SCT527, HS1527, HS2240, SCL1527, FP1527, etc., Generally, the suffix number is the same and can be copied and used.

How to copy:

STEP 1:

Clear Code:
