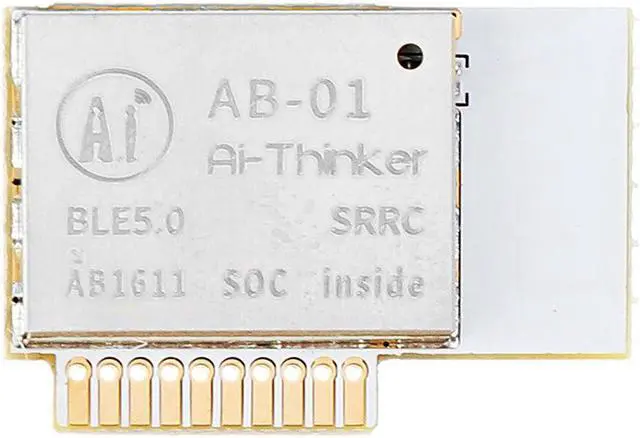

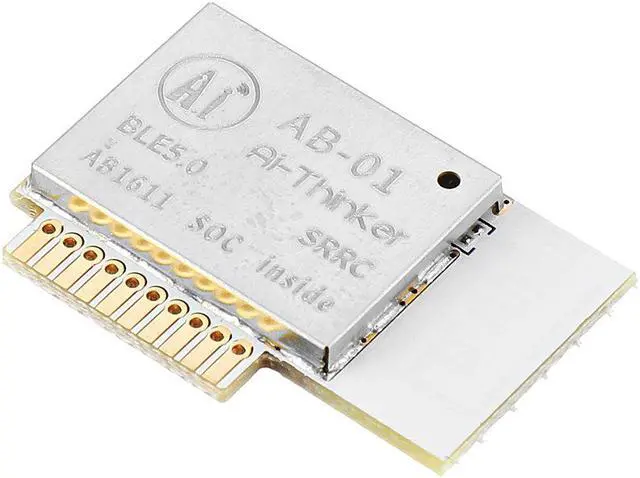

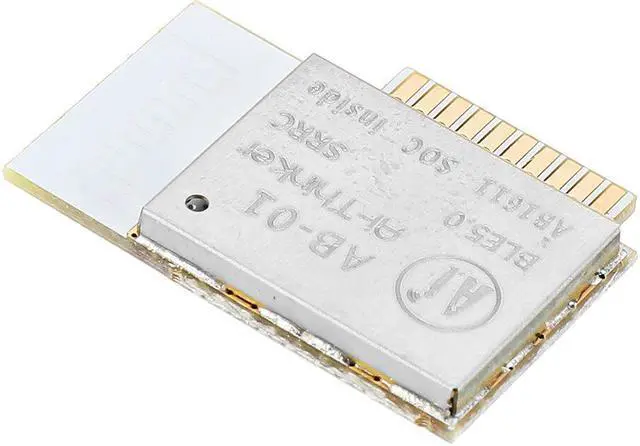

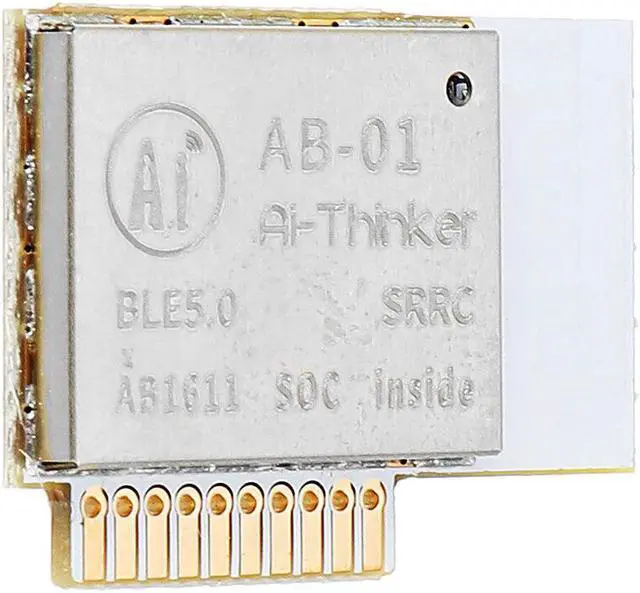

AB-01 BLE Bluetooth 5.0 Audio Module DIY Module Low Power Wireless Mesh Networking

Product Overview:

AB-01 is a general-purpose Bluetooth module designed by Ensign Technology for the Internet of Things. widely. It can be used for other smart appliances such as smart lights, smart sockets, smart air conditioners. The core of this module is Loda AB1611 chip, which has the characteristics of abundant peripherals and low power consumption. The processor has a 32-Bit Andes architecture, and the clock frequency can be adjusted from 16MHz to 72MHz. Built-in 512Kbyte programmable Flash, 64Kbyte SRAM. A 16-bit 16kHz ADC can be used for audio data acquisition. The AB-01 module complies with BT 5.0 and SIG Mesh specifications. It can form a Mesh network directly through a smartphone, and can also be connected to smart speakers such as Tmall Genie and Xiao Ai. It is suitable for a variety of smart home application scenarios.

Features:

32-bit MCU, main frequency 16MHz 72MHz adjustable

512 Kbyte on-chip programmable flash

64 Kbyte SRAM on one side

Compliant with BT 5.0 protocol specifications

Compliant with SIG Mesh protocol specifications

Maximum transmit power can reach 10dBm

It can be connected with smart speakers such as Tmall Elf and Xiao Ai

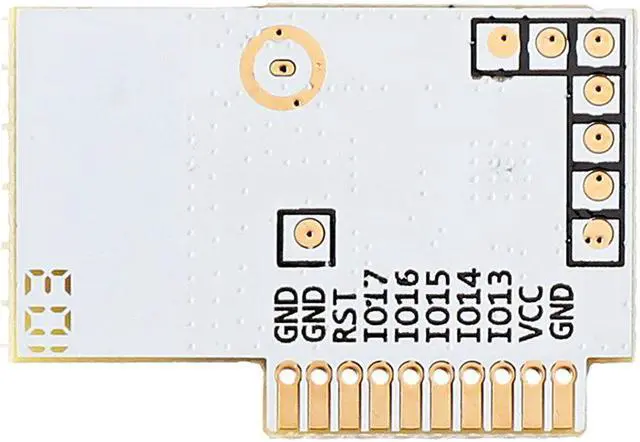

DIP pin design for easy application on smart lights

Model Name

AB-01

Packaging

DIP-10

Size

26.0*18.2*3.0(±0.2)MM

Output power

10±2dBm

Sensitivity

-94dBm

Consumptio n (typical)

[email protected] : 27.9mA Tx@0dBm : 11.44mA [email protected] dBm :11.8mA Rx@0 dBm :8.4mA Sleep: 4uA Deep-Sleep: 0.6uA

Work Temperature

-20 °C ~ 70 °C

Storage Temperature

-40 °C~125 °C,<90%RH

Voltage

2.7V ~ 3.6V, default 3.3V

IO Quantity

5

Certification

SRRC

Documents:

Specification: Click here to open

Package includes:
