RT809F programmer

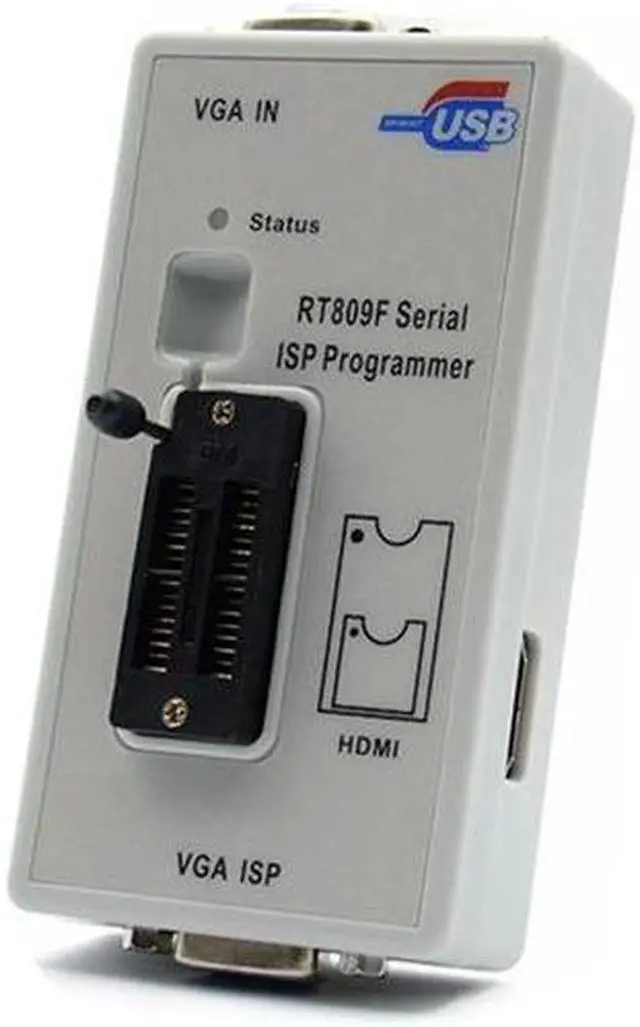

RT809F ISP Programmer

RT809 lcd usb programmer repair tool is an universal programmer for 24 / 25 / 93 series IC chips, ISP online reading and writing, can automatically identify the chip, one-click reading and writing programming.

RT809F ISP LCD high-speed programmer is mainly used to reprogram the EEPROM chips of hash board and control board.

Features:

1. Support 24 full series of IIC bus EEPROM memory. In addition, it can automatically identify the chip models of 24C01 to 24C16, and automatically identify the write protection level of the 7th pin of the 24 series.

2. Supports 25 and 26 full series of SPI FLASH Memory, supports automatic identification of chip models, and has a capacity of up to 256Mbit.

3. Supports all 93 series MicroWire Memory.

4. Support online programming of WINBOND series microcontrollers, such as W78E65P-40, which can replace M6759, SM5964, SM89516, P89C51RD, TP2804 and other easily damaged microcontrollers.

5. USB power supply, communication automatic detection programmer, original ISP online programming mode, pin disconnection detection, offline reading and writing pin contact detection and other special functions in the programming process, can identify and prompt the type of failure, and effectively solve the problem read and write errors;

6. The programmer is controlled by FPGA, and the function upgrade of the programmer can be completed by upgrading the PC software, which is compatible with more models. The USB interface is used for power supply and communication, eliminating the need for cumbersome power adapters and making it more convenient to use.

7. The locking seat interface of the programmer has anti-static and port IO protection measures to ensure the reliability of the programmer.
