Aladdin Innosilicon Series Test Fixtures

Product description:
Universal Innosilicon & Aladdin Test Fixture / Multifunctional test fixture

Aladdin Innosilicon series test fixtures can test hash boards and digital power supplies without the computer independently. The test fixture supports Innosilicon T1, T2TS, T2TH, T2TZ, T3, A4+, A6, A9, Aladdin L1, L2HF, L2HU, L2SU, L2HL, and other models. The power supply test supports all series of digital power supplies of Innosilicon.
The test fixture can accurately determine whether the miner's hash board and power supply are faulty without removing the shelf or dismantling the miner. The maintenance mode can accurately locate the cause of the hash board failure, significantly improving the miner's heat maintenance and operation and maintenance efficiency.

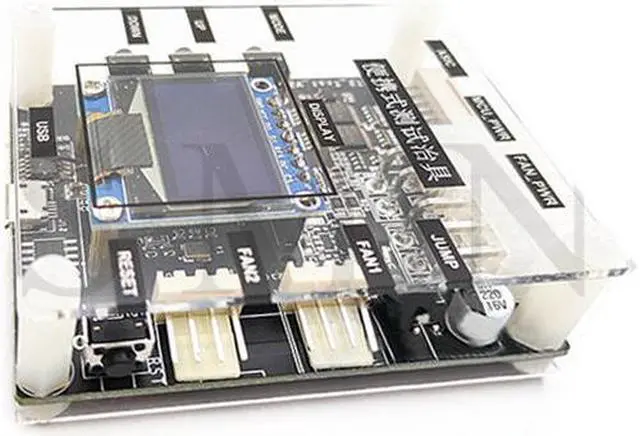

Interface description of Aladdin Innosilicon series test fixtures
1. Hash board interface;

2. 4Pin power supply and power communication interface;

3. 6Pin fan power supply interface;

4. Mainboard spare power jumper (when testing T1/L1, the test fixture needs to supply power from the fan power supply interface first and then short the jumper; otherwise, it can be kept disconnected);

5. 1*4Pin fan drive interface;

6. 2*4pin or 6Pin fan drive ports;

7. Test fixture reset button;

8. USB communication interface (connect PC serial port at 115200 baud rate, can output detailed test information);

9. Brief test information display screen;

10. Up function button;

11. Down function button;

12. Debug mode function button;

Test model of the Innosilicon & Aladdin Test Fixture

1. Power supply test

(1) Power supply quick test

When testing the digital power supply, insert the 4Pin power cable of the digital power supply into interface 2 of the test fixture, and then turn on the digital power switch to be tested. After waiting for about 8 seconds, you can observe the power supply test information through the test fixture display screen to judge whether the power supply to be tested is normal.
