Vega Barebones - Ultra Low-Noise Variable Gain Amplifier (VGA) Module for RF & Software Defined Radio (SDR). Highly Linear & Wideband 30MHz-4000MHz Frequency Capability w/Bias Tee & USB Power Options
- A wideband (30MHz-4000MHz), high-performance, general purpose LNA module with a built-in variable attenuator to maximize usability and portability

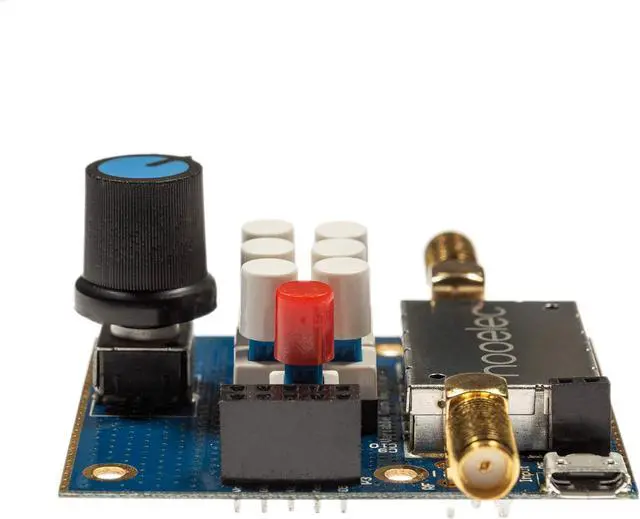

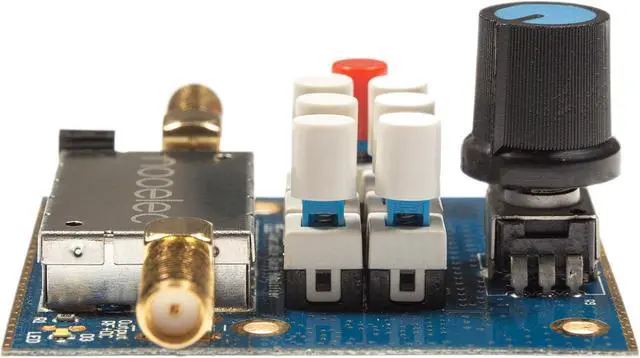

- The attenuation can be controlled either with the on-board potentiometer (analog control) or push button array (digital control)
- Dual amplifier design with adjustable gain (20dB-50dB at 100MHz), low noise figure and low power consumption. Can be powered through bias tee (3.3V-5V), USB, or DC power
- Made in North America
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FOR FULL SPECIFICATIONS AND DETAILS, PLEASE REVIEW THE PRODUCT PAGE AND DATASHEET AT NOOELEC. COM

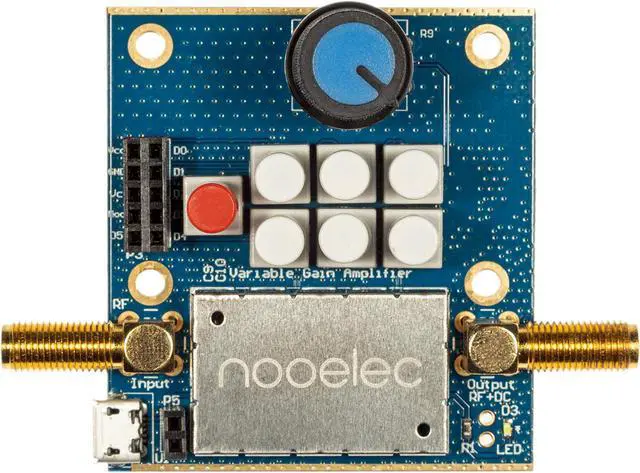

VeGA is a very high performance, LNA module designed for general purpose SDR applications with two options to adjust the gain of the device.
Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee XTR) is 4.5V -5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options--the microUSB port, or DC barrel connector. The recommended external power input is 4.0V - 5.5V DC.
Though there is protection circuitry on VeGA for overvoltage conditions--and voltages of up to 12V DC should still work and will not damage the device--it is not recommended for long-term usage.
Each VeGA module has an EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected.
VeGA has an RF limiter at the RF input port to protect the amplifier from very high power input signals.
VeGA is a very high performance, LNA module designed for general purpose SDR applications with two options to adjust the gain of the device.
Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee XTR) is 4.5V -5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options--the microUSB port, or DC barrel connector. The recommended external power input is 4.0V - 5.5V DC.
Though there is protection circuitry on VeGA for overvoltage conditions--and voltages of up to 12V DC should still work and will not damage the device--it is not recommended for long-term usage.
Each VeGA module has an EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected.
VeGA has an RF limiter at the RF input port to protect the amplifier from very high power input signals.
