Supermicro AMD Ryzen Threadripper PRO Quadro Workstation, 16-Core/32-Thread, 3.9GHz, 64GB (4x16GB) DDR4 Memory, 1TB NVMe SSD, 2TB Toshiba HDD, NVIDIA PNY Quadro RTX4000 8GB GPU, Windows 10 Pro Installed
See more "gpu server"
OUT OF STOCK.
- Black 4U Tower Case SC743AC with 1200W PSU
- Workstation Flagship MBD-M12SWA-TF-P Motherboard, E-ATX, AMD ThreadripperPro, OLGA-409 Socket
- Ryzen Threadripper PRO, 16 Core / 32 Thread, 3.9Ghz 64M 280W SP3
- 4U Active CPU Heat Sink for AMD Socket SP3 Platform
- 64GB Memory (4x16GB) DDR4-3200 1Rx8 LP ECC Registered RDIMM
- Kioxia XG6 1TB NVMe M.2, 2280 (22x80mm)
- Toshiba 3.5" 2TB SATA 6Gb/s 7.2K RPM 128M 512E (Tomcat)
- NVIDIA PNY Quadro RTX4000 8GB GDDR6 PCIe 3.0 with Active Cooling
- Windows 10 Pro 64-Bit Installed, License with Installation DVD
Specs
Reviews
Learn more about the Supermicro 743AC-1200B-SQ-OTO38
| Brand | SUPERMICRO |
|---|---|
| Model | 743AC-1200B-SQ-OTO38 |
| Type | Desktop |
|---|---|
| Rack Height | 4U/Tower |
| LEDs | 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Unit Identification (UID) LED |
| CPU Type | AMD Ryzen Threadripper PRO |
|---|---|
| CPU Speed | 3.90 GHz |
| CPU Socket | Socket SP3 |
| Number of CPU Cores | 16-Core Processor |
| Cache Memory | 64MB Cache |
| CPU Features | 32 Thread, 280W |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Installed Memory Size | 64GB |
|---|---|
| Memory Type | DDR4 3200 |
| Max Memory Capacity | 2TB |
| Memory Features | 64GB Memory (4x16GB) DDR4-3200 1Rx8 LP ECC Registered RDIMM |
| Number of Memory Slots | 8 |
| Hard Drive (Installed) | 2TB |
|---|---|
| HDD Interface | SATA III |
| SSD (Installed) | 1TB |
| Graphic Type | NVIDIA Quadro RTX 4000 |
|---|---|
| Video Memory | 8GB GDDR6 |
| Expansion Slots | 7 x Full-height & full-length expansion slot(s) |
|---|---|
| Expansion Bays | 8 x 3.5"/2.5" hot-swap SAS drive bay with SES3 |
| Other ports | 2 x USB 3.0 |
| Operating System | Windows 10 Pro 64 |
|---|
| Power Characteristics | 1200W |
|---|

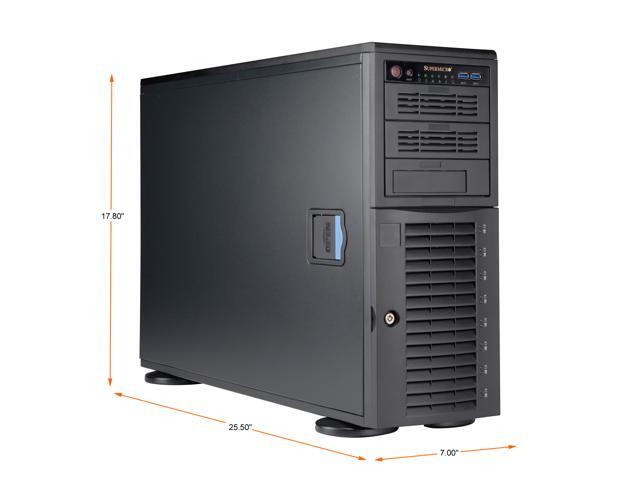

| Dimensions | 17.80" x 7.00" x 25.50" |
|---|
| Date First Available | March 02, 2021 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: non-refundable
- Return for replacement within: non-replaceable
- This item is covered by Newegg.com's Manufacturer Only Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-503-8000
- Support Website
- View other products from Supermicro
LOADING...
Overall Review: Things I wish I knew BEFORE I bought Supermicro AMD Ryzen Threadripper PRO Quadro Workstation, 16-Core/32-Thread, 3.9GHz, 64GB (4x16GB) DDR4 Memory, 1TB NVMe SSD, 2TB Toshiba HDD, NVIDIA PNY Quadro RTX4000 8GB GPU, Windows 10 Pro Installed (N82E16859152108) Now that I have it up and running, I'm ***VERY*** happy with the system. This took a lot of effort I would have skipped if I had known. *Motherboard -Workstation Flagship MBD-M12SWA-TF-P Motherboard, E-ATX, AMD ThreadripperPro, OLGA-409 Socket -The motherboard only has *4* SATA connectors. To get 8 SATA drives to work with the 8 drive enclosure, you need a SATA Card added **extra** with the system. The cable for the extra drives ***is included***. The cable is very specific. The cable is ***not*** preinstalled, someone will need to install the cable and attach to the ADDITIONAL purchase of a SATA card. -TROPRO PCIe SATA Card 10 Port with 6 SATA Cables and 2 SATA Power Splitter Cables, SATA Controller Expansion Card with Standard Profile Bracket, 6Gbps PCIe to SATA 3.0 PCI-E X4 Host Controller Card <=== This card is ***NOT*** compatible with the motherboard. The card worked fine in other machines, but would not boot up with the motherboard. -My system came with the BOTTOM 4 drive enclosures attached to SATA on motherboard. I tried to put drives in the top 4 slots and was stymied... *Case -Lockable cover isn't super lockable. A soft sole slipper can easily knock the cover off the case (from the hinge side) without a person even knowing that the slipper hit the cover. The cover pops right back on. *Video -The NVIDIA PNY Quadro RTX4000 needs DisplayPort connectors. These are not included, you need to purchase them separately.
