Rear: 1 x 80mm fan (1 x 80mm PWM fan Pre-installed)
Side panel: 2 x 120mm fan
Bottom: 2 x 120mm fan
Top: 240mm (if MATX MB installed)
Bottom: 240mm / 120mm
Dimensions & Weight
Max GPU Length
Vertical Graphic (Case with ATX PSU): 245 mm Horizontal GPU (Case with ATX PSU): 335 mm
Max CPU Cooler Height
Vertical Graphic: 88 mm Without vertical Graphic and fan bracket: 155 mm
Max PSU Length
Dimensions (H x W x D)
12.12" x 7.40" x 15.64"

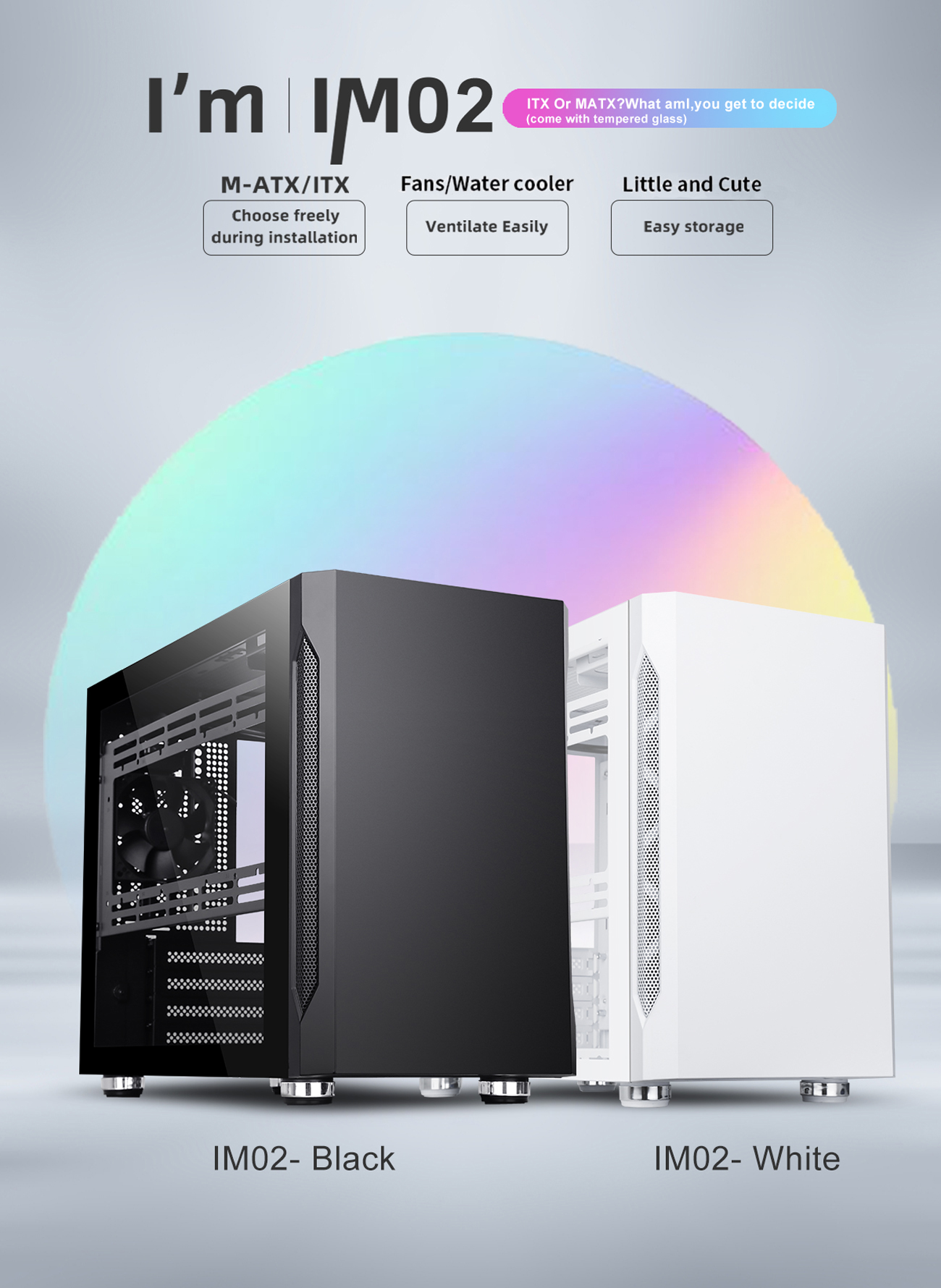

IM02 represents the future trend of business by giving back the product to the users, and users creating the product with their own creative thoughts and need. The interaction within three parties (user, platform and KOL) makes a new business method come true.
There are two installation plans to choose: Micro-ATX installation or ITX installation.
It supports Micro-ATX motherboard which has higher compatibility and better performance by adding internal storage. It can also support ITX motherboard, which has low consumption of electricity and low heat.
Users can choose to install SFX or ATX power supply, depends on different configuration.
With 4+2 PCIE slots, you can install the GPU horizontally or vertically as you wish.
With vertical GPU installation and ATX power supply, it can fit max GPU length x 245mm and max CPU cooler height x 88mm. With horizontal GPU installation it can fit max GPU length x 335mm and max CPU cooler height x 155mm.
Top, bottom, side cover and side of front panel has ventilation holes, which can rapidly dissipate internal heat. It has 7 fan space capability to maximize the ventilation of your system. It also has space to fit up to 5 x3.5" HDD and 7 x 2.5" SSD. 2 x USB 3.0 to meet the demand of high transmission speed.
It has easy-to-remove structure: front, top, side panel with special buckle design. Without complicated screws, you can remove /close up each side panel easily. It gives you a relaxed experience of installation.
