Learn more about the Tripp Lite N846-08N-A2B
ModelBrand | Tripp Lite |
---|
Model | N846-08N-A2B |
---|
Type | Fiber |
---|
Color | Magenta |
---|
DetailsLength | 8" |
---|
Connector Number | 2 |
---|

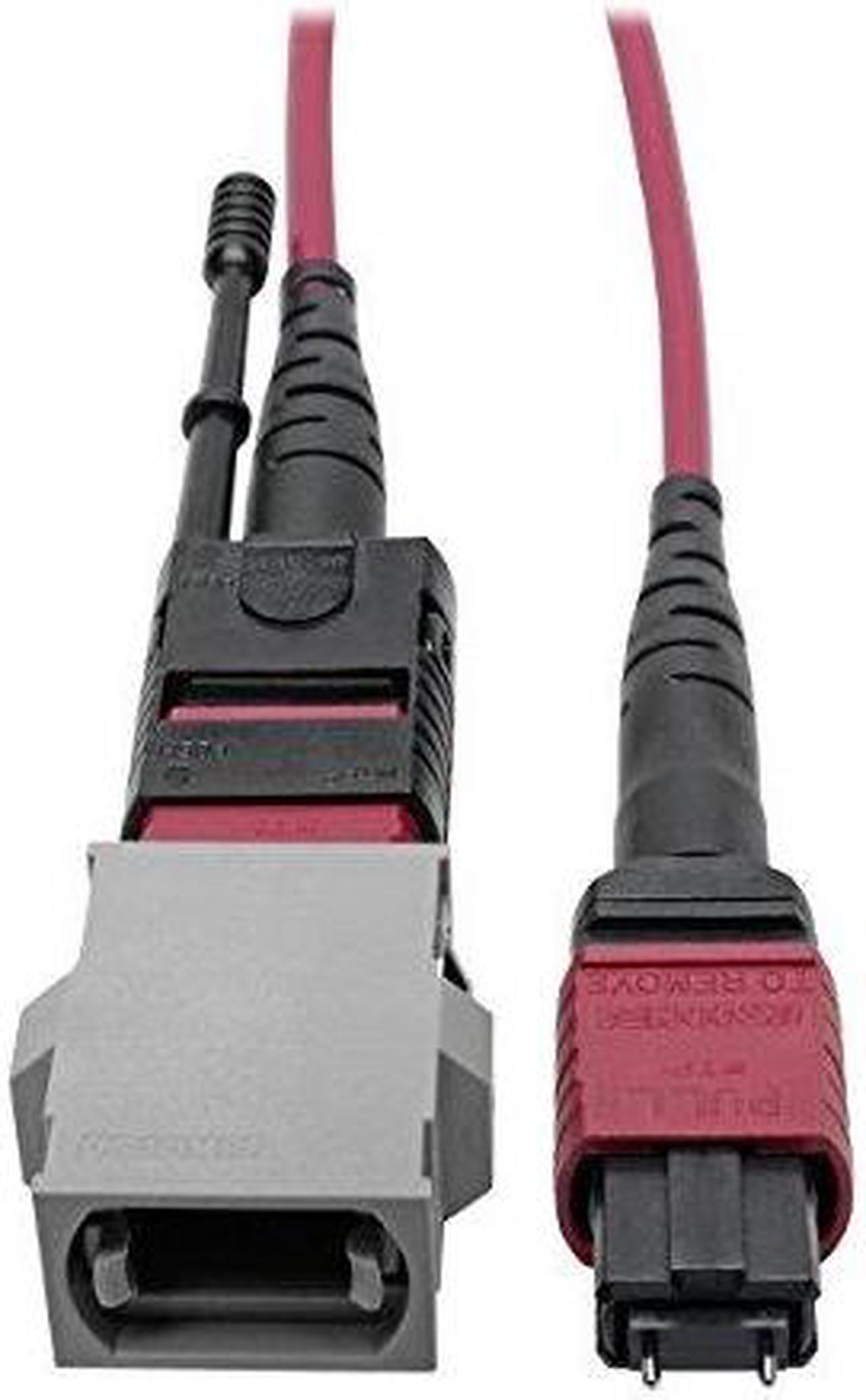

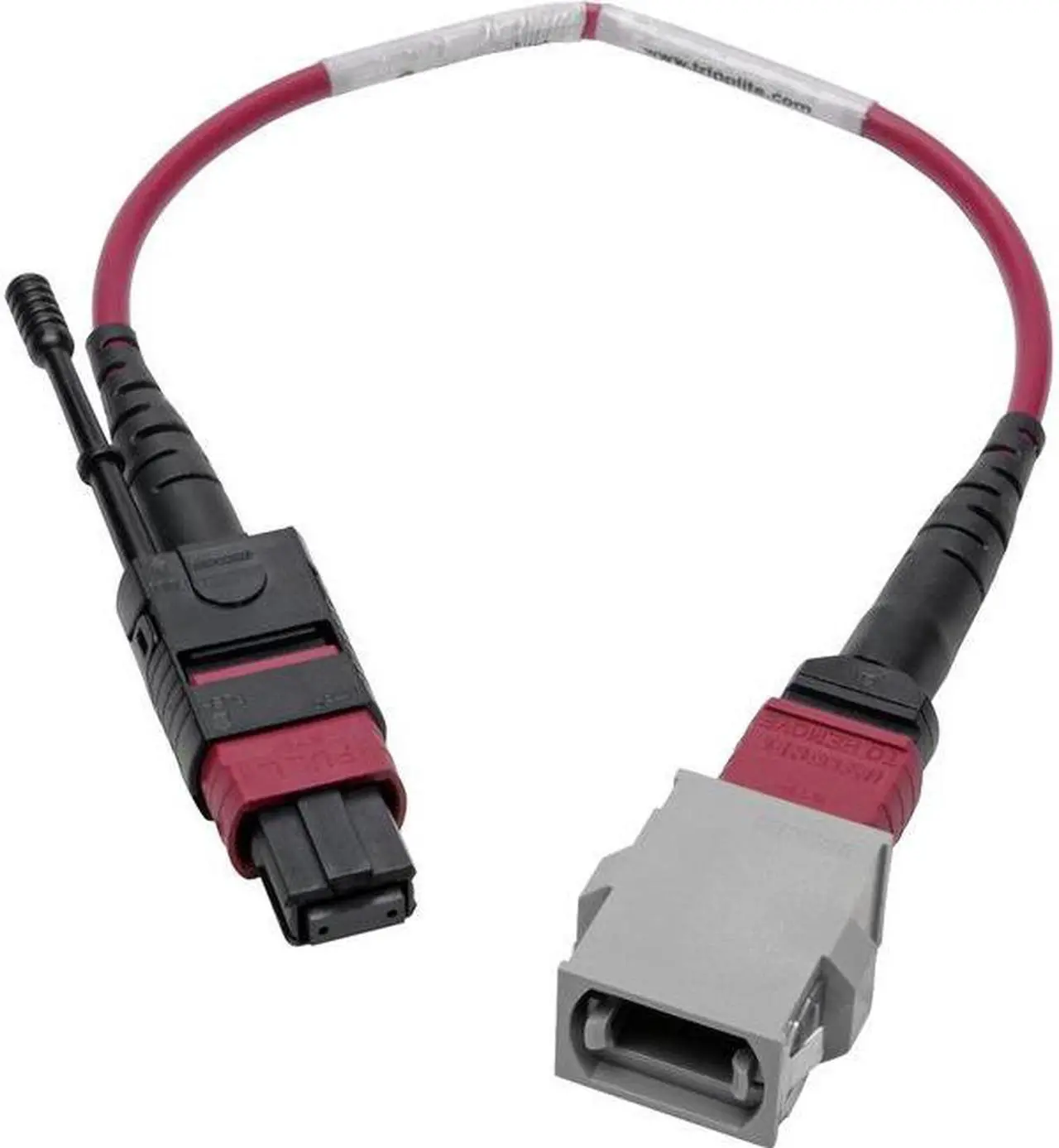

Connector Detail | Connector A: 12-STRAND MTP (Male) Connector B: 12-STRAND MTP (Female) |
---|
Terminal Gender | Male to Female |
---|
Speed | 10Gbps / 40Gbps / 100Gbps |
---|
Specifications | Attenuation @ 1300NM 1.0 dB/KM Attenuation @ 850NM 3.0 dB/KM
Operating Temperature Range -4 TO 140 F (-20 TO 60 C) Storage Temperature Range -4 TO 140 F (-20 TO 60 C) |
---|
FeaturesFeatures | OM4-Rated for 40 Gb Ethernet Applications Designed to extend high-density connections between network equipment in telecommunication rooms and data centers Converts legacy 12-fiber Method A Polarity cables to Method B Polarity for use in Base-8 applications
Supports speeds up to 40 GbE/100 GbE
Backward compatible with existing 50/125 fiber Magenta-colored for identification as an OM4 cable
MTP/MPO Connectors with Push/Pull Tab 12-fiber male/female connectors
Push/pull tab connector easy to install and remove with one hand 100% tested for low insertion loss and back reflection
Error-Free Signal Transfer 50/125 duplex glass fiber construction Meets current IEEE 802.3ae and TIA standards Plenum-rated OFNP jacket perfect for ceilings, walls and ducts Jacket features serial number for quality control and traceability |
---|
Additional InformationDate First Available | April 03, 2025 |
---|
