Question 1

I'm wondering if this mobo has enough room to support a Zalman CNPS8900 Quiet CPU Cooler and 2 sticks of G.Skill Sniper 1866? or would it be recommended to get low profile ram like the Crucial Balistix or G.Skill Ares Series??

I'm putting this setup in an SG06 case, along with an EVGA 750 Ti GPU and an i5-4570S...

Accepted Answer

I purchased this mobo with Noctua low-profile CPU cooler NH-L9i 95mm, and it fits perfectly. So I assume that Zalman CNPS8900 would fit as well, or you can purchase Noctua instead. It is an excellent, silent cooler. Don't worry about RAM and heatsinks, with Noctua, your RAM won't be in its way, thus you can buy almost any memory, even with tall heatsinks. I bought GeIL Evo Potenza 2x 8gb and they come with a real tall heatsinks. Good luck, hopefully this helps.

Question 2

what is the size in inches?

Accepted Answer

6.7in length 6.7 inch width.  The size is listed in the specs along with other details if you are curious.

Question 3

Will the wireless card work if I have a wireless N router?

Accepted Answer

Yes it can.  It can use ac/a/b/g/n networks and has a 2.4ghz and 5ghz.  The card in there is an intel 7260 ac 2x2  half height mpcie

Question 4

Does this come with the updated bios to use with 4690k?

Accepted Answer

Yes the chip is supported by the bios, but may still need to be updated.   MSI  has the easiest update utility I have ever used   It will scan your system tell you what u need and you just have to click it.  This is a great board with many features. The only thing you really need to think about is the case you will use.  I've built 3 of these itx systems if you have any questions please feel free to ask.

Question 5

How many system fans?

Accepted Answer

Almost positive it had 3  deffenatly 2. I water cooled it.  Awesome mobo.   I put it in a bitfenix prodigy   No problems what so ever.

Question 6

I'm wondering if this has straight-up Wireless AC and *not* Draft AC?

Accepted Answer

It has the intel ac chip in it, I believe they sell it on newegg so you can probably answer it from the page for it. It is the Intel(R) Dual Band Wireless-AC 7260.

Question 7

I bought this Mobo earlier this month and I am constantly losing internet connection over WiFi, is this happening to anyone else?

Accepted Answer

No issues although I'm connected at the 5ghz range.  I will stress that the boards talk about the need to immediately upgrade the bios and drivers for the WiFi specifically to avoid drop issues.

Question 8

is it 4k ultra compatible?

Accepted Answer

If your monitor can support the resolution, you should not have a problem doing that. But whatever you display on it might need a bit more power behind it. Surfing the web might work fine with the I7's 4xxx series graphics but playing battlefield 4 at 4k ... you better have another card in there.

Question 9

Can I use an AMD processor with this?

Accepted Answer

NO. Z87 only refers to Intel. Please do more research before purchasing products.

Question 10

Will this board be compatible with the Intel Xeon E3-1231 V3 3.4GHz Quad-Core Processor?

Accepted Answer

You should contact MSI directly about this. From what I could find it isn't fully compatible. It requires some bios and driver hacks as well as swapping out the wireless board, though the information I read was from 2010 and MSIs website wasn't any help in determining if they've adjusted driver compatibility since then.

Brand	MSI
Model	Z87I GAMING AC

CPU Socket Type	LGA 1150
CPU Type	4th Generation Intel Core i7/i5/i3/Pentium/Celeron (LGA1150)

Number of Memory Slots	2x240pin
Memory Standard	DDR3 3000(OC)/2800(OC)/2666(OC)/2600(OC)/2400(OC)/2200(OC)/2133(OC)/2000(OC)/1866(OC)/1600/1333/1066
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express 3.0 x16
Mini Card Slots	1 x Half-size mini-PCIe (Intel Dual Band Wireless-AC 7260 Wi-Fi/Bluetooth card pre-installed)

Serial ATA (SATA)	5 x SATA 6Gb/s
SATA RAID	0/1/5/10

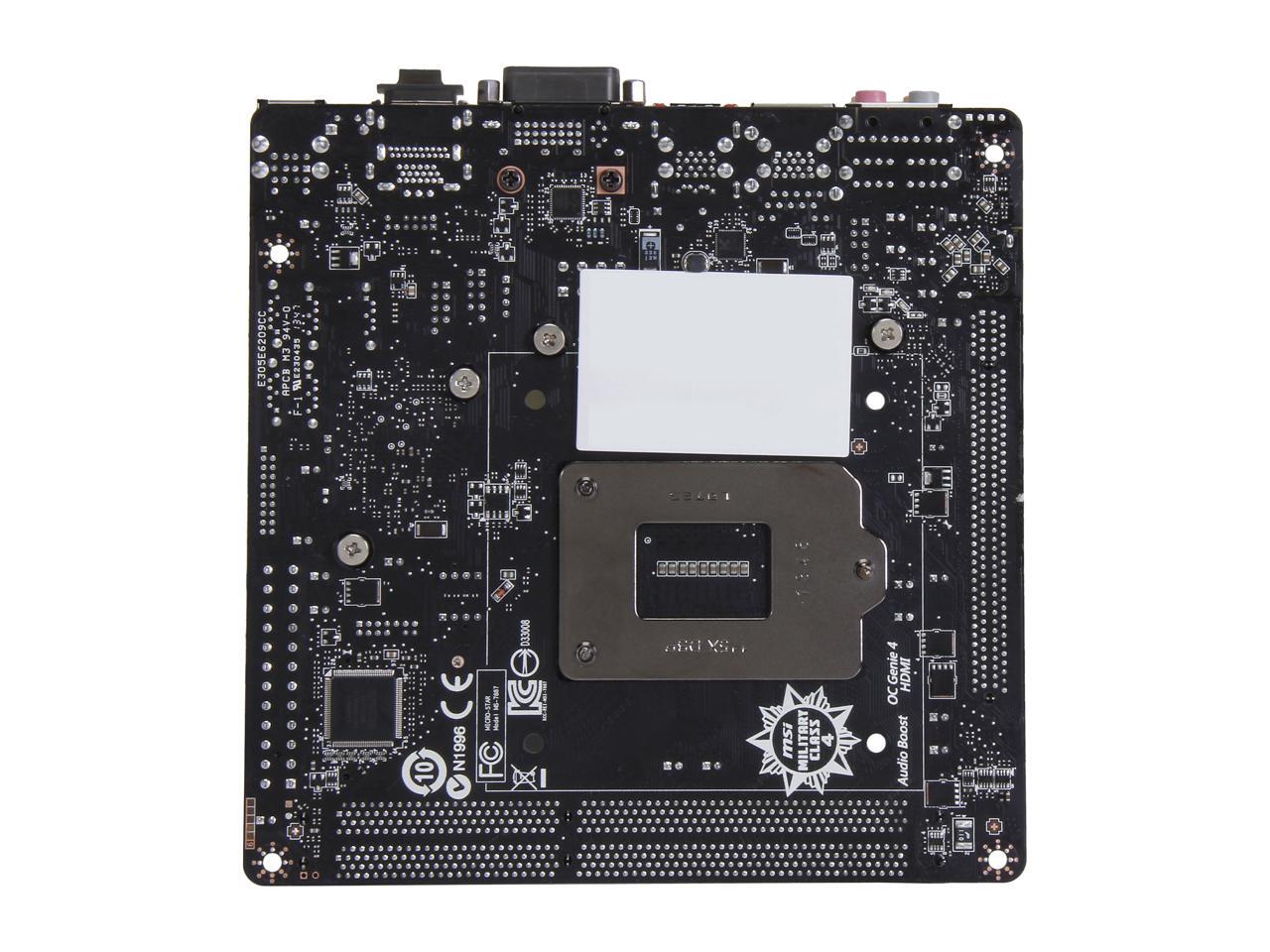

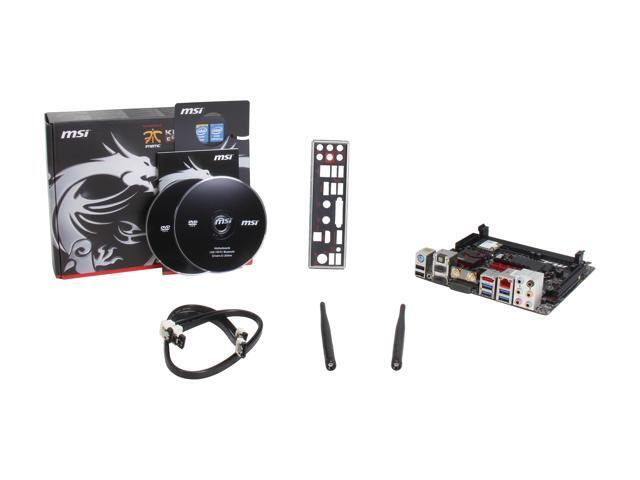

MSI Z87I GAMING AC LGA 1150 Intel Z87 HDMI USB 3.0 Mini ITX Intel Motherboard

Learn more about the MSI Z87I GAMING AC

Customer Reviews of the MSI Z87I GAMING AC

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

LAN Chipset	Killer E2205
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11 ac
Bluetooth	Bluetooth 4.0

Back I/O Ports	1 x DisplayPort / 1 x eSATA 6GB/S / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-I
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
USB 3.0	4 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
eSATA	1 x eSATA 6Gb/s
S/PDIF Out	1 x Optical
Audio Ports	6 Ports
Antenna Connectors	2

Onboard USB	2 x USB 3.0 + 2 x USB 2.0
Other Connectors	1 x ATX 24-Pin power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Clear CMOS jumper 1 x Front Panel Audio connector 2 x System panel connectors 1 x TPM Module connector 1 x Chassis Intrusion connector

Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"
Power Pin	24 Pin

Onboard Audio
Audio Chipset	Realtek ALC1150
Audio Channels	7.1 Channels

Item#: N82E16813130742
