ASUS P5K3 DELUXE/WIFI-AP LGA 775 Intel P35 ATX Intel Motherboard

OUT OF STOCK.
  • Intel P35
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR3 1333/1066/800 The chipset officially supports the memory frequency up to DDR3 1066MHz. Tuned by ASUS Super Memspeed Technology, this motherboard natively supports up to DDR3 1333MHz
Specs
Reviews

Learn more about the ASUS P5K3 DELUXE/WIFI-AP

Model
Brand ASUS
Model P5K3 DELUXE/WIFI-AP
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1333/1066 MHz
Chipsets
Chipset Intel P35
South Bridge Intel ICH9R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1333/1066/800
The chipset officially supports the memory frequency up to DDR3 1066MHz. Tuned by ASUS Super Memspeed Technology, this motherboard natively supports up to DDR3 1333MHz
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 x PCI-E x16 (blue @ x16 mode, black @ x4 or x1 mode)
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/5/10/JBOD
Onboard Audio
Audio Chipset ADI AD1988B
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8056
Second LAN Chipset Realtek 8110SC
Max LAN Speed Dual 10/100/1000Mbps
Wireless LAN WiFi IEEE 802.11 b / g
Rear Panel Ports
PS/2 1
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 2 x eSATA 3Gb/s
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB connectors support additional 4 USB ports
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Wireless LAN:
ASUS WiFi-AP Solo
54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps IEEE 802.11b
- Software Access Point mode
- Station mode : Infrastruceure mode and Ad-Hoc mode
Packaging

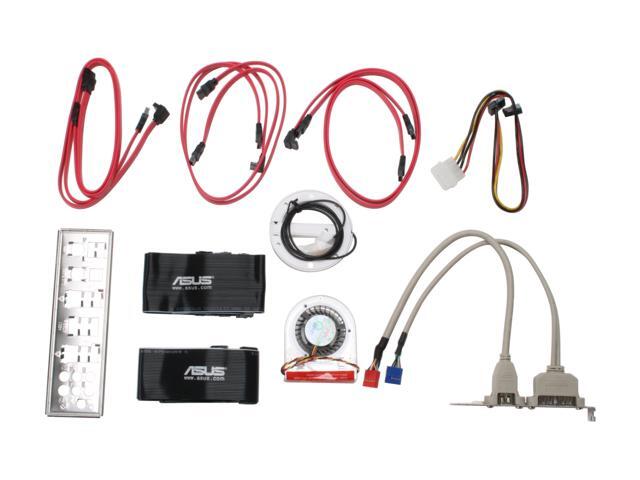

Package Contents P5K3 DELUXE/WIFI-AP
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
WiFi Antenna
IEEE 1394 & USB Bracket
Optional Fan
Details
Windows Vista Certified for Windows Vista
Additional Information
Date First Available June 04, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
