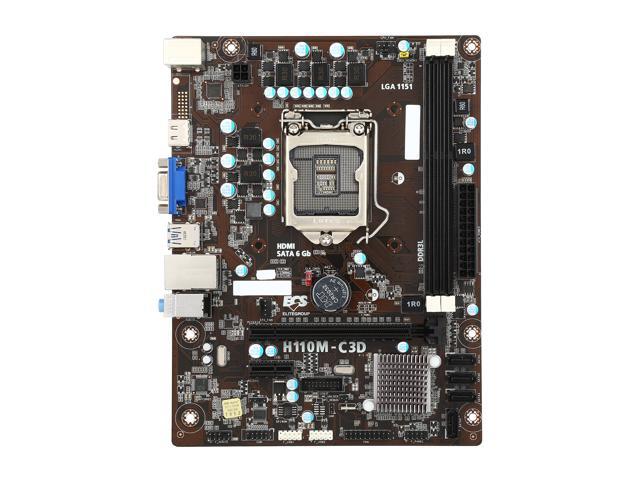

ECS H110M-C3D (1.0) LGA 1151 Intel H110 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

OUT OF STOCK.
  • Intel H110
  • Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
  • DDR3L 1600
Specs
Reviews

Learn more about the ECS (EliteGroup) H110M-C3D (1.0)

Model
Brand ECS
Model H110M-C3D (1.0)
Supported CPU
CPU Socket Type LGA 1151
CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Chipsets
Chipset Intel H110
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3L 1600
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express x1 1 x PCI Express 2.0 x1
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111H
Max LAN Speed 10/100/1000Mbps

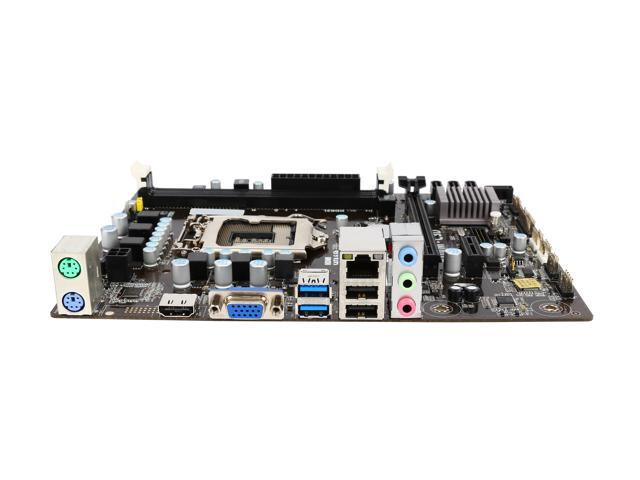

Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
Video Ports 1 x D-Sub
HDMI 1 x HDMI
RJ45 1 x RJ45
USB 3.0 2 x USB 3.0
USB 1.1/2.0 2 x USB 2.0
Audio Ports 1 x Audio port (Line Out / Line In / Mic In)
Internal I/O Connectors
Onboard USB 1 x USB 3.0 header (Support additional 2 USB ports)
2 x USB 2.0 header (Support additional 4 USB ports)
Other Connectors 1 x 24-pin ATX Power Supply connector
1 x 4-pin 12V Power connector
1 x 4-pin CPU_FAN connector
1 x 4-pin SYS_FAN connector
1 x Front Panel switch/LED header
1 x Front panel audio header
1 x CLR_CMOS header
1 x Serial port header (COM)
1 x TPM header
1 x IDEA Memory jumper
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 8.86" x 6.69"
Features
Features Windows 10 Workable support

Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system

ECS Durathon Technology ensure the stability, reliability and performance of system.

ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan

Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment

Microsoft Windows 8.1 Certified

Intel 14nm 6th generation Multi-Core CPU support

Supports DirectX 12 to enhance graphical performance

Supports HDMI 1.4a Technology ( resolution up to 1920 x 1200 ) and HDCP function

ECS Intelligent EZ Utility: eBLU, eDLU, eSF

Free Bundle: CyberLink Media Suite

GRAPHICS:
- Supports DirectX 12

SYSTEM BIOS:
- AMI BIOS with 64MB SPI Flash ROM
- ACPI & DMI
- Dual Display
- Support GUI UEFI BIOS
- Multi-Language BIOS

OS Support:
- Windows 7 32-bit
- Windows 7 64-bit
- Windows 8.1 64-bit
- Windows 10 64-bit

Certifications:
- CE/FCC Certification
- ErP/EuP Certification
- WHQL Certification
- WHCK Certification

Bundled Software:
- ECS Intelligent EZ Utility: eBLU, eDLU, eSF
- Free Bundle: CyberLink Media Suite
Additional Information
Date First Available February 10, 2016
