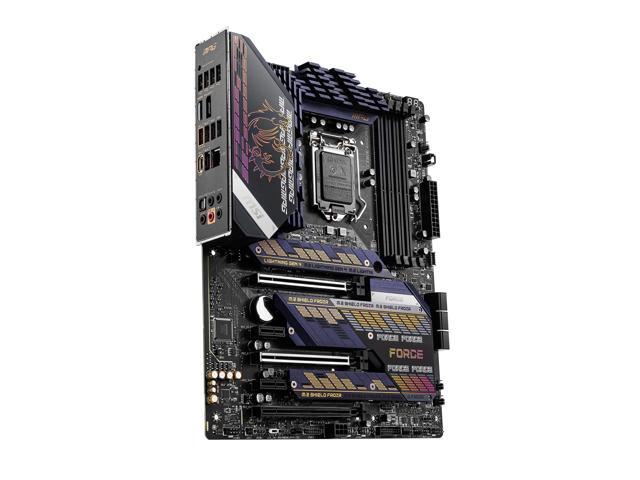

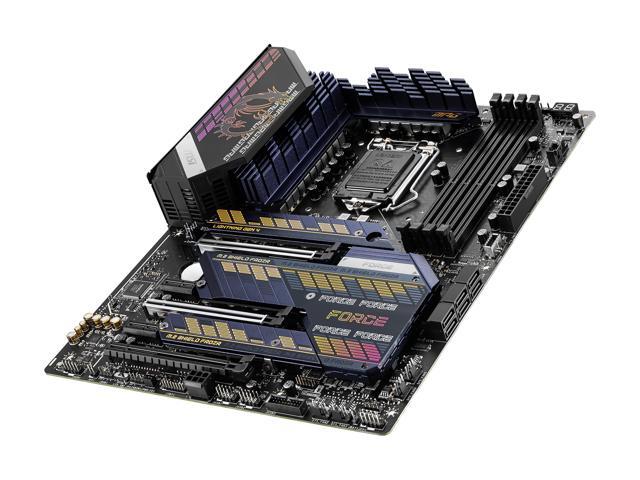

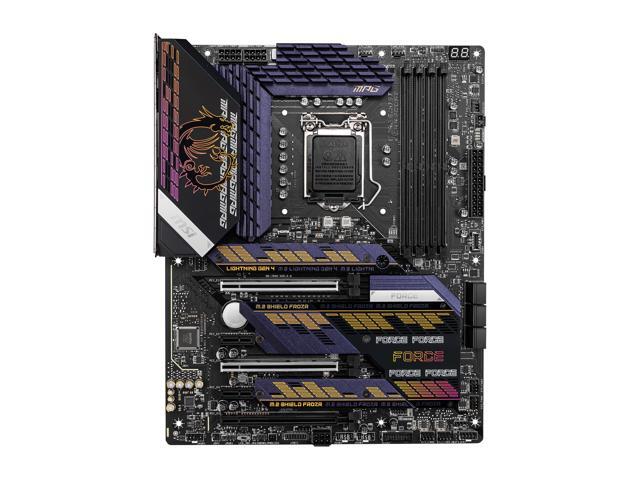

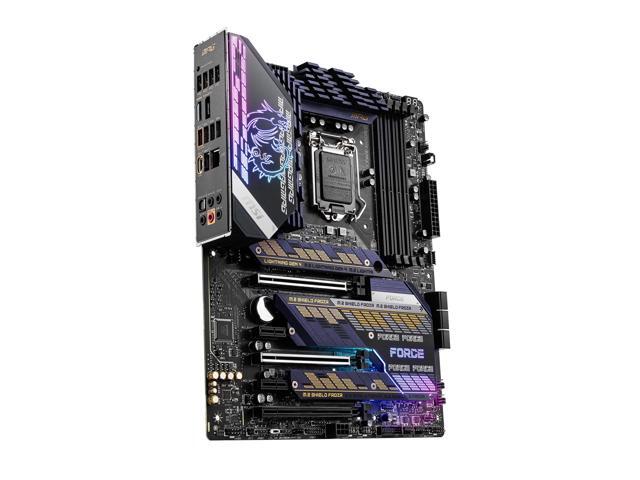

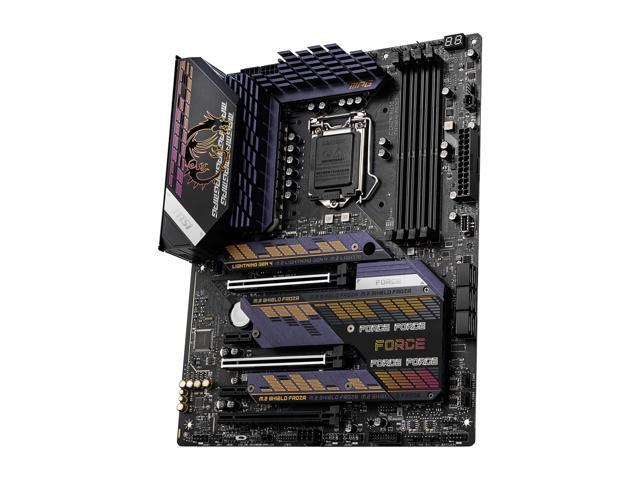

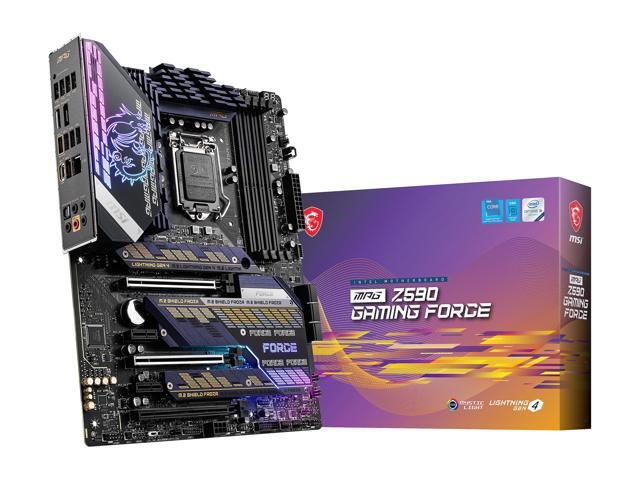

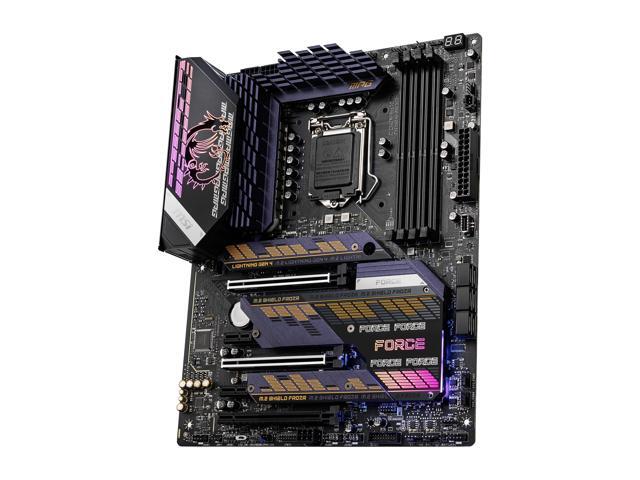

MSI MPG Z590 GAMING FORCE LGA 1200 Intel Z590 SATA 6Gb/s ATX Intel Motherboard

OPEN BOX Product Type
OUT OF STOCK.
  • Intel Z590
  • Supports 11th / 10th Gen Intel Core processors
  • Supports Intel Pentium Gold / Celeron processors
  • DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR)
  • DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR)
  • Max overclocking frequency:
  • 1DPC 1R Max speed up to 5333
  • 1DPC 2R Max speed up to 4700+
  • 2DPC 1R Max speed up to 4400+
  • 2DPC 2R Max speed up to 4000+
The Open Box Product Disclaimer applies to this product.
Specs

Learn more about the MSI MPG Z590 GAMING FORCE

Model
Brand MSI
Model MPG Z590 GAMING FORCE
Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports 11th / 10th Gen Intel Core processors
Supports Intel Pentium Gold / Celeron processors
Chipsets
Chipset Intel Z590
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR)
DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR)

Max overclocking frequency:
1DPC 1R Max speed up to 5333
1DPC 2R Max speed up to 4700+
2DPC 1R Max speed up to 4400+
2DPC 2R Max speed up to 4000+
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 2 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express x1 2 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.2 3 x M.2 slots (Key M)

M2_1 slot (From CPU):
Available only on 11th Gen Intel CPU
Supports PCIe 4.0 x4
Supports 2242/2260/2280/22110 storage devices

M2_2* & M2_3** slot (From Z590 Chipset):
Supports PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/2260/2280 storage devices

* SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
** SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
Intel Optane Ready Intel Optane Memory Ready*

* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID 0/1/10
Onboard Audio
Audio Chipset Realtek ALC4080
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I225-V
Max LAN Speed 10/100/1000/2500Mbps
Rear Panel Ports
Back I/O Ports 1 x Flash BIOS Button
1 x Optical S/PDIF-Out
5 x HD Audio Connectors
1 x HDMI
1 x DisplayPort
1 x USB 3.2 Gen 2x2 20Gbps Type-C
2 x USB 3.2 Gen 1 5Gbps (Type-A)
3 x USB 3.2 Gen 2 10Gbps (Type-A)
4 x USB 2.0
1 x 2.5G LAN
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
Other Connectors 1 x 6-pin PCIE power connector
1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
6 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x TPM module connector
1 x TBT connector (supports RTD3)
1 x Tuning Controller connector
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Windows Compatibility
Windows 11 Supported
Features
Features Supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket

Supports DDR4 Memory, up to 5333(OC) MHz

Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost

Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3 x M.2 Shield Frozr are built for high performance system and non-stop gaming experience

MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip

2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Additional Information
Date First Available June 29, 2022
