Intel Z390 Gaming motherboard with 16 Phases IR Digital VRM, Fins-Array Heatsink, RGB Fusion, 802.11ac Wi-Fi, Intel Thunderbolt 3, ESS SABRE 9018K2M DAC, AQUANTIA® 10GbE LAN, RGB FAN COMMANDER, OC Touch
- Supports 9th and 8th Gen Intel® Core Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel® Optane Memory Ready
- 16 Phases IR Digital VRM Solution with PowIRstage
- Cutting-edge Thermal Design with Fins-Array Heatsink, Direct Touch Heatpipe and NanoCarbon Baseplate
- Onboard Intel CNVI 802.11ac 2x2 Wave 2 Wi-Fi with All new AORUS Antenna
- 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720 and OPA1622 OP-AMP, WIMA audio capacitors
- AQUANTIA® 10GbE BASE-T LAN and Intel® Gigabit LAN with cFosSpeed
- Intel® Thunderbolt 3 onboard
- Exclusive RGB FAN COMMANDER and OC Touch for professional casemodders and overclockers
- USB TurboCharger for mobile device fast charge support
- RGB FUSION with Multi-Zone Addressable LED Light Show design, support Addressable LED & RGB LED strips

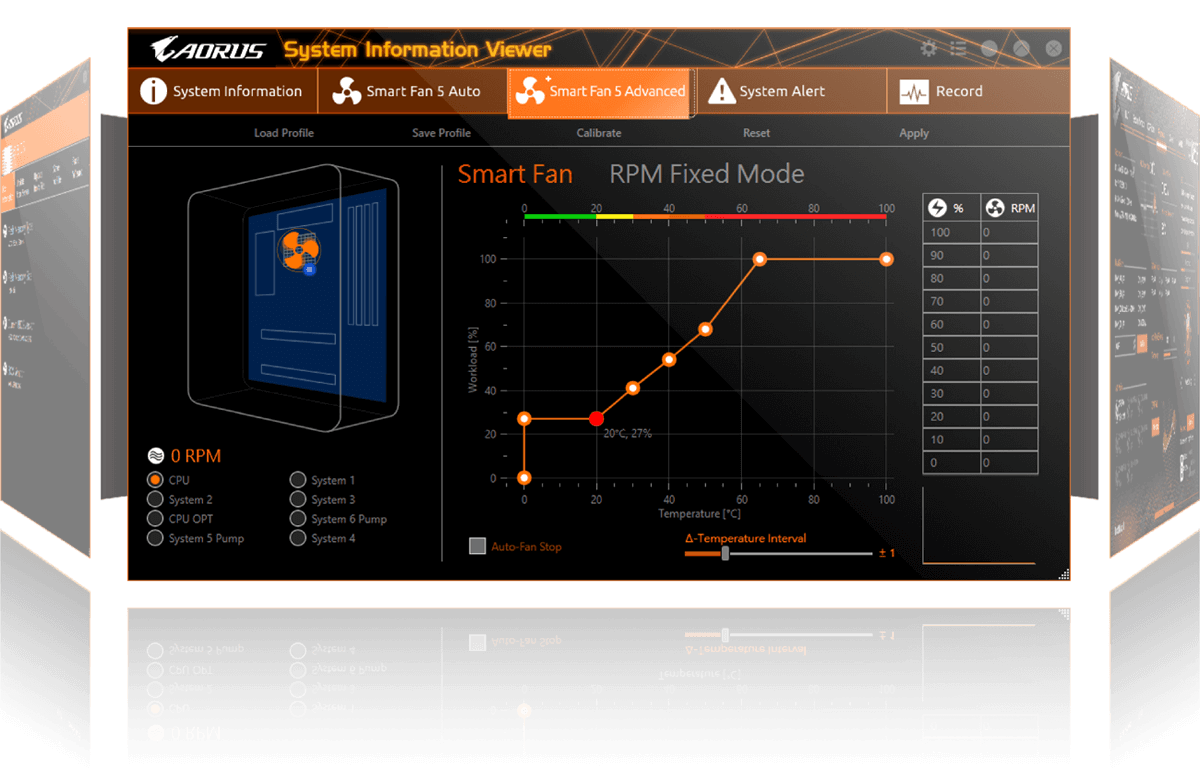

- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Front USB 3.1 Gen 2 Type-C Header
- Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface with Triple Thermal Guards
Innovative design, cutting-edge functionality, state-of-the-art aesthetics, sophisticated thermal design, next generation network connectivity ,Hi-Fi level audio system. Z390 AORUS XTREME is the new definition of a flagship motherboard.
- 16 Phases IR Digital VRM Solution with PowIRstage
• 8 Layer PCB
• 2x Copper PCB
- Intel® CNVi 802.11ac 2x2 Wave 2 WIFI & BT 5
- Intel® i219v GbE LAN
• cFosSpeed Internet Accelerator
- AQUANTIA® 10GbE Base-T LAN
- Intel® Thunderbolt 3
- Advanced Thermal Design
• Fins-Array Heatsink
• 4X Direct Touch Heatpipes
• 5 W/mK LAIRD thermal conductivity pad
• NanoCarbon Baseplate
- Triple M.2 Connectors
• PCIe 3.0 x4
• Triple Thermal Guards
- AMP-UP Audio

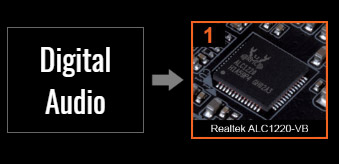

• ALC 1220-VB Audio Codec
• ESS 9018K2M SABRE DAC
• TI Burr-Brown OPA
• Auto Impedance Sensing
• Audiophile Grade Capacitors
• Anti-pop relay
• Gold Plated Audio Jacks
- OC Touch Connector
- DualBIOS with Socketed BIOS
- Ultra Durable PCIe Armor
- Front USB 3.1 Gen2 Type-C
- USB TurboCharger
- Solid Pin Power Connectors
• 24 pin ATX power Connector
• 8+8 pin CPU power Connector
• 6 pin PCIe power Connector
- Supports 9th Gen and 8th Gen Intel® Core Processors
• Dual Channel DDR4, 4 DIMMs with Ultra Durable Memory Armor
• XMP Support

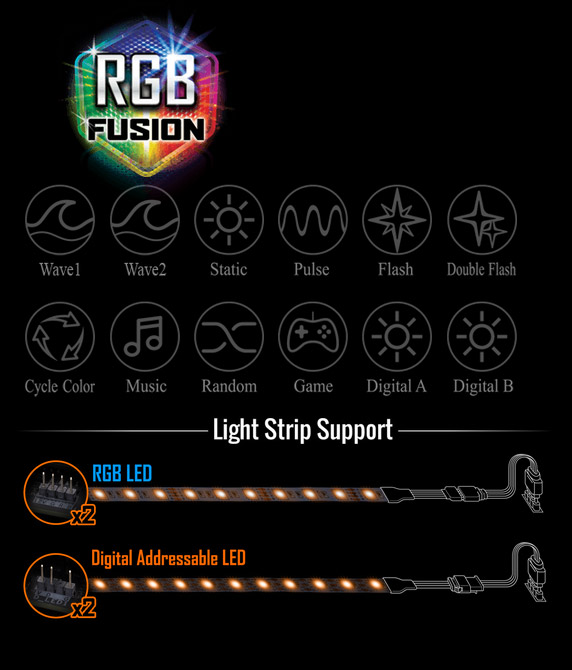

- RGB FUSION
• Addressable LED Header*2
• RGB LED Header*2
To unleash the full potential of the new Intel 8-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z390 AORUS XTREME is a true beast among motherboards.
16 Phase Digital Power Design
- 60A IR PowIRstage for each vCore Phase
- High current capacity MOSFET
- Lower temperature
- Server level reliability
Z390 AORUS XTREME motherboard uses an all IR digital CPU power design which includes a digital PWM Controller with PowlRstage MOSFET and is capable of providing at least 60A of power from each phase, for a total of 960A. This 100% digital controller and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel® Core processors.
Optimized CPU Power Delivery Plane with 2x Copper PCB
GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.
Hungry for better performance? Z390 AORUS XTREME bundles exclusive OC Touch Panel, supports high frequency XMP memory, and full SSD thermal guard to make sure you get the maximum full system performance.
OC Touch Panel
Overclocking Made EasyGIGABYTE OC Touch provides an array of physical buttons and switches to bring access to overclocking features at your fingertips—making overclocking on the fly extremely fast and easy.
Support for DDR4 to 4266MHz and BeyondAORUS is offering a tested and proven platform that ensures proper compatibility to 4266MHz and beyond.
Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated!
AORUS partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with AORUS Motherboards. AORUS has verified over 1000+ different modules to ensure performance in a AORUS built system.
Triple PCIe Gen3 x4 M.2
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Triple NVMe M.2 PCIe SSDs in RAID 0 Support
Extreme Performance with Gen3 x4 NVMe PCIe SSDs
Z390 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.
AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal GuardWith durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

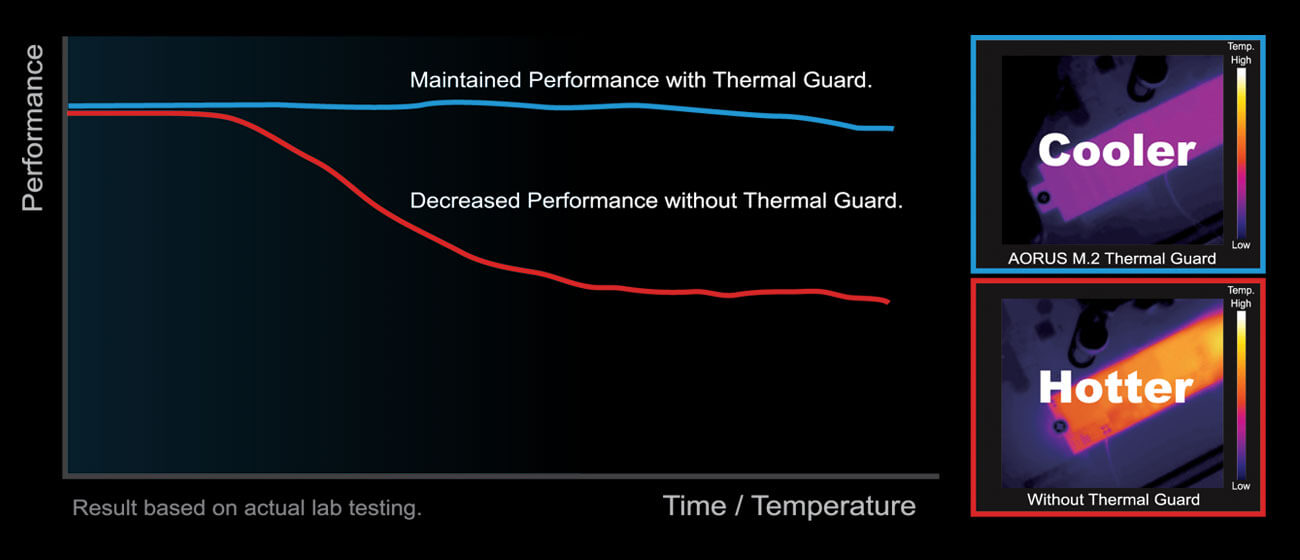

Thermal Throttling As Temperature Rises

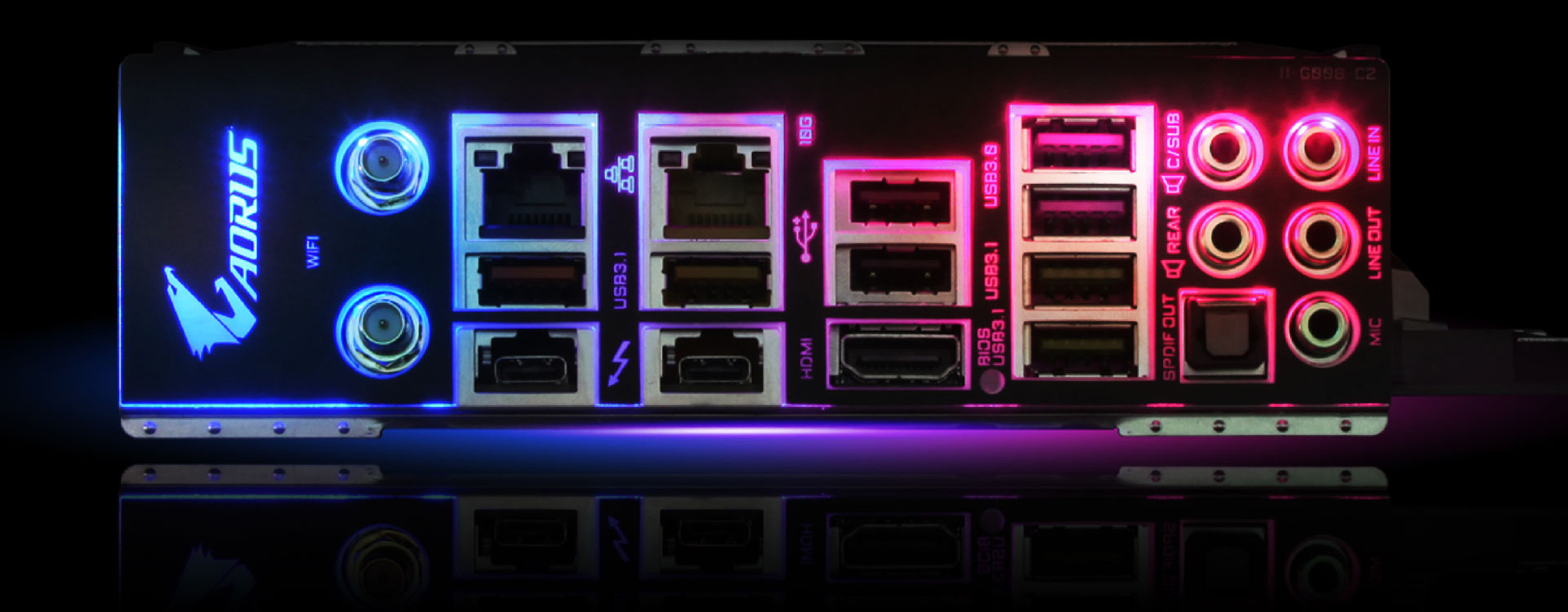

A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. Z390 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

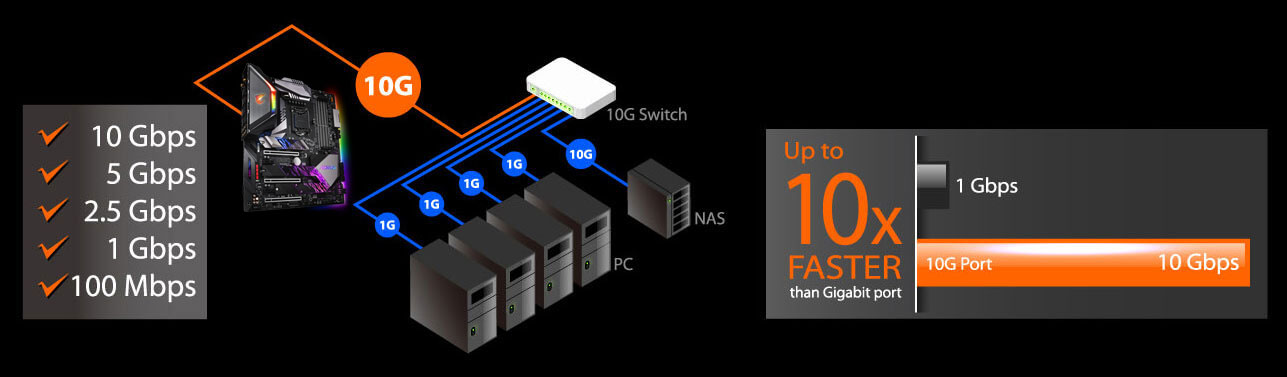

AQUANTIA® 10GbE BASE-T Networking
Next Generation Multi-Gig Gaming

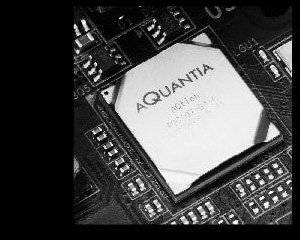

The AQUANTIA ® AQC107 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centers, workstations and gamers.
- Ultimate online gaming experience with faster connection speed

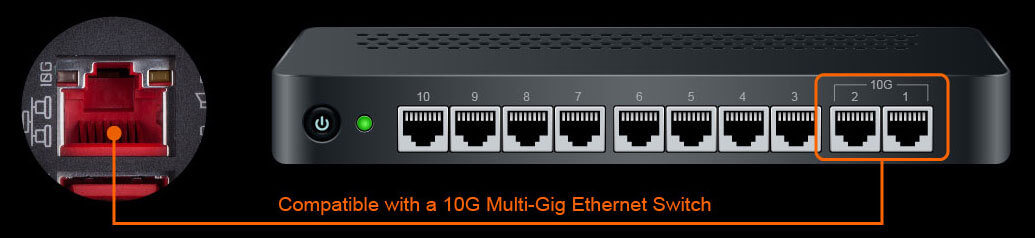

- Backward compatible with 5/2.5/1Gbps network
- No re-wiring needed

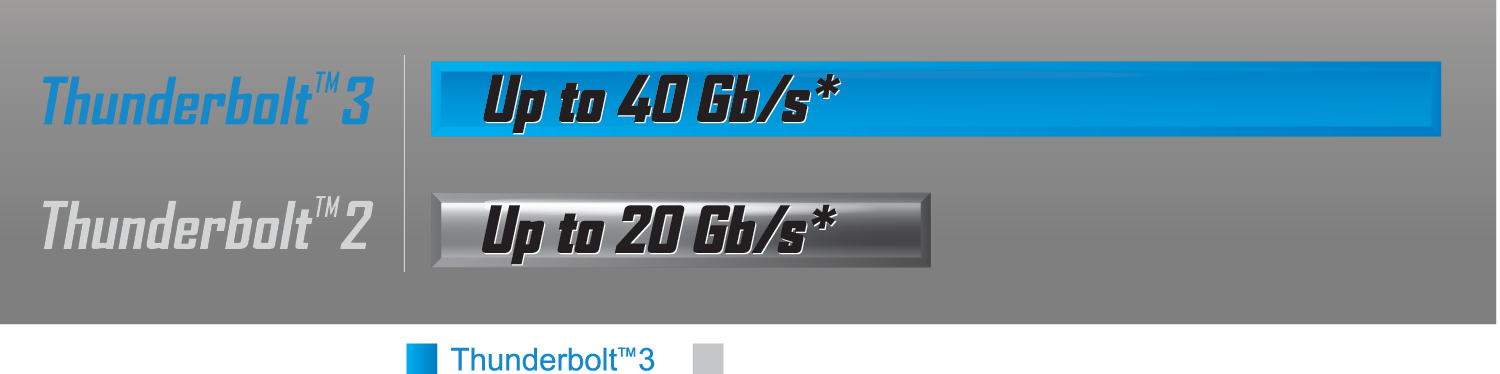

Next Generation 40 Gb/s Thunderbolt 3

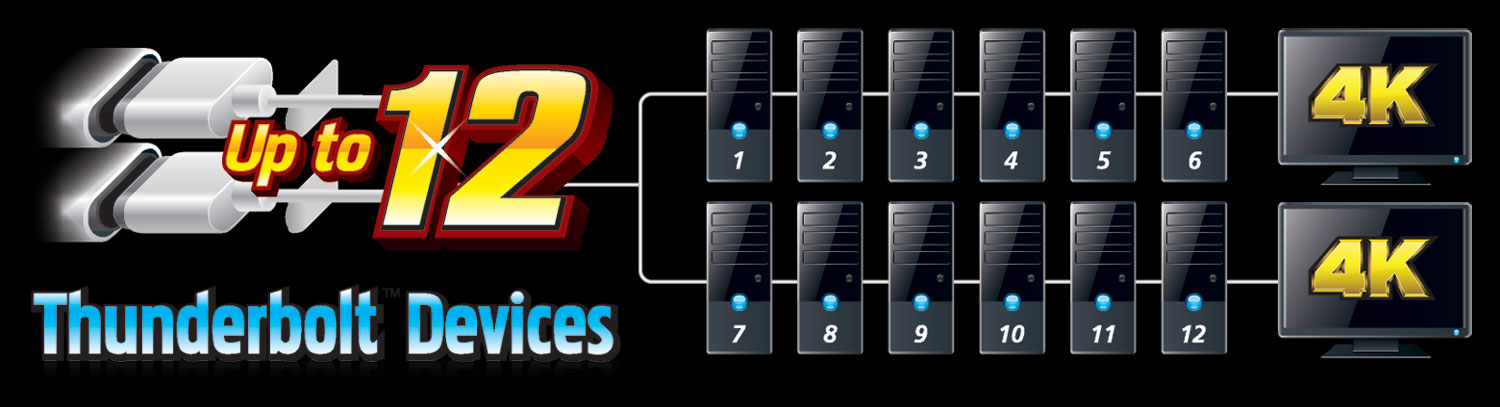

Dual Thunderbolt 3 – The fastest 40Gb/s single-wire connection
Powered by Intel's own Thunderbolt controller the new Thunderbolt 3 protocol, which is available over two USB Type-C connectors on the back I/O of the GIGABYTE Z390 AORUS XTREME, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.
Support for DisplayPort 1.2 makes Thunderbolt 3 a must have for any enthusiast. The Z390 AORUS XTREME is able to support two displays in 4K resolution at 60 FPS or one display in 5K resolution. In addition, Thunderbolt 3 over USB Type-C has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 12 devices thanks to the Z390 AORUS XTREME's dual USB Type-C ports.
Smashes the GbE Barrier!

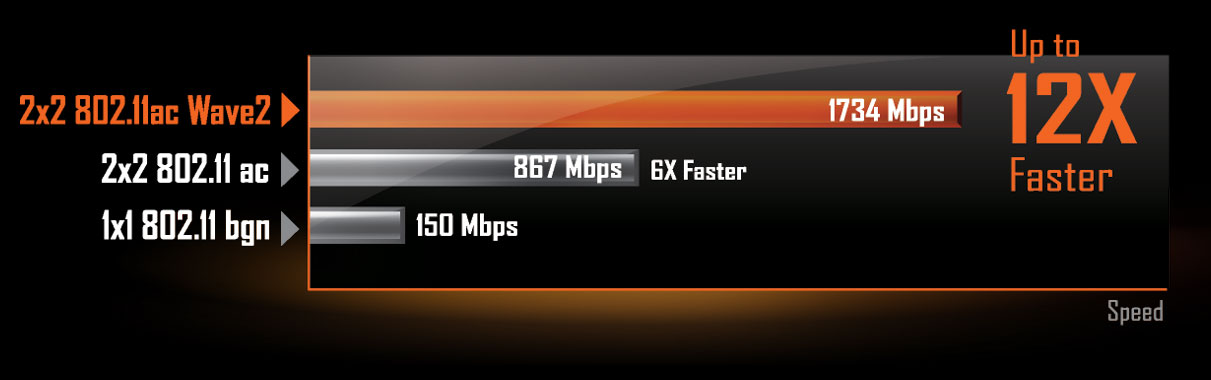

Integrated Intel® 802.11ac Wave2 CNVi WIFI + Bluetooth 5Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed compared to the previous generation. Moreover, Bluetooth 5 provides 4x range over BT4.2 and with faster transmission.

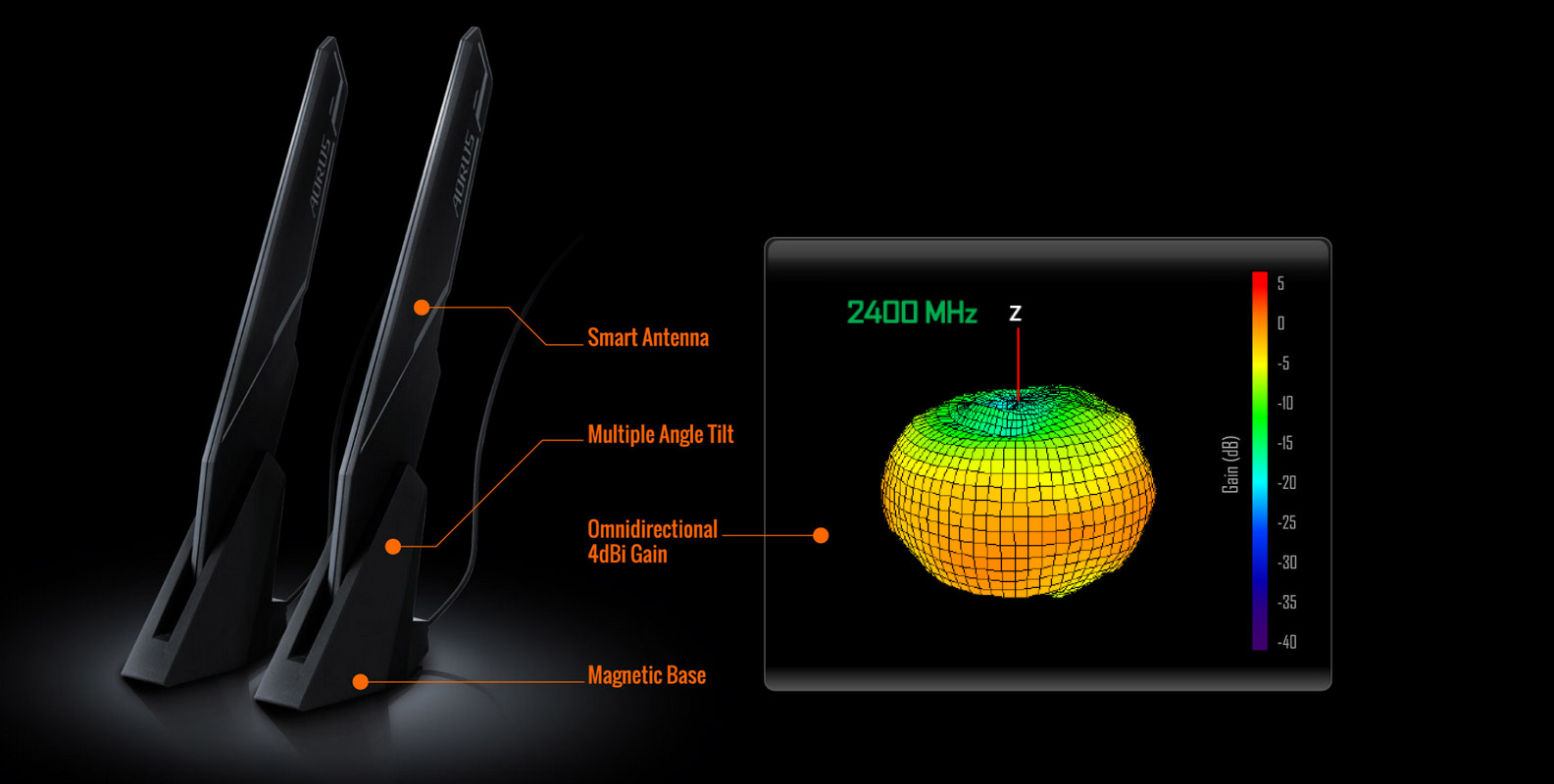

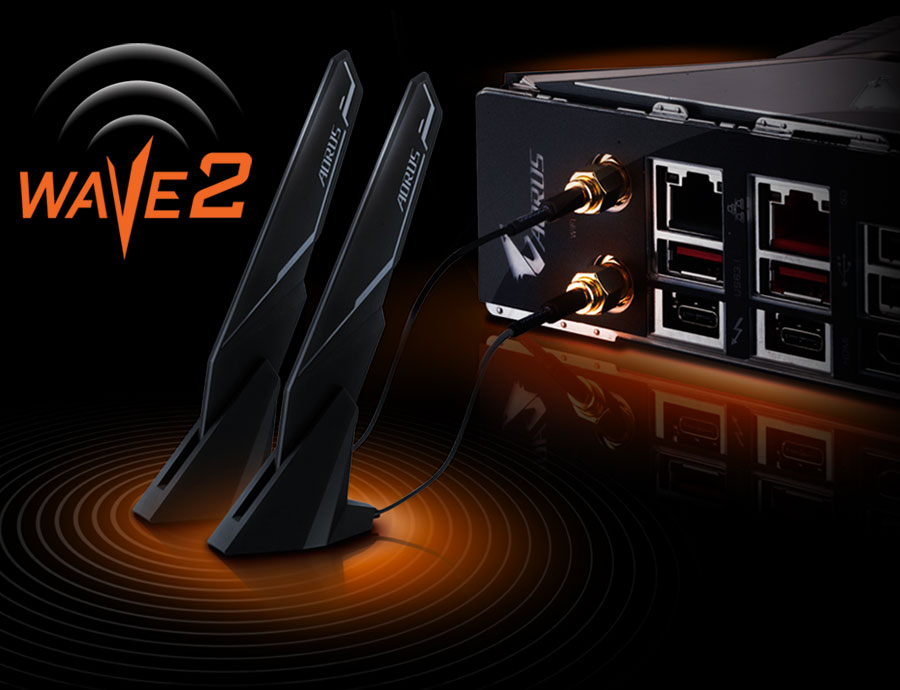

- All new antenna supported 802.11ac 2.4GHz & 5GHz, 4dBi signal gain
- 2x signal strength compared to traditional antenna design
- Two antenna with smart antenna function for the best WIFI signal transmitting
- Multiple angle tilt and magnetic base for the best signal strength direction and location

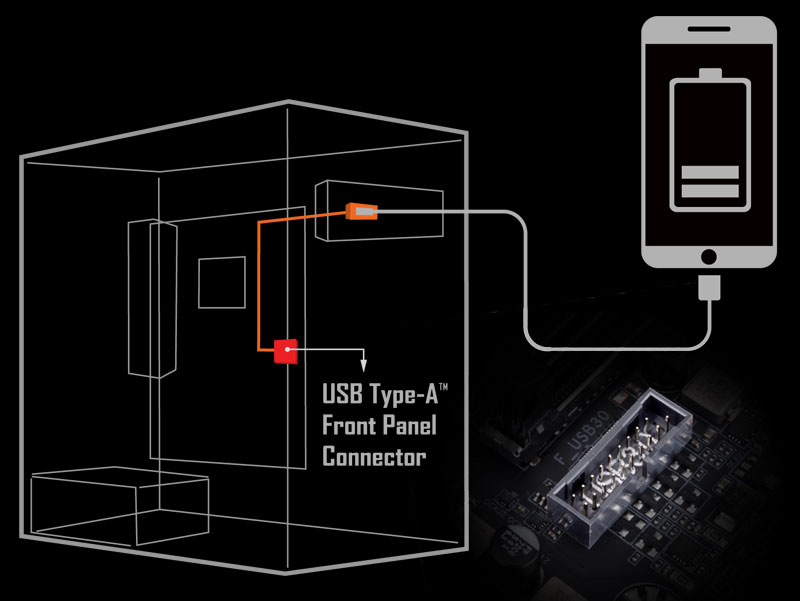

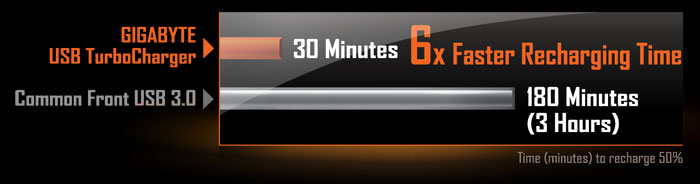

GIGABYTE patent pending USB TurboCharger technology allows users to recharge their mobile devices with stunning speed, up to 50% in less than 30 minutes*. By connecting Front USB 3.0 Type-A cable of chassis to our motherboard, USB TurboCharger can recharge both Android devices with QC 3.0 and Apple devices with Apple Fast-Charge function.
*Charge time varies with devices' hardware design, battery size, front USB 3.0 cable quality of chassis and environmental factors, actual results will vary.

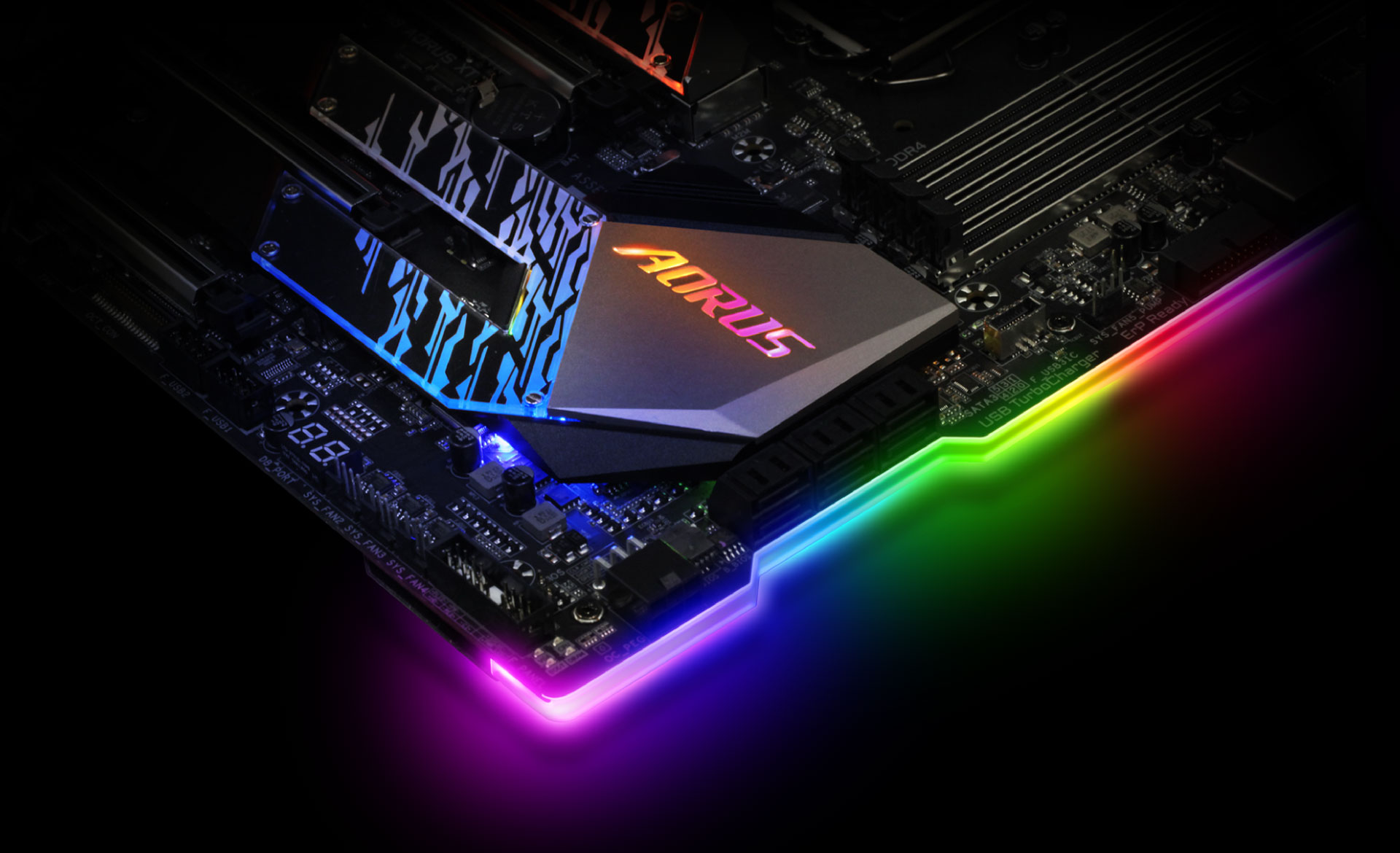

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.
- Exclusive bundled accessory for professional casemodders
- 8 Hybrid Fan Headers
- 8 RGB LED Headers
- 8 Addressable LED Headers
- 2 external temperature sensors
- 2 USB 2.0 header for additional USB RGB devices
- All Hybrid Fan Headers and RGB/Addressable LED Headers have independently controlled speed and lighting patterns
- Easy to install inside the chassis with its compact size and magnetic base
- Manage 8x Fan speeds individually to your requirements. It can also ensure your system maintains its performance while staying cool.
- Synchronize up to 16 lighting devices with RGB FUSION.

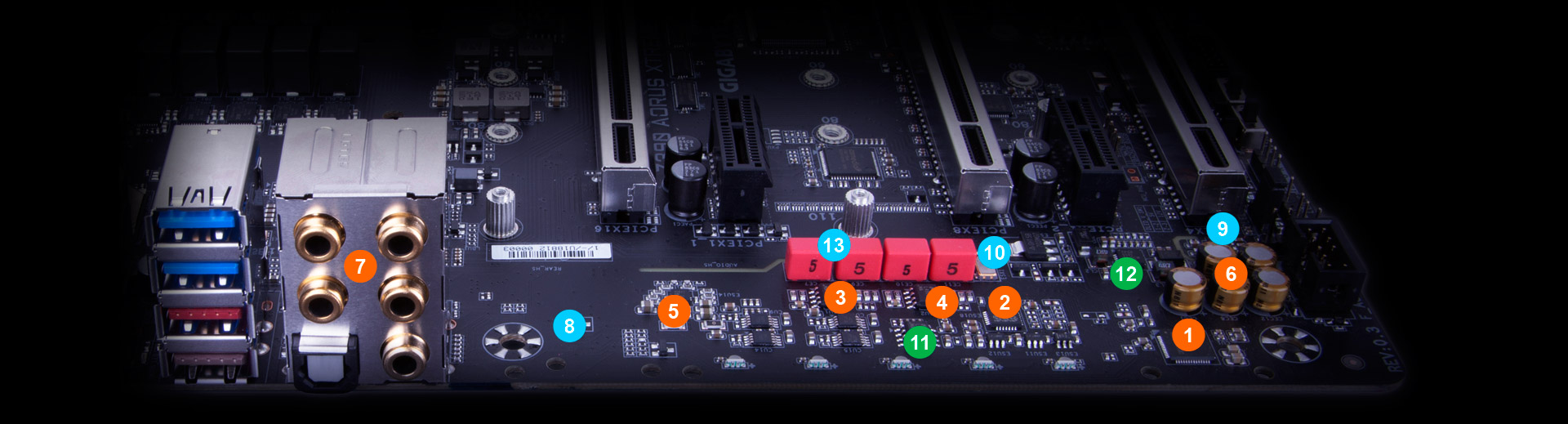

Audio Signal Process
True Hi-Fidelity MusicProvides surround sound audio and enables DSD music playback

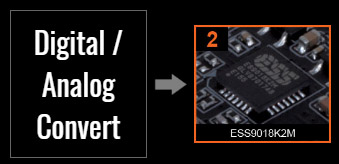

ESS SABRE reference DACHyperstream Dynamic Range (DNR 127dB) High-Res music (32bit, 384kHz PCM) World's best THD+N (THD+N -120db)

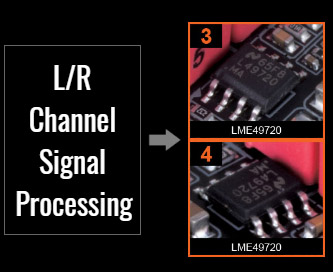

L / R separation analog signal processing with internally balanced audio designFor maximum stereo sound quality and high-quality signal transmission

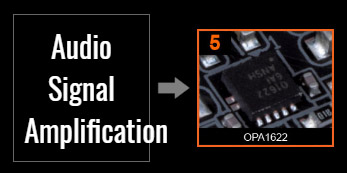

TI Burr-Brown Audio OP AmpsLow stereo cross talk, high operational power output

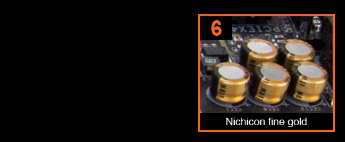

Audiophile Grade CapacitorsDeliver true acoustic sound

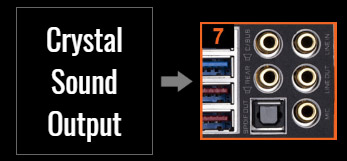

Gold Plated Audio JacksHigh resistance to corrosion and oxidation
Audio Signal Process
Anti-pop Circuit DesignPrevents popping noise when plugging in and removing the audio jack
Auto Impedance SensingAuto detects headphone coils from 6 to 600 O and automatically adjusts proper output power
Precise TXC OscillatorProvides precise time triggers to Digital-Analog Converters. High resistance to corrosion and oxidation.
Audiophile Grade CapacitorsFamous WIMA capacitors are used as feedback signal processing to deliver crystal and balanced sound.
Clean Audio Power
Independent Analog PowerDrives clean analog power for audio components to ensure minimal noise.
Famous WIMA capacitors are uPower PurifierSupplies undisturbed power to the Digital-Analog Converters

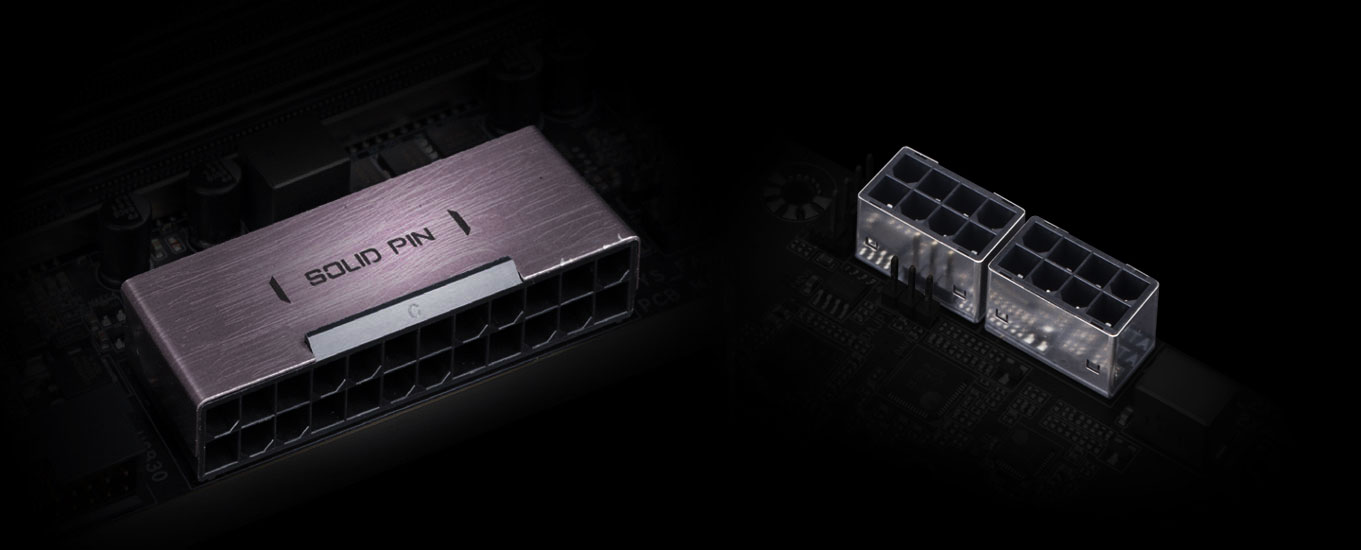

Solid Pin Power ConnectorsZ390 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply during CPU overloading.

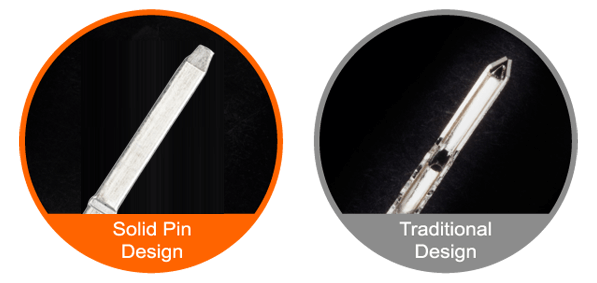

Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan

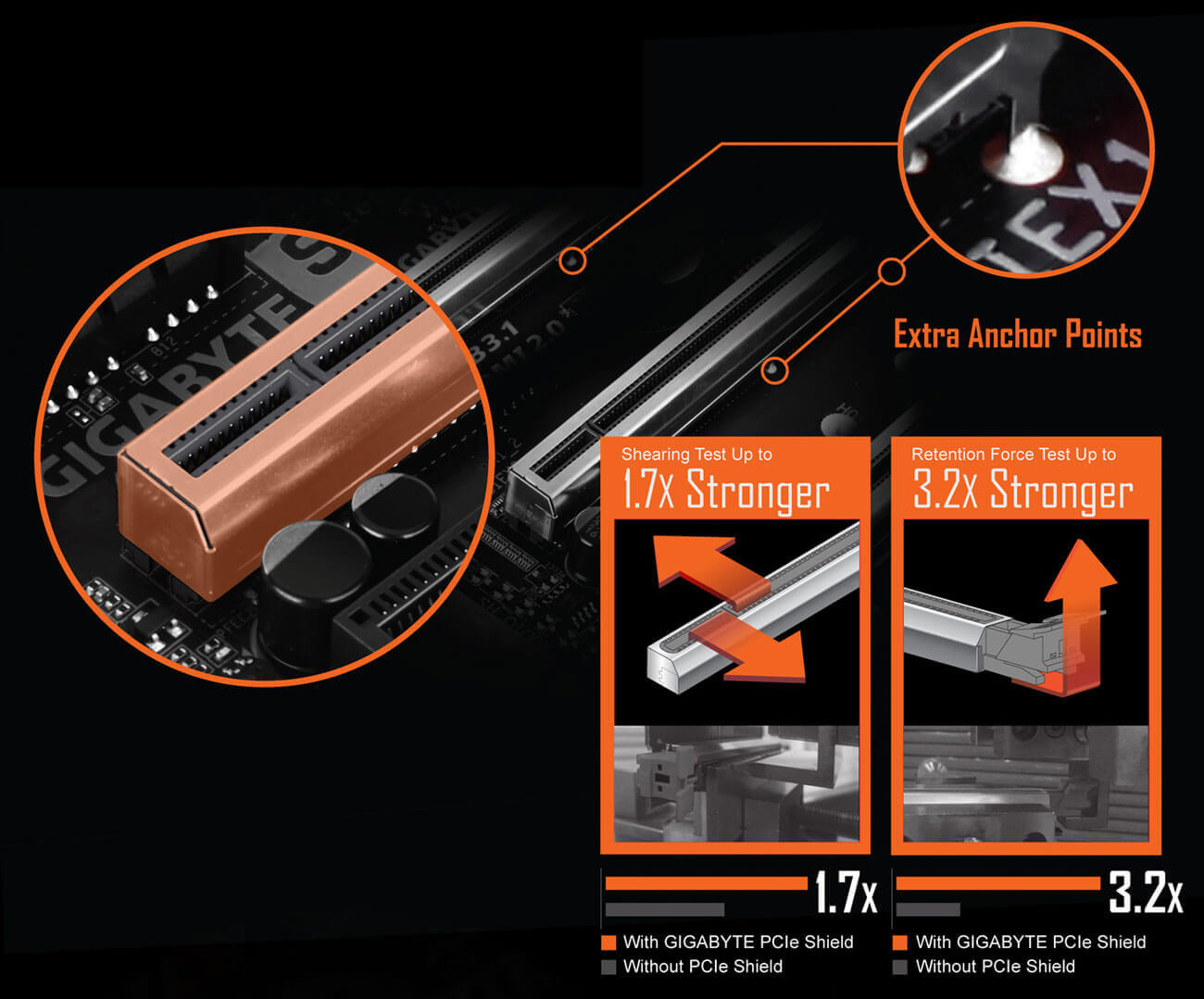

Ultra Durable PCIe Armor
Industry Leading Ultra Durable PCIe ArmorThe innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

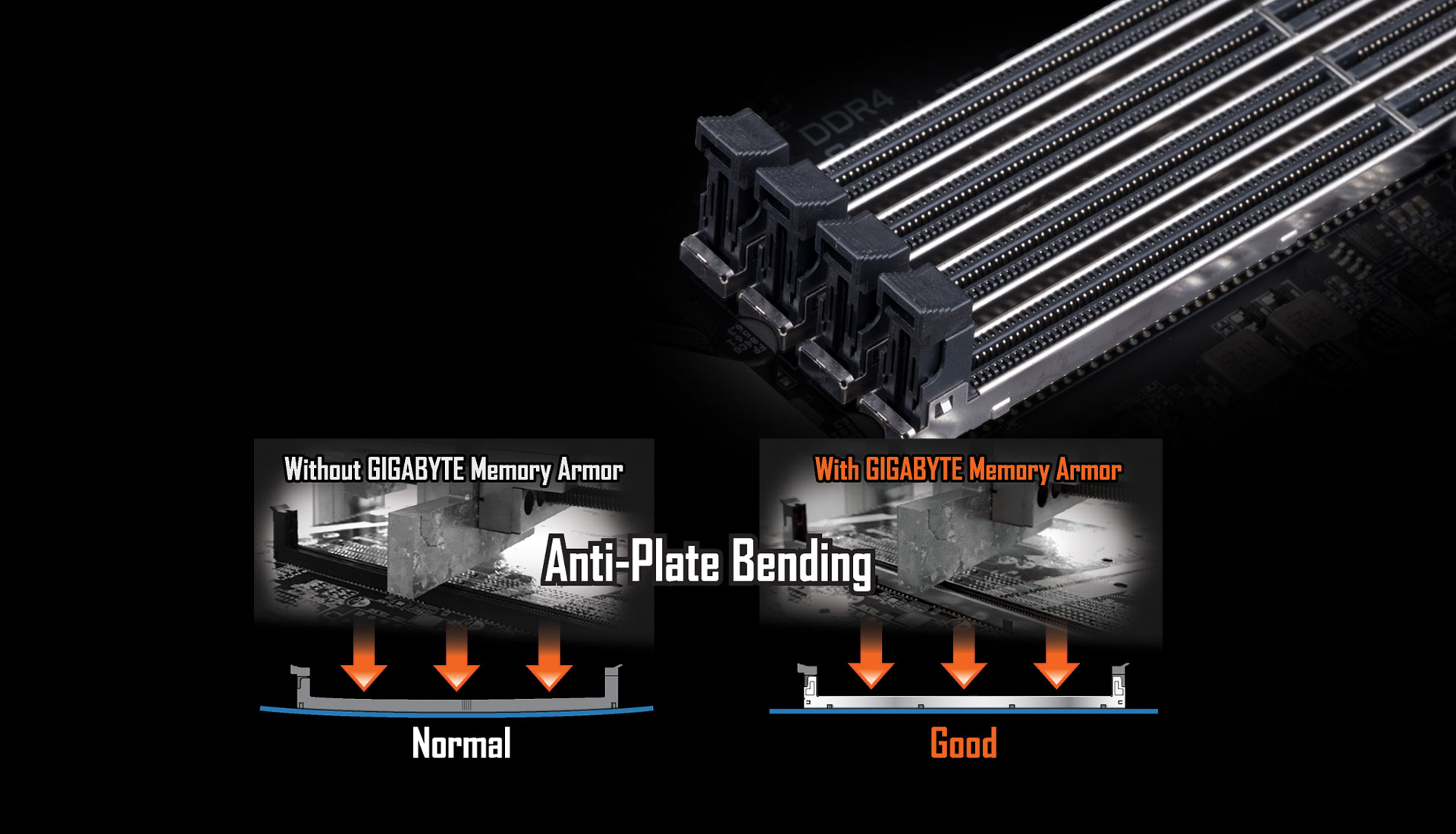

Ultra Durable Memory ArmorAORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference
CPU-Free USB BIOS Updates
AORUS Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the CPU or Memory needing to be installed.Updating your BIOS on your AORUS motherboard can be done in a flash – even without memory or CPU onboard. Utilizing the EC Controller, the BIOS on your AORUS Motherboard can now be updated through Q-Flash Plus even if your system is unable to boot. A LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.

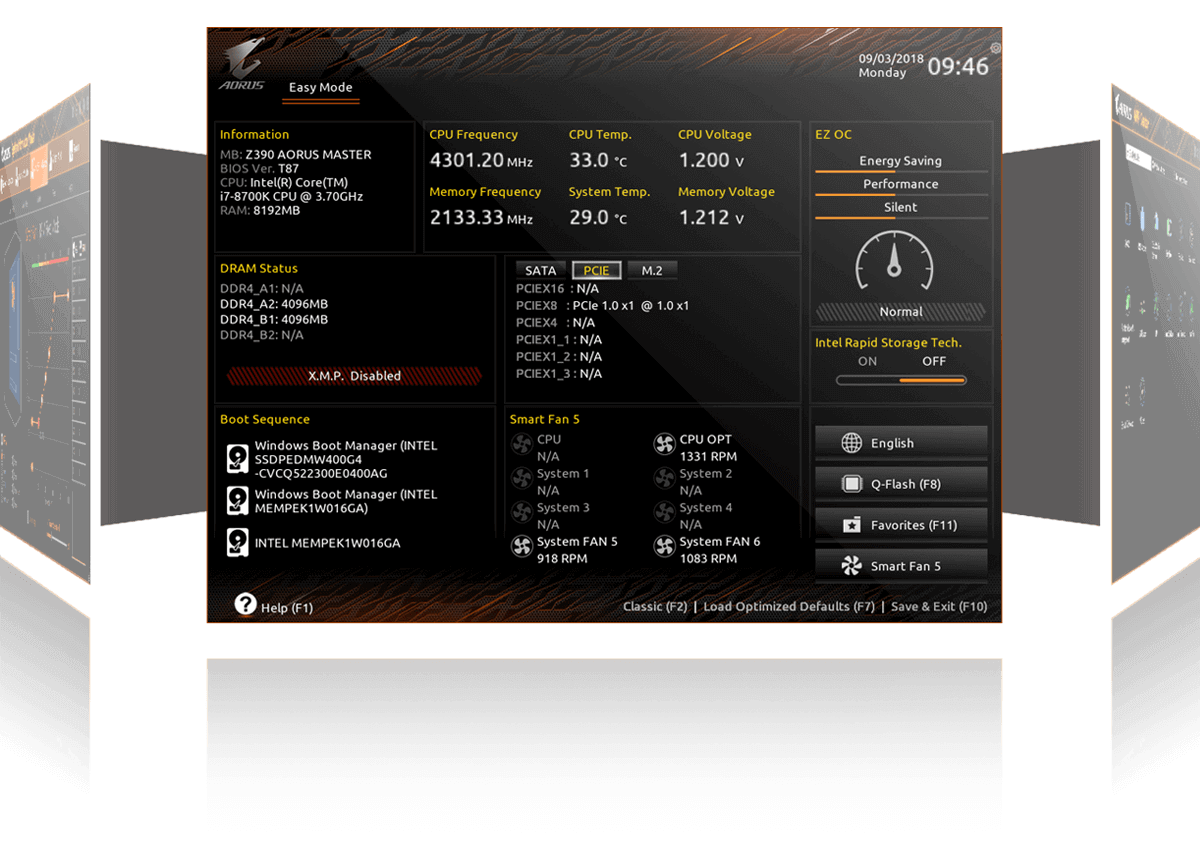

New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
Add constantly used items into the favorite menu for quick access.
Show all kinds of storage information including SATA, PCIE and M.2 interface.
List all changes before saving and exiting bios. Quickly review overall settings modification.
Optimized Memory Installation Reminder
Displays correct installation reminder message when user installs two memory modules but runs single channel mode.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
