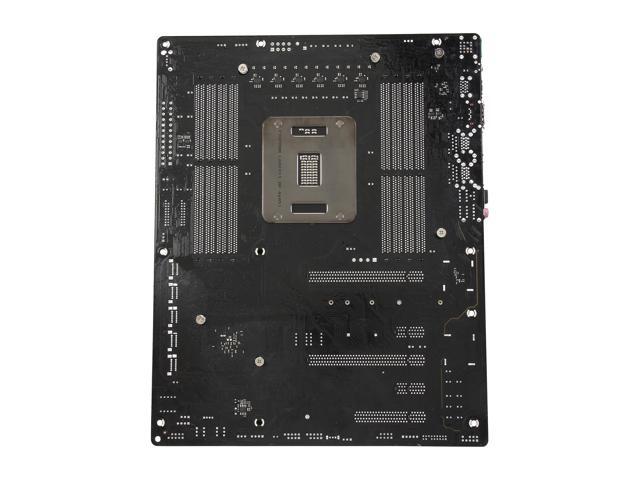

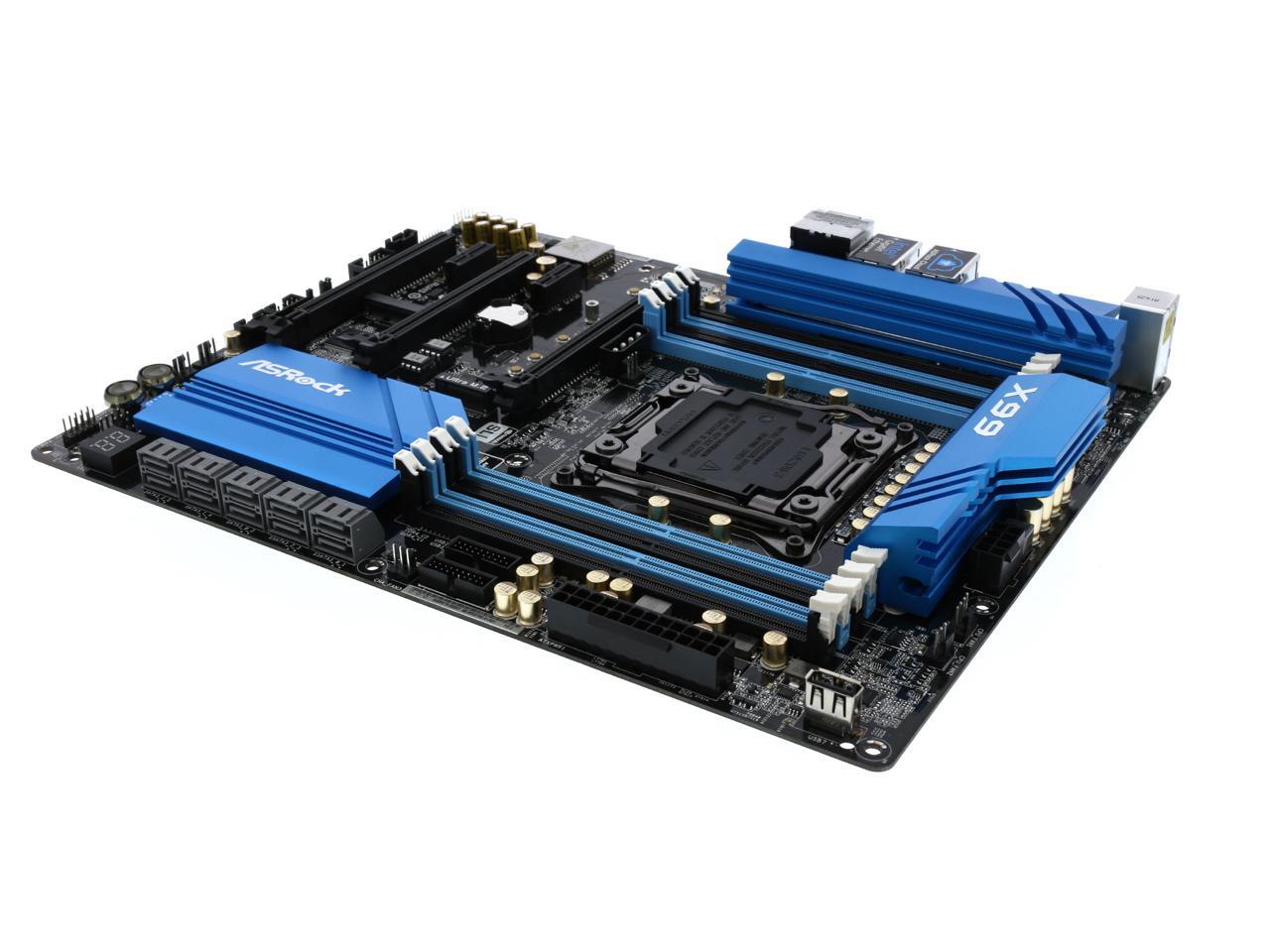

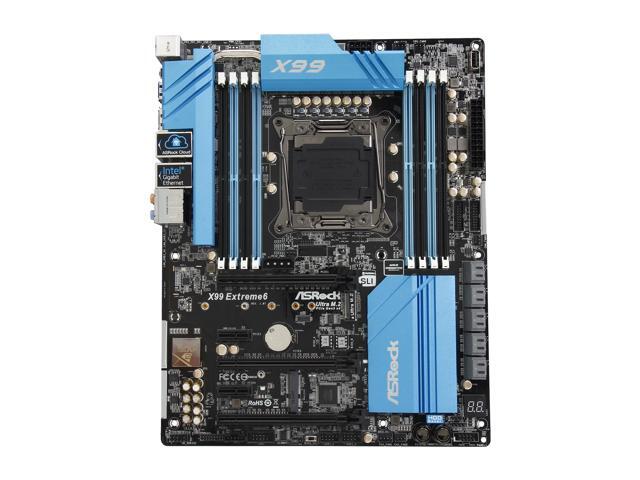

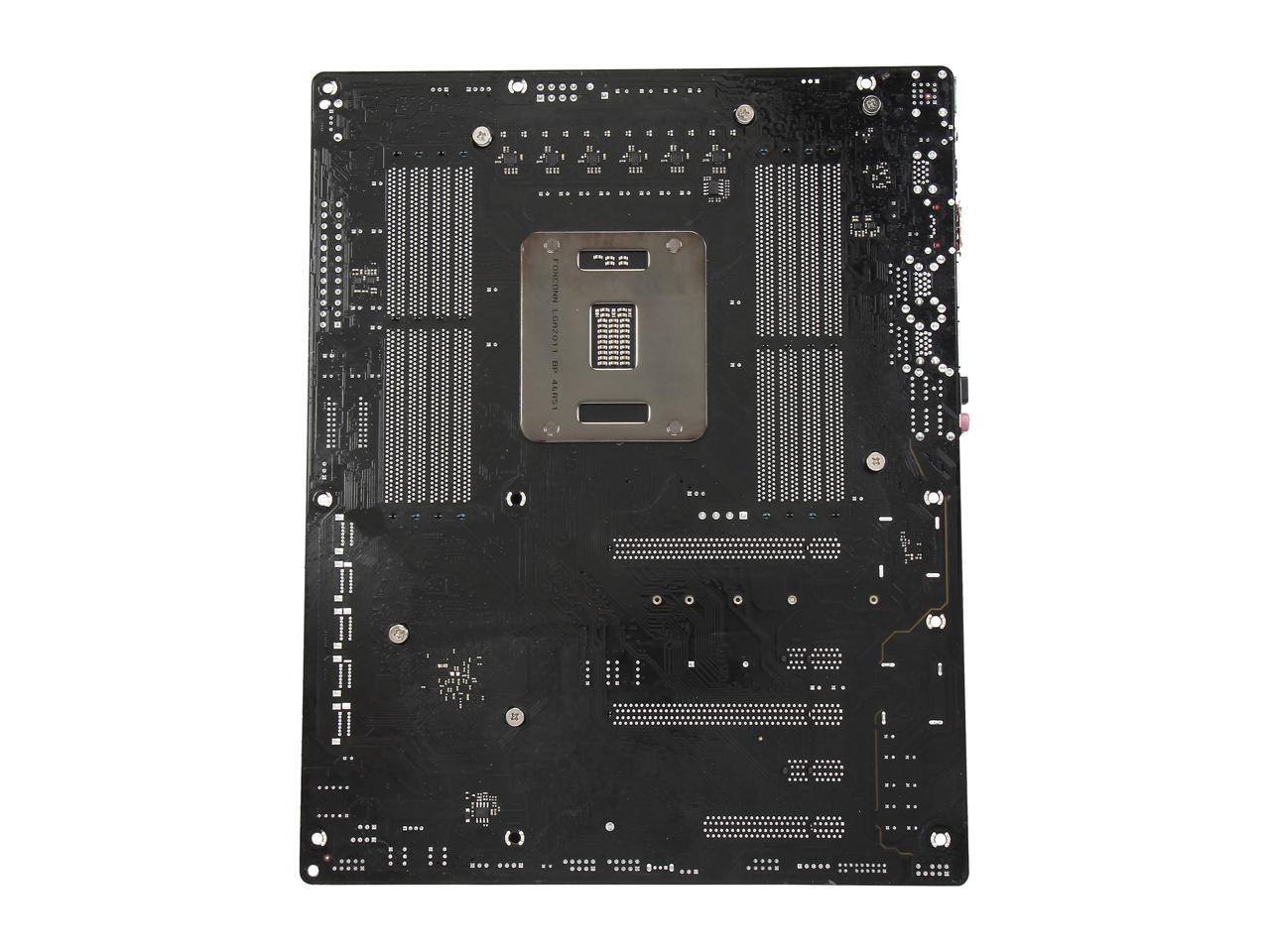

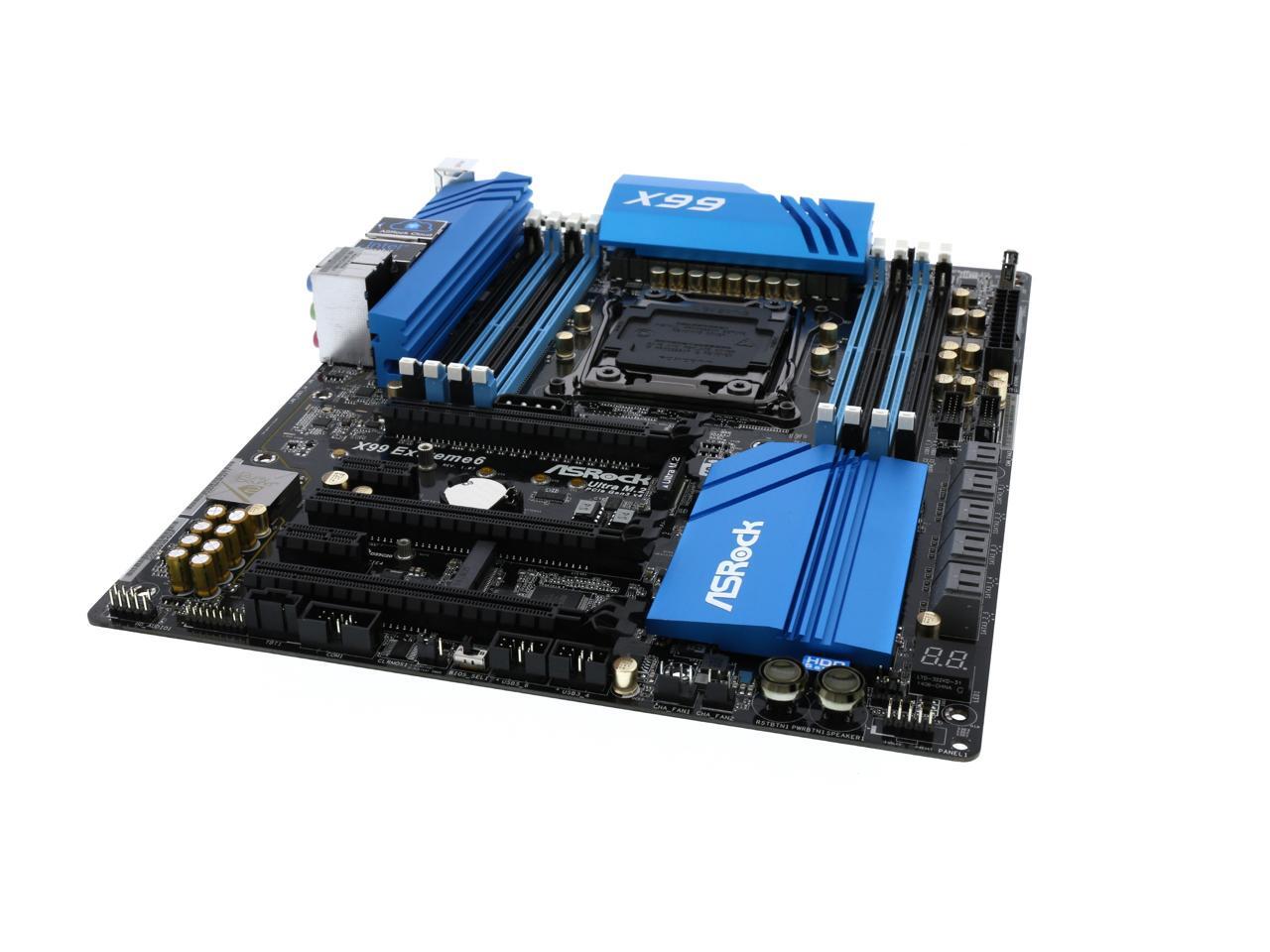

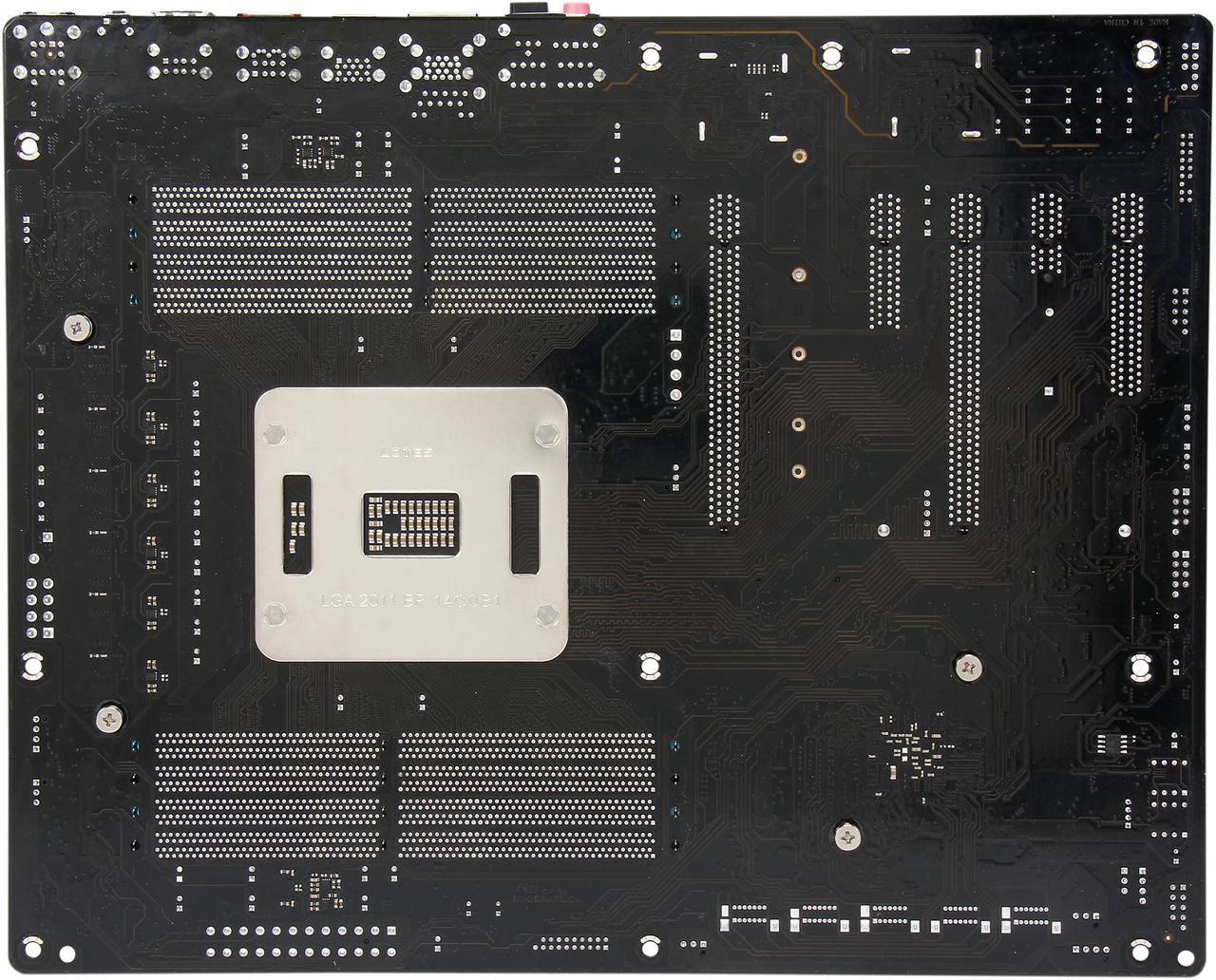

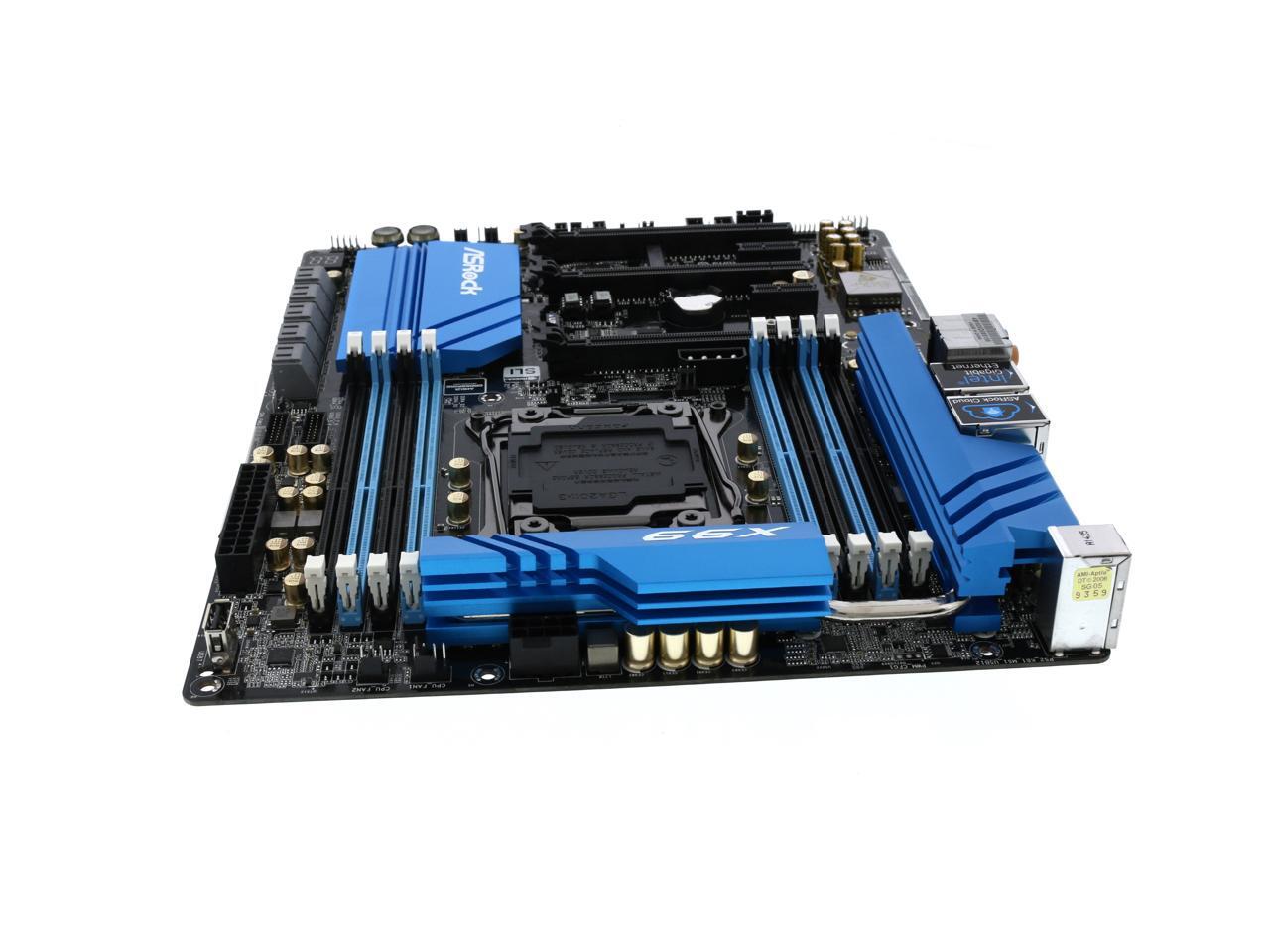

ASRock X99 Extreme6/3.1 LGA 2011-v3 Intel X99 SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

OUT OF STOCK.
  • Intel X99
  • Intel Core i7 and Xeon 18-Core Processors Family
  • DDR4 3200+(OC)/ 2933/ 2800/ 2400/ 2133
Specs
Reviews

Learn more about the ASRock X99 Extreme6/3.1

Model
Brand ASRock
Model X99 Extreme6/3.1
Supported CPU
CPU Socket Type LGA 2011-v3
CPU Type Intel CoreTM i7 and Xeon 18-Core Processors Family
Supported CPU Technologies Turbo Boost Technology 2.0
Chipsets
Chipset Intel X99
Memory
Number of Memory Slots 8×288pin
Memory Standard DDR4 3200+*(*OC)/ 2933*/ 2800*/ 2400*/ 2133
Maximum Memory Supported 128GB
Channel Supported Quad Channel
Expansion Slots
PCI Express 3.0 x16 3 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE3 @ x16 mode; PCIE5 @ x8 mode)
* If you install CPU with 28 lanes, PCIE1/PCIE3/PCIE5 will run at x16/x8/x4.
* If M.2 PCI Express module is installed, PCIE5 slot will be disabled.
PCI Express x1 2 x PCI Express 2.0 x1 Slots
Mini Card Slots 1 x Mini PCIe
Other Slots 15µ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
Storage Devices
SATA 6Gb/s 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 13),
NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology (SSATA3_3 connector is shared with the eSATA port)
(SSATA3_2 connector is shared with Ultra M.2 Socket)
* RAID is supported on SATA3_0 ~ SATA3_5 ports only.
SATA Express 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4 and SATA3_5)
M.2 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Onboard Audio
Audio Chipset Realtek ALC1150
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I218V
Second LAN Chipset Qualcomm Atheros AR8171
Max LAN Speed Dual 10/100/1000Mbps

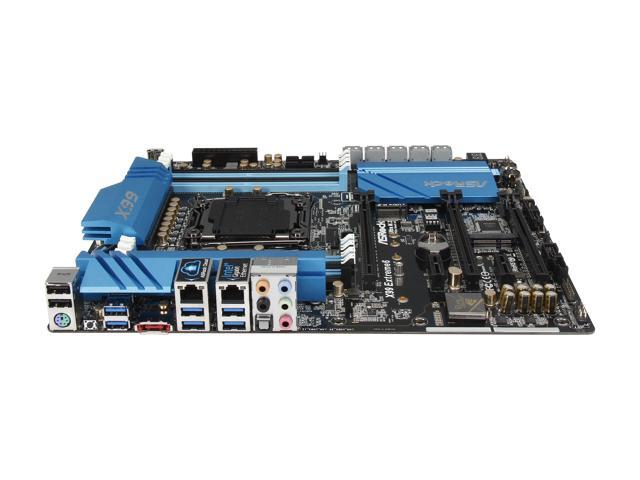

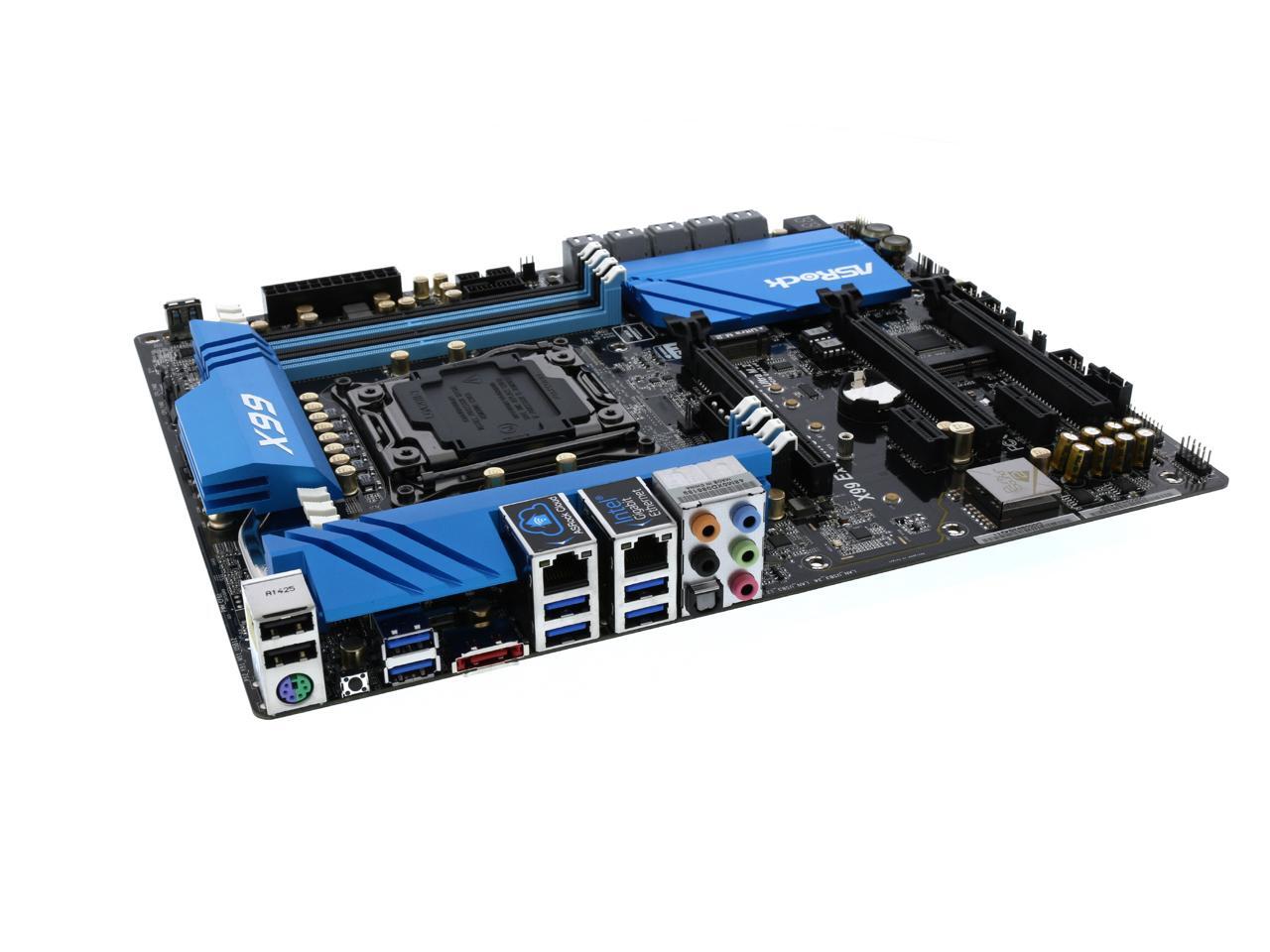

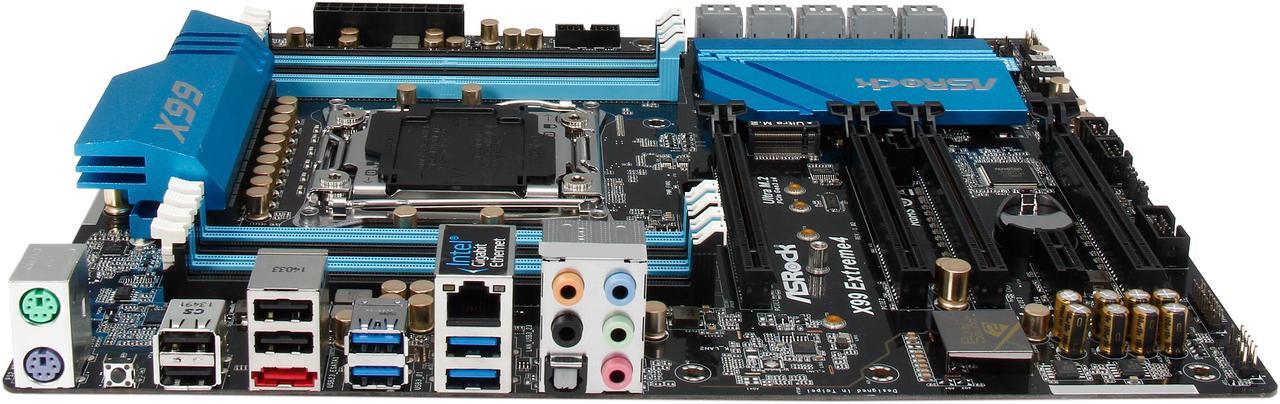

Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
USB 3.1 1 x USB 3.1 Type-C Port (10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike Protection))
ASRock USB 3.1/A+C: 2 x USB 3.1 Type-A Ports (10 Gb/s) (Supports ESD Protection (ASRock Full Spike Protection))
USB 3.0 4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
USB 1.1/2.0 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
eSATA 1 x eSATA Connector
S/PDIF Out 1 x Optical
Audio Ports HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x Vertical Type A USB 2.0
2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors 1 x COM Port Header
1 x TPM Header
1 x Power LED Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x HDD Saver Connector
1 x PCIe Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector
1 x Dr. Debug with LED
1 x Power Switch with LED
1 x Reset Switch with LED
1 x BIOS Selection Switch
Physical Spec
Form Factor ATX
Power Pin 24 Pin
Features
Features ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke
- Ultra Dual-N MOSFET (UDM)
- Nichicon 12K Platinum Caps
- Sapphire Black PCB

Supports Intel CoreTM i7 and Xeon 18-Core Processors Family for the LGA 2011-3 Socket

Digi Power, 12 Power Phase design, Multiple Filter Cap (MFC)

Supports Quad Channel DDR4 3200+(OC), 15µ Gold Contact in DIMM Slots

3 PCIe 3.0 x16, 2 PCIe 2.0 x1, 1 mini-PCIe, 15µ Gold Contact in VGA PCIe Slots

Supports AMD 3-Way CrossFireXTM and NVIDIA 3-Way SLITM

7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports Purity SoundTM 2 & DTS Connect

Intel Gigabit LAN + Qualcomm Atheros Gigabit LAN

10 SATA3, 1 SATA Express, 1 eSATA, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

1 USB 3.1 Type-C 10Gb/s, 2 USB 3.1 Type-A 10Gb/s (Supported by the bundled ASRock USB 3.1 Card/A+A), 8 USB 3.0 (4 Front, 4 Rear), 7 USB 2.0 (4 Front, 2 Back, 1 Vertical Type A)

1 COM Port Header, 1 TPM Header, 1 Thunderbolt AIC Connector

Supports HDD Saver Technology, Full Spike Protection, APP Shop

Unique Feature:
ASRock USB 3.1
- ASRock USB 3.1 Card/A+A (10 Gb/s)
- ASRock USB 3.1 Type-C Port (10 Gb/s)
ASRock X Series OC Socket
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Ultra Dual-N MOSFET (UDM)
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock HDD Saver Technology
ASRock Full Spike Protection
ASRock APP Shop

BIOS Feature:
- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 Support
- CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment

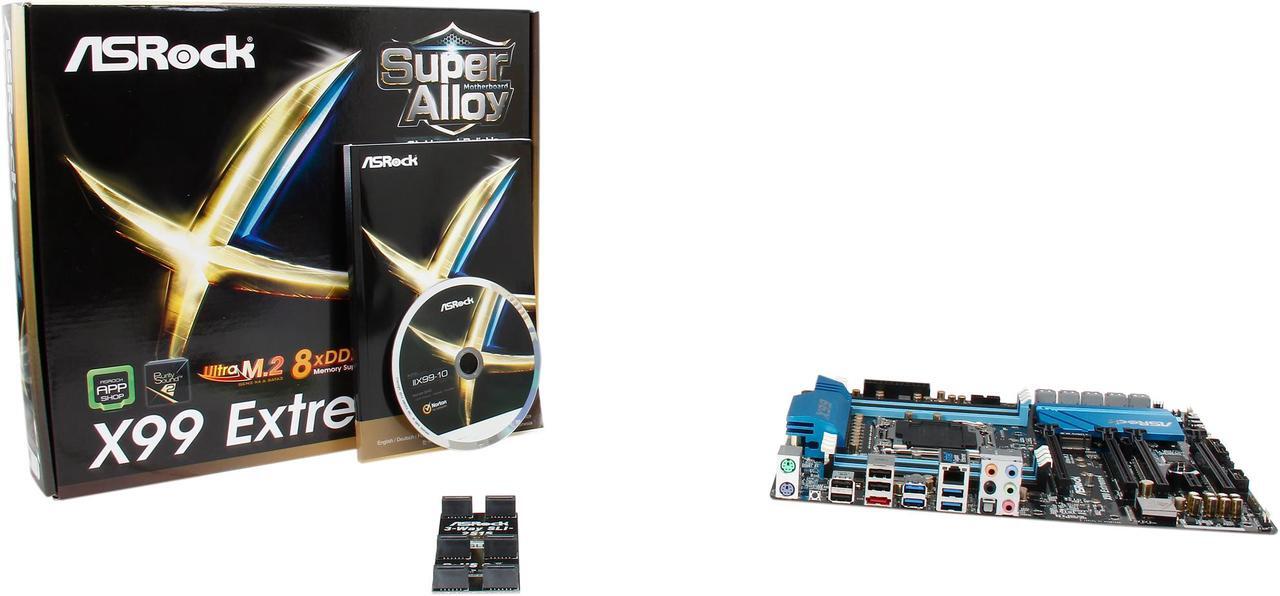

Packaging

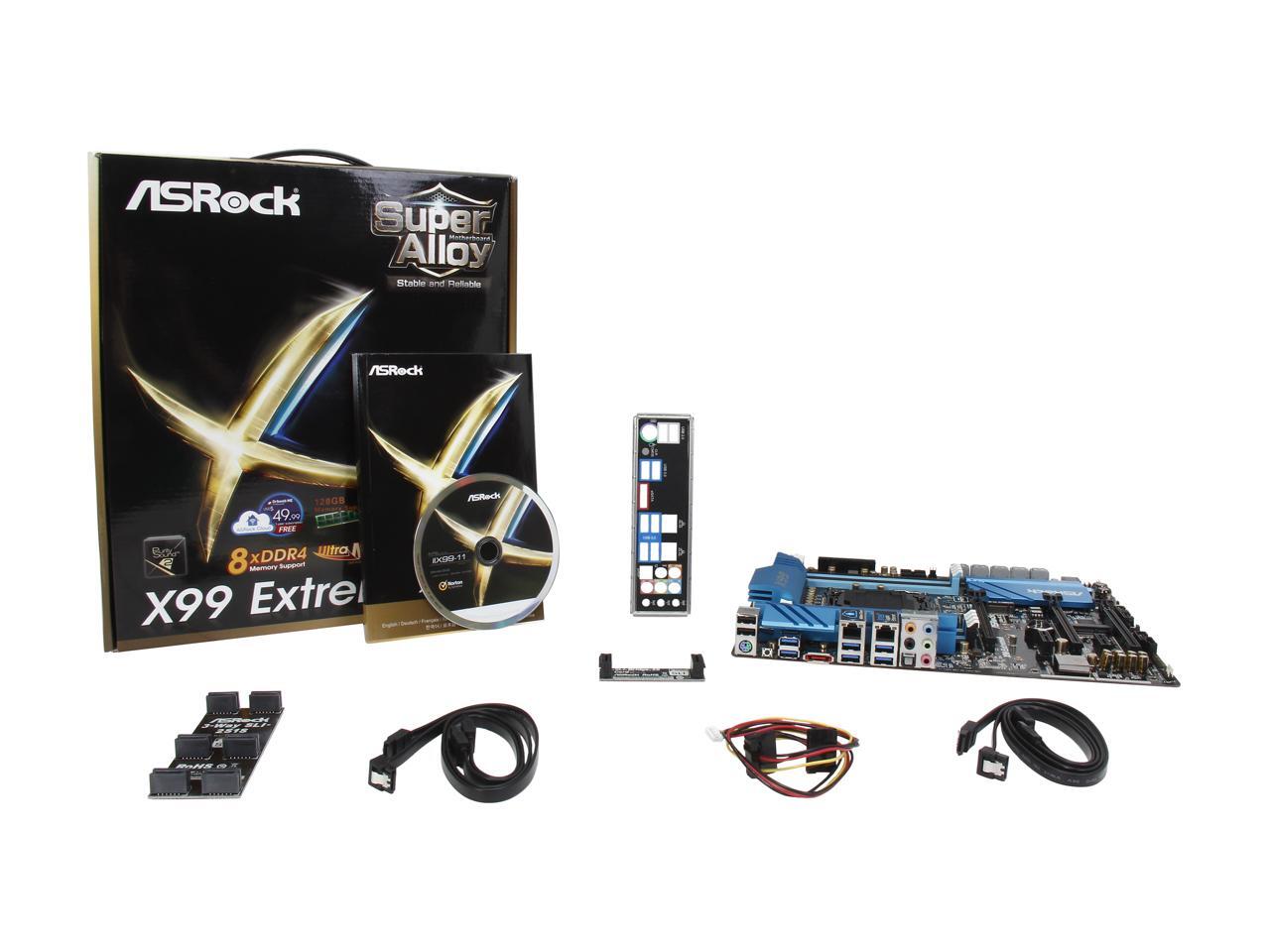

Package Contents Accessories:
- 1 x ASRock USB 3.1 Card/A+A
- 1 x ASRock SLI_Bridge_2S Card
- 1 x ASRock 3-Way SLI-2S1S Bridge Card
- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x HDD Saver Cable
- 1 x Screw for Ultra M.2 Socket
- 1 x Screw for mini-PCIe Slot
Additional Information
Date First Available June 04, 2015
