ASRock Z390 Extreme4 LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel Z390
  • Supports 9th and 8th Gen Intel Core processors (Socket 1151)
  • On board LAN support 10/100/1000Mbps
  • DDR4 4300+(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
Z390 Z390
Z390 Extreme4
Significantly Evolved Motherboard

ASRock Z390 Extreme4 is designed to make the most of the latest technologies in processor, storage, connectivity, and RGB lighting. It supports the new 9th gen Intel Core processors, and provides sturdy VRM and Digi power design for extreme overclocking and stability. One of the dual M.2 slots has full coverage heatsink for consistent peak performance. Take full advantage of USB 3.1 Gen1 Type-C and dual USB 3.1 Gen2 when needs arise. You can sync its RGB lighting effect to all Polychrome RGB enabled devices through the three RGB headers. As a super alloy motherboard with advanced components, it is a solid foundation for your gaming rig to perform.

  • Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
  • Digital PWM, 12 Power Phase
  • Supports DDR4 4300+(OC)
  • 3x PCIe 3.0 x16, 3x PCIe 3.0 x1, 1x M.2 (Key E) for WiFi
  • NVIDIA Quad SLI, AMD 3-Way CrossFireX
  • Graphics Output Options : HDMI, D-Sub & DisplayPort
  • 7.1-CH HD Audio (Realtek ALC1220 Audio Codec)
  • Supports Purity Sound 4 & DTS Connect
  • 8x SATA3, 2x Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2x USB 3.1 Gen2 10Gbps (1x Type-A + 1x Type-C)
  • 9x USB 3.1 Gen1 (1x Front Type-C, 4x Front Type-A, 4x Rear)
  • Intel Gigabit LAN
  • ASRock Polychrome SYNC
Z390
  1. HDMI + DVI + S-Sub
  2. Intel Gigabit Lan
  3. USB 3.1 Gen2 Type-A + Type-C
  4. Purity Sound 4

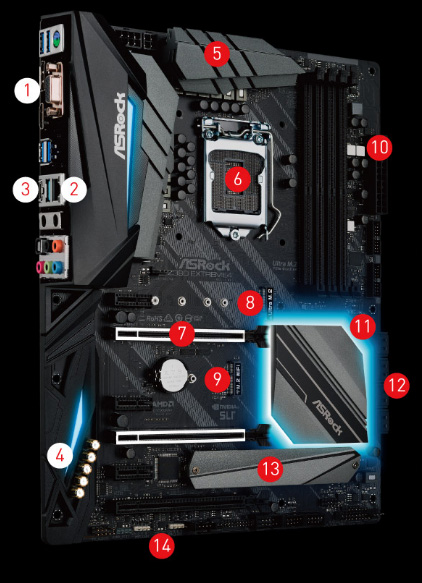

  1. DIGI Power Design
    12 Power Phase
    Premium 60A Power Choke
    Dual-Stack MOSFET (DSM)
    Combo Caps
  2. Intel LGA 1151 Socket
    Supports 9th and 8th Gen Intel Core Processors
  3. PCI-E Steel Slots
    Supports 2-Ways SLI/3-WayCFX
  4. 2x Ultra M.2 Socket
    (PCIe Gen3 x4 & SATA3)
  5. M.2 Key-E for WiFi
  6. Nichicon 12K Black Caps
  7. USB 3.1 Gen2 10Gbps Type-C Header
  8. 8x SATA 3 6Gbps
  9. Full-Coverage M.2 Heatsink
  10. RGB LED + Addressable RBG LED Headers
z390
Fully Supports 9th Gen Intel Core Processors

This motherboard is designed to make the best out of the 9th generation Intel Core processors. The sturdy VRM design provides extreme overclocking potential, lower temperatures during gaming and reinforced system stability for taking on all sorts of arduous computing tasks.

z390

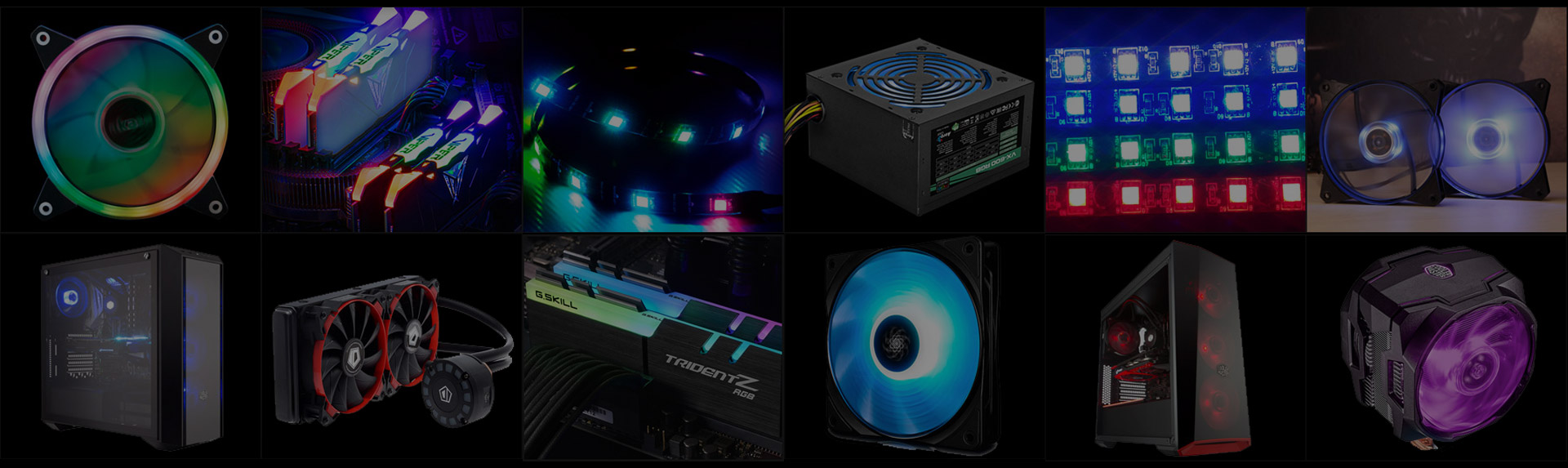

RULE YOUR OWN LIGHTING WAY WITH POLYCHROME RGB

In addition to built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that lets the motherboard connect to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize their RGB-LED devices across the Polychrome RGB Sync-certified accessory line to create their own unique lighting effects.

z390

The addressable RGB-LED header supports the WS2812B addressable RGB-LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
The RGB LED header supports the standard 5050 RGB-LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

z390
z390
z390
Dual M.2 Slot for SSDs

Equipped with an M.2 slot that supports both SATA3 6Gbps and the PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gbps, these boards are compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSDs.

Please refer to the product specification page for more detail.

Full-Coverage M.2 Heatsink

A massive full coverage M.2 heatsink that's able to dissipate heat efficiently to ensure your high-speed M.2 SSD is always working at its best.

z390
z390
Front USB 3.1 Gen1 Type-C

The front USB 3.1 Gen1 Type-C header delivers up to 5Gbps data transfer rates and has a next-generation reversible USB design on the front panel of computer case.

Purity Sound 4

It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound 4 is a combination of several hardware and software audio solutions. These include: 7.1-CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC, and other technologies that deliver only the crispest sound effects.

z390
z390

120dB SNR DAC

z390

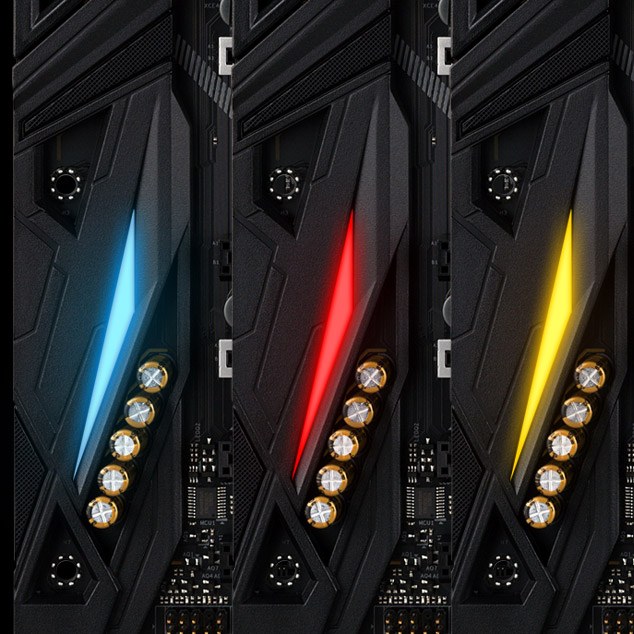

RGB LED

z390

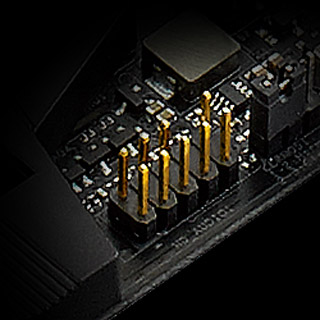

Gold Audio Connector

z390

TI NE5532 Premium Headset Amplifier

z390

Individual PCB Layers for R/L Audio Channel

z390

Impedance Sensing on Front Out Port

z390

PCB Isolate Shielding

z390

Pure Power-In

z390

Nichicon Fine Gold Series Audio Caps

z390
ASRock Intel 4-Layer Memory POOL Technology

POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, giving the motherboard better electrical properties and performance.

z390
SLI HB Bridge Bundled in for Free

ASRock's free bundled and brand-new SLI HB Bridge is compatible with NVIDIA GeForce GTX 1080 and 1070 graphics cards that double the available transfer bandwidth, delivering rock-stable gameplay and letting you experience surround gaming in the right way.

z390
Intel Optane Memory Ready

Supports Intel Optane memory technology and Intel Optane storage technology that redefines a new standard of high performance and responsiveness.

z390

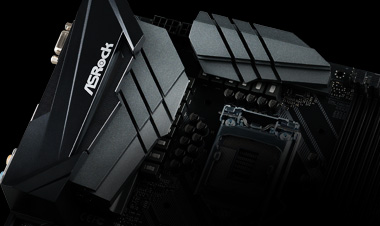

XXL Aluminum Alloy Heatsink
z390

Extra-large aluminum-alloy heatsinks effectively take heat away from the MOSFET and chipset so that your whole system may perform more stably.

Premium 60A Power Choke
z390

Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Premium Memory Alloy Choke
z390

Specifically designed for memory power delivery, these new alloy chokes feature a highly-magnetic and heat-resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

Dual-Stack MOSFET (DSM)
z390

Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mO, so the power supply for the CPU Vcore is more efficient.

Combo Caps
z390

A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, more efficient and responsive CPU Vcore power, helping overclockers achieve higher scores.

Nichicon 12K Black Caps
z390

The supreme 12K black capacitors have lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

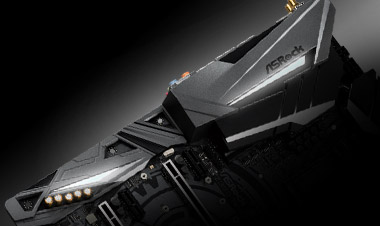

I/O Armor
z390

A newly designed protective cover for all of the crucial parts near the motherboard's rear I/O protects against potential damage from static electricity.

Matte-Black PCB
z390

A new mysterious matte-black and copper-color scheme to match the prestigious components of ASRock's high-end motherboards.

High-Density Glass Fabric PCB
z390

The high-density glass-fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

z390

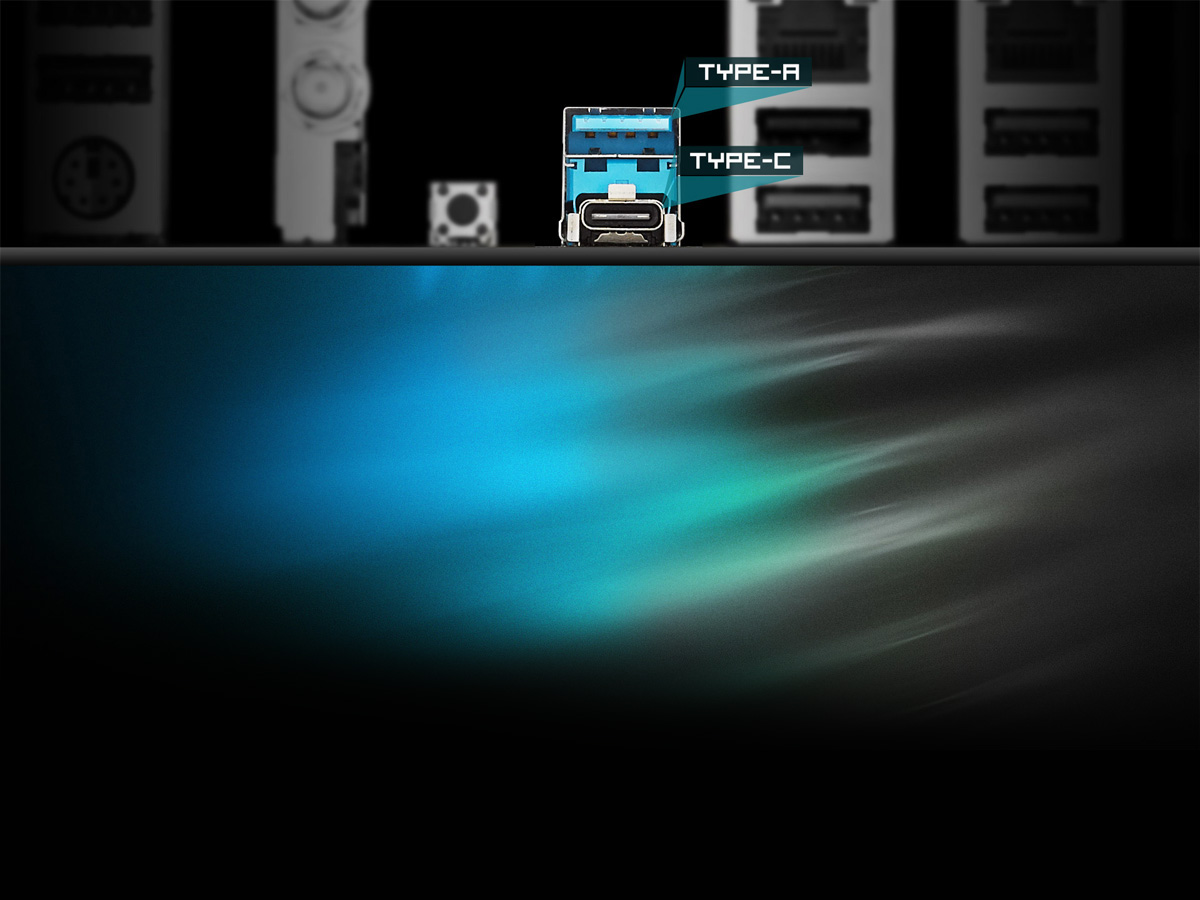

Dual USB 3.1 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear I/O to support next-generation USB 3.1 Gen2 devices and deliver up to 10Gbps data transfer rates.

USB 3.1 Gen2 doubles the data transfer rate

z390

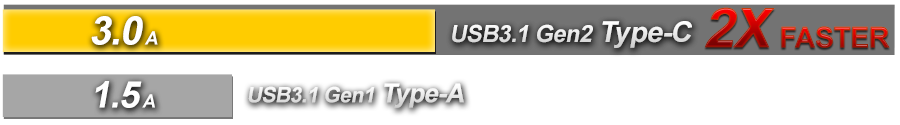

USB 3.1 Gen2 Type-C doubles the charge speed!

z390
z390
Intel LAN

Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability, and is able to deliver an ultimate networking experience to its users!

z390
M.2 (KEY E) for WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections via the M.2 (Key E) slot.

z390
Water-Pump Header

This board comes with a unique CPU fan header that also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. Users can also adjust the voltage of water pumps to get a higher cooling performance with lower noise.

z390
Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next-generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

z390
Triple Monitor

Graphics, graphics and even more graphics! Customers have demanded more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear I/O to connect monitors and use them simultaneously without installing another graphics card.

z390
A-Tuning

A-Tuning is ASRock's multi-purpose software suite that's been updated with a new interface, more helpful features and improved utilities.

z390
Live Update & APP Shop

ASRock's Live Update & APP Shop is designed exclusively for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with the ASRock Live Update & APP Shop.


Learn more about the ASRock Z390 Extreme4

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: Non-refundable
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
5/ 5
Pretty Decent Board for a 9th gen Build

Pros: Looks very Nice
Performs Well with CPU coolers
Easy to Work with
Nice Build Quality

Cons: Not many at the moment but the Board light stay on even when the computer is powered off and I have to keep launching the PolyChrome Software to sync it up with my Ramsticks but it's bearable

Overall Review: I was a bit skeptical with buying this board as I had never tried any products by Asrock but decided to make the Jump. Overall the Board Looks very well made with decent VRM's and good aesthetics and RGB is always a plus in my book

Did you find this review helpful?
4/ 5
Looks like a pretty good board.

Pros: Lots of USB and SATA ports, boots fast, runs good. Windows 10 installed from a USB stick onto a Samsung 970 EVO Plus in about 20 minutes.

Cons: First board/CPU combo was DOA. It could have been the CPU's fault as it looked warped when I removed it. Not cracked but bent. First such problem in 28 years of assembling PC's for myself friends and relatives. This one was for a friend. Newegg was great on replacing the combo.

Overall Review: Would recommend, and buy again.

Wish the LED's could be turned off as the glow against the wall from the side is annoying.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
4/ 5
New Upgrade

Pros: no issues

Cons: Not a good looking board, pcb looks and feels cheap.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
4/ 5
Watch out with 9th Gen CPU's, the BIOS may not be new enough version

Pros: I haven't gotten to really use it yet because I had a faulty A2 RAM slot on the first one. I'm giving it a 4 because this is not ASRock's fault. It is Newegg's fault, not to say Newegg is a bad company. Their customer service isn't bad, it just sucks that they would send me this thing as a replacement: SEE CONS......

Cons: Came with a version P1.80 BIOS, which is not new enough for a Intel i7 9700k. New egg apparently has older ones hanging around that probably were made before my i7 came out. This really sucks since it is supposed to support 9th Gen processors. I ordered it a month ago, and I've been screwing with this build for 3 weeks now. I now have to send it back to the company itself (ASRock) so THEY can replace the BIOS chip. Apparently when it doesn't have a supported BIOS chipset, it will just restart every 20-30 seconds instead of booting. The BIOS is these 2 chips at the lower right of the board (when inserted into case) that have a number like the version I mentioned at the start, for you fellow newbies.

Just looked back into the specifications, and it does not list anything about the BIOS version. The first one I was sent did have a new enough BIOS. I was able to install Windows10 with one 16GB stick of RAM on my SSD before I sent the first one back. Still, it may be a (I can't name a gambling game here because of "foul language" that sounds like a slang word that starts with a C that sometimes stands for what you excrete from your - Well, I can't even use the scientific term for the - Well, I can't even use the common term that starts with a B that is also known as the POOPSHOOTER ) shoot, or maybe some employees at newegg were just being jerks, mad they had to send a replacement, so they pulled from some older models that hadn't sold before the i7 9700k came out (I know how it is to be jerked around by customers, and I've put those customers in their place when I was SURE they were jerking me around, but I am not one of those customers, and if this is the case, shame on those employees - those who live in reality know they exist at nearly every company and their attitude is not always wrong - for doing this and causing me so much stress - SO MUCH STRESS; I spent 1900 with newegg for this build and another 150 for a special keyboard elsewhere, this was my first build, and I did months of research probably totaling 50+ hours if you include all of the customer support I've had to deal with - around 10 hours of that now with ASRock included, and it just now concluded).

I just found out that the serial number on the box is for the Taichi model and not the Extreme 4 model. I just sent a picture to ASRock of the box, label with serial #, instructions and the motherboard itself. They approved me after that. Sending it back sucks though, because if you can't include a screenshot of your invoice that is less than 500kb, you'll have to do it through phone and then email. Spent the last 2 hours just trying to get a return postage after calling them last thursday (monday now) and being told that they would send me an email in a few days for the postage, only to find out that I had to register at the website when I called to see if it was still coming through (today).

Just be ready when you build a computer, not just for building it like I was, but for other complications.

Also, I found that my EVO 212 (by memory; It's basically the best CPU cooler that's not water cooled you can get) kind of gets in the way of the A2 Ram slot, and REALLY gets in the way of the A1. Insert your Ram before you connect the CPU cooler if you have this fan, ESPECIALLY if you have more than 2 RAM sticks. By sight, the A1 just barely fits under the side of the fan. Every tutorial I watched did the fan first, and it took me 45 minutes to clean the thermal paste off with rubbing alcohol and coffee filters, which you don't have to actually do, because thermal paste is not an adhesive. The fan doesn't move because it's (I am being censored from typing the verb that a screwdriver does) in. Just unscrew, remove, and put in the RAM if you did this instead of the stupid (I am being censored from saying a slang word that starts with C which only means "STUFF" or "THINGS" in this context) I went through, unless maybe you really over-applied that paste.

Overall Review: -I wouldn't say don't buy it. I chose it because it was less money than some of it's competitors, yet had more usb slots.
-I probably wouldn't buy it again, only because it will probably be obsolete by the time I need another.
-Things I would change about the product: A listed BIOS version on the box and on this website - RAM slots too close to CPU at least if you have an EVO 212 fan (I think I got the name right); see full CONS to get a taste of potential problems that may be unlikely, but have good beginner tips.

2 out of 7 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Perfect

Pros: Very good it does support 8th gen just got to make sure that you update the motherboard.

Cons: None at this point

1 out of 1 people found this review helpful. Did you?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Purchased 2 so far!

Pros: Asrock is very good quality and offers decent pricing and performance!

Cons: could use more usb on board

Did you find this review helpful?
1/ 5
Setup of this board is unconventional

Pros: - Nice lights and good ports locations

Cons: - The RAM configuration is unconventional. Depending on how old your motherboard is, usually your RAM are slotted in channel 1&3 or 1&2 for your first pair. As I was having issues posting initially with 1&3, I tried to post to 1 solo. I then read that 2&4 are required (first) so I placed one stick of ram in slot 2 to continue testing out my board in isolation. I finally attempted slot 4 with a single ram and viola, the machine finally posted.
- This setup is quite sad as the board completely reverses the order of the setup. At the very minimum they could have included a motherboard speaker to help troubleshoot.
- Support from Asrock sent me garbage instructions with random instructions that did not reply to my question. I didn't even bother responding to them as they did clearly did not read my email.
- Can't recommend ASRock... get Asus or Gigabyte

Overall Review: - Would not recommend this board even though it is cheaper or discounted

0 out of 9 people found this review helpful. Did you?
Manufacturer Response:
Dear Wilson,

Thank you for purchase and review.
Please trouble shoot the mainboard following to check if it address the issue.
• Unplug the ATX power, remove all components from mainboard.
• Remove the mainboard from chassis, place it on mainboard’s box.
• Clear the CMOS.
• Check the mainboard’s CPU contact pins are normal (should be pointing same way and pattern).
• Reseat the CPU and heatsink fan if socket pins are normal.
• Test with single memory module on each slot one at the time to verify all slots are working individually.
• Populate the memory one by one if the memory and slots are working individually.

If you have any technical support inquiry, please contact us at http://event.asrock.com/tsd.asp
We will assist you shortly.

Thank you

ASRock Support
Tech Support Email: http://event.asrock.com/tsd.asp
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Good Motherboard with a lot of bang for your buck!

Pros: M.2 slots, m.2 Wifi card slot, nicely laid out with a lot of features

Cons: I have not found any negative points so far

Overall Review: I would definitely recommend this motherboard.

Did you find this review helpful?
