ASRock Z490 Phantom Gaming-ITX/TB3 LGA 1200 Intel Z490 SATA 6Gb/s Mini ITX Intel Motherboard

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel Z490
  • Supports 10th Gen and future generation Intel Core Processors (Socket 1200)
  • Supports DDR4 4666+(OC)/ 4600/ 4500/ 4400/ 4333/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory

  • Overview
  • Specs
  • Warranty & Returns
  • Reviews

Z490 Phantom Gaming-ITX/TB3

This motherboard from ASRock allows you to build a small yet mighty mini ITX system based on the 10th Gen Intel Core processors, which will unleash their full potential thanks to optimized thermal design and exclusive BFB technology. Ultra M.2, Wi-Fi 6, and Thunderbolt 3 are supported to make it a future-proof platform.


0dB Silent Cooling

Realize the completely silent computing by automatically adjusts fan speed and even command it to stop working when the temperature goes low.

*It's recommended to use water cooling on this motherboard to avoid mechanical conflict on certain air cooling products.


Optimized for Water Cooling

XXL Aluminum Alloy Heatsink design with active fan effectively improves heat dissipation and promotes overall performance. This is aimed for die hard gamers and enthusiasts to bring a new computing experience paired with Intel's 10-core processors.

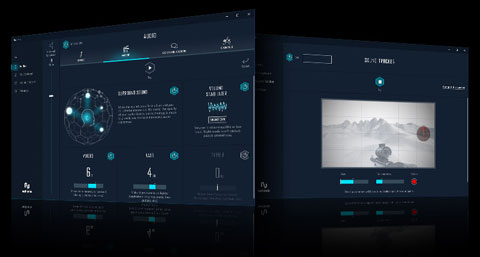

Nahimic Audio

Whether you are using headphones, headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.


Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

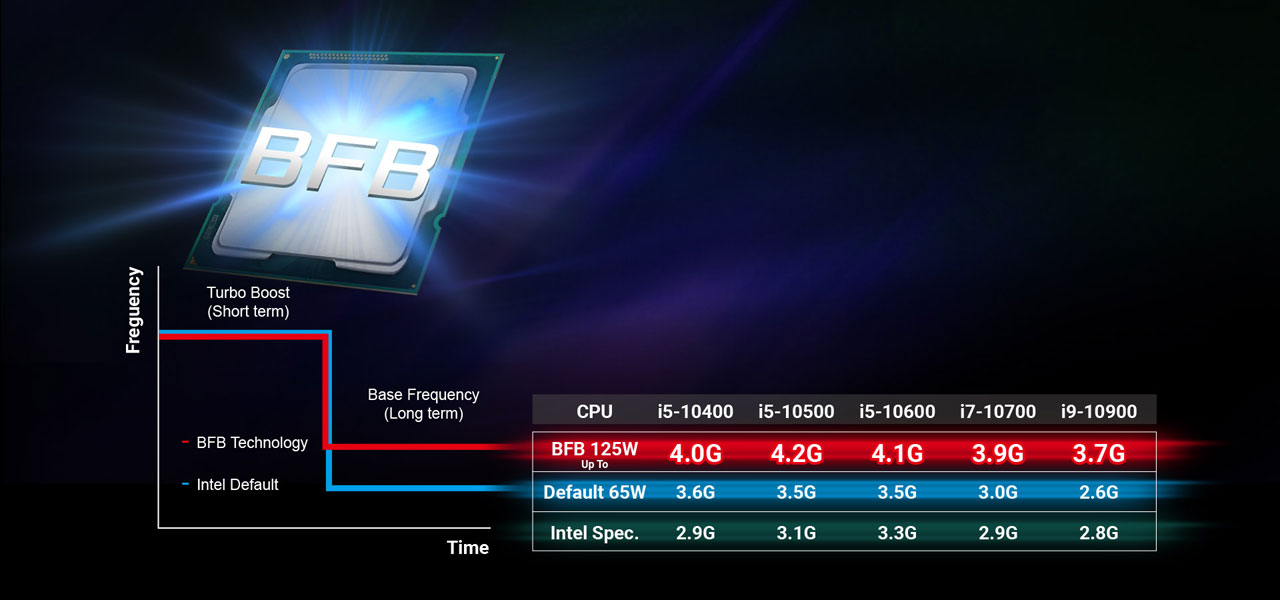

Base Frequency Boost (BFB) Technology

Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs on ASRock's 400 series motherboards (even non Z models) and enjoy the base frequency boost with the hidden power of processors immediately.

While ASRock BFB breathes life into non K series CPUs and non Z series motherboards, the boost frequency currently still depends on the cooling system applied on your rig.

* BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.



Thunderbolt 3 Technology

Thunderbolt 3 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects up to 3 Thunderbolt 3 devices with a single wire, and even provides quick charging with 5V@3A (15W). Just experience the world's fastest connectivity with Thunderbolt ready motherboards!

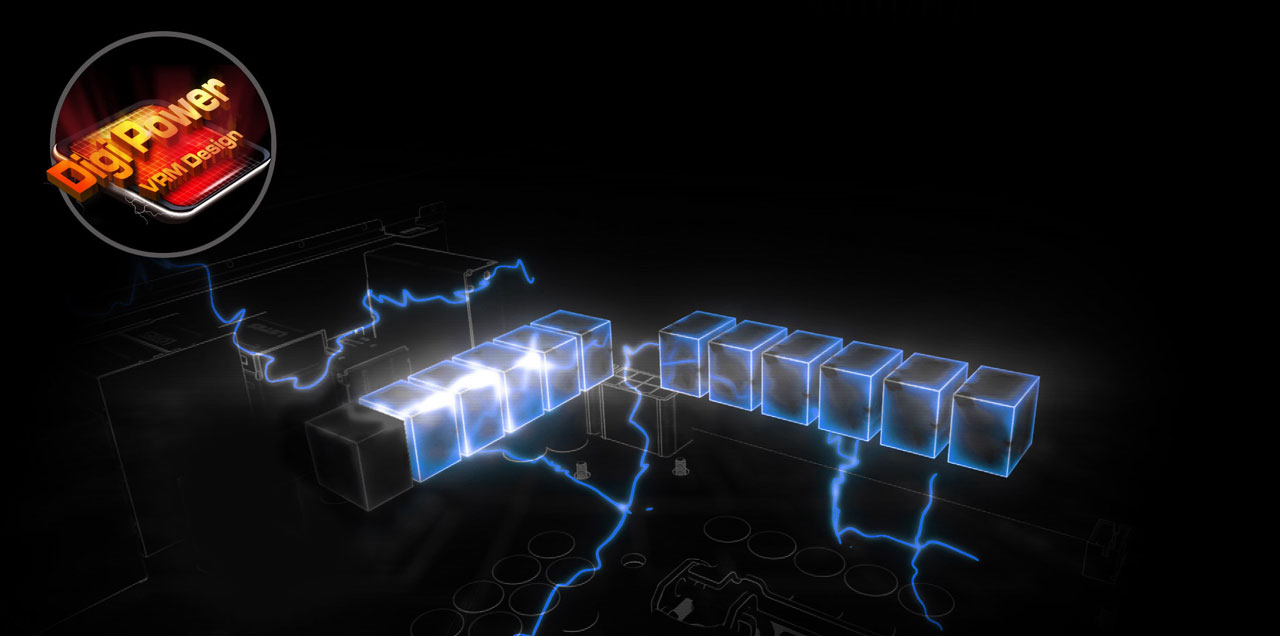

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

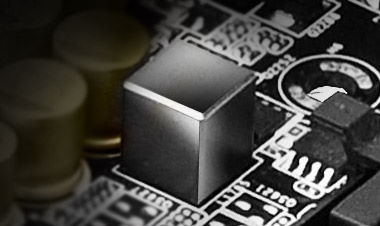

Premium 90A Power Choke

Compared to traditional chokes, ASRock's premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

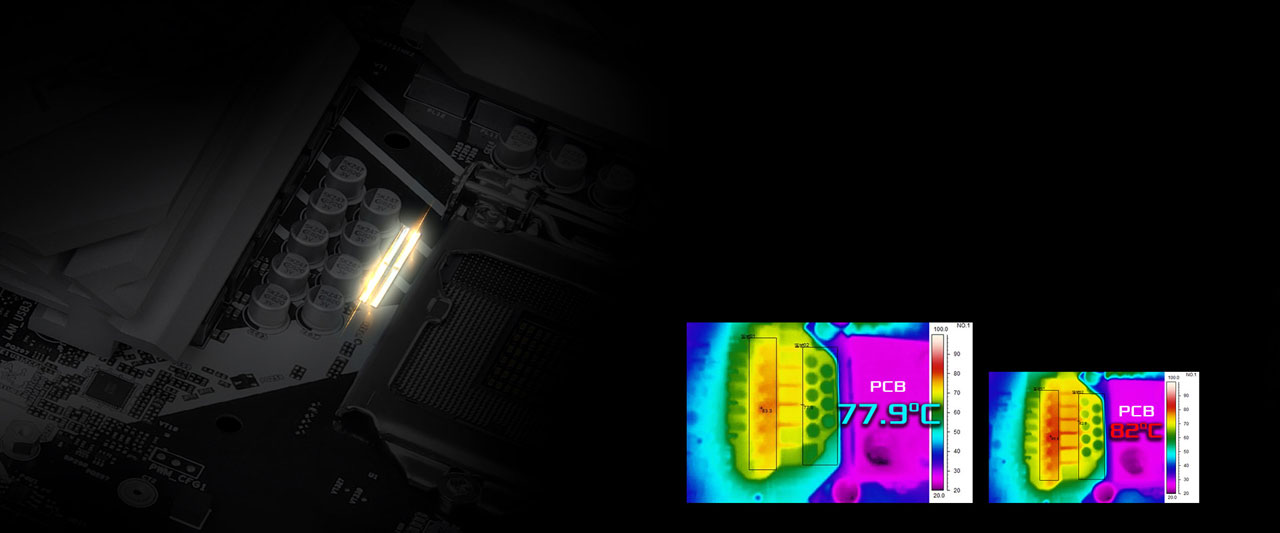

2oz Copper PCB

2 ounce copper inner layers provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!


Rule Your Own Lighting Way—Polychrome RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

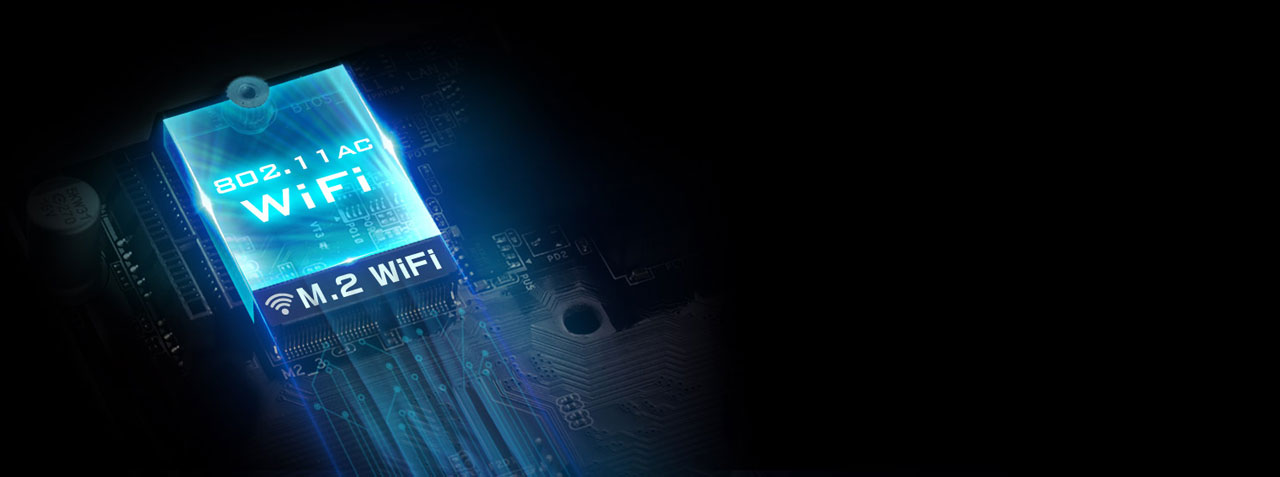

Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock's motherboard is equipped with next generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

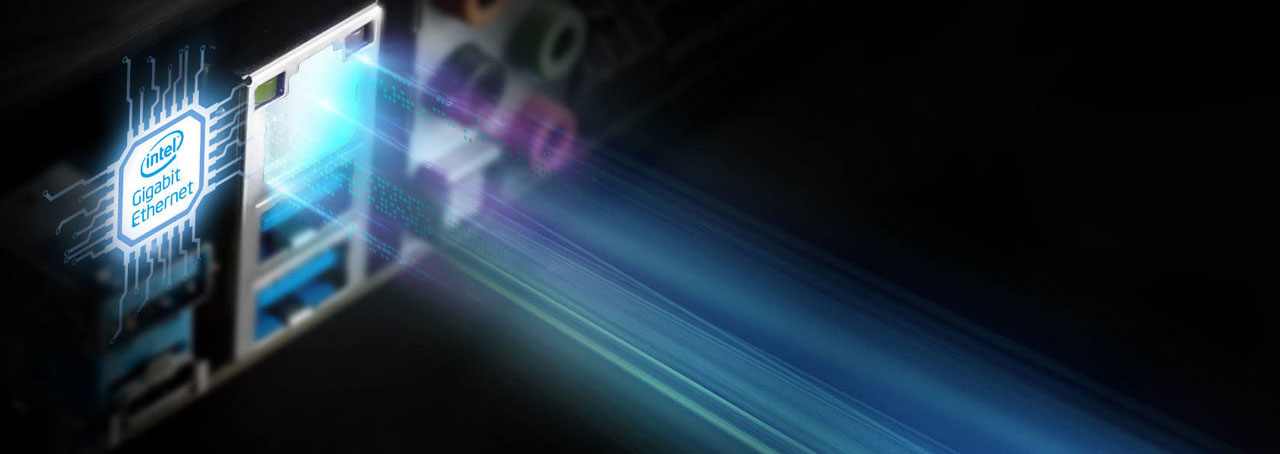

Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.


Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

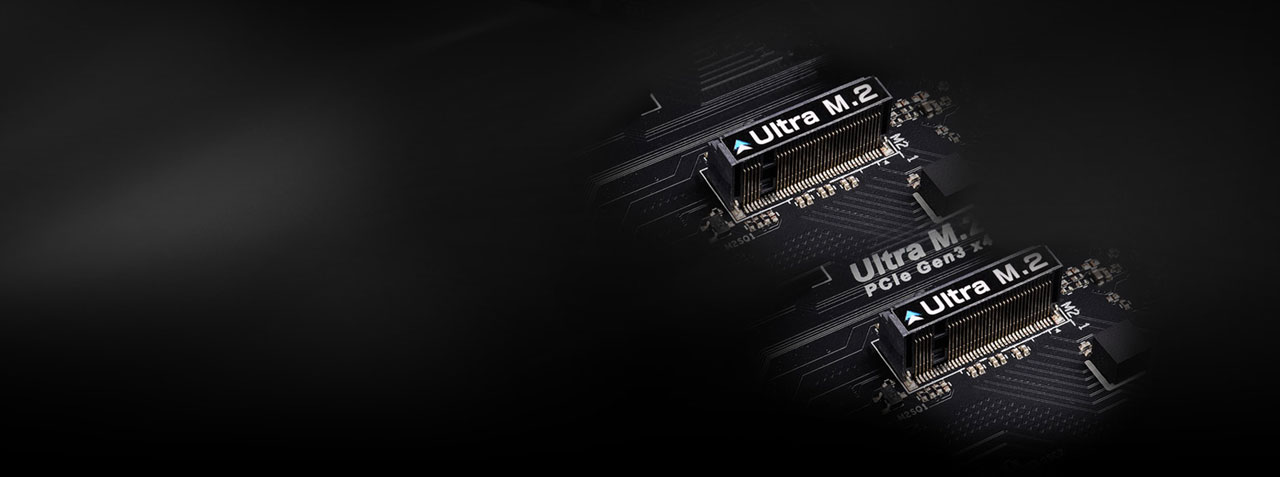

Dual M.2 For SSD

Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s.

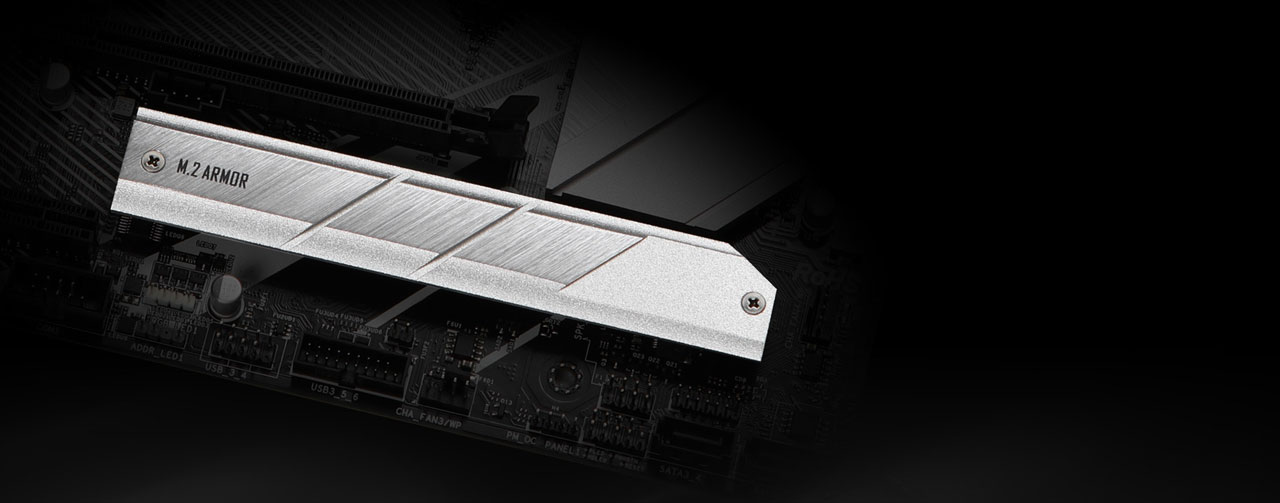

M.2 Armors

Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

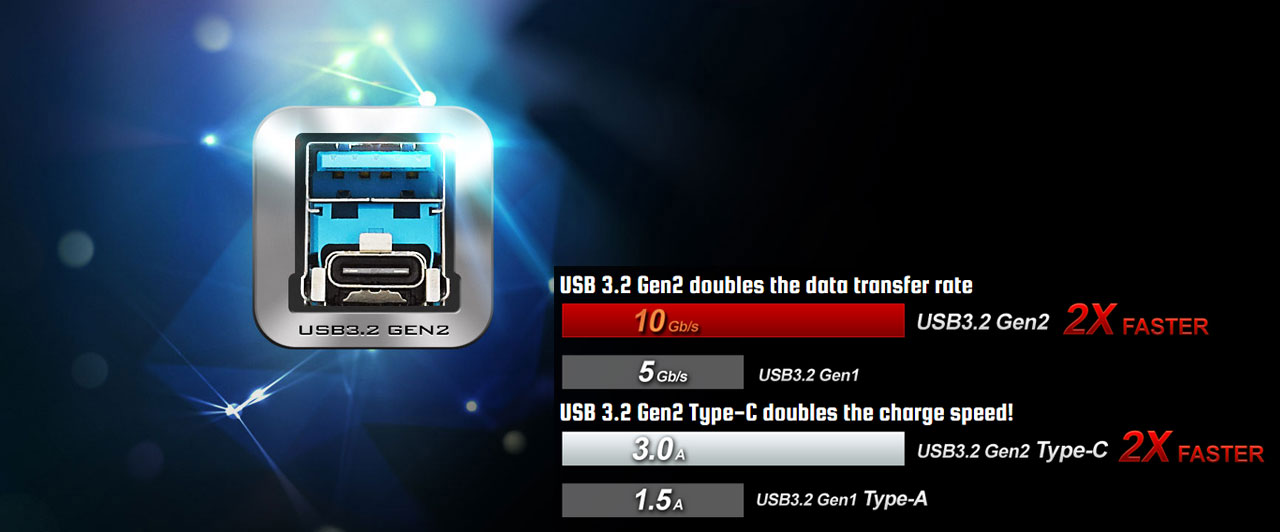

Dual USB 3.1 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.


Flexible Integrated I/O Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield to be adjustable when installing, thus fitting in chassis perfectly without any mechanical issue.


Post Status Checker

An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is a fast and easy way to identify the source of the problem.

Super Alloy Motherboard


I/O Armor

A newly designed protective cover is offered for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

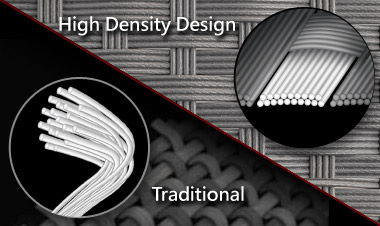

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

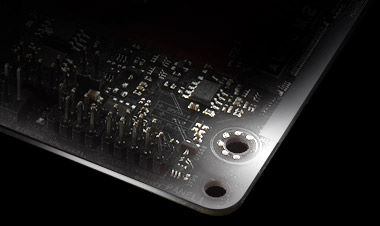

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.


Gold Audio Jacks

Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission!

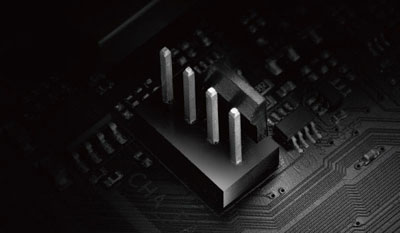

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.


Live Update //images10.newegg.com/BizIntell/item/13/157/13-157-920 APP Shop

ASRock Live Update //images10.newegg.com/BizIntell/item/13/157/13-157-920 APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update //images10.newegg.com/BizIntell/item/13/157/13-157-920 APP Shop.


Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges because the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.



Learn more about the ASRock Z490 Phantom Gaming-ITX/TB3

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Anonymous
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Sturdy Quirk Board 8/6/2020 9:57:37 AM

Pros: - Decent VRMs
- Silent VRM fans
- Thunderbolt 3 JHL7530 onboard
- Noctua NH-C14S + NCase M1 clearance
- Unlocked CNVI Wi-Fi port
- 2x M.2 ports
- High quality ALC1220 audio

Cons: - Strange VRM layout (with fans)
- Strange "daughter" card with odd SATA port orientation
- Impossible to remove rear I/O without damaging the PG Logo Plate
- No USB Type-C Header

Overall Review: Really overall fantastic board. Very glad I went with it! Hackintosh's really well, and runs Windows flawlessly. Supports a wide range of RAM speeds and settings, and the BIOS voltage regulation is accurate. Fits in an NCase M1 with a Noctua NH-C14S which was a MUST for me! If you don't need either an Unlocked CNVI Wi-Fi port nor Thunderbolt 3, go for the Gigabyte Z490I Aorus Ultra ITX. Fantastic board as well, but lacks those two features.

2 out of 3 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
3/ 5
Good electrical and bios design, but physical implementation may be an issue. 7/5/2020 10:42:48 AM

Pros: • Good electrical & bios design, great support for the Intel 1200.
• Has Thunderbolt 3 / USB C combo port
• Good VRM implementation
• Active chipset cooling, but audible.
• One of only 2 ITX Z490 solutions with Thunderbolt.
• Good fan and bios support, CMOS reset
• More front panel USB ports than some other boards

Cons: • Hard to see in photo, but it has a riser next to the PCI x16 slot. This may impact some cooling solutions such as the H1 radiator fan or larger fan solutions. If the riser card is removed, you loose the front M2, 2 x SATA, 2 x USB.
• Chipset fans are audible.
• As with many Socket 1200 boards, Universal CPU heat sync brackets may require trimming of the other CPU/AMD tabs to avoid impacting surface mount components including the rear M2 Socket.
• No USB C header on motherboard

Overall Review: I received this board missing the memory guides on the side closet to the video card, both slots were missing the guide with just a hollow hole where they should be. I returned the board for this defect. This is not a board for the H1 chassis, the fan on the radiator will impact the I/O riser card as it is quite tall and in an unusual location between the CPU and PCI slot. This board also does not have a USB C header, they instead opted to put the ports on the front panel as SS 10 A USB ports. As I noted, the chipset fan is audible, not bad, but audible if you have an otherwise silent system.
Other than the minor defect and questionable design, this board is a solid performer and otherwise well designed. If the design choices are a non-issue in your implementation, and your chassis does not have a USB C header, this board may work well for you. I subtracted 1 star for the defect and 1 for the design.

1 out of 2 people found this review helpful. Did you?
Anonymous
Ownership: 1 week to 1 month
Verified Owner
3/ 5
Not NZXT H1 Compatible 6/22/2020 10:15:05 AM

Overall Review: This mobo is not compatible with the NZXT H1 case. The sister IO expansion card will prevent the case from closing. Removing the expansion card will result in a lost of multiple inputs including the ability to have two M.2 cards and will force you to install the M.2 on the back of the mobo. However, you can't install the M.2 on the back of the mobo unless you dremel away part of the NZXT H1 cooler mounting bracket. Would have returned the mobo if newegg didn't charge restocking fees.

2 out of 4 people found this review helpful. Did you?
