|CPU Socket Type||LGA 1200|
|CPU Type||Supports 10th Gen Intel Core Processors |
Supports 11th Gen Intel Core Processors
|Supported CPU Technologies||Turbo Boost Technology 3.0|
|Onboard Video Chipset||11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics|
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports**
* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
** 11th Gen Intel Core Processors support HDMI 2.0. 10th Gen Intel Core Processors support HDMI 1.4.
|Number of Memory Slots||2x288pin (DDR4)|
|Memory Standard||11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5066+(OC)*|
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)*
* 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
* 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
|Maximum Memory Supported||64GB|
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
|PCI Express 4.0 x16||11th Gen Intel Core Processors|
- 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel Core Processors
- 1 x PCI Express 3.0 x16 Slot*
* Supports PCIe riser cards to extend one x16 slot to two x8 slots
* Supports NVMe SSD as boot disks
|Other Slots||1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)|
|SATA 6Gb/s||4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug|
|M.2||1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (Only supported with 11th Gen Intel Core Processors)*|
1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
* Supports Intel Optane Technology
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
|Audio Chipset||Realtek ALC897|
|Audio Channels||7.1 Channels|
|LAN Chipset||Dragon RTL8125BG|
|Second LAN Chipset||Intel I219V|
|Max LAN Speed||10/100/1000/2500Mbps + 10/100/1000Mbps|
|Wireless LAN||Intel 802.11ax Wi-Fi 6E Module|
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
* Wi-Fi 6E (6GHz band) is not currently enabled by default due to the different regulation status of each country. It will be activated (for supported countries) through Windows Update and software update once available. The update is expected to be in the middle of 2021.
|Bluetooth||Supports Bluetooth 5.2 + High speed class II|

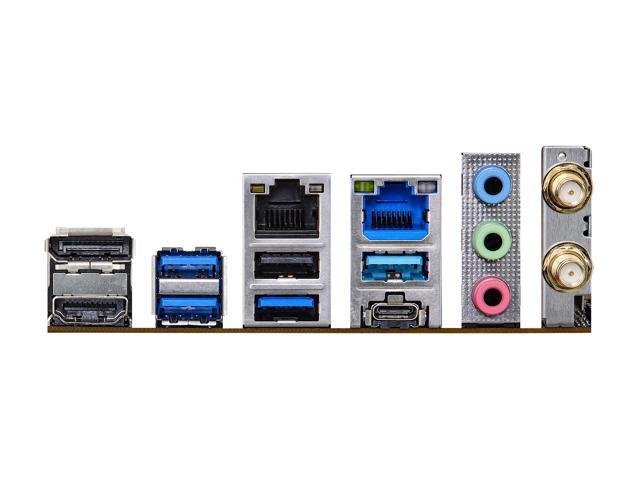

|Back I/O Ports||2 x Antenna Ports|
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2x2 Type-C Port (20Gb/s) (Supports ESD Protection)
4 x USB 3.2 Gen2 Type-A Ports (10Gb/s) (Supports ESD Protection)
1 x USB 2.0 Port (Supports ESD Protection)
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
|Onboard USB||1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)|
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
|Other Connectors||1 x RGB LED Header*|
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x Chassis Fan Connector (4-pin)****
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
* Support in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
|Form Factor||Mini ITX|
|Dimensions (W x L)||6.7" x 6.7"|
|Power Pin||1 x 24-pin ATX Power Connector|
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
|Date First Available||February 16, 2021|
