- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
- 8 Phase Power Design
- Supports DDR4 4800 MHz (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1
- 1 x M.2 Key-E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 6 SATA 3, 1 x Hyper M.2 (PCIe Gen4 x4)
- 2 x Ultra M.2 (PCIe Gen3 x4 & SATA 3)
- 1 x USB 3.2 Gen2x2 Front Type-C (20 Gb/s)
- Rear USB 3.2 Gen2 Type A+C (10 Gb/s)
- 6 x USB 3.2 Gen1 (2 x Rear, 4 x Front)
- 6 x USB 2.0 (2 x Rear, 4 x Front)
- Intel Gigabit LAN
- ASRock Polychrome SYNC
ASRock H570 Phantom Gaming 4
With 8 power phase design, Super Alloy components, and onboard heatsinks for chipset and power zone, the H570 Phantom Gaming 4 is well equipped to fully unleash the performance of the 11th / 10th Gen Intel Core processors. Ultra-fast PCIe 4.0 for VGA and M.2, as well as USB 20 Gbps and USB 10 Gbps offer breakneck data rates to accelerate your work or play. And up to three M.2 SSD slots meet your storage needs today and tomorrow.
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Conventional PC system’s processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increases performance.
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs onto ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
** BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.
This motherboard is capable of accommodating multiple M.2 storage devices. One next generation PCI Express 4.0 M.2 SSD can even be installed, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

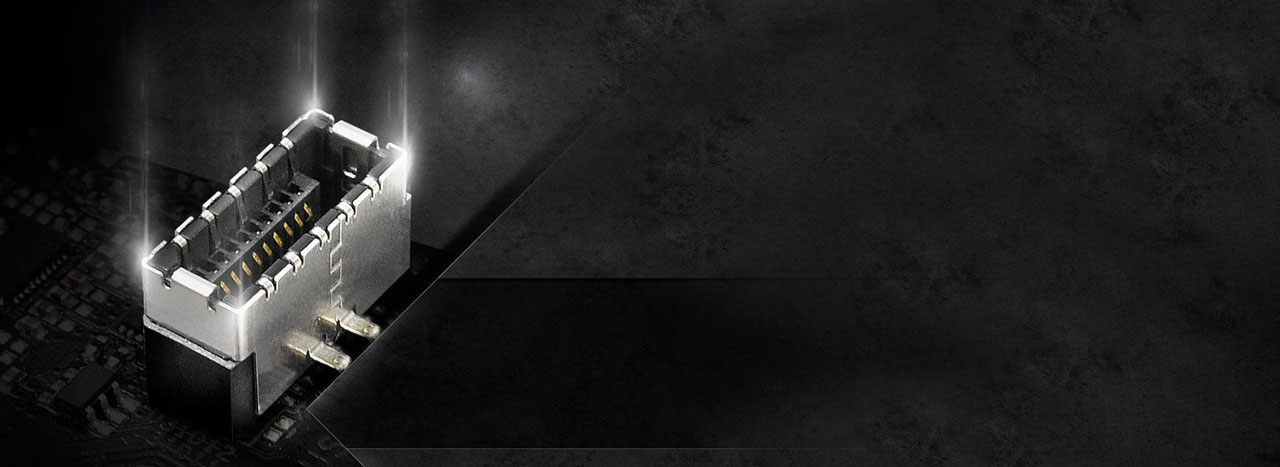

The latest USB 3.2 Gen2 x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

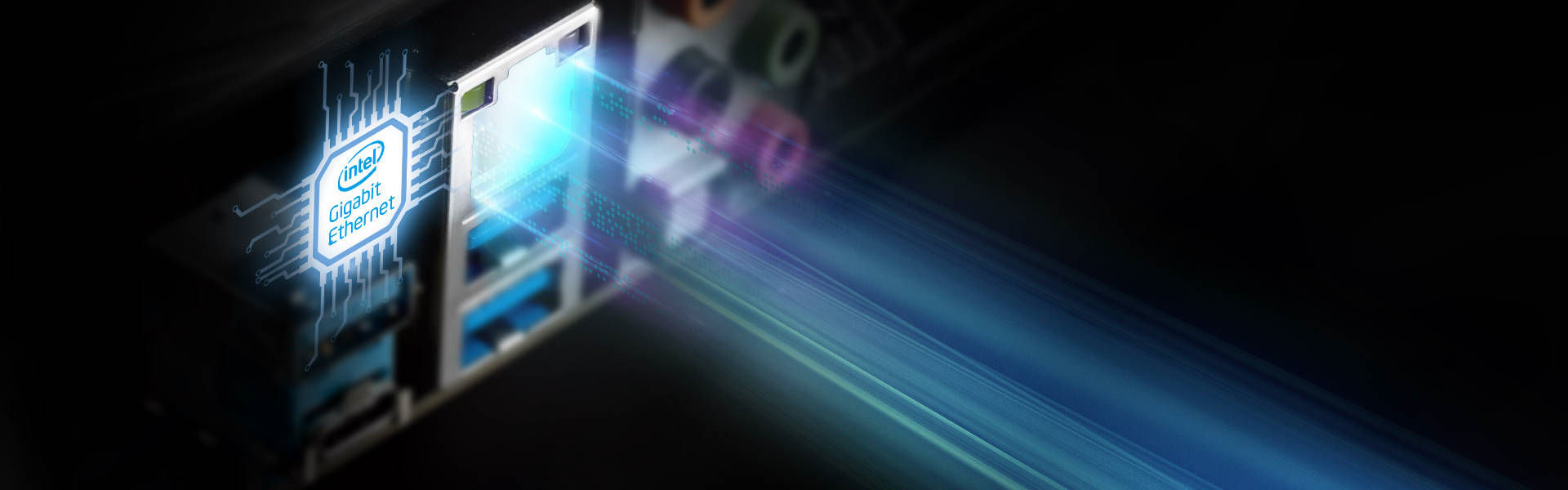

Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
* Wi-Fi module is not included.
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, and chassis. Users may also synchronize RGB lighting across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
* The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
* The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges. The excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
