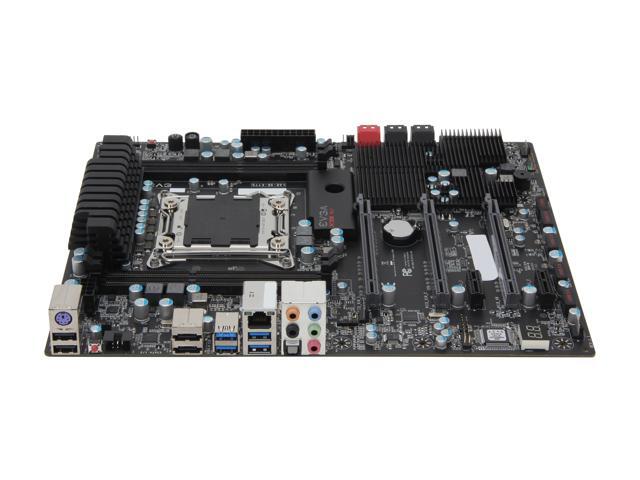

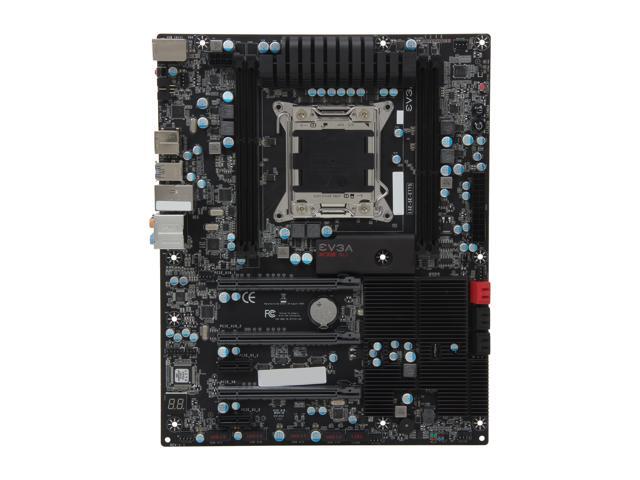

EVGA X79 SLI 132-SE-E775-K2 LGA 2011 Intel X79 SATA 6Gb/s USB 3.0 ATX Intel Motherboard

OUT OF STOCK.
  • Intel X79
  • Core i7 (LGA2011)
  • DDR3 2133/1866
Specs
Reviews

Learn more about the EVGA 132-SE-E775-K2

Model
Brand EVGA
Model 132-SE-E775-K2
Supported CPU
CPU Socket Type LGA 2011
CPU Type Core i7 (LGA2011)
Chipsets
Chipset Intel X79
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4×240pin
Memory Standard DDR3 2133/1866/1600/1333/1066
Maximum Memory Supported 32GB
Channel Supported Quad Channel
Expansion Slots
PCI Express 3.0 x16 3 (1x16, 2x16 or 3x8 )
PCI Express x1 2 x PCI Express x1
Storage Devices
SATA 3Gb/s 4 x SATA 3Gb/s
SATA 6Gb/s 2 x SATA 6Gb/s
SATA RAID 4 x SATA 3Gb/s Support for RAID 0/1/0+1/5/10/JBOD
2 x SATA 6Gb/s Support for Raid 0/1.
Onboard Audio
Audio Chipset Realtek ALC898
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8059
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1
USB 3.0 4 x USB 3.0
USB 1.1/2.0 2 x USB 2.0
eSATA 2 x eSATA 3Gb/s
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 8 x USB 2.0
Onboard 1394 1 x 1394b
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Intel X79 Express Chipset

E-LEET Software Support

4 DIMM Quad-Channel DDR3 2133MHz+ (up to 32GB)

EVGA EVBot Support

8 Channel High Definition Audio + Optical

Dual BIOS Support

100% Solid State- Capacitors

EZ Voltage Read Points

6+2 Phase PWM

Onboard CPU Temp Monitor

PCI Express 3.0 Ready

CLEAR CMOS, Power and Reset
Additional Information
Date First Available June 15, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
