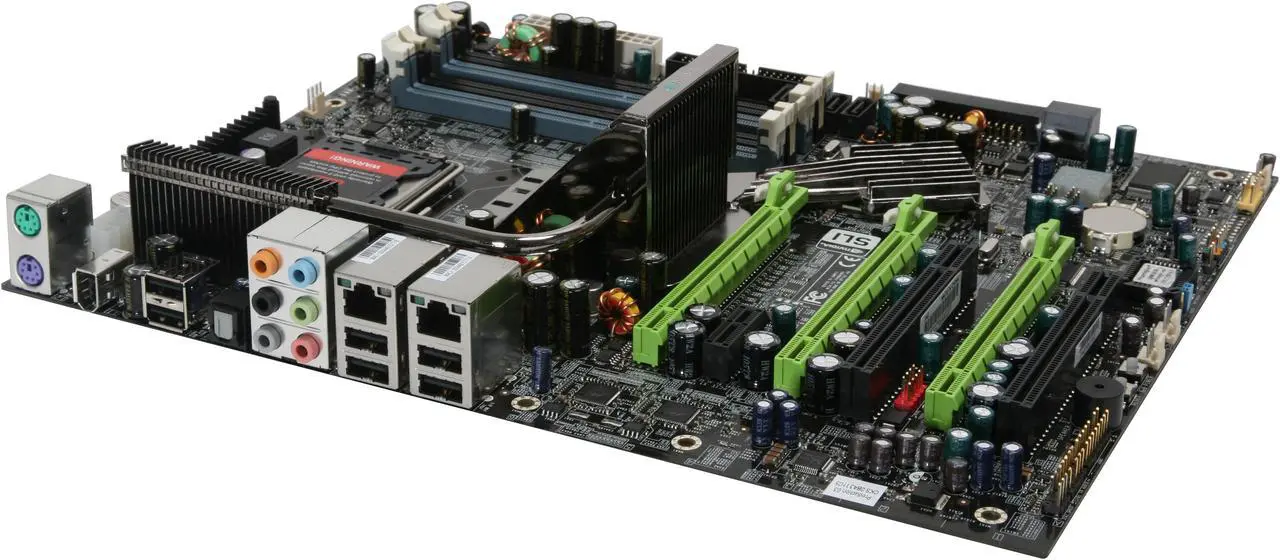

ZOTAC NF780I-A-E LGA 775 NVIDIA nForce 780i SLI ATX Intel Motherboard

(13) Write a Review
  • NVIDIA nForce 780i SLI
  • Core 2 Quad / Core 2 Duo / Pentium D / Celeron
  • DDR2 800, up to 1200 MHz SLI-Ready Memory
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (13)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ZOTAC NF780I-A-E

Model
Brand ZOTAC
Model NF780I-A-E
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Duo / Pentium D / Celeron
FSB 1333/1066 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset NVIDIA nForce 780i SLI
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800, up to 1200 MHz SLI-Ready Memory
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express 2.0 x16
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
Onboard Audio
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 1
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Power Pin 24 Pin
Packaging

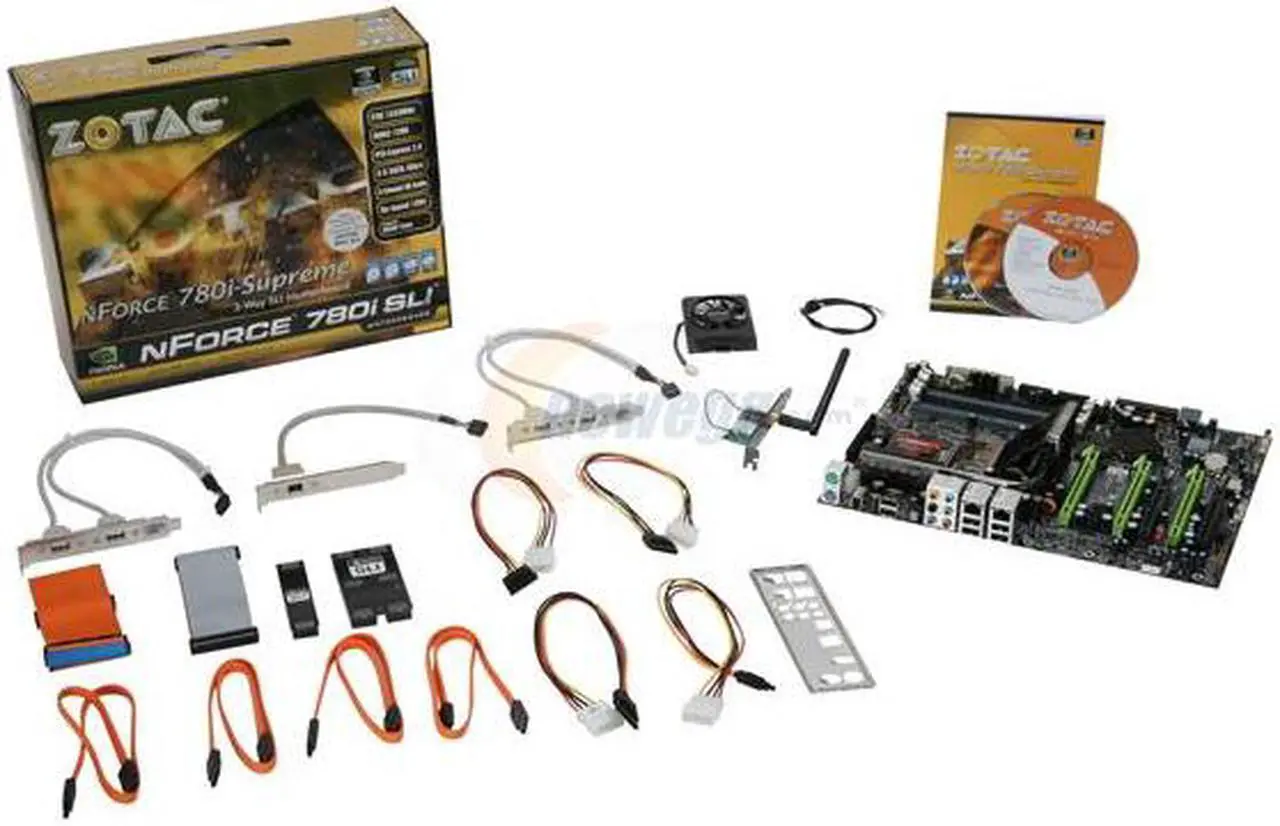

Package Contents NF780I-A-E
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
2-way & 3-way SLI Bridge
Cooling Fan
USB Bracket
IEEE 1394 Bracket
WiFi Card
Additional Information
Date First Available May 06, 2008
