Brand | ZOTAC |
---|---|
Model | H55ITX-C-E |
CPU Socket Type | LGA 1156 |
---|---|
CPU Type | Core i7 / i5 / i3 (LGA1156) |
Chipset | Intel H55 |
---|
Onboard Video Chipset | None |
---|
Number of Memory Slots | 2x240pin |
---|---|
Memory Standard | DDR3 1066/1333 |
Maximum Memory Supported | 8GB |
Channel Supported | Dual Channel |
PCI Express x16 | 1 x PCI Express x16 |
---|---|
Mini Card Slots | 1 x Mini PCI Express (occupied by WiFi module) |
SATA 3Gb/s | 6 x SATA 3Gb/s |
---|
Audio Channels | Onboard 7.1-channel high-definition audio |
---|
Max LAN Speed | 10/100/1000Mbps |
---|---|
Wireless LAN | 802.11 b/g/n WIFI (300Mb/s) |
PS/2 | 1 |
---|---|
Video Ports | DVI |
HDMI | 1 x HDMI |
USB 3.0 | 2 x USB 3.0 |
USB 1.1/2.0 | 6 x USB 2.0 |
eSATA | 1 x eSATA 3Gb/s |
S/PDIF Out | 1 x Optical |
Audio Ports | 5 Ports |
Onboard USB | 4 x USB 2.0 |
---|
Form Factor | Mini ITX |
---|---|
Dimensions (W x L) | 6.7" x 6.7" |
Power Pin | 24 Pin |
Features | Intel QuickPath Technology |
---|
Date First Available | August 17, 2010 |
---|
Pros: As below
Cons: As below

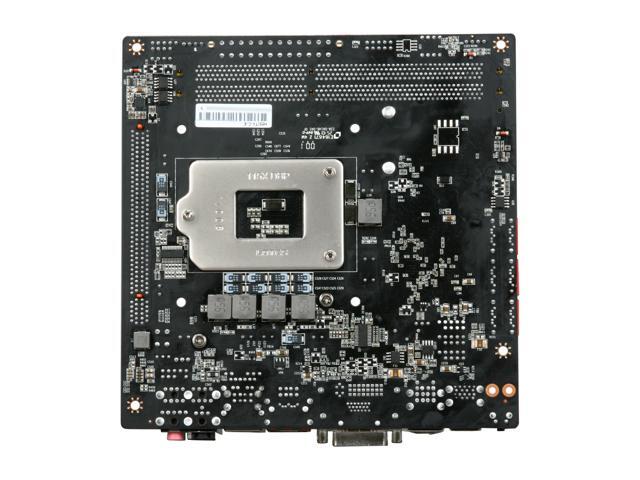

Overall Review: Please beware you should opt for a 'pin type' CPU cooler for this board. A CPU cooler with an X-shaped mobo backplate is not optimal because there are some small circuits on the back of the mobo in the way of a CPU cooler backplate sitting flush against the back of the mobo. See the photo above of the BACK of the mobo, under the CPU area, and you will see the little circuits on one side that are in the way of a backplate. I still used my CPU cooler backplate, but it didn't fit snuggly.
