Brand | Canopus / Grass Valley |
---|---|
Model | DVStorm2 Pro Plus |
Others | AV-rated video storage (10MB/sec minimum sustained transfer) NOTE: Realtime performance varies and increases with CPU power and available system RAM |
---|---|
Type | Video Capture & Editing |
TV Standards | No |
---|---|
FM Tuner | No |
Remote Control | No |
Interface | PCI |
Ports In | 2 x 4-pin FireWire connectors, S-Video and composite combined (7-pin miniDIN) in/out Component (Y, B-Y, R-Y) BNC output |
Specifications | Video Formats > CCIR-601 > DV NTSC: 720x480 @ 29.97fps > DV PAL: 720x576 @ 25fps (Full-motion video via hardware overlay supported at standard NTSC and PAL frame rates) Audio Formats > 2-channel 48kHz 16-bit > 2-channel 44.1kHz 16-bit > 2-channel 32kHz 12-bit/16-bit Digital Video Input/Output > 2 x 4-pin FireWire connector (Internal and External) Analog Video Input/Output > S-Video and composite combined (7-pin miniDIN) input > S-Video and composite combined (7-pin miniDIN) output > Component (Y, B-Y, R-Y) BNC output Analog Audio Input/Output > 3.5mm stereo phono input > 3.5mm stereo phono output |
Processor | Intel Pentium III or AMD Athlon processor 700MHz CPU or faster |
Graphics Card | 24-bit or 32-bit graphics card capable of supporting hardware-based DirectDraw overlay at 1024x768 resolution |
Memory | 256MB RAM |
Available Slot | One free bus-mastering PCI slot (v2.1 or later) |
Operating Systems Supported | Windows 2000, Windows XP Home or Windows XP Professional |
Video System | CCIR-601,DV NTSC: 720x480 @ 29.97fps DV PAL: 720x576 @ 25fps 16:9 and 4:3 aspect ratios (Full-motion video via hardware overlay supported at standard NTSC and PAL frame rates) |
---|---|
Video Format | MPEG-2(DVD)/MPEG-1(VCD) |
Features | > Direct realtime capture to MPEG-1 and MPEG-2 with MediaCruise > Output from Storm Edit, EDIUS or Adobe Premiere timelines > Encodes MPEG-1: Elementary and System streams > Encodes MPEG-2: Elementary and Program streams > Supports MP@ML (I, P, B frames) DVD-compatible encoding > Adjustable bitrate control (CBR/VBR, 1-15Mbps) > PCM WAV or MPEG Layer II audio support |
---|

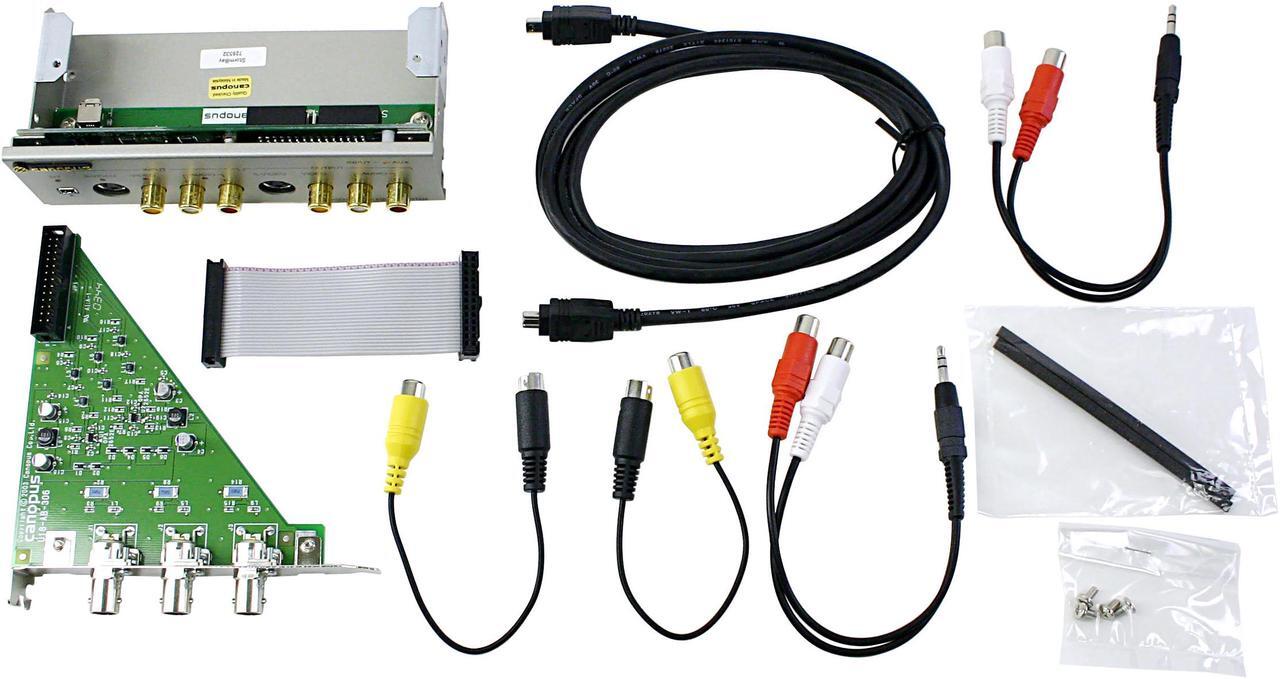

Package Contents | Hardware > DVStorm2 Pro PCI bus card > Installation CD-ROMs > User Manuals > StormBay > Component video output connector with PCI mounting bracket > 1 x FireWire cable (4-pin - 4-pin) > 2 x 3.5mm stereo phono to RCA audio cable > 2 x composite to S-Video conversion cable Software > EDIUS LE > MPEGcraft LE > to MPEG Tool > Xplode for DVStorm > 3DRT-II > Adobe Premiere Pro > Adobe After Effects 6.0 > Adobe Audition > Adobe Encore DVD > Adobe Premiere Pro plug-in > Video output plug-in for Adobe After Effects > Video output plug-in for Adobe Photoshop > Video output plug-in NewTek LightWave 3D > Sonic Foundry ACID Style for Canopus > Ulead DVD Workshop SE > Ulead COOL 3D Production Studio SE |
---|
Date First Available | September 24, 2004 |
---|
