OWC Thunderbay 4 mini, 16TB, RAID, Four-Drive HDD, External Thunderbolt 2 Storage Solution

The ThunderBay 4 mini hard drive equipped solution is big on performance and flexibility yet sized about the length of a pencil. The rugged heat-dissipating aluminum enclosure features two Thunderbolt 2 (Thunderbolt 10Gb/s backward compatible) ports for up to 1346MB/s real-world speeds, so you have more than enough bandwidth to handle personal and business backups – all the way up to today's highest resolution audio, photo, and video formats. If you are seeking big RAID performance that's small enough to fit on a desk, in a rack, or on a DIT cart, your wish is now a reality.

• Total Capacity: 16TB
• Total Solution Cache Size: 512 MB
• Standard Mechanism: (4) 4.0TB Toshiba MQ04AB Series 5,400RPM Hard Disk Drive with 128 MB cache; *OWC reserves the right to replace or upgrade to equivalent or better components.
• Boot Support: Independent volumes bootable in macOS.
• Chipset: Thunderbolt 2: Intel JHL5520; SATA Controller: ASMedia ASM-1062
• Drive Interface: SATA
• Certifications: CE; FCC; VCCI; RCM; BSMI
• Data Transfer Rate (Maximum): Thunderbolt 2 : Up to 20 Gb/s (or 2500 MB/s); Thunderbolt : Up to 10 Gb/s (or (1250 MB/s)
• RAID Capable: Yes
• Default RAID Level: RAID 5
• RAID Levels Supported: RAID 0; RAID 1; RAID 4; RAID 5; RAID 10; JBOD
• RAID Features: Software RAID
• Benchmark Speed, Read (Max): Up to 515 MB/s
• Benchmark Speed, Write (Max): Up to 297 MB/s
• Contact Start Stops: Varies depending on drive mechanism installed
• Mac OS Compatibility: macOS 10.12 Sierra; macOS 10.13 High Sierra; macOS 10.14 Mojave; macOS 10.15 Catalina; macOS 11.x Big Sur; macOS 12.x Monterey; macOS 13.x Ventura
• PC OS Compatibility: Windows 7 32-bit Edition; Windows 7 64-bit Edition; Windows 8 32-bit Edition; Windows 8 64-bit Edition; Windows 8.1 32-bit Edition; Windows 8.1 64-bit Edition; Windows Server 2012; Windows 10 32-bit Edition; Windows 10 64-bit Edition; Windows Server 2016; Windows 11
• Other Requirements: Requires macOS 10.12.6 or later.; Will work with Thunderbolt (10Gb/s) Mac models, but data transfer will be limited to 10Gb/s.; SoftRAID XT works with macOS 10.12 or later and Windows 10 or later. SoftRAID is licensed per computer. The SoftRAID serial number will work with both Mac and Windows but can only be active on one computer at a time. Additional seats can be purchased. RAID 4/1+0 (10) are currently Mac only at this time.
• Host Port Requirements: Thunderbolt 2 (mDP) port (backwards compatible with Thunderbolt1)
• Driver Required: SoftRAID Only
• Power Supply: External UL-listed universal auto-switching power supply
• AC Input: 100-240V, 50-60Hz, 2.0A
• DC Output: +12V, 6A
• Wattage: 72W
• External Power Adapter: Yes
• Number of Bays: 4
• Device Ports: (1) Host Port - Thunderbolt 2 up to 20 Gb/s (2500 MB/s) - Thunderbolt 1 backwards compatible; (1) Thunderbolt 2 Port

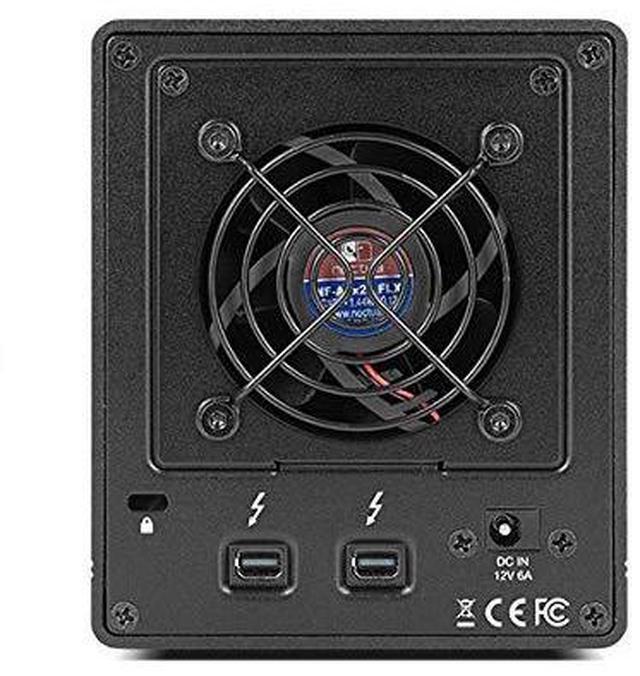

• Cooling: (1) 60mm cooling fan
• Security Slot: Yes
• Power/Activity LED: Yes
• Housing Color: Black
• Housing Material: Aluminum
• Dimensions: Height: 11.7 cm (4.6 in); Length: 19.1 cm (7.5 in); Width: 9.6 cm (3.8 in)
• Weight: 1.1 kg (2.51 lbs)
• Ambient Temperature: Operating: 41°F to 95°F (5°C to 35°C); Non-Operating: -4°F to 140°F (-20°C to 60°C)
• Altitude: Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft): Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
• Humidity: Operating: 8% to 90% non-condensing; Non-Operating: 5% to 95% non-condensing
