Question 1

How's the fan noise at idle (browsing, note taking, etc.) on this laptop? Does it spin at all? I kinda care because I may take it to classes if I ever bought it.

Accepted Answer

As long as the Fan Tweak is set to Quiet in the Gigabyte Smart Manager, this laptop is almost silent while performing basic tasks (Web Browsing, Note Taking, PDF reading, etc.). The fans are always on, but unless you put your ear up to the vents, I doubt you will be able to hear them.

Under heavy load, it will get fairly loud like anything else this compact and powerful. But really, nothing too obnoxious, more of a whoosh than a hairdryer like sound. Overall very satisfied with the cooling setup in this unit.

Question 2

Is the 1060 on this model the 3GB or 6GB version?

Accepted Answer

Mine shows 6GB in the Nvidia Control Panel.

Question 3

for the ram, is it 16GBx1 or 8GBx2?

Accepted Answer

It is one 16GB chip. Had no problems adding another 16GB chip for 32GB total.

Question 4

How many actual PCIE slots are included on this model?

Accepted Answer

Assuming you mean m.2 pci-e storage, there is only one slot total.

FYI, the previous versions with the 965m or 970m had two m.2 slots if storage and battery life are more important to you than gpu power. The 1060 on this version required a more complex power delivery setup which took up the space used for the extra slot on the older models.

Brand	GIGABYTE

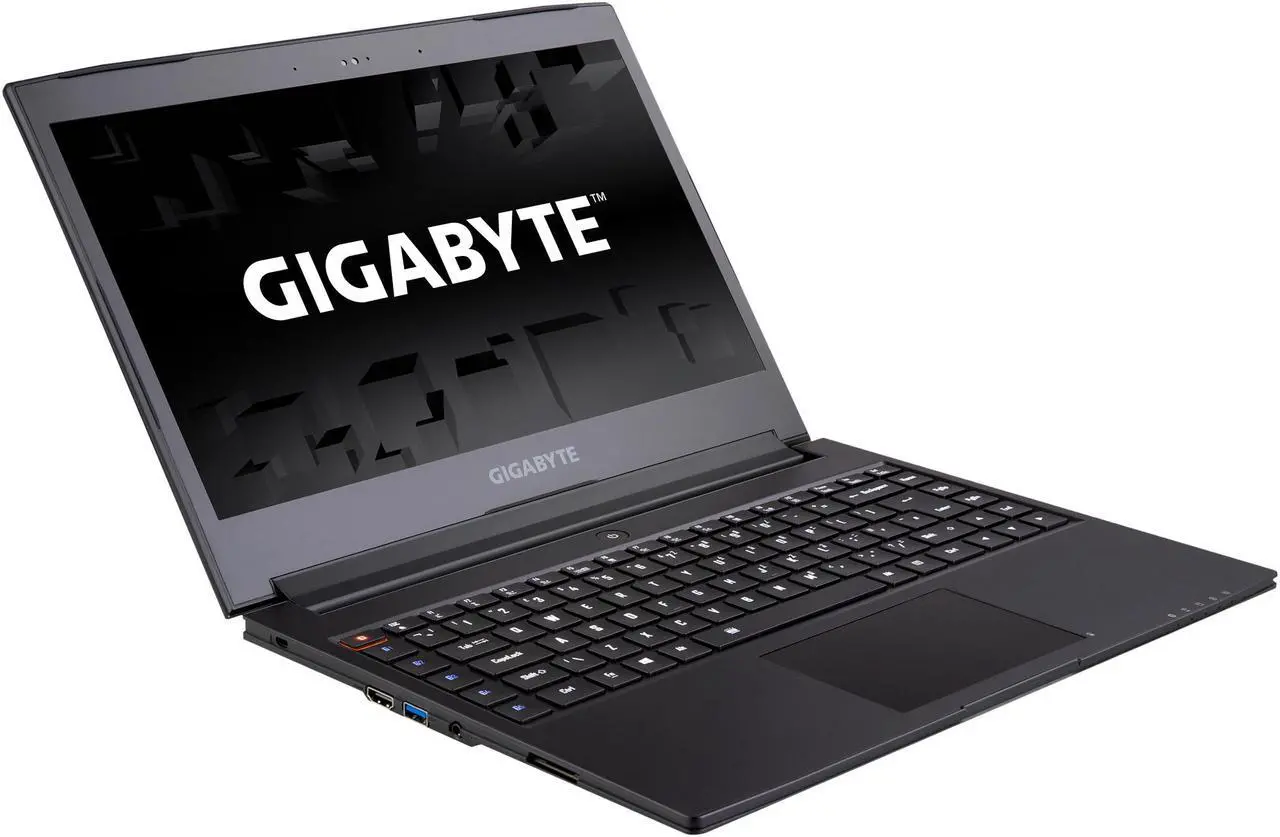

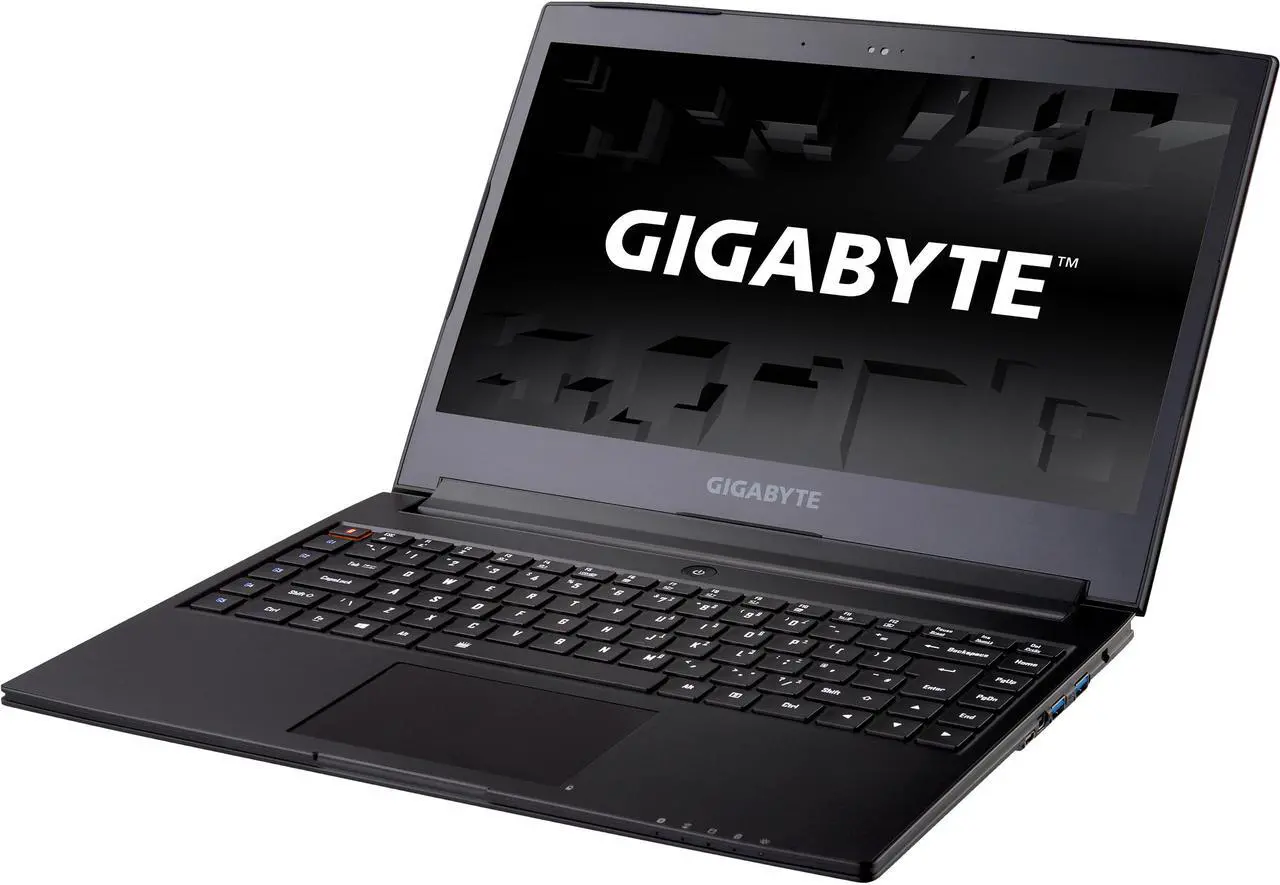

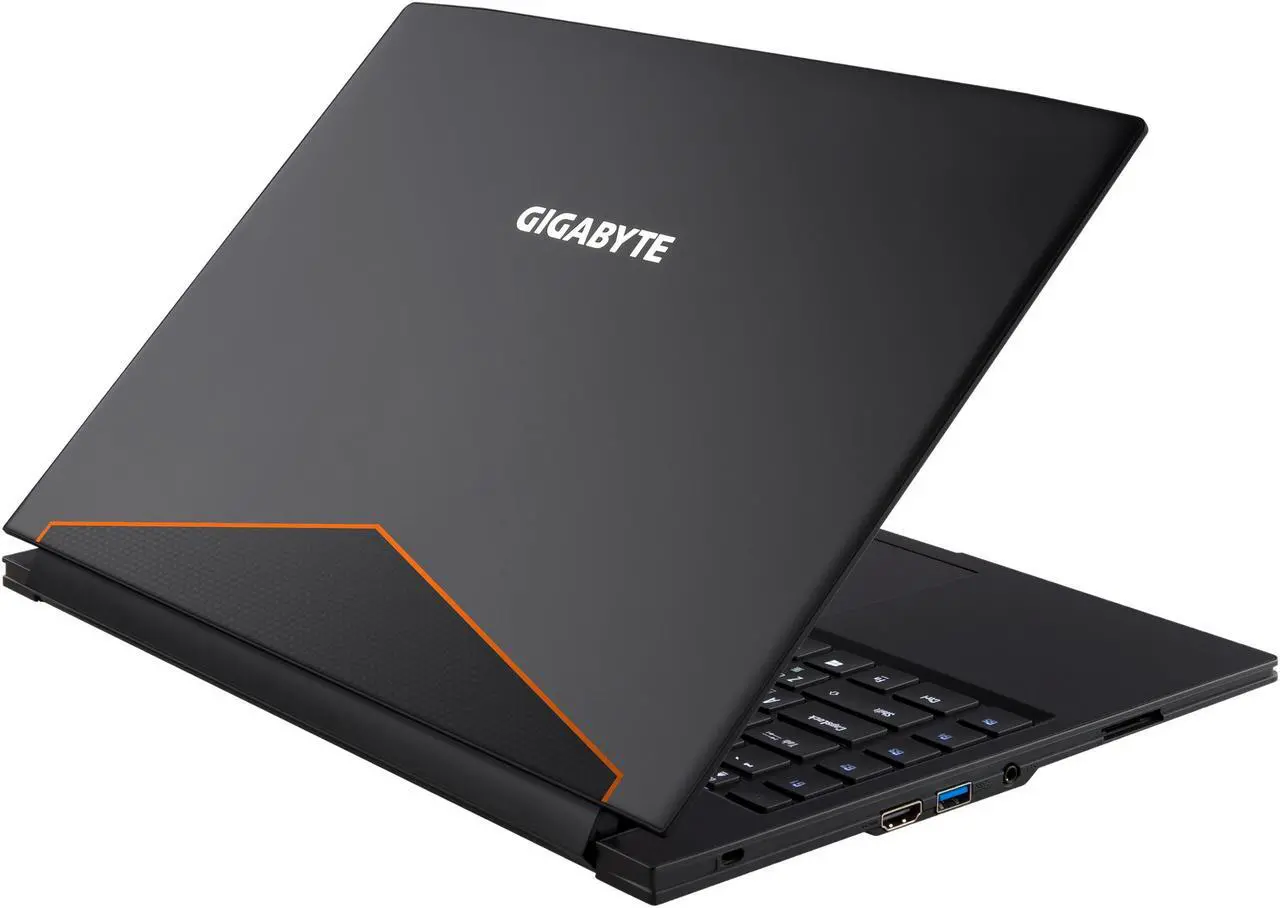

Model	Aero 14Wv6-BK4

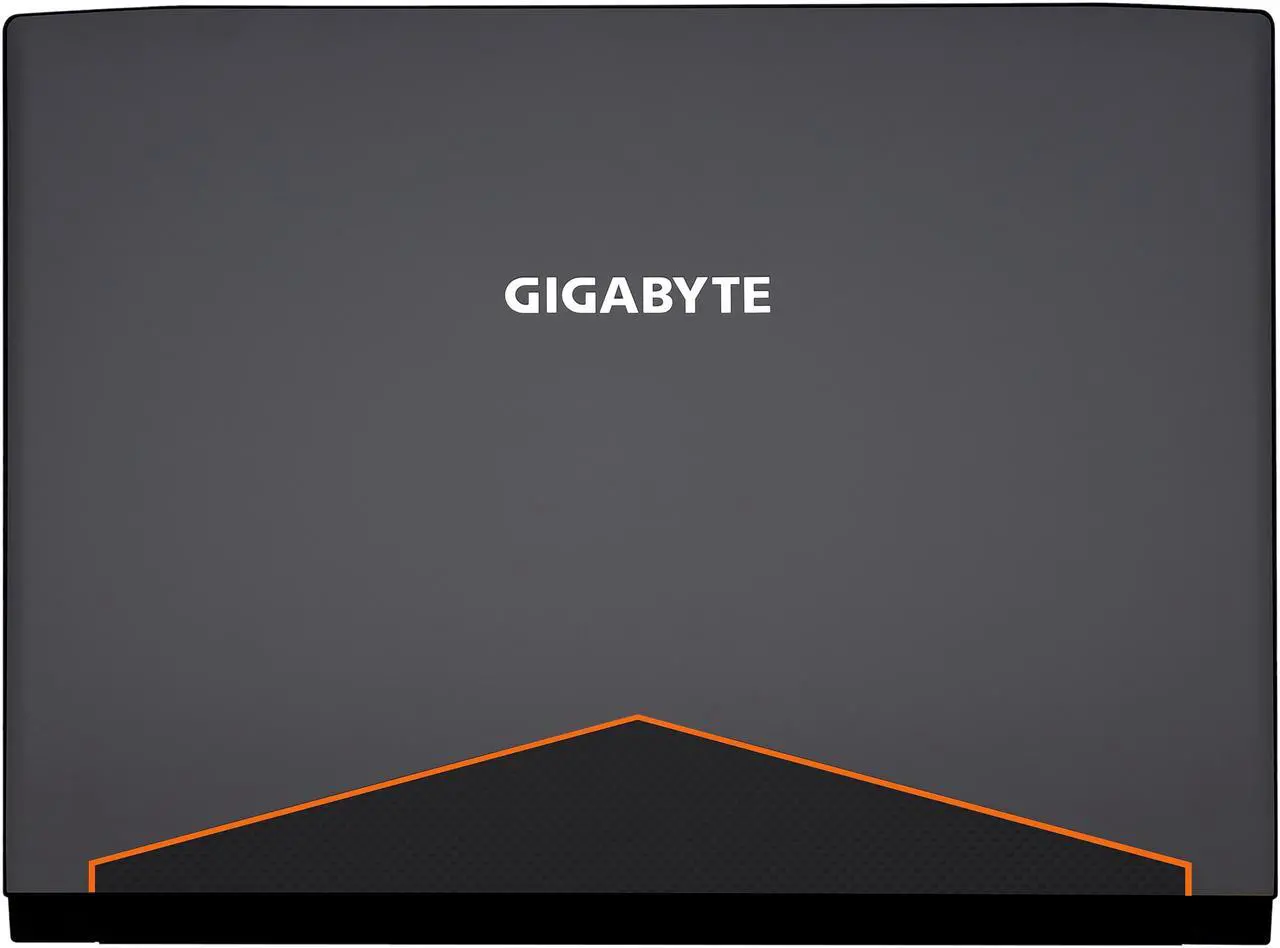

Color	Black
Operating System	Windows 10 Home ‍👉Check gaming pc with Windows 11 Pro
CPU	Intel Core i7-6700HQ 2.6 GHz

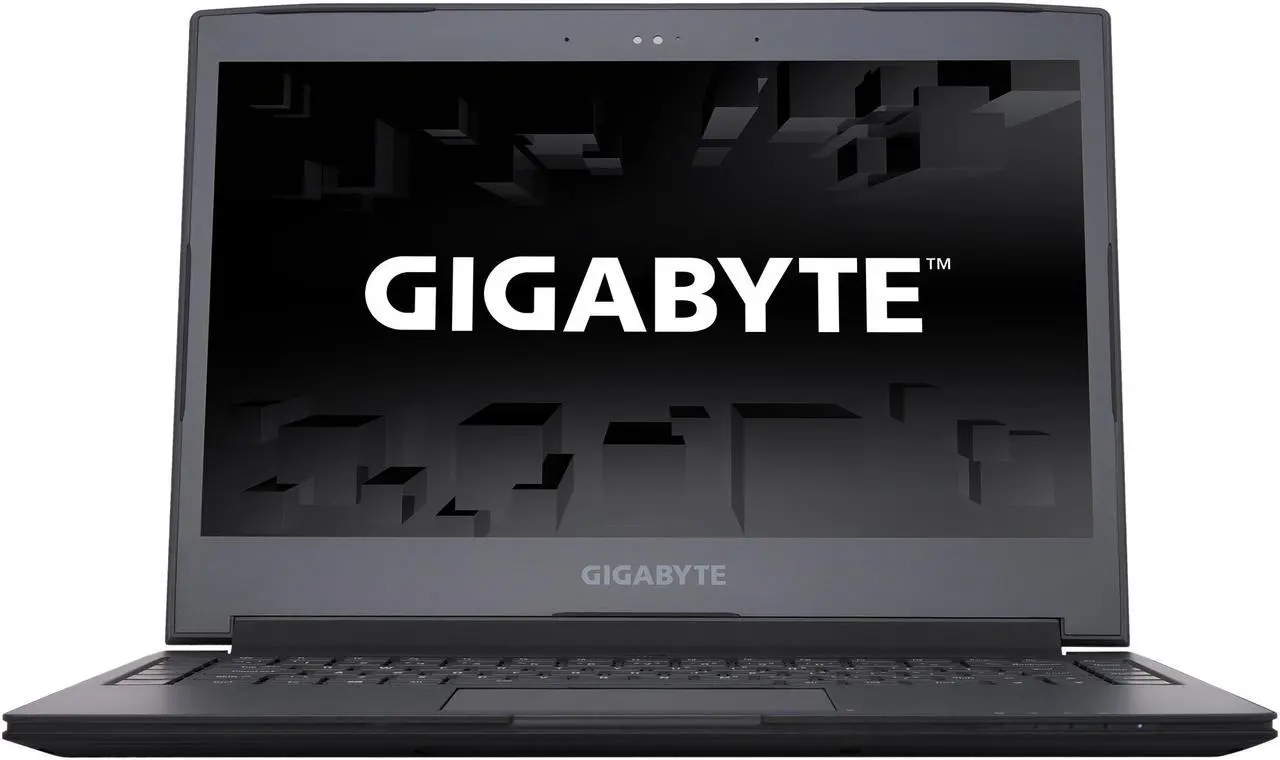

Screen	14" QHD
Memory	16 GB DDR4
Storage	512 GB SSD
Graphics Card	GeForce GTX 1060
Video Memory	6 GB GDDR5
Dimensions (W x D x H)	13.19" x 9.84" x 0.78"
Weight	4.19 lbs.

CPU Type	Intel Core i7 6th Gen
Processor Name	Intel Core i7-6700HQ
Number of Cores	Quad-core Processor
Core Name	Skylake
CPU L3 Cache	6 MB

Screen Size	14.0"
Touchscreen	Non-Touch Screen
Wide Screen Support	Yes
Display Type	QHD
Resolution	2560 x 1440
Panel	IPS
Display Features	IPS Wide Viewing Angle anti-glare display LCD

GPU/VPU	GeForce GTX 1060
Video Memory	6GB
Graphic Type	Dedicated Card

BenchmarksBenchmarks Information

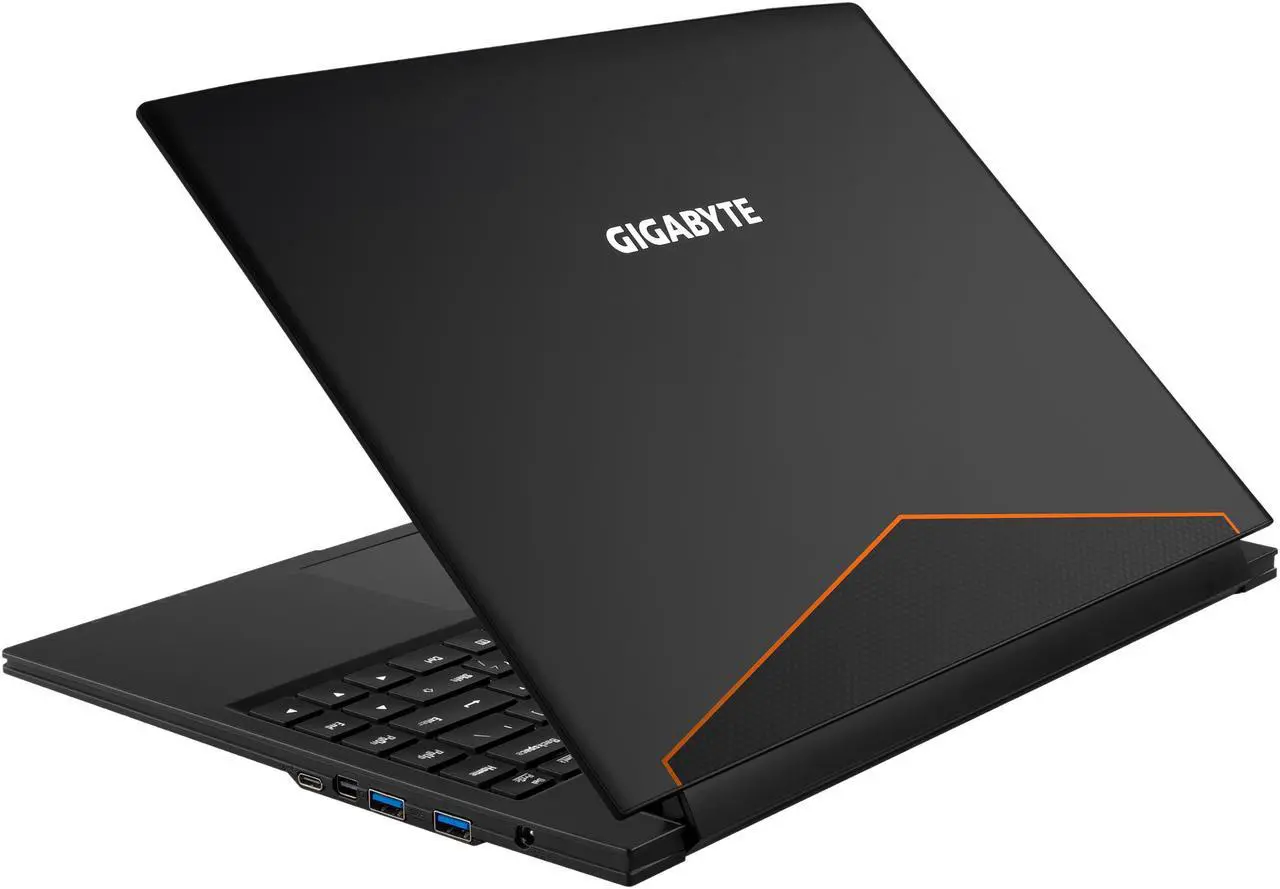

GIGABYTE - 14.0" QHD - Intel Core i7-6700HQ - GeForce GTX 1060 - 16GB Memory DDR4 2400 - 512GB SSD - Windows 10 Home ()

Learn more about the GIGABYTE Aero 14Wv6-BK4

Customer Reviews of the GIGABYTE Aero 14Wv6-BK4

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Memory	16GB
Memory Speed	DDR4 2400
Memory Spec	16 GB x 1
Memory Slot (Total)	2
Memory Slot (Available)	1
Max Memory Supported	32 GB

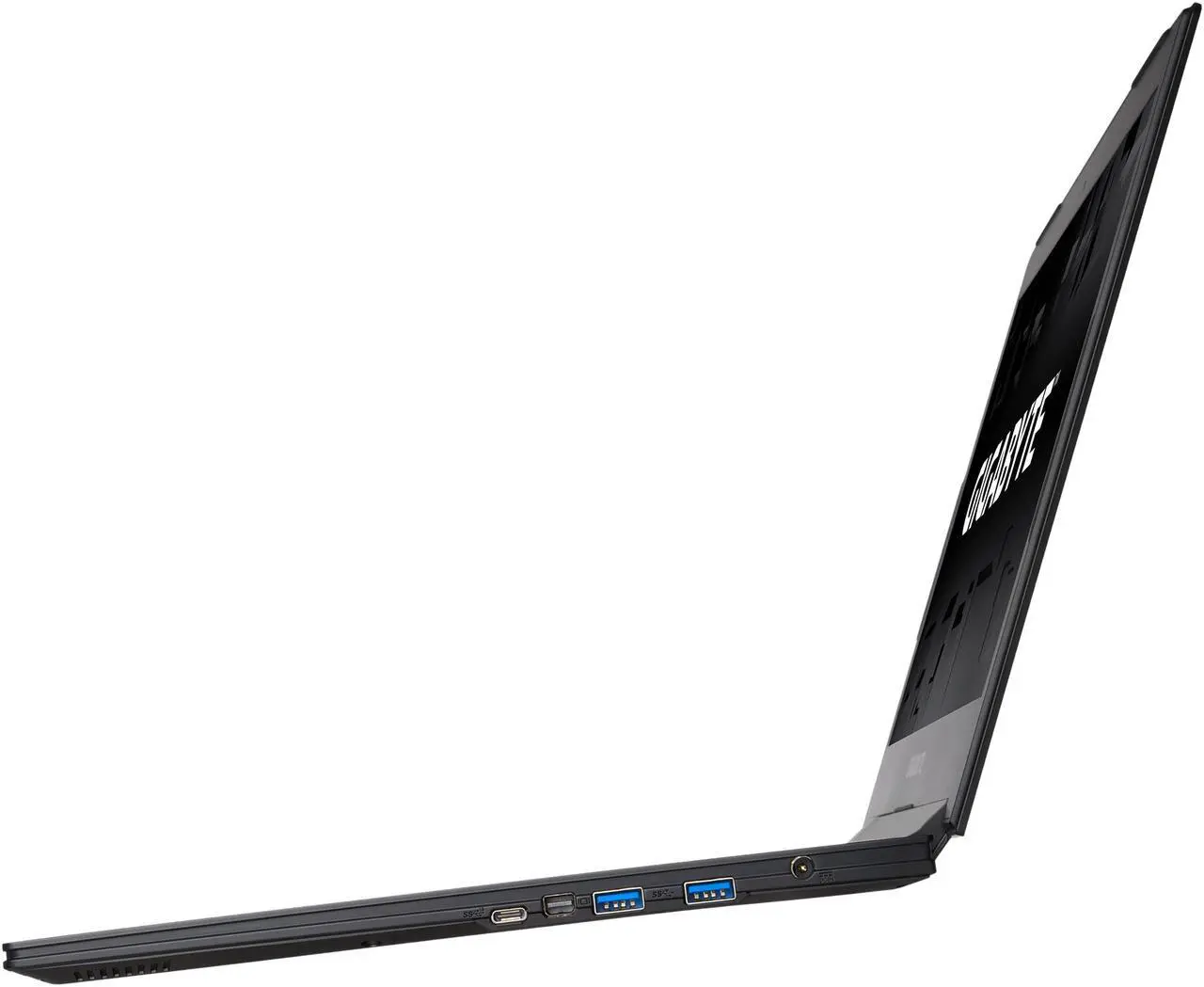

USB	3 x USB 3.0 Type-A 1 x USB 3.1 Type-C
Video Port	1 x Mini DisplayPort

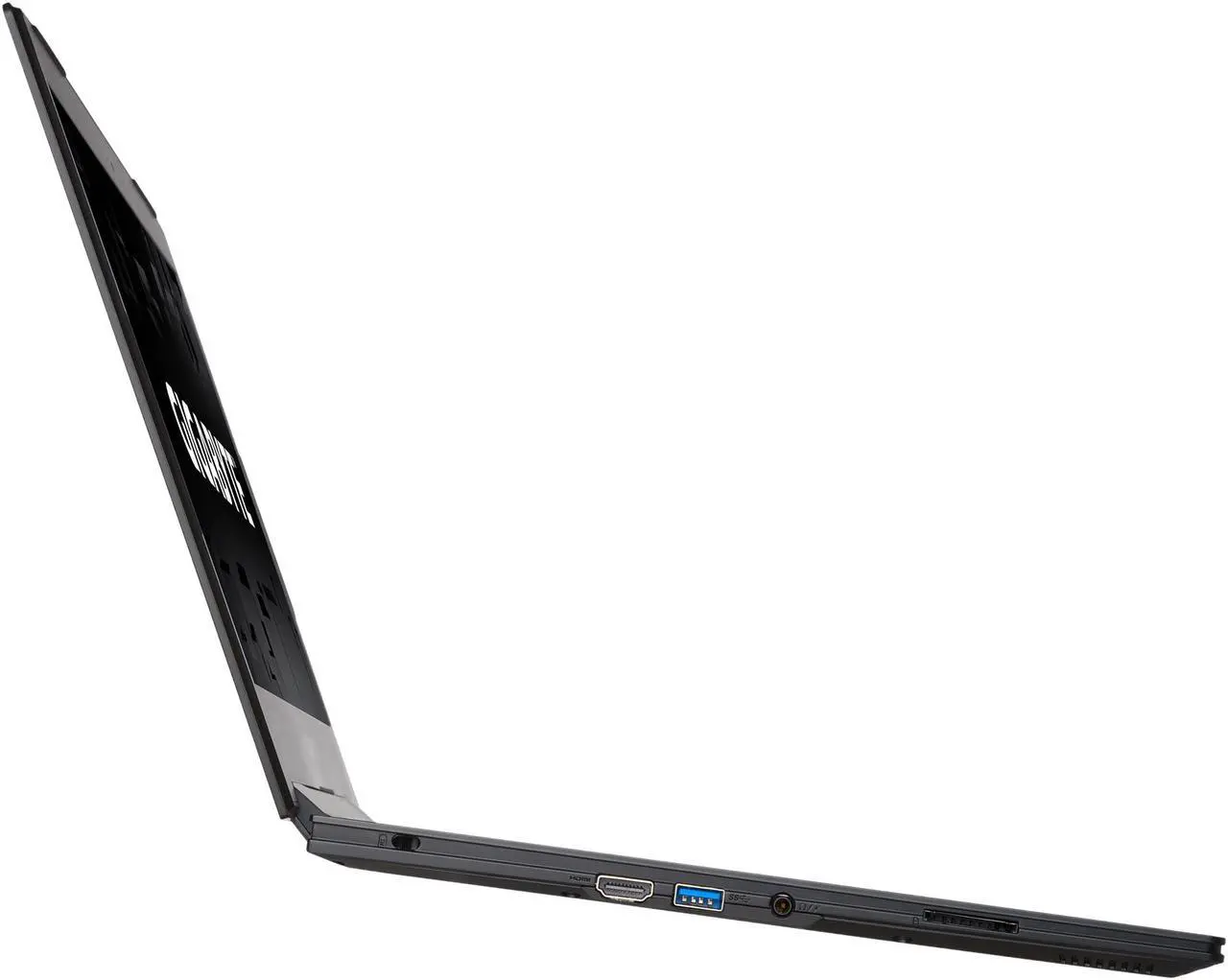

HDMI	1 x HDMI

Audio	Dolby Digital Plus Home Theater
Speaker	1.5 Watt Speaker x 2

Touchpad	Multi Touch

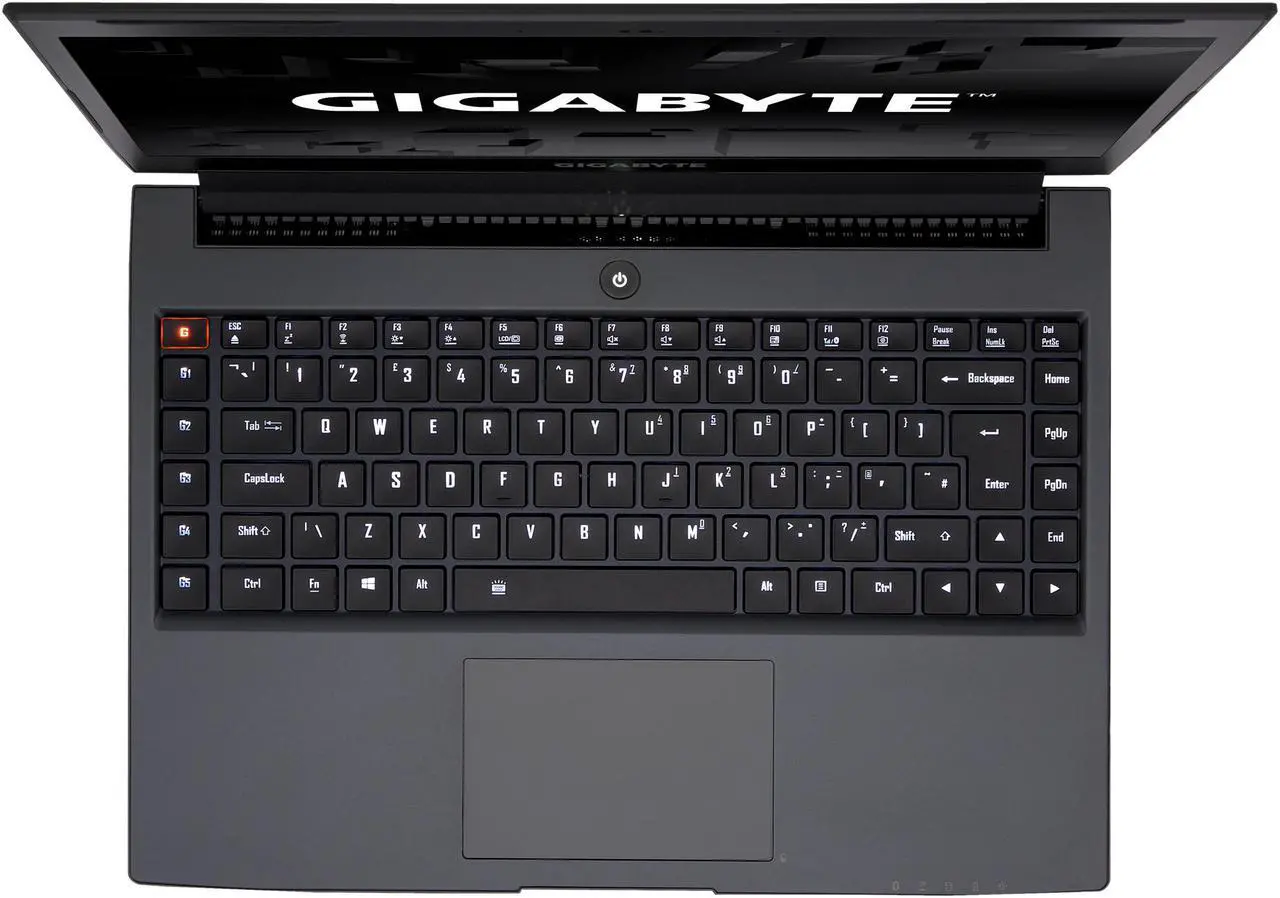

Keyboard	Auto-Adjusting Backlit Keyboard Individual Macro Keys
Backlit Keyboard	Backlit
Webcam	HD Camera
Card Reader	SD Card Reader

AC Adapter/Charger	150-watt AC Adapter
Battery	Li Polymer 94.24 Wh

Communications
WLAN	802.11ac Wireless LAN
Bluetooth	Bluetooth 4.1

General
Style	Thin and Light
Type	Gaming
Usage	Consumer

Item#: N82E16834725038
