Signal Booster 5.8Ghz 5W 802.11 bluetooth Signal Extender Repeater Broadband Amplifiers for Wireless Router Card

New 5W Signal Booster Amplifier for 5.8 ghz Wireless Router 802.11 a/an

Specifications:

Frequency Range: 5.725-5.8Ghz

Operating Voltage:6-16V

Receiving Gain:15dB±1

Transmission Gain:20db±1

Input Trigger Power Min :0dbm Max 10dbm

Maxmium Output Power (P1dB):37dBM (5w)

EVM:3% 29dbm 802.11a 54Mbps OFDM

64QAM BW 20Mhz

DC Supply Current:700mA@ Pout 29dBM 12V

Noise Figure < 3.0dB

TX/RX Switch Time Delay < 1us

LED Indicator : Transmitter:Green , Receiver:red

Operating Ambient Temperature-40C+ 70C

Operating Humidity: UP to 95% rel ,Humidity

Dimension:82mm *50mm *21mm

Key Feature:

20*the power , Impoving the quality and coverage of the certified Wlan Devices

Transmit power 5000mw

3.0db ultra -low noise

Wide 6v to 16v operatomh input voltage range

Working with IEEE 802.11a/an wireless Lan Devices

Simply plug and play , no software is required

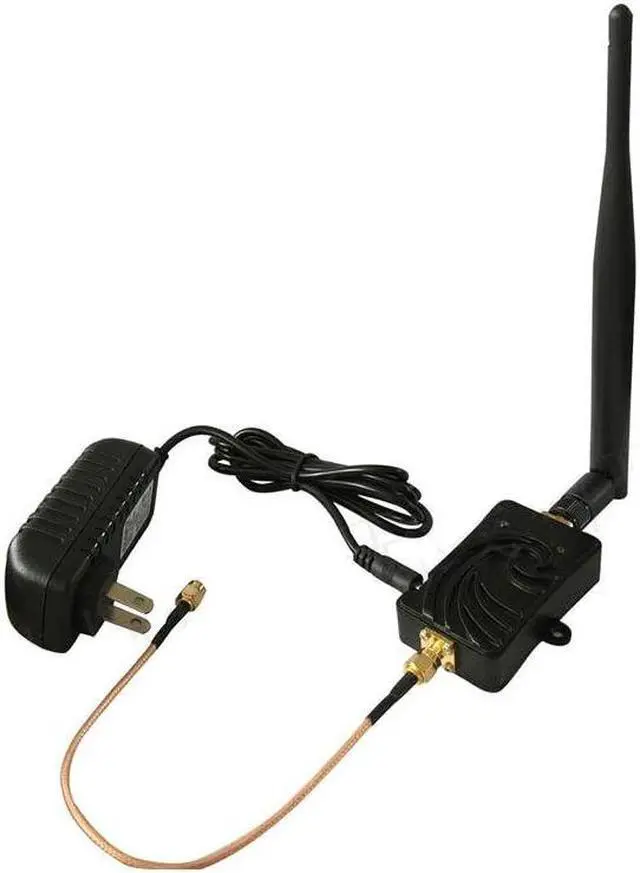

Installation Instructions:

Step1: Disconnect the power supply to AP/Router.

Step2: Detach the antenna from your certified wireless AP/Router.

Step3: Connect cable (included) to the booster and AP/Router.

Step4: Connect the antenna to the other end of the booster.

Step5: Connect the power supply to the booster first and subsequently the AP/Router.
