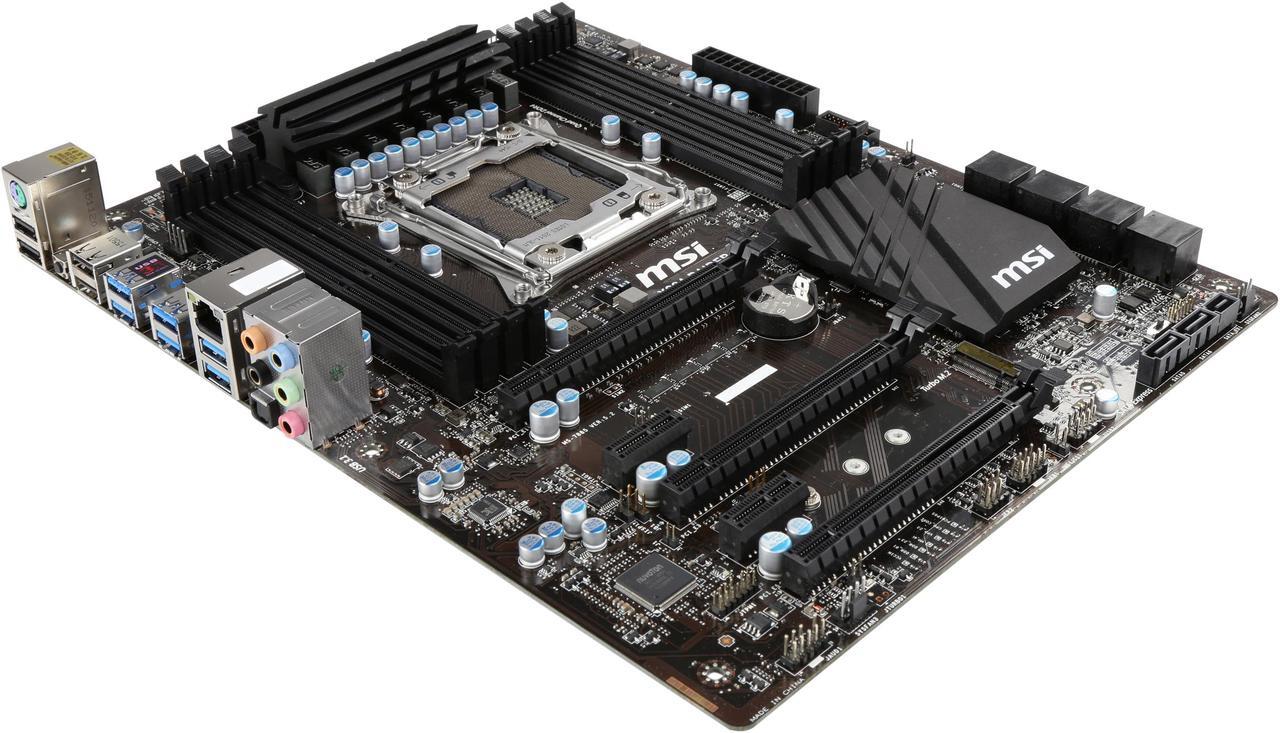

MSI Extreme Gaming Intel X99 LGA 2011 DDR4 USB 3.1 ATX Motherboard (X99A Raider)
REFURBISHED Product Type
- Supports New Intel Core i7 processors Extreme Edition in LGA 2011-3 socket
- Supports Quad Channel DDR4-3333(OC) Memory
- Supports DDR4 UDIMM ECC / RDIMM Memory Modules
- USB 3.1: Delivering speeds up to 10Gb/s, USB 3.1 offers performance twice as fast as a regular USB 3.0 connection.
- Turbo M.2: delivering next generation M.2 Gen3 x4 performance with transfer speeds up to 32Gb/s
- SATA Express + USB 3.1 + SATA 6Gb/s
- Multi-GPU: NVIDIA Quad SLI & AMD Quad CrossFire Support
- OC Engine: For More Flexible BCLK Adjustments
- Intel Gigabit LAN: Always connected with Intel Gigabit LAN networking
- Guard-Pro: Improved Protection and Power Efficiency
- Military Class 4: Top Quality & Stability
- Click BIOS 4: Easily Fine-tune Your System
- Command Center: Control & Customize Your PC Settings
+
+
Specs
Reviews (1)
Learn more about the MSI X99A-RAIDER
| Brand | MSI |
|---|---|
| Model | X99A-RAIDER |
| CPU Socket Type | LGA 2011-v3 |
|---|---|
| CPU Type | Core i7 (LGA2011-v3) / Xeon (LGA2011-v3) |
| Chipset | Intel X99 |
|---|

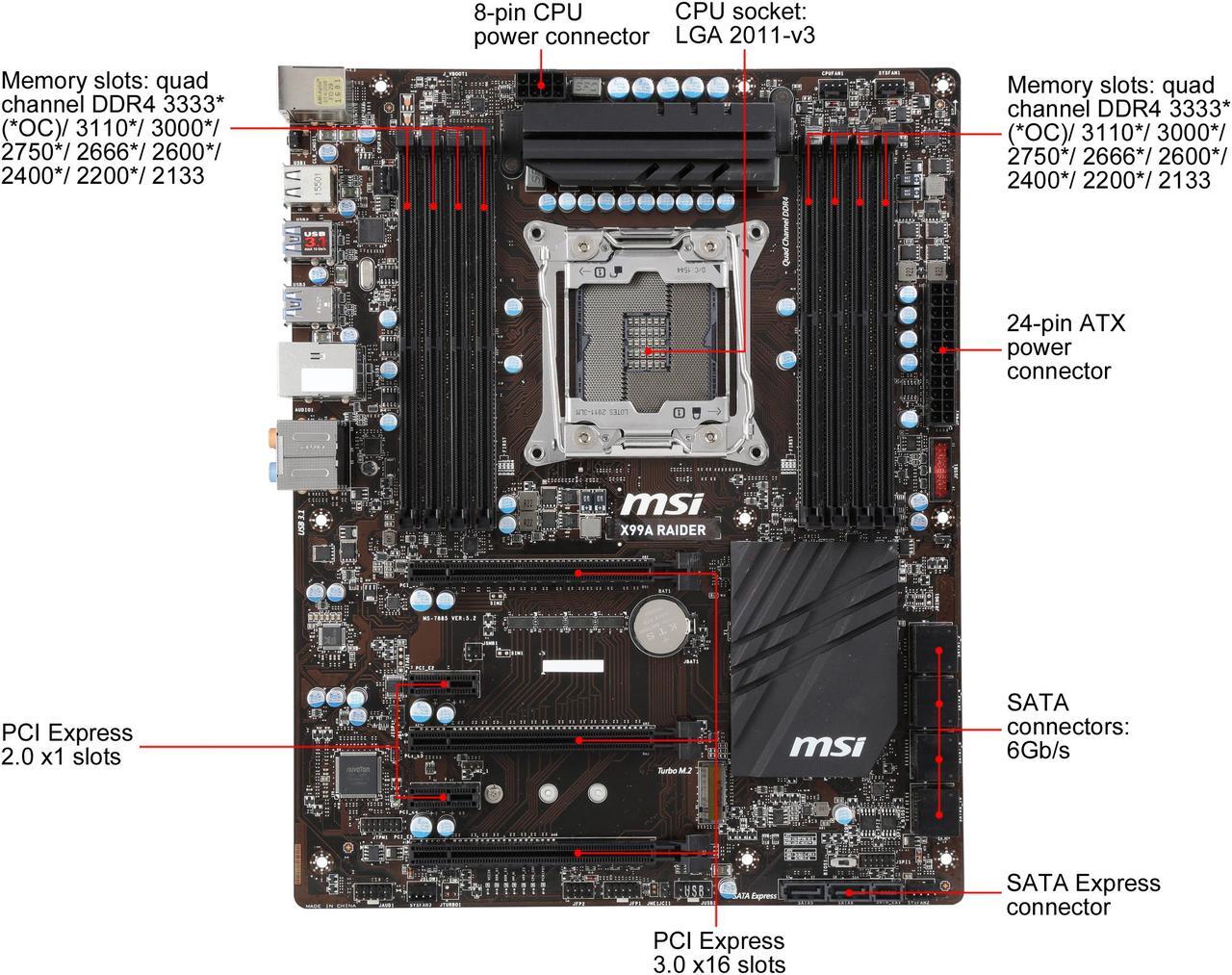

| Number of Memory Slots | 8x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3333*(*OC)/ 3110*/ 3000*/ 2750*/ 2666*/ 2600*/ 2400*/ 2200*/ 2133 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Quad Channel |
| PCI Express 3.0 x16 | 3 x PCIe 3.0 x16 slots (PCI_E1,3,5), support up to 3-way mode - 1-way mode: x16/ x0/ x0 - 2-way mode: x16/ x16/ x0*, 16/ x8/ x0** - 3-way mode: x8/ x16/ x8*, x8/ x8/ x8** * For the CPU that supports 40 PCIe lanes ** For the CPU that supports 28 PCIe lanes |
|---|---|
| PCI Express x1 | 2 x PCIe 2.0 x1 slots (PCI_E2,4) |
| Serial ATA (SATA) | 10 x SATA 6Gb/s ports (2x ports reserved for SATA Express port)* - SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10 - SATA7~10 ports only support IDE mode and AHCI mode. - Supports Intel Smart Response Technology (Windows 7/ 8/ 8.1) |
|---|---|
| SATA Express | 1 x SATA Express port* * The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen2 x2 mode) module in the M.2 port. |
| M.2 | 1 x M.2 port, supports up to 32Gb/s speed** - M.2 port supports 4.2cm/ 6cm/ 8cm length module - M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and RAID 10. ** Intel RST does not support PCIe M.2 SSD with Legacy ROM. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I218 |
|---|---|
| Max LAN Speed | 1Gbps |

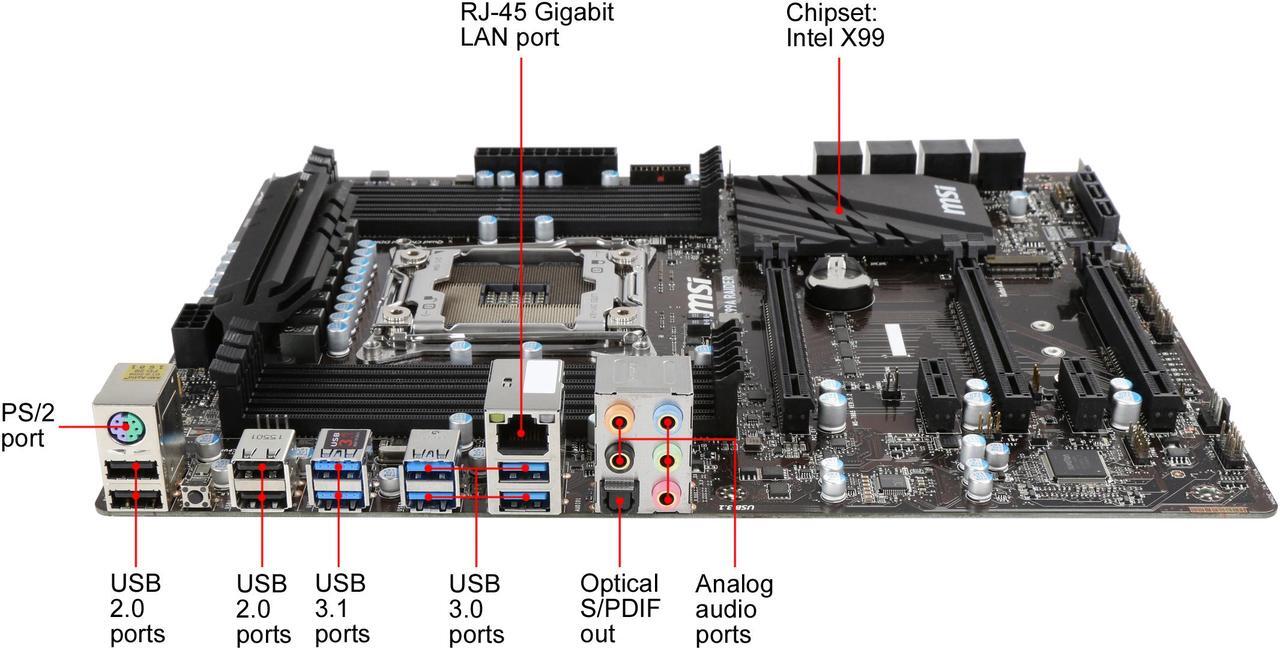

| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.1 Gen 2 Type-A / 4 x USB 2.0/1.1 / 4 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 2 x USB 3.1 |
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports) 1 x USB 3.0 connectors (supports additional 2 USB 3.0 ports) |
|---|---|
| Other Connectors | 1 x 24-pin AT x main power connector 1 x 8-pin AT x 12V power connector 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Slow mode booting jumper 1 x Multi-BIOS switch |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Supports New Intel Core i7 processors Extreme Edition in LGA 2011-3 socket Supports Quad Channel DDR4-3333(OC) Memory Supports DDR4 UDIMM ECC / RDIMM Memory Modules USB 3.1: Delivering speeds up to 10Gb/s, USB 3.1 offers performance twice as fast as a regular USB 3.0 connection. Turbo M.2: delivering next generation M.2 Gen3 x4 performance with transfer speeds up to 32 Gb/s SATA Express + USB 3.1 + SATA 6Gb/s Multi-GPU: NVIDIA Quad SLI & AMD Quad CrossFire Support OC Engine: For More Flexible BCLK Adjustments Intel Gigabit LAN: Always connected with Intel Gigabit LAN networking Guard-Pro: Improved Protection and Power Efficiency Military Class 4: Top Quality & Stability Click BIOS 4: Easily Fine-tune Your System Command Center: Control & Customize Your PC Settings Multi-GPU Support: - Supports 3-Way NVIDIA SLI Technology - Supports 3-Way AMD CrossFire Technology* * Supports Windows 7 and Windows 8/ 8.1 BIOS: - The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. - The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications. Mounting: - 9 mounting holes |
|---|
| Date First Available | May 29, 2025 |
|---|
