Quick View

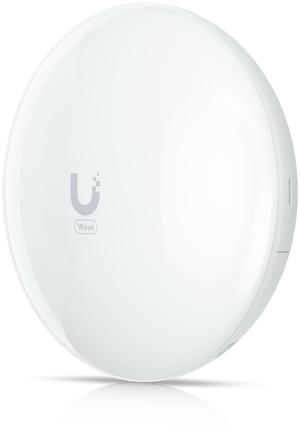

Ubiquiti Networks - Wave Pico (Wave-Pico)Frequency Band: RF
Operating frequency* 57–71 GHz
*Depends on regulatory region.
Channel bandwidth 2160, 1080, 540* MHz
*FW version 3.3.0 and later.
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region.
Modulation 16QAM, QPSK
Antenna gain 27.7 dBi
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 6°
Elevation: 3 dB 6°
Back-Up RF
WiFi standard 802.11ax (WiFi 6)
Operating frequency*
US/ CA
Worldwide
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
5180 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Modulation BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)
Antenna gain 9 d...Model #: Wave-Pico
Quick View
Ubiquiti Networks airFiber 60 XG (AF60-XG)Frequency Band: RF
Operating frequency* 57–66 GHz
* Depends on regulatory region.
Channel bandwidth 2160 MHz/4320 MHz (With channel bonding enabled)
Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
*Depends on the channel bandwidth.
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 1.6°
Elevation: 3 dB 1.6°
Back-Up RF
Operating frequency*
US/CA
U-NII-1 5150 - 5250 MHz
U-NII-3 5725 - 5850 MHz
Worldwide 5150–5875 MHz
*Depends on regulatory region.
Channel bandwidth 20/40/80 MHz
Polarization Dual-linear
Beamwidth Azimuth: 3 dB 5°
Elevation: 3 dB 5°LEDs: Power Flashing white: bootup in progress
White: not connected to UISP™ console
Blue: connected to UISP console
Ethernet Flashing blue: ethernet activity
GPS Blue: receiving at least (4) GPS satellite signals
60G Blue: active connection
5G Blue: active connecti...Model #: AF60-XG-US
Quick View

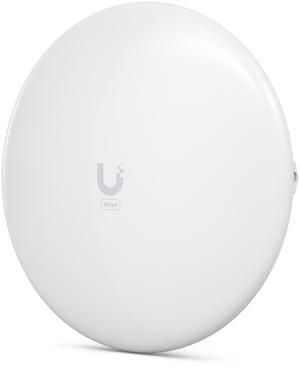

Ubiquiti Networks Wave AP (Wave-AP)WiFi Generation: Wi-Fi 6Frequency Band: RF
Operating frequency* 57–71 GHz
*Depends on regulatory region.
Channel bandwidth 2160, 1080, 540* MHz
*FW version 3.3.0 and later.
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region.
Modulation 16QAM, QPSK
Antenna gain 24 dBi
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 30°
Elevation: 3 dB 3°
Electrical downtilt 0°
Back-Up RF
WiFi standard 802.11ax (WiFi 6)
Operating frequency*
US/ CA
Worldwide
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
5150 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Modulation BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 2...Model #: WAVE-AP
Quick View
Ubiquiti Networks Wave Nano (Wave-Nano)Frequency Band: RF
Operating frequency* 57–71 GHz
*Depends on regulatory region.
Channel bandwidth 2160, 1080, 540* MHz
*FW version 3.3.0 and later.
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region.
Modulation 16QAM, QPSK
Antenna gain 41 dBi
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 1.4°
Elevation: 3 dB 1.4°
Back-Up RF
WiFi standard 802.11ax (WiFi 6)
Operating frequency*
US/ CA
Worldwide
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
5150 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Modulation BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)
Antenna gain...Model #: WAVE-NANO-US
Quick View
Ubiquiti Networks airFiber 60 Xtreme-Range (AF60-XR)Frequency Band: RF
Operating frequency* 57–71 Ghz
* Depends on regulatory region.
Channel bandwidth 2160, 1080 MHz
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz
* Depends on regulatory region.
Management radio 2400–2483.5 MHz
Modulation 16QAM, BPSK, QPSK
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 1.4°
Elevation: 3 dB 1.4°
Electrical downtilt 0°
Back-Up RF
Operating frequency*
US/ CA
Worldwide
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
5150 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Modulation BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2/3), 64QAM (¾), 64QAM (5/6), 256QAM (¾), 256QAM (5/6)
Antenna gain 26 dBi
Polarization Dual-linear
Beamwidth Azimuth: 3 dB 5°
Elevation: 3 d...Model #: AF60-XR-US-
Quick View
Ubiquiti Networks Wave AP Micro (Wave-AP-Micro)Frequency Band: RF
Operating frequency* 57–71 GHz
*Depends on regulatory region.
Channel bandwidth 2160, 1080, 540* MHz
*FW version 3.3.0 and later.
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region.
Modulation 16QAM, QPSK
Antenna gain 20 dBi
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 90°
Elevation: 3 dB 7°
Electrical downtilt 0°
Back-Up RF
WiFi standard 802.11ax (WiFi 6)
Operating frequency*
US/ CA
Worldwide
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
5150 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Modulation BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM ...Model #: WAVE-AP-MICRO-US
