Features: • 8 x Gigabit PoE+ ports
• Up to 200W PoE power budget
• Hardened IP50 rated metal switch
• Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
• Dual inputs provide redundant power with overload current protection
• Alarm relay triggered by power failure
• 16Gbps switching capacity
• Includes DIN-Rail mount and wall mount brackets
• Power supply sold separately (model: TI-S24052)
• NDAA
Features: • 4 x Gigabit PoE+ ports
• 1 x Gigabit port
• Up to 120W PoE power budget
• Hardened IP50 rated metal switch
• Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
• Dual inputs provide redundant power with overload current protection
• 10Gbps switching capacity
• Includes DIN-Rail mount and wall mount brackets
• Power supply sold separately (model: TI-S15052)
• NDAA / TAA
Features: • Hardened IP50 rated Gigabit PoE++ Injector
• PoE (15.4W), PoE+ (30W), or PoE++ (95W) power
• Network a PoE device located up to 100m (328 ft.) away
• Extreme - 40° — 75° C (-40° — 167° F) operating temperature range
• Redundant power inputs with overload current protection
• 6kV RJ45 Ethernet surge protection
• Includes DIN-rail mount and wall mount
• Power

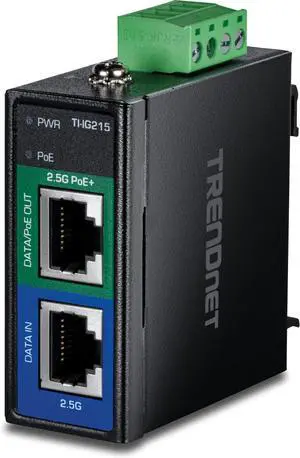

Features: • 1 x 2.5G PoE+ port (Data + PoE out)
• 1 x 2.5G port (Data in)
• 30W PoE power budget
• Supports PoE (15.4W) and PoE+ (30W) devices
• Uses IEEE 802.3af and IEEE 802.3at industry PoE standards for greater device interoperability
• Network a PoE device located up to 100m (328 ft.) away
• Fanless design eliminates operating noise and lowers energy consumption
• Extreme operating temperature range - 40° — 75° C (-40° — 167° F)
• Redundant power inputs with overload current protection
• Includes DIN-Rail mount and wall mount
• Power supply sold separately (model: TI-S15052)
• NDAA / TAA compliant (U.S. and Canada only)
Features: • Hardened IP50-rated gigabit PoE+ injector
• Provides PoE (15.4W) or PoE+ (30W) power
• Network a PoE device located up to 100m (328 ft.) away
• Extreme - 40° — 75° C (-40° — 167° F) operating temperature range
• 6kV RJ45 Ethernet surge protection
• Redundant power inputs with overload current protection
• Includes DIN-rail mount and wall mount
• Power supply sold
Features: • 8 x Fast Ethernet PoE+ ports
• Up to 200W PoE power budget
• Hardened IP50 rated metal switch
• Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
• Dual inputs provide redundant power with overload current protection
• 1.6Gbps switching capacity
• Alarm relay triggered by power failure
• Includes DIN-Rail mount and wall mount brackets
• Power supply sold separately (model:

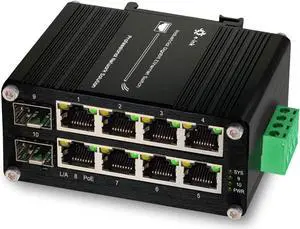

Features: • 8 x Gigabit PoE+ ports
• 2 x SFP ports
• Supports 100/1000Base-FX fiber SFP modules
• PoE power budget: 240W@48VDC or 124W@24VDC
• PoE alive check restarts unresponsive PoE powered devices
• 20Gbps switching capacity
• Hardened IP40 rated metal housing
• Includes DIN-Rail mounting bracket
• Operating temperature range of -40° – 75° C (-40° – 167° F)
• Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
• IEEE 802.1p QoS with queue scheduling support
• Bandwidth control per port
• Redundant power inputs with overload current protection
• Alarm output triggered by power failure
• Power supply sold separately (models: TI-S24048, TI-S48048, TI-S24052, TI-S15052)
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty
Primary Ports: 8 x Gigabit PoE+ ports
2 x Gigabit SFP slots (1000Base-FX)
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point

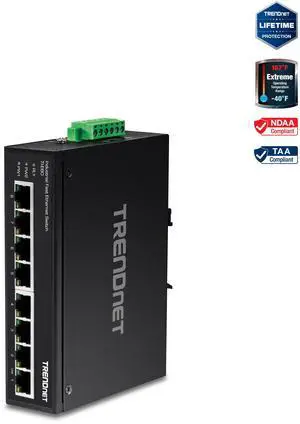

Features: 8 x Fast Ethernet ports
Hardened IP50 rated metal switch
Extreme operating temperature range of -40° – 75° C (-40° – 167° F)
Dual power inputs provide redundant power with overload current protection
Fanless design for silent operation
Alarm relay triggered by power failure
1.6Gbps switching capacity
Includes DIN-Rail mount and wall mount brackets
Power supply sold separately
