Specifications: Power requirements: 16V AC-24V AC; requires a 10VA transformer and wired doorbell
Camera: 1/3-inch, 3-megapixel (2K) color sensor, 8x digital zoom
Video: HD UXGA 1600 x 1200, up to 30 frames/sec, H.264 encoding, HDR
Field of view: 160 degree diagonal
Audio: High-quality speaker and microphone
Lights: RGB light ring and status light
Night Vision: 850nm infrared LEDs
Operating temperature: -4 degree to 104 degree F (-20 degree to 40 degree C)
Weather resistance: IPx4 rating
Security: 128-bit AES with TLS / SSL
Wireless:
Wi-Fi 802.11a/b/g/n/ac, 2.4 GHz or 5 GHz (WEP, WPA, WPA2 encryption supported)
Bluetooth Low Energy (BLE)
802.15.4 at 2.4 GHz
Product requirements: Requires a wired doorbell and chime.
Connectivity requirements:
Wi-Fi 802.11a/b/g/n/ac, 2.4 GHz or 5 ...

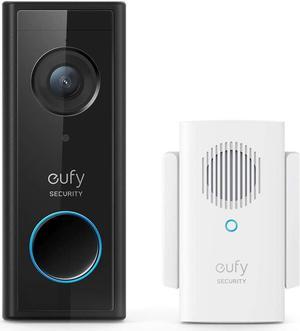

Specifications: Power
Runs on a built-in, rechargeable battery
Can be hardwired to an existing doorbell system or transformer for continuous charging (8-24 VAC, 40VA max, 50/60Hz)
No halogen or garden-lighting transformers; no DC transformer/power supply
Internet Requirements
Recommended minimum upload speed of 2 Mbps per device
Connectivity
802.11 b/g/n wifi connection @2.4GHz
Operating Conditions
-5°F to 120°F (-20°C to 48°C), Weather Resistant

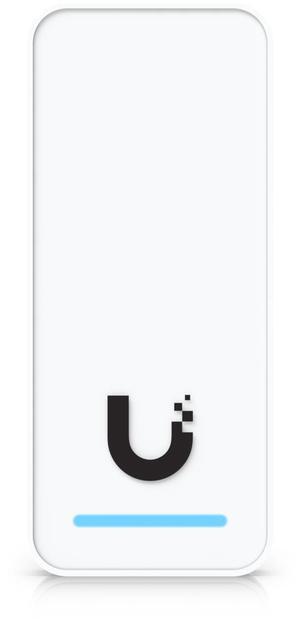

Specifications: Hardware
Indoor and Outdoor Use
Networking Interface: (1) 10/100 MbE RJ45 port
Connectivity
BLE 4.1
NFC
Power Method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption: 5W
Supported Voltage Range: 48V DC
ESD/EMP Protection: Air: ±15kV, contact: ±8kV
Proximity sensor
Speaker
LEDs: R/G/B/W Learn More
Button: (1) Factory-reset
NFC Frequency: 13.56 MHz
NFC Read Range: < 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at t...
