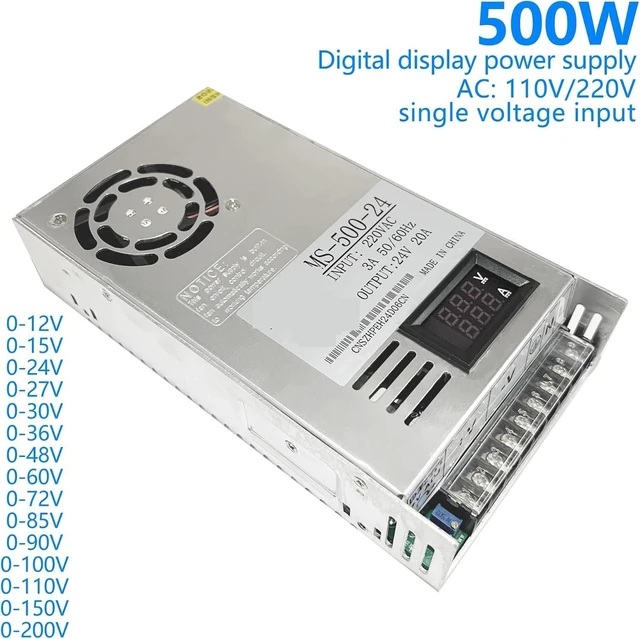

500W Universal DC Switching Power Supply 0-12V 15V 24V 36V 48V 60V 85V 200V LED Digital Display Power Supply for Computer Lab, LED Strip Light and So on(48V)

Specifictation:

0-12V 15V 24V 36V 48V 55V 60V 72V 85V 90V 150V

Adjustable 1000W Switching Power Supply For Led 500W

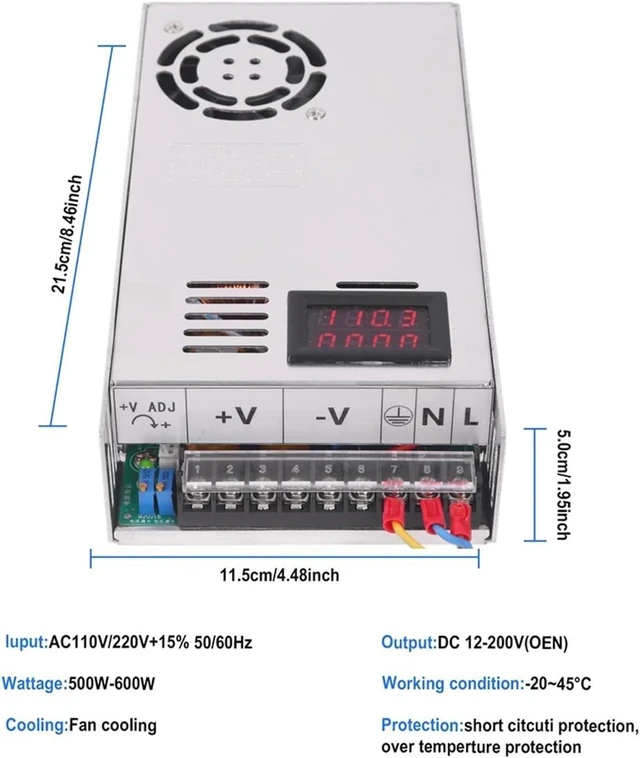

Size: 215*115*50mm/

Packaged weight about: 0.9KG

Ripple voltage; not more than 100 mV

Voltage-stabilized equivalent internal resistance: not more than 0.O5

Short circuit, overload protection and automatic recovery

For max current, if you choose 0-80v, when set the voltage at 24v, the max current still is 6A.

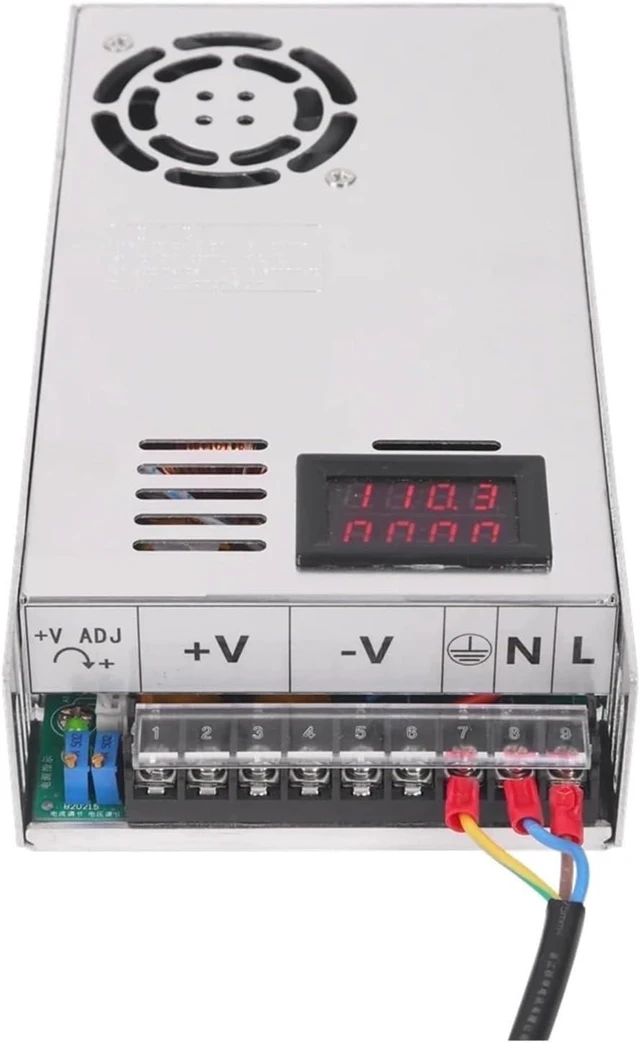

L, N AC input terminal FG ground mark V+ DC output positive terminal

V-DC output negative terminal ADJ adjustable potentiometer Fine-tuning output DC voltage

full voltage input

Miniaturization

Protection function Short circuit / overload / over voltage

Start surge current ---------------20A@120VAC (cold start)

Output adjustment range --------------- ±100% (rated output voltage)

Overload protection -------------------105%~200% (rated load), self-recovery

Overvoltage protection -------------------115%~135% (rated output voltage)

Short circuit protection ------------------- self-recovery

Output start time ---------------2S@120VAC 1.0S@230VAC

Output hold time ---------------10mS@120VAC, 20mS@230VAC

Insulation strength ------------------- Input-Output: AC1500V, 1min; Input - housing: AC1500V, 1min; Output - Case: DC500V, 1min

Working environment ------------------ -10 ° C ~ 50 ° C; 20% ~ 90% RH (no condensation)
