Desktop Motherboard 80-MXBBB0-A1A01 Compatible Replacement Spare Part for ASRock X570 Phantom Gaming 4 WiFi ax AMD Chipset Socket AM4 DDR4 USB HDMI DisplayPort SATA 6GB/s ATX

Model: X570 PHANTOM GAMING 4
Part Number: 80-MXBBB0-A1A01
Compatible Part Numbers: X570 PHANTOM GAMING 4 WIFI ax
Chipset: AMD X570
Socket: AMD AM4
Compatible/Supported CPU: AMD Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133MHz
Storage Interface: SATA 3 6Gb/s
RAID Support: 0, 1, 10
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: Intel 802.11ax WiFi Module, Supports IEEE 802.11a/b/g/n/ax
Network/Communications: Intel I211AT, Gigabit LAN 10/100/1000 Mb/s
Audio: Realtek ALC1200 Audio Codec, 7.1 CH HD Audio with Content Protection
Connectors: 1x COM Port Header, 1x Power LED and Speaker Header, 2x RGB LED Headers, 1x Addressable LED Header, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x Front Panel Audio Connector, 1x AMD LED Fan USB Header, 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC Card R2.0 only), 1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection), 1x SPI TPM Header
Input/Output Ports: 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x DisplayPort 1.2, 2x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection), 6x USB 3.2 Gen1 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone
Expansion Slots: 1x PCI Express 4.0 x16 Slot, 1x PCI Express 3.0 x16 Slot, 2x PCI Express 4.0 x1 Slots, 1x M.2 Socket (Key E), 8x SATA3 6.0 Gb/s, 2x M.2 Socket, supports M Key type 2230/2242/2260/2280/22110
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / Windows 11 64-bit

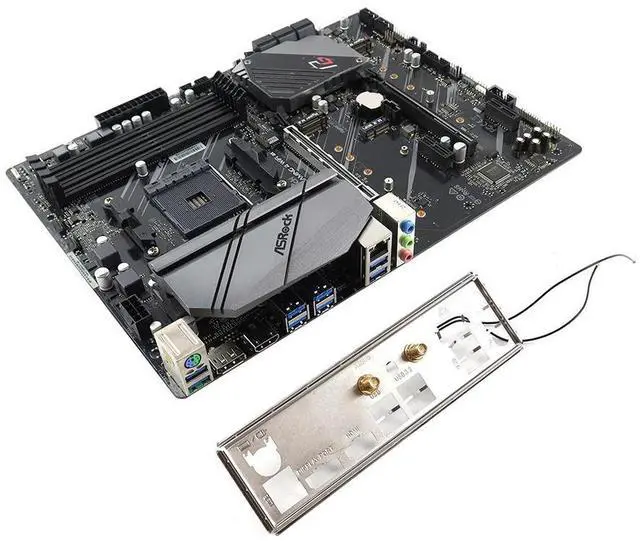

Please note, this motherboard comes with I/O Shield, fan's mounting backplate, fan's bracket, WiFi antennas! No cables, or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
