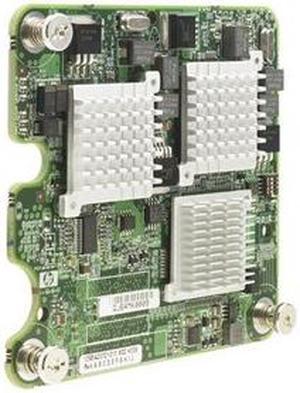

Type: NC325m PCI Express Quad Port Gigabit Server Adapter
Specifications: Compliance: IEEE 802.3ab, 802.3u, 802.3x, 802.3ad, 802.3p, 802.1Q
Bus type: PCI Express
Data path: Four lanes (x4)
Onboard memory 312 KB (Note: Consisting of a 56K Receive Buffer and a 22K Transmit buffer for each port.)
Transfer rate: 1000Mbps
Ports: Four
Controller: Broadcom 5715S
Power requirements:
Operating voltage : +12V +/- 8%
Maximum: 1.05A @ 12V(DC)
Operating:
Temperature: Meets the external specifications for the BladeSystem enclosure which is 50° to 95°F (10° to 35°C)
Humidity: 10% to 90% non-condensing
Non-operating:
Temperature: -40° to 185°F (-40° to 85°C)
Humidity: 5% to 95% non-condensing
Emissions classifications: Class A
