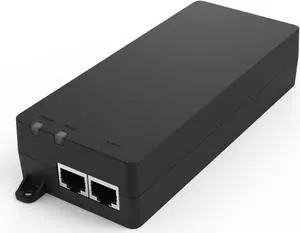

Specifications: Standards
802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
802.3at / af Power-over-Ethernet
Physical Interface
(1) Gigabit Data Port
(1) Gigabit Data & Power Output Port
(1) IEC-320 C6 AC Connector
Power
Input voltage : 100 to 240 VAC
Input current: 0.8A maximum for 100 VAC
AC input Frequency: 47-63Hz
Maximum output power: 30W
Pin4, 5:54V; Pin7, 8: Return
Temperature Range
Operating: 32 degree F to 104 degree F (0 degree C to 40 degree C)
Storage: -22 degree F to 176 degree F (-30 degree C to 80 degree C)
Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less
LED Indicator: 1 x Power on Green
Mounting: Wall (anchors & screws included)
Dimensions: 1.30" x 3.90" x 2.27"
Parts: Manufacturers Limited Warranty: 1 Year / Parts Onl...

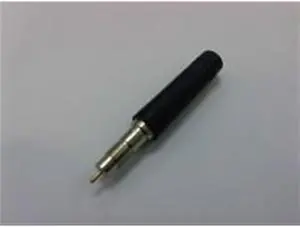

Additional Features: The DuraFon-HSA3 is an optimal performance antenna for most DuraFon model handsets. Simple screw on/off design for easy replacement.
Easy Replacement
Compatible with DuraFon Handsets (except DuraFon-UHF-HC)
Approximate Exposed Antenna Length: 17.5 cm / 6.875 in
Specifications: Standards
802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
Proprietary PoE
Physical Interface
1) Gigabit Data Port
(1) Gigabit Data & Power Output Port
(1) IEC-320 C6 AC Connector
Power
Input voltage : 100 to 240 VAC
Input current: 0.8A maximum for 100 VAC
AC input Frequency: 47-63Hz
Maximum output power: 32.8W
Pin4, 5:54V; Pin7, 8: Return
Temperature Range
Operating: 32 degree F to 104 degree F (0 degree C to 40 degree C)
Storage: -22 degree F to 176 degree F (-30 degree C to 80 degree C)
Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less
LED Indicator: 1 x Power on Green
Mounting: Wall (anchors & screws included)
Dimensions: 1.30" x 3.90" x 2.27"
Parts: Manufacturers Limited Warranty: 1 Year / Parts Only
