Specifications: Interfaces:
PoE IN:1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE "Data + DC power" in auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE OUT: 2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE "Data + DC power" out auto MDI/MDI-X, auto-negotiation RJ45 connector
Power over Ethernet
PoE Standard:
"PoE In" Port: IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD
Per "PoE Out" Port:
IEEE 802.3at Power over Ethernet Plus end-span PSE
IEEE 802.3af Power over Ethernet end-span PSE
PoE Power Supply Type: End-span (Type A)
PoE Power:
"PoE In" Port: 52 - 56V DC, max. 30.8 watts
Per "PoE Out" Port: 44 - 55V DC, max. 25 watts
Power Pin Assignment:
"PoE In" Port: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
Per "PoE Out" Port: 1/2 (+), 3/6 (-)
Data Rate: 10/100/1000Mbps
MAC Address Table: 2K
Data Bu...
Specifications: Ethernet Interface:
Copper:
10/100BASE-TX RJ45
auto-negotiation / auto-MDI / MDI-X
Power over Ethernet Standard: IEEE 802.3at/af PoE PSE (Power Source Equipment)
PoE Output: 56V DC, 600mA max.
PoE Budget: Up to 25 watts
PoE Mode: End-span, RJ45 Pin 1/2 (+), 3/6 (-)
Data Rate: 100/100 Mbps
Cabling: Cat5e or above
Maximum Distance: 100 meters
Maximum Frame Size: 1522 bytes
LED Indicators:
4 x LEDs
PWR
LRP LNK
PoE-in-use
LNK / ACT
ESD Protection: 4KV DC
Enclosure: Metal case
Installation: Wall mount or DIN rail with optional kit

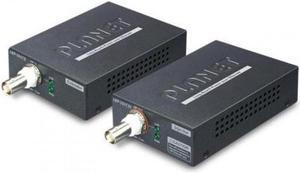

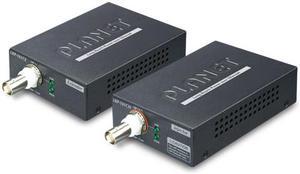

Power Requirements: BNC Power over Coaxial Input: 44~56V DC
Standards Compliance:
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet Plus(802.3at Type 2)
Specifications: PoE Standard: IEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High Power over Ethernet)
PoE Power Supply Type: Mid-Span / Type B
PoE Power Output: 52V DC, 510 mA, Max. 26 watts
Power Pin Assignment: 4/5 (+), 7/8 (-)
Maximum Distance: 4 units, daisy-chain installation with 500m support
Data Rate: 10/100/1000 Mbps
Switch Architecture: Store-and-Forward
Maximum Frame Size: 1552 Bytes
Flow Control:
Back pressure for half-duplex
IEEE 802.3x pause frame for full-duplex
LED Indicators:
1 x PoE IN (Green)
1 x LAN Data (Green)
1 x PoE OUT (Green)
Power Requirements: IEEE 802.3at compliant with voltage within 52V-56V DC
Power Consumption: 3.2 watts (system maximum)
Power Consumption: DC5V:1.708W:8BTU/h
DC5V:1.649W:50BTU/ h
Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Specification: Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 70°C
Humidity 0–80% RH, Non-condensing
Local Unit
Upstream Port 1 x USB Type B Female
Downstream Port 1 x RJ45 Female
1 x Micro USB Female (Firmware Upgrade)
Power 1 x DC Jack
Remote Unit
Upstream Port 1 x RJ45 Female
Downstream Port 4 x USB Type A Female
1 x Micro USB Female (Firmware Upgrade)
Power 1 x DC Jack
USB Specification USB 2.0 High-Speed
Cable Type Ethernet Cable
