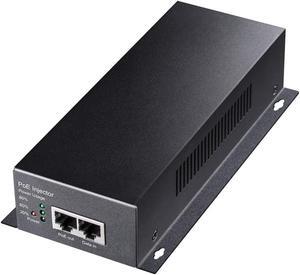

Specifications: Number of Ports: 2 (1 for data in, 1 for data and power out)
Pass-through Data Rates: 10/100/1000 Mbps
Maximum Cable Run: 100 meters or 330 feet which corresponds to Ethernet limits
LED Indicator: Power On/Off and overload conditions
Connectors: Shielded RJ-45, EIA 568A and 568B
MTBF: 100,000 hrs. at 25 ºC
Power over Ethernet Output:
Pin Assignment and Polarity: 4/5 (+), 7/8 (–)
Output Power Voltage: 50V DC
Output Power: 15.4 Watts
Input Power Requirements
AC Input Voltage: 90 to 264V AC
AC Input Current: 0.5A at 100 - 240V AC
AC Frequency: 47 - 63 Hz
Operating Ambient Temperature: 32 - 104ºF (0 - 40ºC)
Storage Temperature: -4 - 158ºF (-20 - 70ºC)
Operating Humidity: Maximum 90%, non-condensing
Storage Humidity: Maximum 95%, non-condensing
Operating Altitude: -1000 - 10,000 ft. (-304.8 - 3048 m)
Heat Dissipation: ...
Specifications: Interface:
"PoE (Power + Data)" Input Port : 1 x RJ-45 10/100/1000Base-T
"Data" Out Port: 1 x RJ-45 10/100/1000Base-T
DC Out Plug Connector: 1 removable 4-Pin terminal block
LED Indicator:
System: Power Ready x 1 (Green)
Network Cable:
10/100/1000Base-T: 4-Pair UTP Cat. 5, 5e, 6
Distance up to 100m (328 ft.)
EIA/TIA- 568 100-ohm STP (100m)
Data Rate: 10/100/1000 Mbps (vary on Ethernet device attached)
DIP Switch: 12V DC / 24V DC output voltage
Power Input: 802.3at PoE 48~56V DC
Power Output: 12V / 24V DC, max 2A (adjustable)
Enclosure: IP30 metal case
Installation: DIN rail kit and wall mount ear
ESD / EFT Protection: 6 KV DC
PoE Standard: IEEE 802.3at High Power over Ethernet
Number of devices that can be powered: 1 or 2 (Vary on device's power requirement; DC1 + DC2 cannot be over 25 watts.)
...
