will it fit 240mm aio, and will it fit the asus strix 5700xt anyone please ??

I just looked up your gpu asus strix 5700xt and it will not fit. The length of 12in will fit and the height of 5.1in may fit if you install with fan side facing inward which restricts airflow but the width is 2.7 slots and will not fit. Again, you'll be limiting the gpu to pcie 3.0 since the riser cable does not support pcie 4.0 (I double checked this with phanteks directly) but if your motherboard is not AMD x570, this does not matter. If you really like this case then your best bet is to find a gpu with max dimensions of 12in x 4.5in x 2 slots so that you can face the gpu fans outward for best cooling. You might have to go with a reference gpu direct from nvidia such as rtx2060 super (9in x 4.435in x 2 slots) or rtx2070 super (10.5in x 4.556in x2 slots).

Can this case fit a 2.5 slot GPU?

Yes, i currently have dual slot card on mine.

where do you mount a ssd drive?

You can mount ssd on the inside of the rear frame. You can mount up to 2 ssd and 1 3.5hdd on outside of rear frame between rear case cover

Phanteks Enthoo Evolv Shift Air mini-ITX Case, Mesh Fabric Side Panels, Aluminum Panels, RGB Controller, Black

High airflow performance mesh fabric side panels with a direct airflow path to CPU and GPU for excellent ventilation
Ultra-compact design with the option to be positioned horizontally or vertically for space saving and easy accessibility to rear I/O
Supports dual AIO (120mm) water-cooling solution and reversible GPU positioning

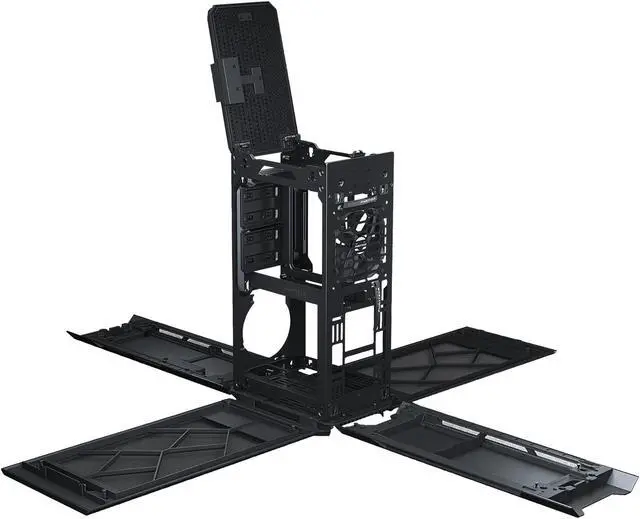

All panels are removable for easy and convenient hardware installation
Expand and synchronize Phanteks D-RGB products or compatible motherboard with the integrated RGB controller

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

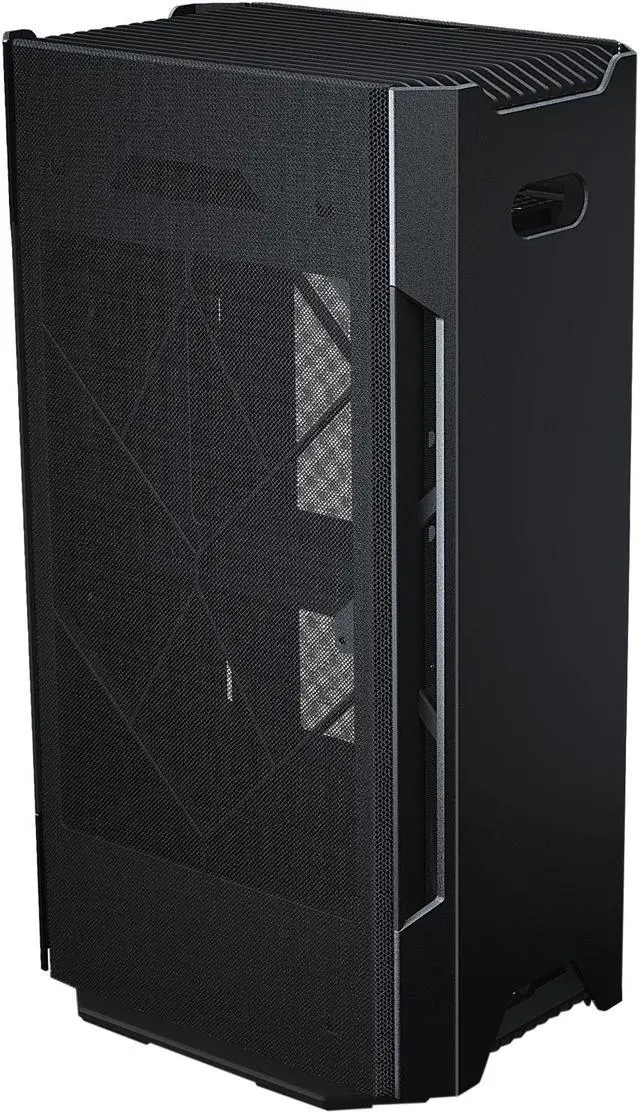

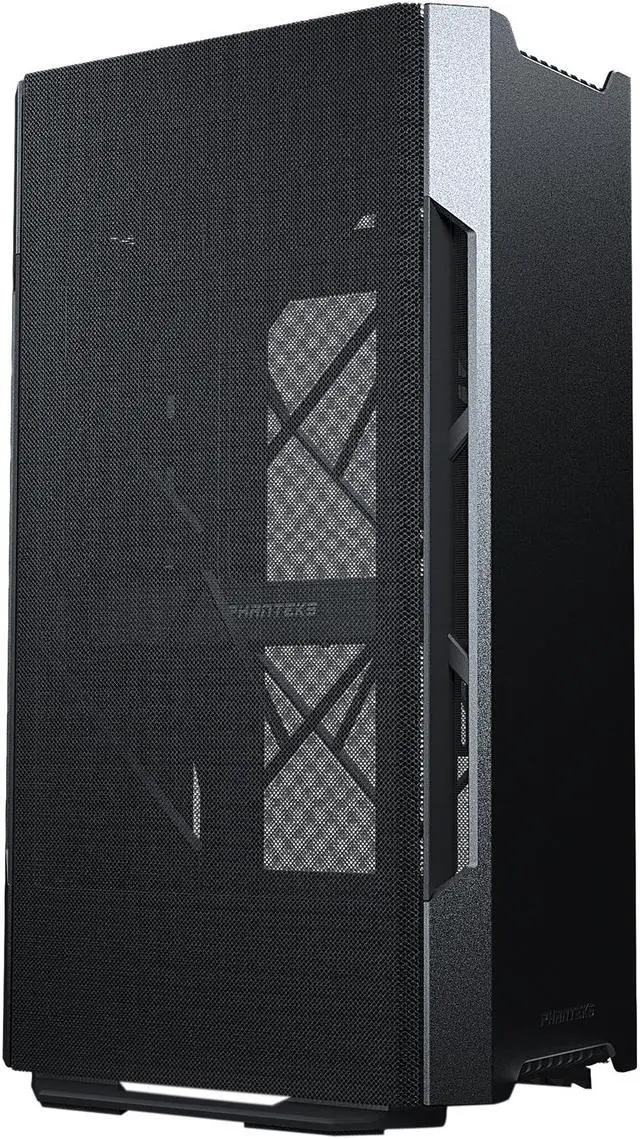

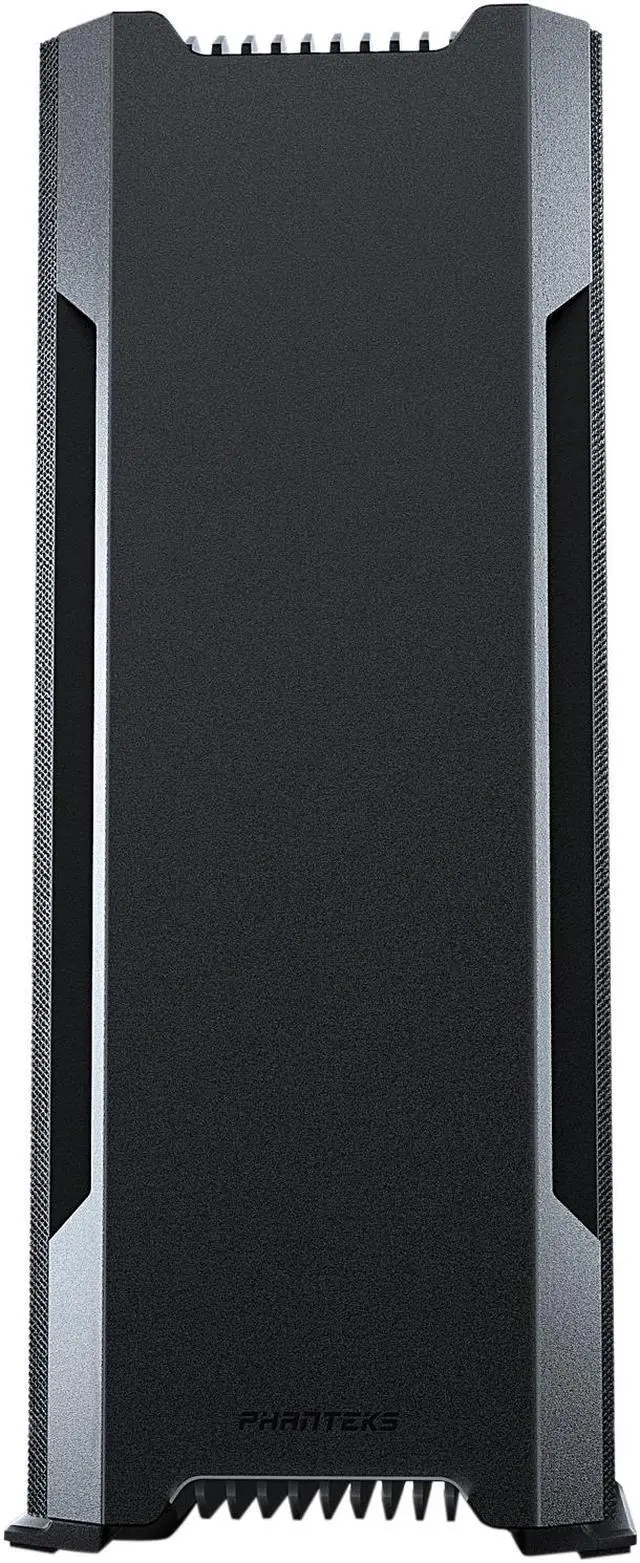

The Evolv Shift Air Side view and Face forward

The Evolv Shift Air builds on the unique form factor of the original Evolv Shift and brings the innovative high performance mesh fabric pioneered by Phanteks. With both side panels providing high airflow directly to all critical system components.

The Evolv Shift Air delivers a compact housing that packs plenty of power and is extremely space efficient with its small footprint.

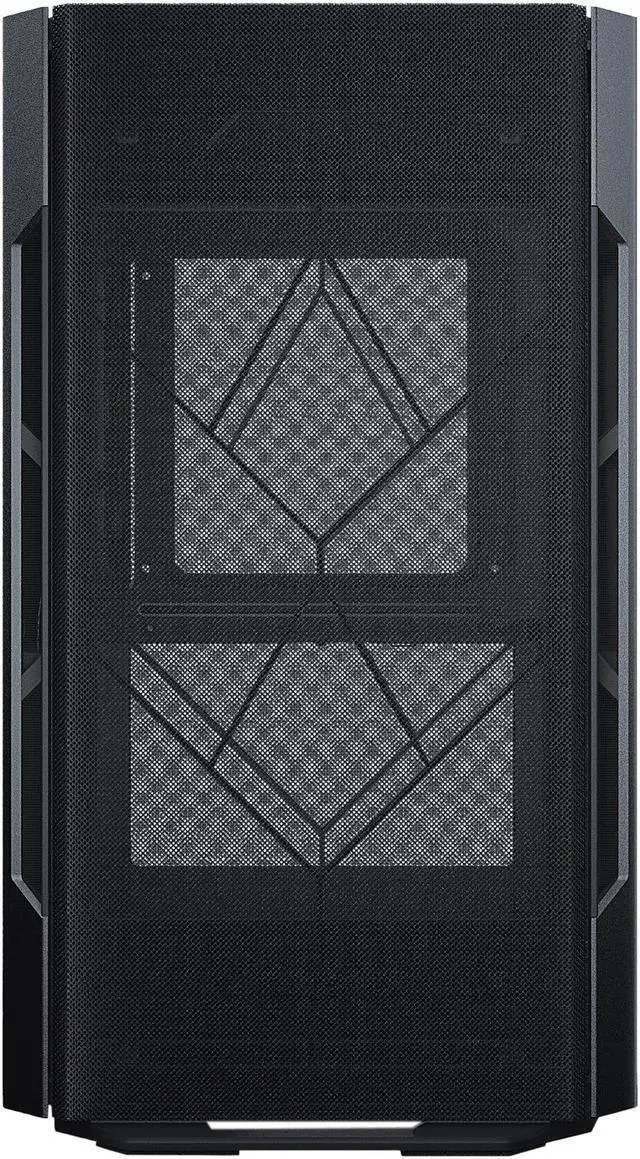

HIGH-PERFORMANCE MESH FABRIC

The Shift Air brings the innovative high-performance mesh-fabric side panels pioneered by Phanteks.

The critical components have direct access to airflow thanks to the air vents on all six sides of the chassis.

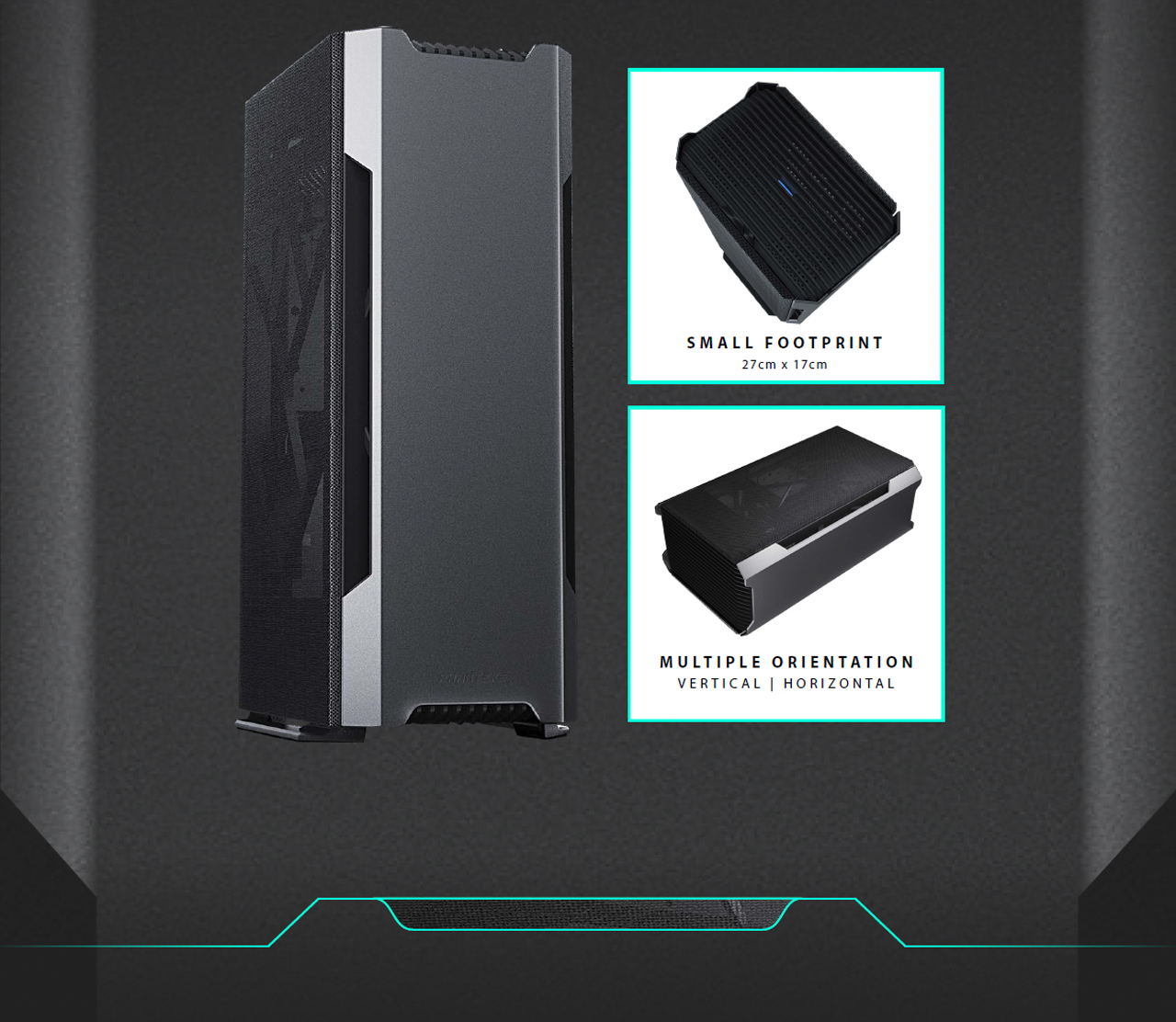

COMPACT & VERSATILE

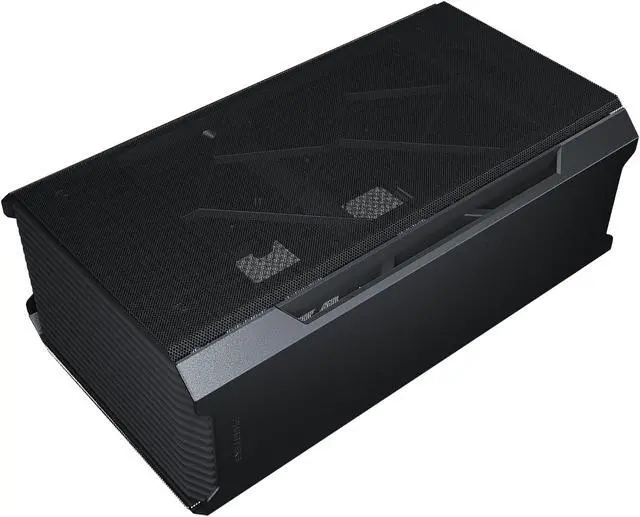

The Evolv Shift Air has small footprint and multiple orientation features

CASE SPECIFICS

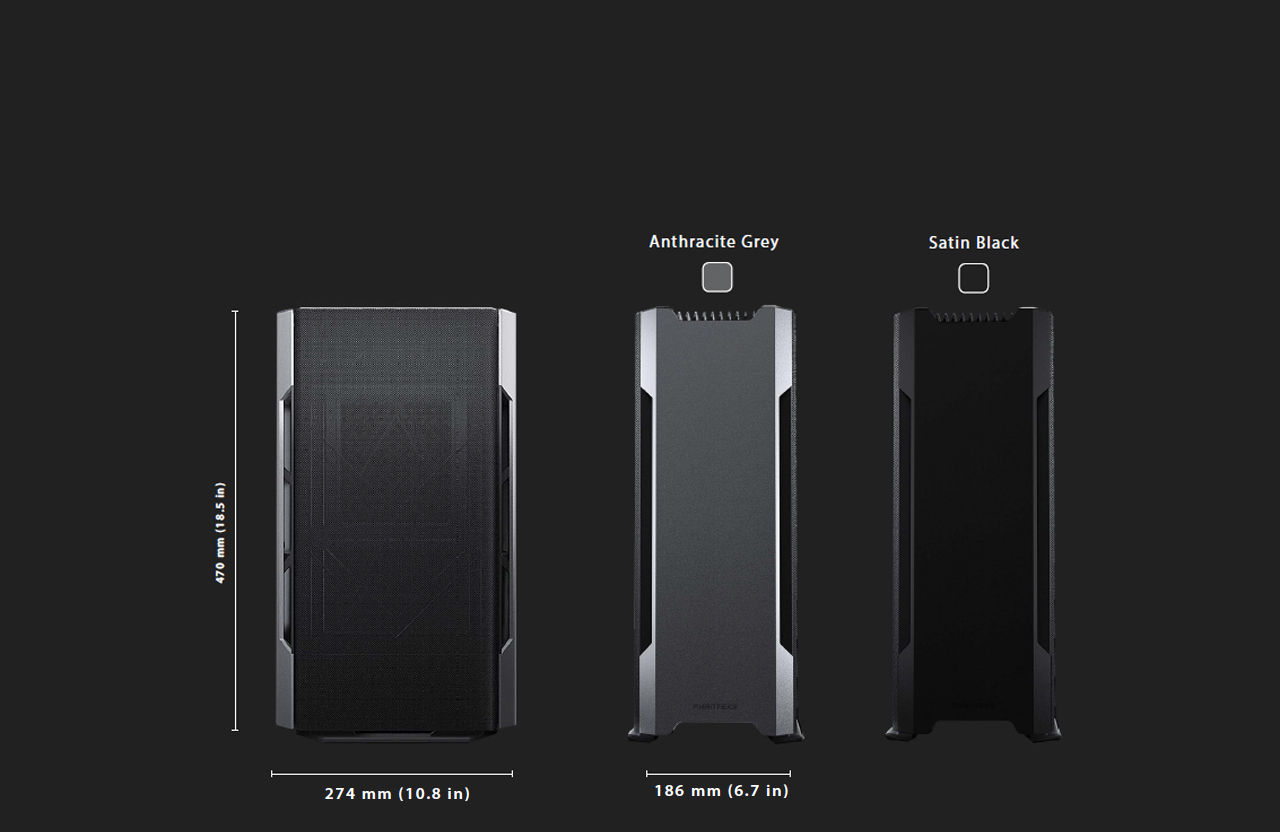

DIMENSIONS & COLOR

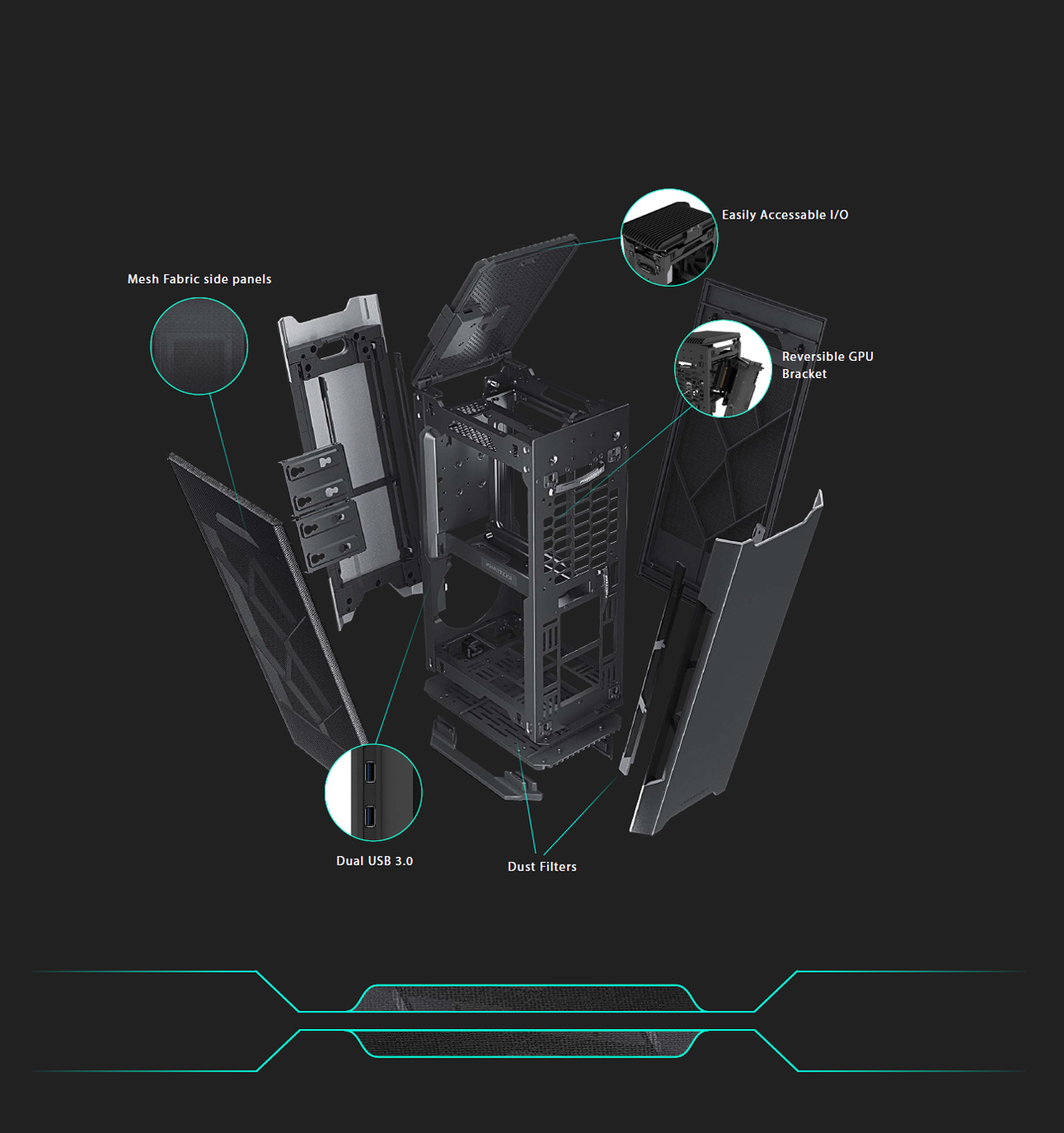

COMPONENT BREAKDOWN

COOLING CAPACITY

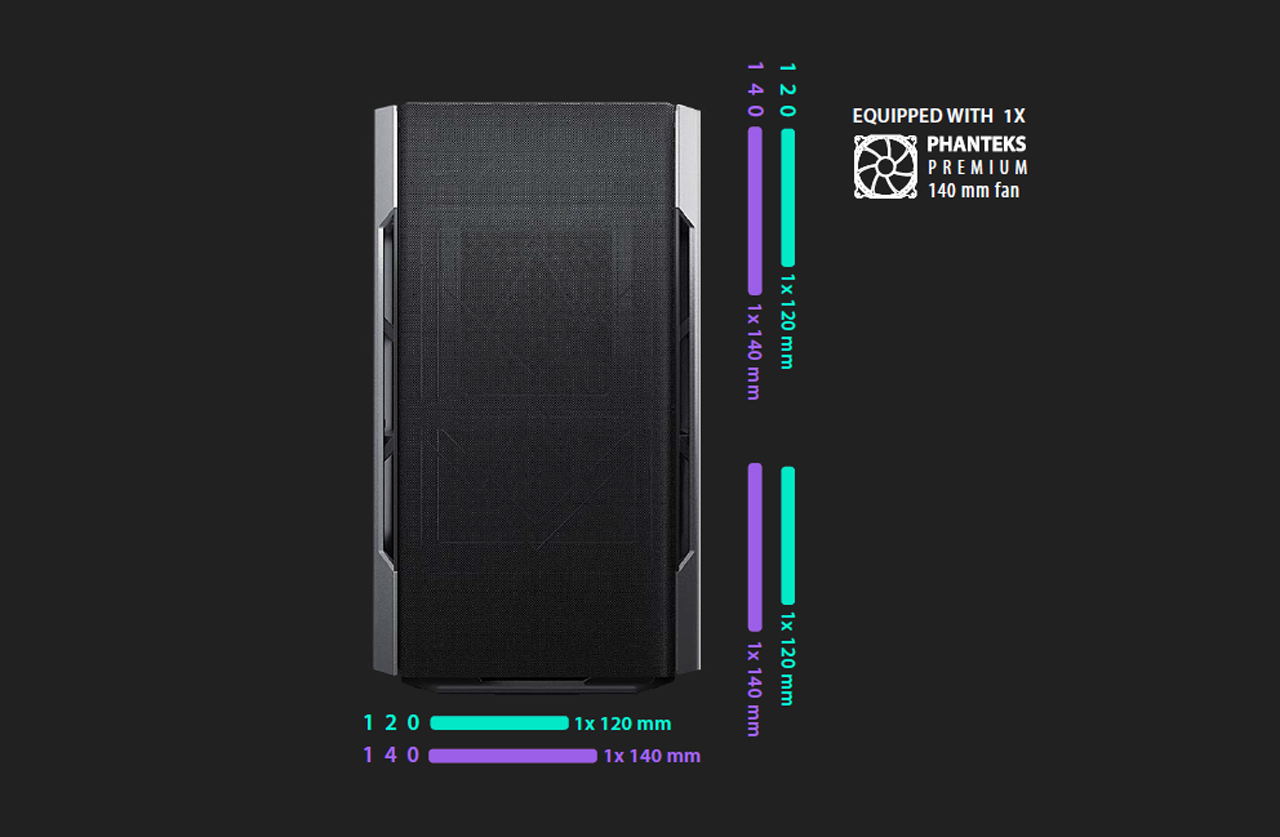

The Evolv Shift Air offers space for 3x 140 or 120mm fans for ample airflow. The Mesh Fabric side panels provide direct access to fresh air to CPU and GPU air coolers.

The Evolv Shift Air offers space for 3x 140 or 120mm fans for ample airflow graph

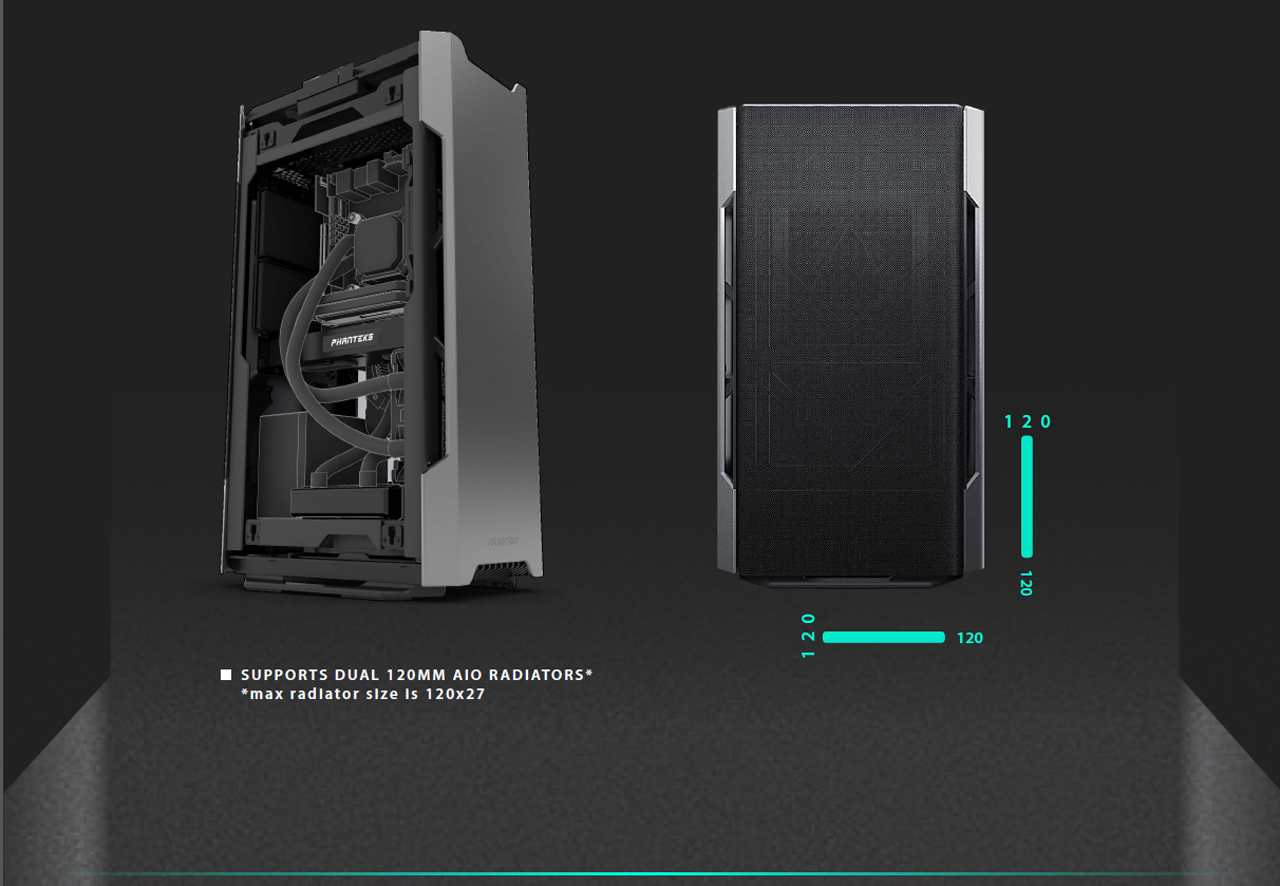

RADIATOR SUPPORT

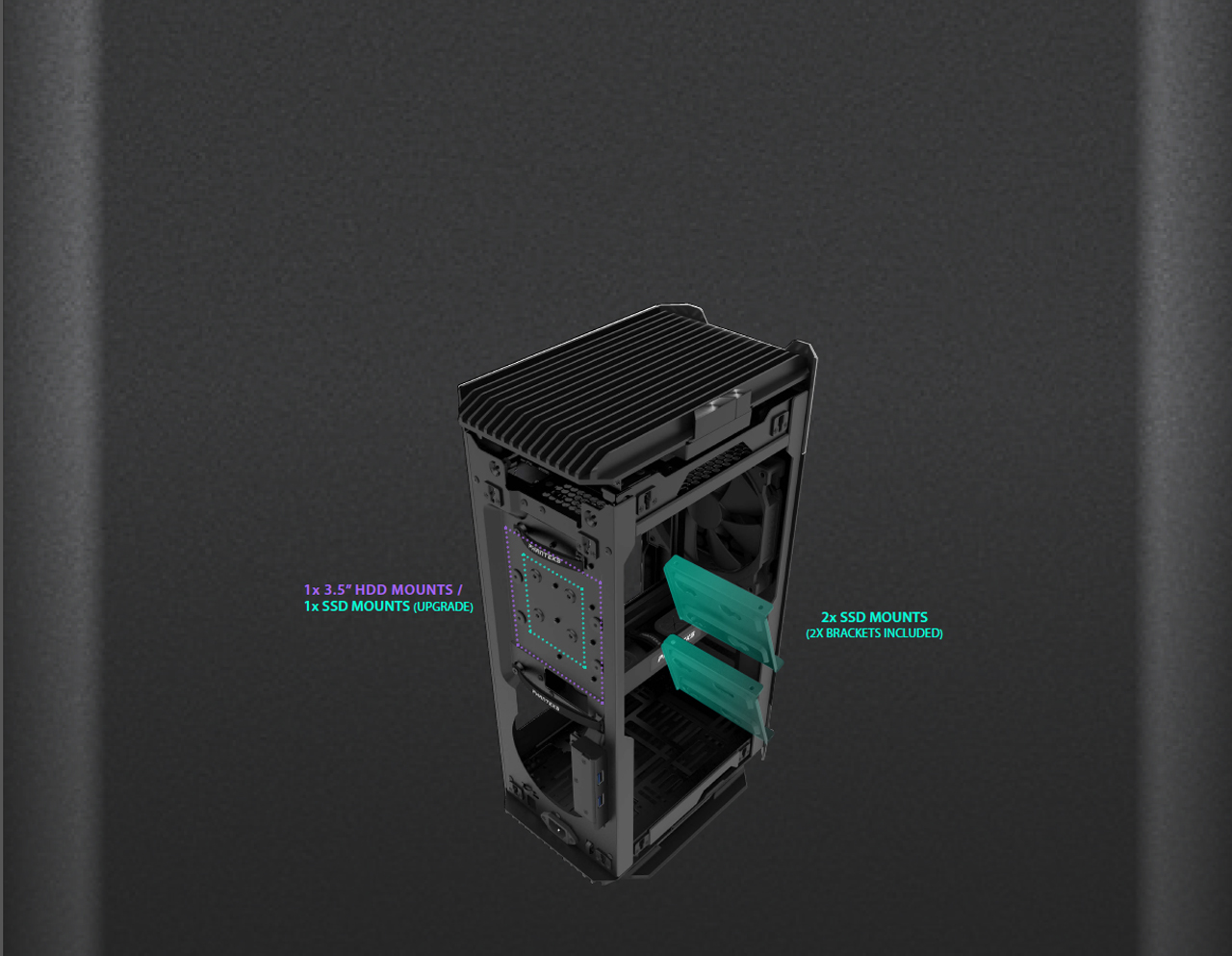

The Evolv Shift Air support multipe SSDs and a 3.5” HDD point out the installation location

STORAGE CAPACITY

The Evolv Shift Air chassis allows for multipe SSDs and a 3.5” HDD, providing a range of options.

Brand	Phanteks
Series	Enthoo Evolv Shift Air
Model	PH-ES217A_BK

Type	Mini-ITX Chassis
Color	Black
Case Material	Steel Chassis, Mesh Fabric Side panels, Anodized Aluminum panels
With Power Supply	No
Motherboard Compatibility	Mini ITX
Side Panel Window	Mesh Fabric side panels

Internal 3.5" Drive Bays	1
Internal 2.5" Drive Bays	2 (can be upgraded to 3 if no 3.5" is installed)
Expansion Slots	2

Fan Options	Front: 2 x 120mm / 140mm fan (1 x 140mm fan included) Bottom: 1 x 120mm / 140mm fan
Radiator Options	Front - Up to 120mm / Top - Up to 120mm

Max GPU Length	350 mm
Max CPU Cooler Height	82 mm
Max PSU Length	145 mm
Dimensions (H x W x D)	18.50" x 6.70" x 10.80"
Weight	11.02 lbs.
