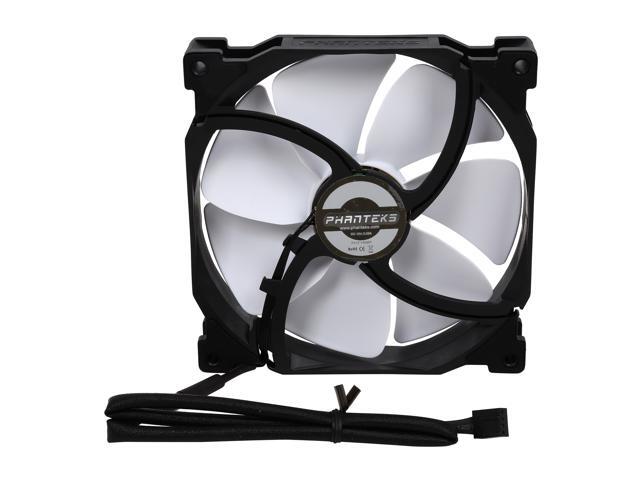

Phanteks PH-F140MP 140 mm PWM, High Static Pressure Radiator Fan

In stock.
Ships from China.
Most customers receive within 4-31 days.
  • 140 x 140 x 25 mm
  • 500 - 1600 ± 250 rpm 68.1 CFM
  • UFB (Updraft Floating Balance)
  • 17 - 25.3 dB(A)
Overview
Specs
Reviews

Phanteks 140mm Radiator Fan

The PH-F140MP - a premium 140mm high static pressure fan from Phanteks - is designed with the Maelström concept technology. The fans have PWM built-in, needing fewer cables, which allows users to make speed adjustments from 500 - 1600RPM. The PH-F140MP, a high static pressure fan, can have the ability to overcome the airflow restrictions caused by high fin density. The PH-F140MP produces high static air pressure allowing for a direct and focused airflow, making them ideal for the densely packed fins of a radiator. With the addition of the UFB Bearing, longer lifespan and improved stability are possible.

Phanteks PH-F140MP 140mm Radiator Fan
Maelström Vortex Booster (MVB) II

The new seven-blade high static pressure MVB IIs are precisely angled to generate a focused, controlled airflow. The blades produce a downdraft vortex, allowing greater amounts of air to pass through and reduces airflow turbulence across the surface of the blades. This creates significantly better performance and airflow while keeping noise to a minimum.

Acoustic Dampers

Eight pre-installed rubber pads are now bigger and designed to reduce more vibration.

Phanteks PH-F140MP 140mm Radiator Fan
Features

The PH-F140MP, a high static pressure fan, overcomes the airflow restrictions caused by high fin density. PH-F140MP produces high static air pressure allowing for a direct and focused airflow, making them ideal for the densely packed fins of a radiator.

The PH-F140MP has a larger base size with a magnetic, brushless DC motor to avoid the effects of resonance and improve rotational stability. To create better structural strength, Phanteks redesigned the back frame of the PH-F140MP. Phanteks fans now come with pre-installed rubber pads to help reduce vibration.

With the noise reduction challenges in mind, we modified a few things: the component for lower actuator noise, the PCBA for lower electromagnetic noise, brushless motor structure for lower operating noise, and frame rib for lower wind and vibration noise.

Phanteks PH-F140MP 140mm Radiator Fan
Updraft Floating Balance (UFB) Bearing

Composed by MOSS and SSC systems, Phanteks' UFB bearings have an effective hub-tip ratio to achieve a state of equilibrium, reducing air and vibration noise. SSC provides an increase in the bearing's lifespan and ensures that the fan's axis is consistently operational and quiet.

Warranty

Phanteks products are made to the highest standards and should provide many years of excellent service. Providing you with the best customer care, Phanteks offers a 5-year warranty.
