What are the dimensions of the PLANET GS-4210-48P4S switch?

The dimensions of the PLANET GS-4210-48P4S switch are 1.75 inches x 17.32 inches x 11.81 inches.

What is the power consumption of the PLANET GS-4210-48P4S switch?

The power consumption of the PLANET GS-4210-48P4S switch is 449.9 watts (max.)

$1,114^.99

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

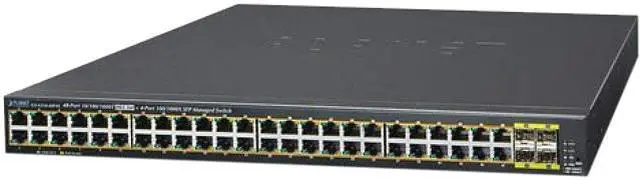

Main image of PLANET GS-4210-48P4S Managed 48-Port 10/100/1000T 802.3at PoE + 4-Port 100/1000BASE-X SFP Managed Switch

Shop All PLANET Products

PLANET GS-4210-48P4S Managed 48-Port 10/100/1000T 802.3at PoE + 4-Port 100/1000BASE-X SFP Managed Switch

Be the first to review this product...

16K MAC Address Table
Managed
PoE

Overview

Specs

Reviews

See all Q & A

IPv6/IPv4, 48-Port Managed 802.3at POE+ Gigabit Ethernet Switch + 4-Port 100/1000X SFP (400W) Managed 802.3at High Power PoE Switch

Model
Brand	PLANET
Model	GS-4210-48P4S

Format & Standards
Standards	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2
Network Management Type	Managed

Ports & Interface
Primary Ports	48 x 10/100/1000BASE-T Gigabit RJ45 copper ports with 48-port IEEE 802.3at / af PoE injector 4 x 100/1000BASE-X mini-GBIC / SFP slots

Data Transmission
MAC Address Table	16K
Switching Method	Store and Forward
VLAN Support	Yes
Jumbo Frames	10KB

Details
Security	IEEE 802.1X port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS / TACACS+ user access authentication IP-MAC port binding MAC filtering Static MAC address DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard
PoE	Yes
SNMP	Yes
QoS	Yes
LACP	Yes
Port Mirroring	Yes
LEDs	System: PWR (Power) (Green) SYS (System) (Green) FAN1 (Orange) FAN2&3 (Orange) 10/100/1000T RJ45 Interfaces (Port 1 to Port 48): 10/100/1000 Mbps, LNK / ACT (Green) PoE-in-Use (Orange) 100/1000 Mbps SFP Interfaces (Port 49 to Port 52): 1000 Mbps, LNK / ACT (Green) 100 Mbps, LNK / ACT (Orange)
Power	Power Requirements: 100~240V AC, 50/60 Hz, auto-sensing Power Consumption: 449.9 watts (max.) / 1534 BTU

Features
Features	Physical Port: 48 x 10/100/1000BASE-T Gigabit RJ45 copper ports with 48-port IEEE 802.3at/af PoE injector 4 x 100/1000BASE-X mini-GBIC / SFP slots Power over Ethernet: Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE Backward compatible with IEEE 802.3af Power over Ethernet Up to 48 ports of IEEE 802.3af / 802.3at devices powered Supports PoE power up to 36 watts for each PoE port Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters PoE management - Total PoE power budget control - Per port PoE function enable / disable - PoE port power feeding priority - Per PoE port power limitation - PD classification detection - PD alive-check - PoE schedule Layer 2 Features: Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High performance Store and Forward architecture, broadcast storm control, runt / CRC filtering that eliminates erroneous packets to optimize the network bandwidth Supports VLAN - IEEE 802.1Q tagged VLAN - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) - Protocol VLAN - Voice VLAN - Private VLAN - Management VLAN - GVRP Supports Spanning Tree Protocol - STP (Spanning Tree Protocol) - RSTP (Rapid Spanning Tree Protocol) - MSTP (Multiple Spanning Tree Protocol) - STP BPDU Guard, BPDU filtering and BPDU forwarding Supports Link Aggregation - IEEE 802.3ad Link Aggregation Control Protocol (LACP) - Cisco ether-channel (static trunk) Provides port mirror (many-to-1) Loop protection to avoid broadcast loops Quality of Service: Ingress and egress rate limit per port bandwidth control Storm control support - Broadcast / Unknown unicast / Unknown multicast Traffic classification - IEEE 802.1p CoS - TOS / DSCP / IP precedence of IPv4 / IPv6 packets Strict priority and Weighted Round Robin (WRR) CoS policies

Dimensions & Weight
Dimensions	1.75" x 17.32" x 11.81"
Weight	10.34 lbs.

Environmental
Temperature	Operating Temperature: 0 ~ 50 degree Celsius Storage Temperature: -20 ~ 70 degree Celsius
Humidity	5% - 95%, Non-condensing

Additional Information
First Listed on Newegg	December 28, 2018

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 886-2-2219-9518
Support Email: [email protected]
Support Website
