Backup and save files faster than ever before over USB, with read and write speeds of over 900 MB/s, when connected to a USB-C, Thunderbolt 3, or USB (10Gbps) port. Over 40% faster read speeds and over 200% faster write speeds than conventional USB 3.0 (5Gbps) SATA SSD enclosures and USB 3.0 (5Gbps) flash drives, make long wait times a thing of the past.
Our USB-C to NVMe SSD enclosure's innovative tool-free design allows the quick installation of an M.2 NVMe SSD in just a couple of seconds. Simply remove the aluminum cover using the locking latch at the back of the enclosure, then insert the SSD and secure with the flexible SSD retention peg, then reinstall the cover. The SSD retention peg can be moved to support multiple M.2 NVMe SSD form factors including: 2280, 2260, 2242, 2230.
- Compatible with M.2 NVMe SSDs
- Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices
- Older NVMe drives with less efficient flash media may not perform as well as newer drives
- New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the computer before they will be recognized in Windows Explorer or macOS Finder
- USB (10Gbps) port or USB-C (10Gbps) port is required for maximum performance
- USB 3.0 (5Gbps) compatible at up to 5Gbps speeds
- USB Standard-A, USB Type-C, compatible with Thunderbolt 3 ports as a USB-C (10Gbps) device
- Operating system compatibility: Windows, macOS, and Linux
- Performance may be limited based on the file system, source data files (when copying files) and system specifications
- NVMe SSDs removed from computers or formatted on one system may have OS-specific file systems that are not recognized by either Windows or macOS. We recommend exFat file systems for working with both Windows and macOS computers

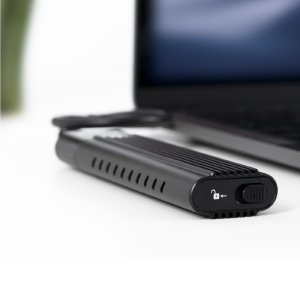

NVMe SSDs are high performance drives that get hot while reading and writing data. This enclosure features slots for airflow on either side of the SSD as well as extruded aluminum fins for heat dissipation. Even with these features some SSDs may still enter a reduced performance state as they heat up, especially when under heavy load. This is most common with older NVMe SSDs with less efficient flash storage.
Modern NVMe SSDs include built-in thermal protection and will slow down performance if they begin to get too hot. The threshold for this is generally above 60? C and closer to 70? C for many SSDs. Under heavy loads the enclosure can become hot to the touch, in our extended testing in a room temperature environment and allowing for the enclosure to passively dissipate heat, the samples did not reach temperatures above 50? C.
We love our Plugable products, and hope you will too. All of our products are backed with a 2-year limited parts and labor warranty as well as Seattle-based email support
Pros: - Compact - No tools required to install the SSD or open the enclosure - Sturdy - Lightweight
Cons: - Defective cables sent with the enclosure (performance reduced by a factor of 10) - It has hole patterns on the sides for heat dissipation. The holes are bigh enough to allow for small debris to get in the enclosure with could potentially affect the SSD. - related to the above, the contact of the SSD memory chips with the sliding lid of this enclosure is not great. The enclosure warms up, but it doesn't provide a great heat conduction to the fins on it.
Overall Review: - Still waiting for the distributor to contact me about the defective cables sent with the enclosure.
