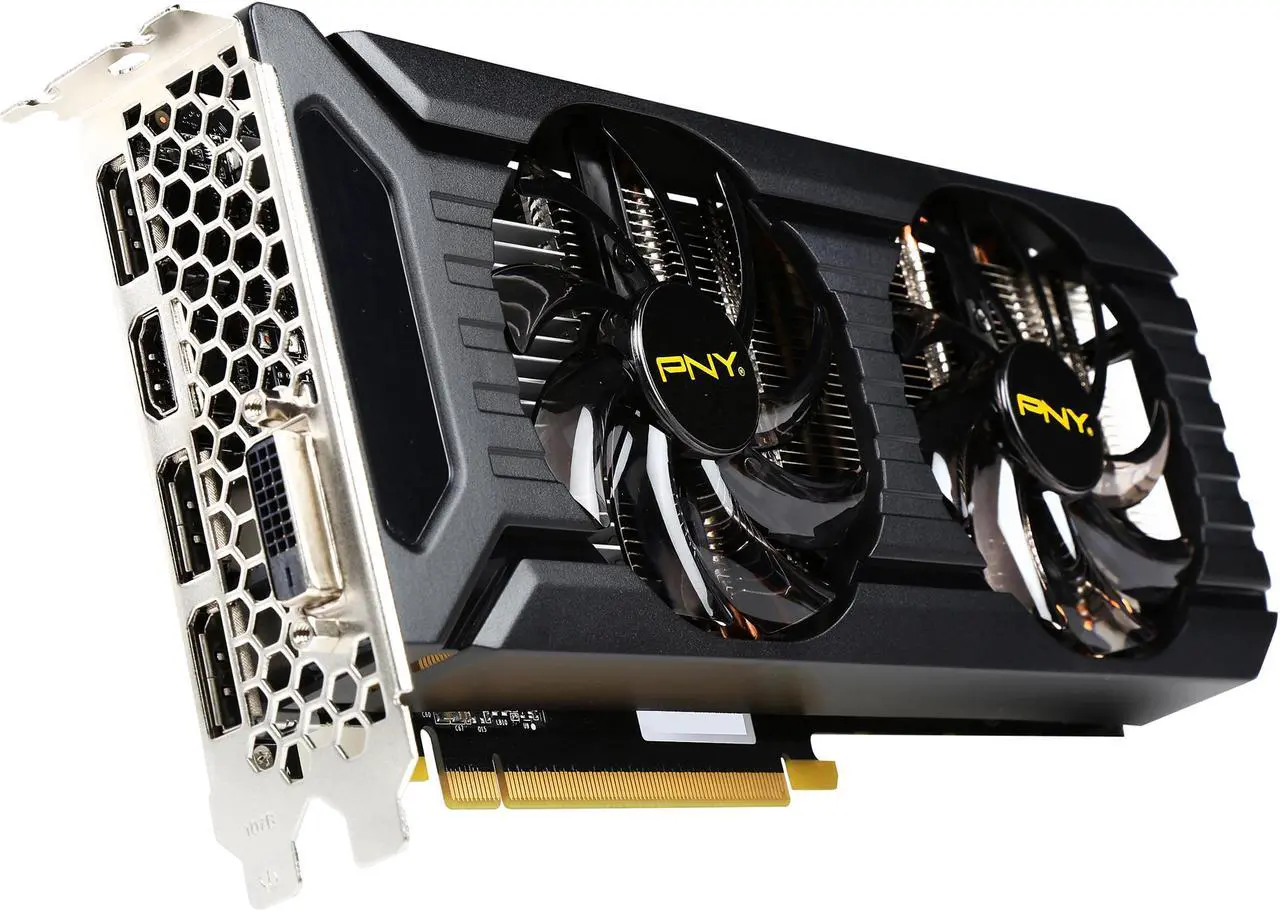

Learn more about the PNY Technologies, Inc. VCGGTX10603PB
Model| Brand | PNY |
|---|
| Model | VCGGTX10603PB |
|---|
Interface| Interface | PCI Express 3.0 x16 |
|---|
Chipset| Chipset Manufacturer | NVIDIA |
|---|
| GPU Series | NVIDIA GeForce GTX 10 Series |
|---|
| GPU | GeForce GTX 1060 |
|---|
| Core Clock | 1506 MHz |
|---|
| Boost Clock | 1708 MHz |
|---|
| CUDA Cores | 1152 Cores |
|---|
Memory| Memory Size | 3GB |
|---|
| Memory Interface | 192-Bit |
|---|
| Memory Type | GDDR5 |
|---|
3D API| DirectX | DirectX 12 |
|---|
| OpenGL | OpenGL 4.5 |
|---|
Ports| Multi-Monitor Support | 4 |
|---|
| HDMI | 1 x HDMI 2.0b |
|---|
| DisplayPort | 3 x DisplayPort 1.4 |
|---|
| DVI | 1 x DL-DVI |
|---|
Details| Max Resolution | 7680 x 4320 |
|---|
| Virtual Reality Ready | Yes |
|---|

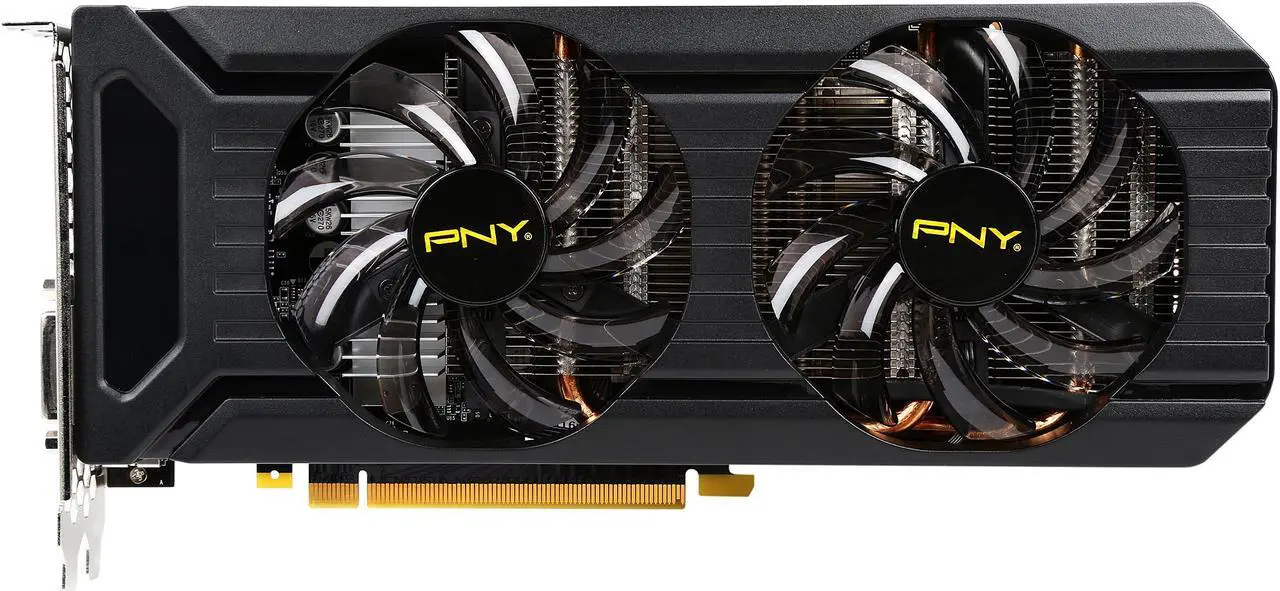

| Cooler | Double Fans |
|---|
| Thermal Design Power | 120W |
|---|
| System Requirements | PCI Express-compliant motherboard with one dual-width x16 graphics slot One 6-pin PCI Express supplementary power connectors Minimum 400W or greater system power supply* 300MB of available hard-disk space 2GB system memory (4GB or higher recommended) Windows 7-10, Linux, FreeBSDx86 DVD-ROM drive and Internet connection** TDP: 120W
*Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration. **Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install. |
|---|
| Power Connector | 6-Pin |
|---|
| Dual-Link DVI Supported | Yes |
|---|
Features| Features | VR Ready
Simultaneous Multi-Projection
NVIDIA Ansel Support
NVIDIA G-SYNC
NVIDIA GameStream
NVIDIA GPU Boost 3.0
Microsoft DirectX 12 Support
Vulkan API Support
Open GL 4.5 Support
PCI Express 3.0
Max Digital Resolution: 7680x4320@60Hz

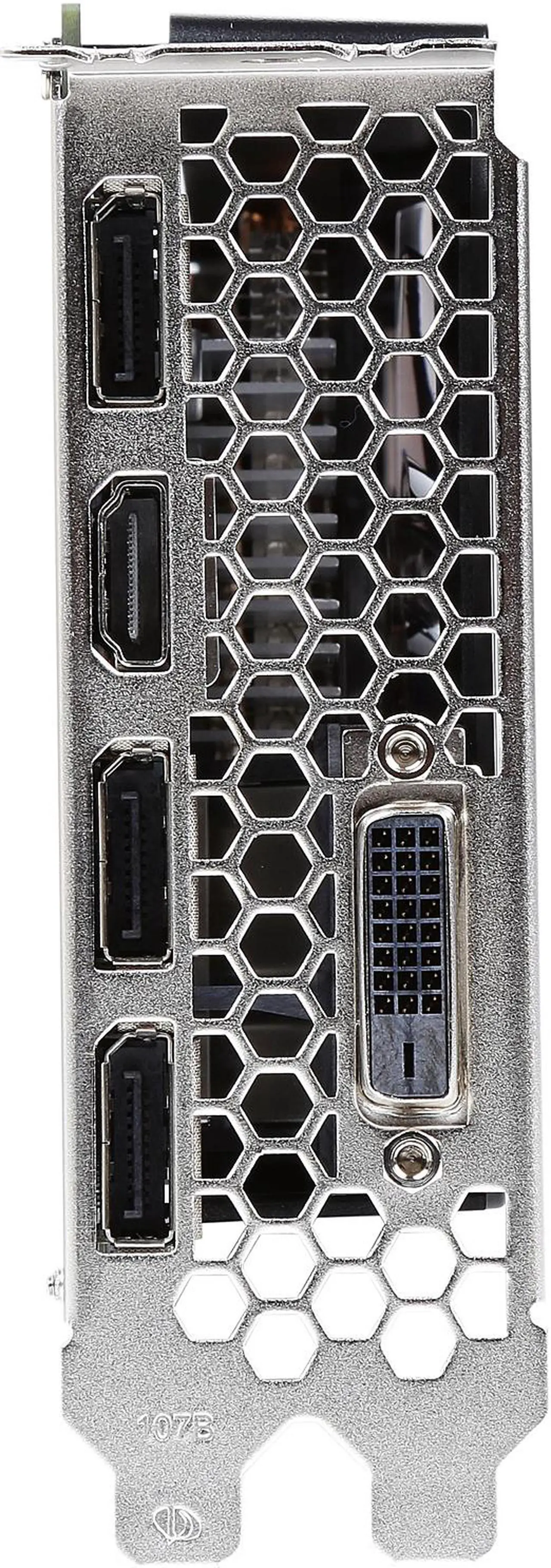

Display Connectors: - 3 x DisplayPort 1.4 - HDMI 2.0b - DL-DVI |
|---|
Form Factor & Dimensions| Max GPU Length | 252 mm |
|---|
| Card Dimensions (L x H) | 9.92" x 4.40" |
|---|
| Slot Width | 2 Slots |
|---|
Additional Information| Date First Available | October 07, 2024 |
|---|
