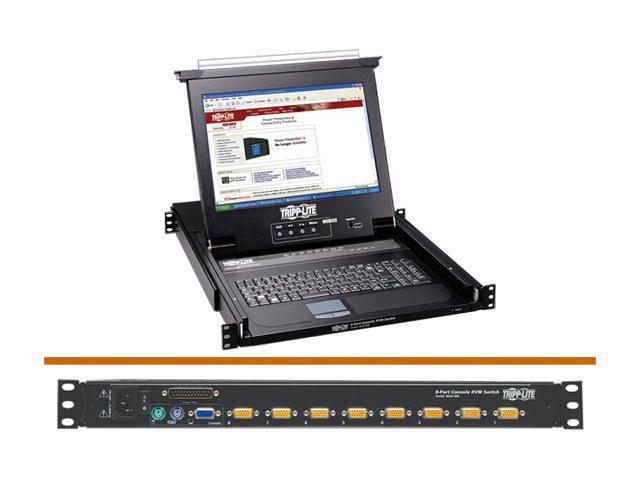

TRIPP LITE B020-008 8-Port NetDirector 1U Rackmount Console KVM Switch

Sold and Shipped by Newegg

8 Ports Computer Connections
1 Port Monitor Connections
Video Resolution 1024 x 768

Overview
Specifications
Warranty & Returns
Reviews
Q&A

Tripp Lite?s 8-port KVM Console Switch is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines an 8 port KVM switch, keyboard, 15" LCD monitor and touchpad - all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 504 computers from this single console by daisy-chaining additional 16 port KVM switches (model B022-016). Easily switch ports using the touchpad with On Screen Display (OSD) or by using the keyboard "hot key" functions. In addition to controlling PS/2 systems, you can also control Sun and USB systems when using the appropriate adapter. Works on all operating systems. Remember to order 1 #P774-006(6ft.), 1 #P774-010(10ft.) or 1 #P774-015(15ft.) per port.

Learn more about the Tripp Lite B020-008

Model

Brand: TRIPP LITE

Model: B020-008

Details

Type: D-Sub

Computer Connections: 8 Ports

Monitor Connections: 1 Port

Video Resolution: 1024 x 768

PC Selection: Hotkeys, OSD

Features

Features: Control multiple computers from one keyboard, mouse, and monitor
Combines an 8 port KVM switch, keyboard , 15" LCD monitor and touchpad in a 1U rack-mount drawer
Daisy-chain multiple 16 port KVM switches (Model B022-016) in order to control up to 504 computers
Does not require software or complicated set-up procedures
Select a port by using using the On Screen Display (OSD) and the touchpad or by using the keyboard "hot key" functions
Offers autoscan feature
Multi-level password security to ensure only authorized people have access to the connected computers
2 LEDs per port; one indicates when the computer is connected & on, the other indicates when the computer has been selected
PS/2,Sun and USB compatibility by connecting appropriate Tripp Lite cable kit
Flash upgradeable
Hot pluggable — add or remove computers without having to power down the switch
Auto-sensing of station position on daisy chained installations — no need for manual DIP switch setting — front panel LED indicates station position
Port names automatically reconfigured when station sequence is changed
Console detaches from the switch chassis for easy maintenance
15" LCD display supports high XGA resolutions of up to 1024 x 768 with 250cd/m(sq) brightness
