AQUANTIA® 10Gb/s BASE-T Ethernet
The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.
RULE YOUR OWN LIGHTING WAY — POLYCHROME RGB
Out and out performance isn't what the ASRock's motherboards are about. They're about being to offer adequate performance – especially visual experience. In addition to the built-in RGB illumination, it also features a pair of onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Plus, users may synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create customized lighting effects and themes uniquely.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Full Coverage M.2 Heatsink
A massive full coverage M.2 heatsink can support up to Type 22110 M.2 devices, it is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.
CREATIVE SOUND BLASTER™ CINEMA5
A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. 7.1 CH HD audio with Realtek ALC1220 audio codec that brings a truly immersive audio experience up to 120dB SNR.

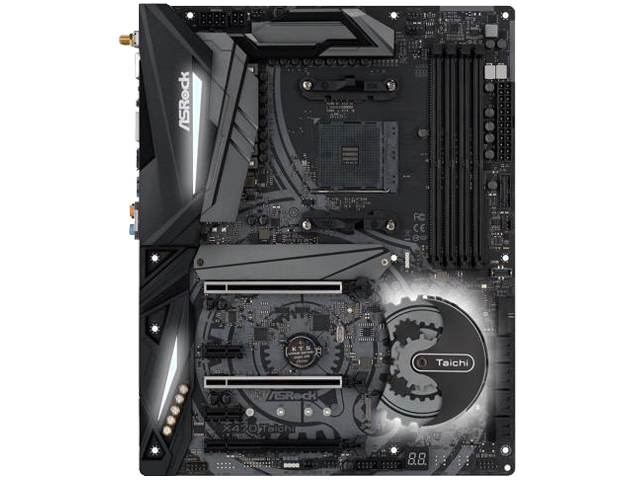

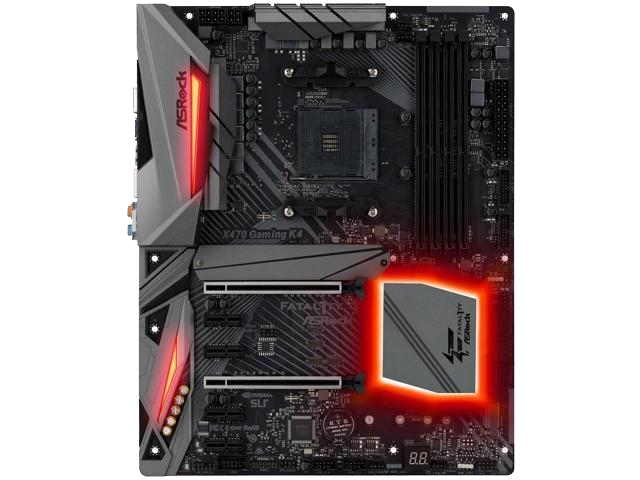

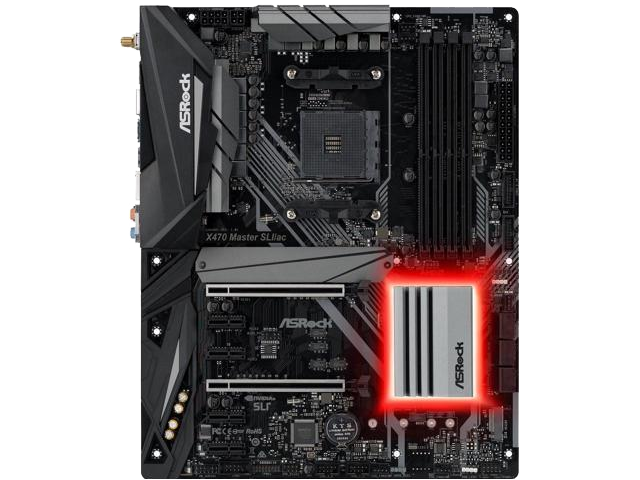

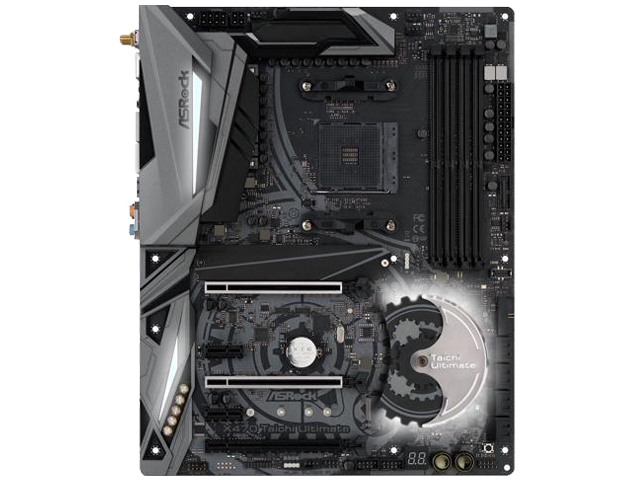

  X470 Taichi Ultimate X470 Taichi Fatal1ty X470 Gaming K4 X470 Master SLI/ac
CPU Support Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
Chipset AMD X470 Chipset
Form Factor ATX
PWR 16, Supports 300W EX OC 16, Supports 300W EX OC 12
12
Caps 12K Black Caps 12K Black Caps 12K Black Caps 12K Black Caps
DIMM 4 4 4 4
PCIe x16 3 (x16/x8/x4) 3 (x16/x8/x4) 2 (x16/x8) 2 (x16/x8)
PCIe x1 2 2 4 4
SLI&CFX 2-Way SLI & 3-Way CFX 2-Way SLI & 3-Way CFX 2-Way SLI & CFX 2-Way SLI & CFX

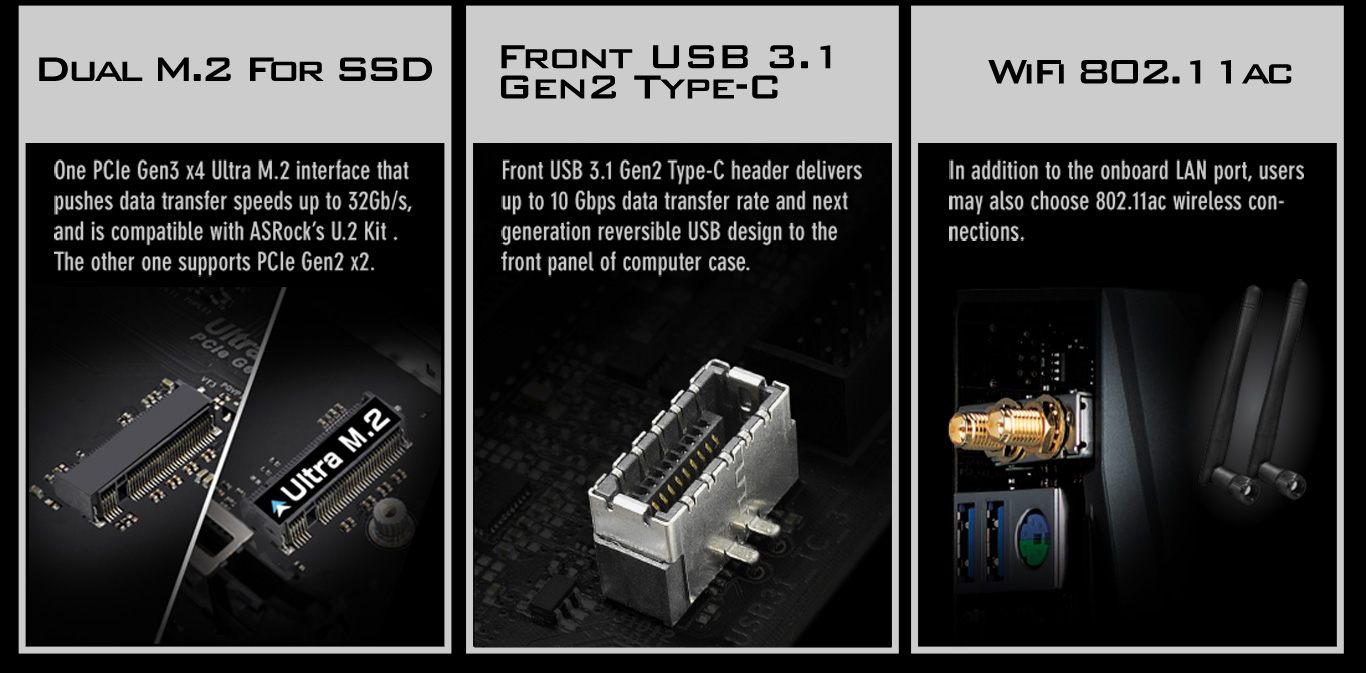

M.2(SSD & WiFi) 3 (2 SSD, 1 WiFi Key E)
(1st = PCIe Gen3 x4 & SATA,
2nd = Gen2 x4 & SATA)
3 (2 SSD, 1 WiFi Key E)
(1st = PCIe Gen3 x4 & SATA,
2nd = Gen2 x4 & SATA)
2 (2 SSD)
(1st = PCIe Gen3 x4 & SATA,
2nd = Gen2 x2 & SATA)
3 (2 SSD, 1 WiFi Key E)
(1st = PCIe Gen3 x4 & SATA,
2nd = Gen2 x2 & SATA)
Onboard Graphic Output HDMI HDMI HDMI HDMI
SATA3 8 8 6 6
USB USB 3.1 Gen2 (1 Front Type-C, 1 Rear Type-A, 1 Rear Type-C)
USB 3.1 Gen1 (4 Front, 6 Rear)
USB 2.0 (4 Front)
USB 3.1 Gen2 (1 Front Type-C, 1 Rear Type-A, 1 Rear Type-C)
USB 3.1 Gen1 (4 Front, 6 Rear)
USB 2.0 (4 Front)
USB 3.1 Gen2 (1 Rear Type-A, 1 Rear Type-C)
USB 3.1 Gen1 (4 Front, 6 Rear)
USB 2.0 (5 Front)
USB 3.1 Gen2 (1 Rear Type-A, 1 Rear Type-C)
USB 3.1 Gen1 (4 Front, 6 Rear)
USB 2.0 (5 Front)
LAN 10Gb LAN
Intel Gigabit LAN
Intel Gigabit LAN Intel Gigabit LAN Intel Gigabit LAN
WiFi 802.11ac 802.11ac N/A 802.11ac
Audio Realtek 1220 + Purity Sound4 + DTS Connect Realtek 1220 + Purity Sound4 + DTS Connect Realtek 1220 + Creative Sound Blaster Cinema 5  Realtek 892 + Nichicon Audio
 LED Onboard + 2 Headers (2*12V Headers, 1*5V Header) Onboard + 2 Headers (2*12V Headers, 1*5V Header) Onboard + 2 Headers (2*12V Headers, 1*5V Header) Onboard + 2 Headers (2*12V Headers, 1*5V Header)
