Don't let Ryzen down. Choose from MSI's selection of X570 motherboards, all built for high-performance workloads including content creation and gaming. Sustain the incredible power of a multi-core Ryzen processor with an MSI motherboard designed with abundant connectivity, aggressive cooling, and performance-optimized circuitry.
ENHANCED COOLING SYSTEM
EXTENDED HEATPIPE
A heatpipe redistributes heat across all the heatsinks for expanded thermal dissipation.*
EXTENDED HEATSINK
Heatsinks on top of the power delivery circuits help to dissipate excessive heat. Extended heatsinks have even more surface area for more thermal dissipation.*

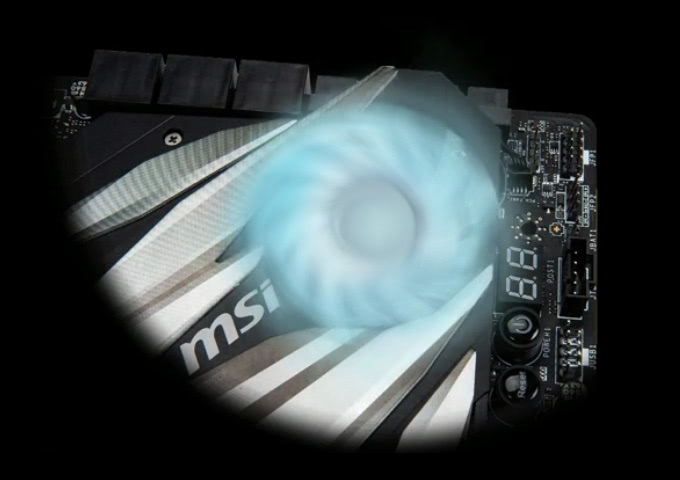

FROZR HEATSINK DESIGN
When it comes to high-performance motherboards, controlling heat is essential. The X570 chipset, with its PCI-e Gen 4 capabilities, is actively cooled to sustain massive data bandwidth.
- Propeller Blade Technology
- Double Ball Bearings
- Zero Frozr & Smart Fan Control
M.2 SHIELD FROZR
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR. Prevent SSD thermal throttling with a double-sided thermal design that includes a heatsink that extends across the motherboard.
- Prevents Throttling
- Maximizes Drive Performance
*Feature availability limited to certain models.
LIGHTNING FAST CONNECTIVITY
LIGHTNING GEN 4 PCI-e
Strike fast with MSI Lightning Gen 4 PCI-e**, the newest and quickest PCI-e standard to come to motherboards. Attach ultra-fast PCI-e 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth, double the bandwidth compared to the previous generation.
LIGHTNING GEN 4 M.2
Pair an MSI X570 motherboard with a 3rd Gen Ryzen processor and unleash Lightning Gen 4 M.2 for ultra-fast NVMe SSDs.
** PCI-e 4.0 requires the use of a 3rd Gen AMD Ryzen™ Desktop Processor. PCI-e slots and M.2 slots will operate at PCI-e 3.0 bandwidth when using a 2nd Gen AMD Ryzen™ Desktop Processor or a Ryzen™ with Radeon™ Vega Graphics.
PERFORMANCE DESIGN ENHANCEMENTS
CORE BOOST
Core Boost is the latest advancement of MSI's motherboard CPU power delivery system. A reserved zone of premium power delivery components on an optimized circuit design results in a highly efficient power system capable of precise current output to the CPU.
DDR4 BOOST
Get more out of high-performance RAM with DDR4 Boost. The memory circuit design has been optimized for short and fast transmission on a reserved section of the motherboard fully isolated from any other circuit.

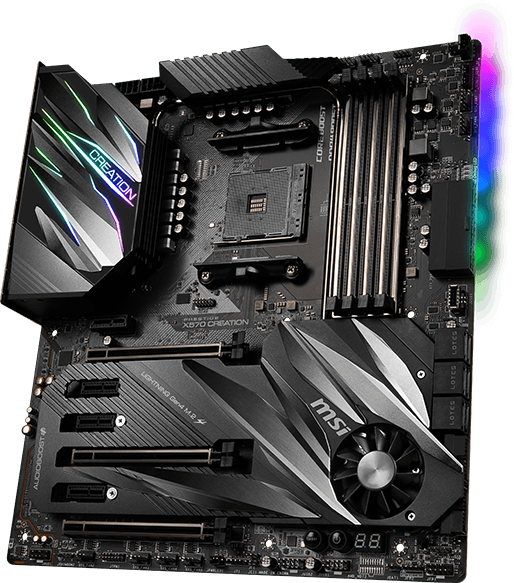

 PRESTIGE X570 CREATION |
 MEG X570 GODLIKE |

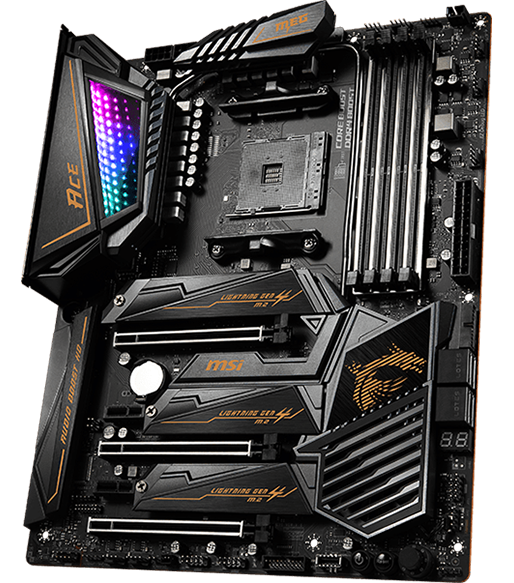

 MEG X570 ACE |
|
| CPU Support | Supports 2nd and 3rd Gen AMD Ryzen™/Ryzen™ with Radeon™ Vega Graphics Desktop Processors for AM4 Socket | Supports 2nd and 3rd Gen AMD Ryzen™/Ryzen™ with Radeon™ Vega Graphics Desktop Processors for AM4 Socket | Supports 2nd and 3rd Gen AMD Ryzen™/Ryzen™ with Radeon™ Vega Graphics Desktop Processors for AM4 Socket |
| CPU Socket | AM4 | AM4 | AM4 |
| DIMMs | 4x DDR4 Memory Slots, Dual Channel, Supports Up to 128GB Total | 4x DDR4 Memory Slots, Dual Channel, Supports Up to 128GB Total | 4x DDR4 memory Slots, Dual Channel, Supports Up to 128GB Total |
| PCI x16 | 3x PCI-e 4.0 x16 Slots**, Supports 2-Way SLI / 3-Way Crossfire | 4x PCI-e 4.0 x16 Slots**, Supports 2-Way SLI / 4-Way Crossfire | 3x PCI-e 4.0 x16 Slots**, Supports 2-Way SLI / 3-Way Crossfire |
| PCI x1 | 4x PCI-e 4.0 x1 Slots** | n/a | 2x PCI-e 4.0 x1 Slots** |
| SATA | 6x SATA 6Gb/s | 6x SATA 6Gb/s | 4x SATA 6Gb/s |
| M.2 | 2x M.2, PCI-e 4.0**, and SATA 6Gb/s Standards Supported | 3x M.2, PCI-e 4.0**, and SATA 6Gb/s Standards Supported | 3x M.2, PCI-e 4.0**, and SATA 6Gb/s Standards Supported |
| Ethernet LAN | 1x Aquantia 10G LAN 1x INTEL Gigabit LAN |
1x Killer 2.5Gbps LAN 1x Killer Gigabit LAN |
1x REALTEK 2.5G LAN 1x INTEL Gigabit LAN |
| Wi-Fi | Intel Wi-Fi 6 | Killer Wi-Fi 6 | Intel Wi-Fi 6 |
| USB 3.2 (Rear) | 1x USB 3.2 Gen 2 Type A Port 1x USB 3.2 Gen 2 Type C Port 10x USB 3.2 Gen 1 Ports |
3x USB 3.2 Gen 2 Type A Ports 1x USB 3.2 Gen 2 Type C Port 2x USB 3.2 Gen 1 Ports |
3x USB 3.2 Gen 2 Type A Ports 1x USB 3.2 Gen 2 Type C Port 2x USB 3.2 Gen 1 Ports |
| USB 2.0 (Rear) | 2x USB 2.0 Ports | n/a | 2x USB 2.0 Ports |
| USB 3.2 (Internal) | 2x USB 3.2 Gen 1 Connectors (Supports Additional 4 USB 3.2 Gen 1 Ports) | 1x USB 3.2 Gen 2 Type-C Port 2x USB 3.2 Gen 1 Connectors (Supports Additional 4 USB 3.2 Gen 1 Ports) |
1x USB 3.2 Gen 2 Type-C Port 2x USB 3.2 Gen 1 Connectors (Supports Additional 4 USB 3.2 Gen 1 Ports) |
| USB 2.0 (Internal) | 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports) | 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports) | 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports) |
| Audio Processor | Realtek® ALC1220, 7.1-Channel High-Definition Audio | Dual Realtek® ALC1220 & ESS® ES9018 Codec, 7.1-Channel High-Definition Audio | Realtek® ALC1220, 7.1-Channel High-Definition Audio |
| Rear Connectors | 5x 3.5mm Audio Jacks 1x Optical S/PDIF OUT Connector |
5x 3.5mm Audio Jacks 1x 6.3mm Golden Headphone Out 1x Optical S/PDIF OUT Connector |
5x 3.5mm Audio Jacks 1x Optical S/PDIF OUT Connector |

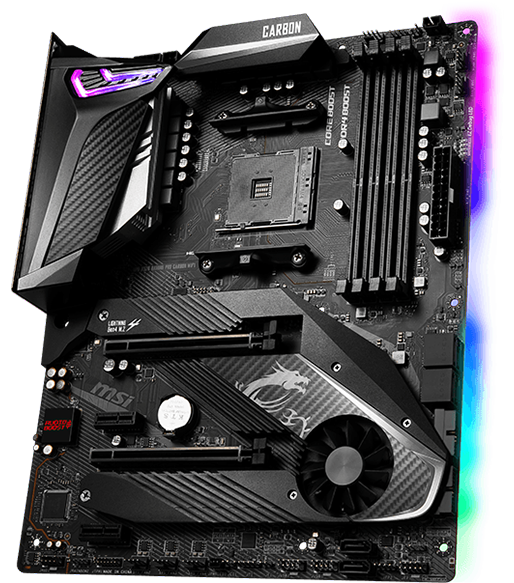

 MPG X570 GAMING PRO CARBON WIFI |

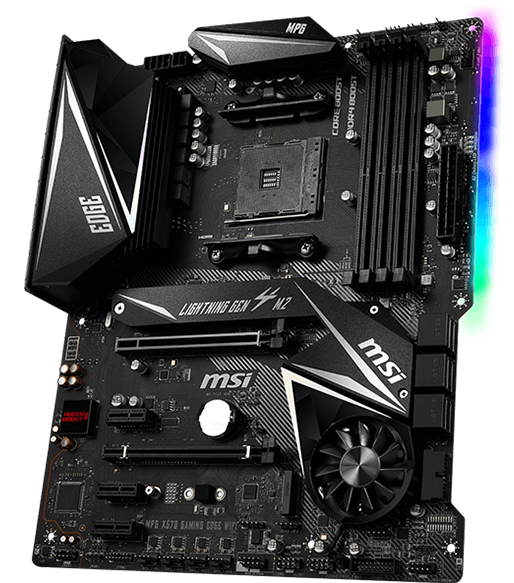

 MPG X570 GAMING EDGE WIFI |

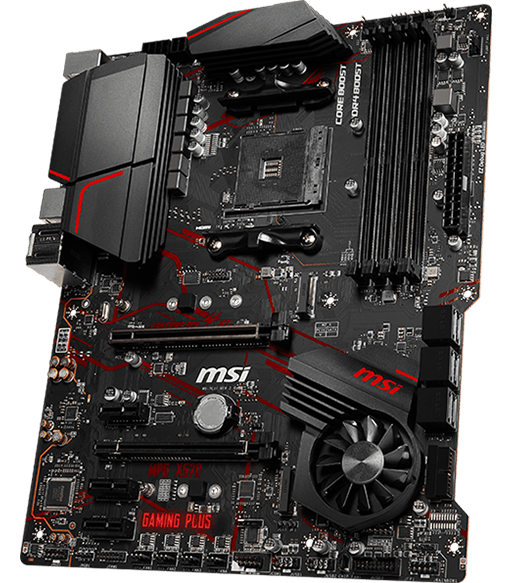

 MPG X570 GAMING PLUS |
|
| CPU Support | Supports 2nd and 3rd Gen AMD Ryzen™/Ryzen™ with Radeon™ Vega Graphics Desktop Processors for AM4 Socket | Supports 2nd and 3rd Gen AMD Ryzen™/Ryzen™ with Radeon™ Vega Graphics Desktop Processors for AM4 Socket | Supports 2nd and 3rd Gen AMD Ryzen™/Ryzen™ with Radeon™ Vega Graphics Desktop Processors for AM4 Socket |
| CPU Socket | AM4 | AM4 | AM4 |
| DIMMs | 4x DDR4 Memory Slots, Dual Channel, Supports Up to 128GB Total | 4x DDR4 Memory Slots, Dual Channel, Supports Up to 128GB Total | 4x DDR4 Memory Slots, Dual Channel, Supports Up to 128GB Total |
| PCI x16 | 2x PCI-e 4.0 x16 Slots**, Supports 2-Way SLI / 2-Way Crossfire | 2x PCI-e 4.0 x16 Slots**, Supports 2-Way SLI / 2-Way Crossfire | 2x PCI-e 4.0 x16 Slots**, Supports 2-Way SLI / 2-Way Crossfire |
| PCI x1 | 2x PCI-e 4.0 x1 Slots** | 3x PCI-e 4.0 x1 Slots** | 3x PCI-e 4.0 x1 Slots** |
| SATA | 6x SATA 6Gb/s | 6x SATA 6Gb/s | 6x SATA 6Gb/s |
| M.2 | 2x M.2, PCI-e 4.0** and SATA 6Gb/s Standards Supported | 2x M.2, PCI-e 4.0** and SATA 6Gb/s Standards Supported | 2x M.2, PCI-e 4.0** and SATA 6Gb/s Standards Supported |
| Ethernet LAN | 1x INTEL Gigabit LAN | 1x Realtek Gigabit LAN | 1x Realtek Gigabit LAN |
| Wi-Fi | Intel Wi-Fi 6 | Intel Wi-Fi 802.11 AC | n/a |
| USB 3.2 (Rear) | 3x USB 3.2 Gen 2 Type A Port 1x USB 3.2 Gen 2 Type C Port 2x USB 3.2 Gen 1 Ports |
3x USB 3.2 Gen 2 Type A Ports 1x USB 3.2 Gen 2 Type C Port 2x USB 3.2 Gen 1 Ports |
3x USB 3.2 Gen 2 Type A Ports 1x USB 3.2 Gen 2 Type C Port 2x USB 3.2 Gen 1 Ports |
| USB 2.0 (Rear) | 2x USB 2.0 Ports | 2x USB 2.0 Ports | 2x USB 2.0 Ports |
| USB 3.2 (Internal) | 2x USB 3.2 Gen 1 Connectors (Supports Additional 4 USB 3.2 Gen 1 Ports) | 2x USB 3.2 Gen 1 Connectors (Supports Additional 4 USB 3.2 Gen 1 Ports) | 2x USB 3.2 Gen 1 Connectors (Supports Additional 4 USB 3.2 Gen 1 Ports) |
| USB 2.0 (Internal) | 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports) | 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports) | 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports) |
| Audio Processor | Realtek® ALC1220, 7.1-Channel High-Definition Audio | Realtek® ALC1220, 7.1-Channel High-Definition Audio | Realtek® ALC1220, 7.1-Channel High-Definition Audio |
| Rear Connectors | 5x 3.5mm Audio Jacks 1x Optical S/PDIF OUT Connector |
5x 3.5mm Audio Jacks 1x Optical S/PDIF OUT Connector |
5x 3.5mm Audio Jacks 1x Optical S/PDIF OUT Connector |
| Display | 1x HDMI (Requires Processor Graphics) | 1x HDMI (Requires Processor Graphics) | 1x HDMI (Requires Processor Graphics) |
** PCI-e 4.0 requires the use of a 3rd Gen AMD Ryzen™ Desktop Processor. PCI-e slots and M.2 slots will operate at PCI-e 3.0 bandwidth when using a 2nd Gen AMD Ryzen™ Desktop Processor or a Ryzen™ with Radeon ™ Vega Graphics.
