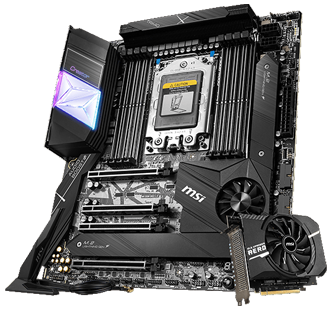

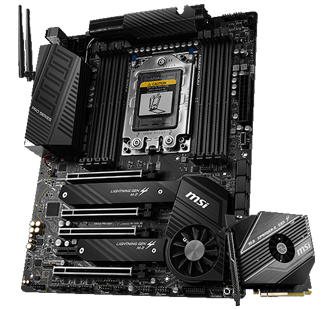

| Creator TRX40 | TRX40 PRO WIFI | TRX40 PRO 10G | |
| CPU Support | Supports 3rd Gen AMD Ryzen Threadripper Desktop Processors | ||
| Memory | 8 DIMMs, Quad Channel, DDR-4666MHz (OC) | 8 DIMMs, Quad Channel, DDR-4666MHz (OC) | 8 DIMMs, Quad Channel, DDR-4666MHz (OC) |
| PCIe x16 Slots | 4x PCIe 4.0 x16 slots, Supports 3-Way SLI / 3-Way Crossfire | 4x PCIe 4.0 x16 slots, Supports 3-Way SLI / 3-Way Crossfire | 4x PCIe 4.0 x16 slots, Supports 3-Way SLI / 3-Way Crossfire |
| Graphics | N/A | N/A | N/A |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost 4 | 8-Channel (7.1) HD Audio with Audio Boost 4 | 8-Channel (7.1) HD Audio with Audio Boost 4 |
| 32Gb/s M.2 | 3 x Lightning Gen 4 M.2 slots | 2 x Lightning Gen 4 M.2 slots | 2 x Lightning Gen 4 M.2 slots |
| SATA | 6 x SATA 6Gb/s | 8 x SATA 6Gb/s | 8 x SATA 6Gb/s |
| Wi-Fi | Intel Wi-Fi 6 AX200 | Intel Wi-Fi 6 AX200 | N/A |
| LAN | Aquantia AQC107 10-Gigabit LAN + Intel I211AT Gigabit LAN | 2 x Intel I211AT Gigabit LAN | 2 x Intel I211AT Gigabit LAN |
| USB | 1 x USB 3.2 Gen 2 x2 20G (Type-C), 6 x USB 3.2 Gen 2 (5A + 1C), 8 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A) | 1 x USB 3.2 Gen 2 x2 20G (Type-C), 4 x USB 3.2 Gen 2 (3A + 1C), 8 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A) | 1 x USB 3.2 Gen 2 x2 20G (Type-C), 4 x USB 3.2 Gen 2 (3A + 1C), 8 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A) |
| Form Factor | EATX | ATX | ATX |
| View Details | View Details | View Details | |

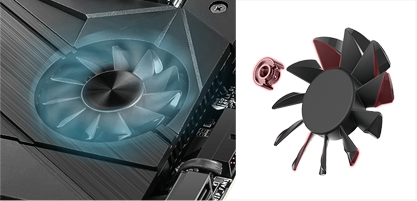

Frozr Heatsink
FROZR Heatsink actively cools the chipset with a patented fan design with Propeller Blade Technology, built for low-noise efficiency and long lasting durability.
• Propeller Blade Technology
• Double Ball Bearings
• Zero Frozr & Smart Fan Control

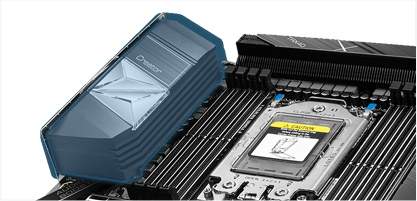

Extended Heatsink and Heat-pipe
An all-metal aluminum extended heatsink cover and heat-pipe design enlarges the heat dissipation surface allowing the CPU power system to reliably drive multi-core processors.

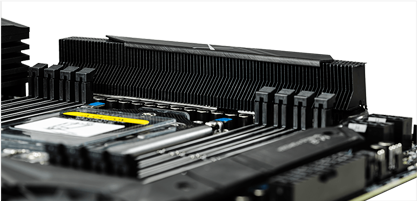

Stacked Fin Array
The Stacked Fin Array maximizes the heat dissipation surface and improves heat conducting efficiency for sustained high power loads.
Lightning Gen 4 PCIe
Strike fast with MSI Lightning Gen 4 PCIe. Attach ultra-fast PCie 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth. Backward and forward compatibility guarantees even functionality with older devices.
Lightning Gen 4 M.2 with M.2 Shield Frozr
The world's fastest SSDs can slow down when they get too hot. M.2 SHIELD FROZR extends the motherboard's heatsink over attached M.2 SSDs to prevent thermal throttling and sustain maximum performance.

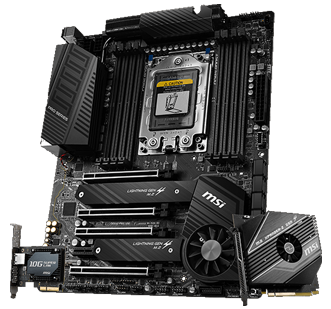

10G Super LAN
10G SUPER LAN supports high-bandwidth, high-density and low-latency networks. Quickly transfer 4K video, raw images, and other large files across a LAN network.
Wi-Fi 6 AX Solution
Connect to a high-speed WIFI 6 network with onboard Intel® Wi-Fi 6. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4Gbps even with dense signal interference in the environment.
